1Working Voltage: 220VAC 10A 50HzAC/DC Universal TypeAC/DC 12VandAC/DC 24VandAC/DC36VandAC/DC48VandAC/DC60VOther voltages need to be customized, please specify the voltage when placing an order. If the voltage is not specified, the default shipment will be made.AC220V。
2Load Power: ≤1000W, Energy-saving lamp, fluorescent lamp, exhaust fan≤400W
Outline:

AS-10PIR" (Passive Infrared Sensor) 传感器和一只光电开关组成。当传感器检测到人体红外热辐射时，光电开关就会自动打开或关闭，从而实现路灯的自动开关。这种路灯自动开关具有节能、安全、方便等特点，广泛应用于家庭、办公室、工厂、商场等场所。CDsThe device is composed of photoresistors and integrated circuits. At dusk and dawn, it can automatically control the on and off of street lamps according to the changes in natural light, thereby achieving the purpose of automatic control of street lamps and saving energy. It can be conveniently installed on wood, metal, and concrete poles with supports, and it can work in any weather conditions. Due to its novel design, reliable installation, small volume, light weight, convenient installation, long service life, and low price, it is widely used in street lamps, highways, factories, gardens, ports, airports, farms, parks, schools, and other places.

Features:

1The device is equipped with an automatic illumination detection circuit that turns off during the day and turns on at night.

2Adopts a three-wire system, compatible with resistive, inductive, and capacitive loads.

3Control objects can beLEDLamps, street lamps, energy-saving lamps, fluorescent lamps, exhaust fan lights, etc.

Installation Notes:

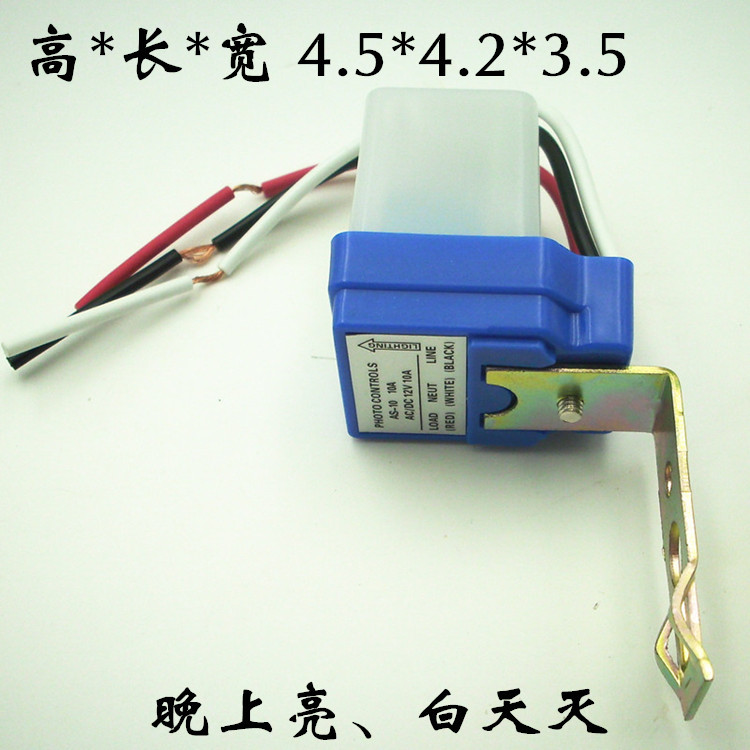

1AC power connection method, the black and white wires of the photocontrol switch are connected to the input power source, and the white and red wires are connected to the load device.

2DC Power Connection, Light Sensor Black Wire Connects to Input-Anode, white wire connected to the input.plusAnode, white wire connected to the load device.plusPositive terminal, red wire connected to the load device.-Anode.

3During the day, when testing on/off, please use an opaque object to cover the switch, and the switch will light up and function normally.

4Please note that this device should not be installed in a place that is particularly dark during the day. Please install this device above the light, and do not install it directly under the light, as it will cause continuous switching action.
