Attention:

1: Network matching: Short press 3 times within 1 second (any key), then hold down for 5 seconds, and the indicator light will flash to enter the matching network.
2: Short press: Turn on/off the light/curtain
3: Double-click: Switching mode dimming/color adjusting
4: Support for Zigbee smart light with adjustable brightness
5: Support for Zigbee Smart Drapes with Graffiti
6: Uses core chip imported from the United States, ultra-long-distance control, open space distance of 20 meters
7: Low-power design, ultra-long standby time.
8:00 Y seconds, automatically enter the sleep mode.
9:0-1000 Infinite Dimmer
10: Button cell battery 3V (CR2450)
11: Supports offline local gateway control without a network
12: Left rotation: dim/open curtains; Right rotation: bright/close curtains
13: Gross weight: 413g; Horse's hoof base gross weight: 302g
14: Pressing the buttons in the sequence: The 12 o'clock direction is the 1st key, and the sequence continues clockwise (attached picture).

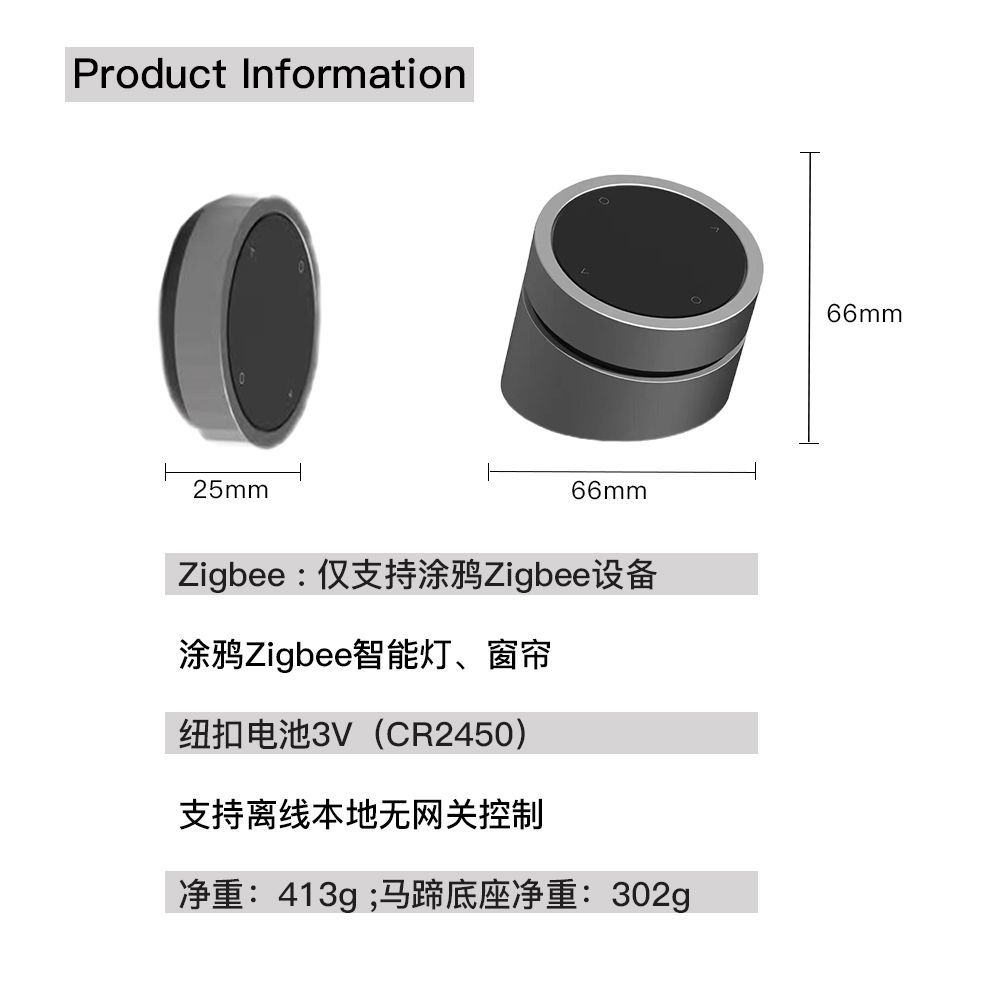

15: AG skin-touch glass surface
16: Diameter 66mm, Height 66mm
