Roll width: 108mm

Roll diameter: F75mm

Dimensions: 42×32×35 cm (length×width×height)

Machine weight: 30 kilograms

Production: 50KG/hour

Instructions:

First, the sugar cane is peeled off the roots, the top, and the skin before it can be pressed.

If the diameter of the sugar cane is over 30 millimeters, it needs to be broken in half to press, to avoid overloading and stopping the juice extractor.

If a heavy load is encountered during the pressing process, the electric motor should be immediately turned off, and the belt should be manually pulled to reverse the rollers, allowing the sugar cane to be ejected. For the manual type, simply reverse the direction of the shaking to eject the cane.

After the 4th pressing, it should be washed in time to remove the adhesives on the juice box to maintain cleanliness and avoid adhesives.

5. Gear transmission, apply sufficient grease once a week.

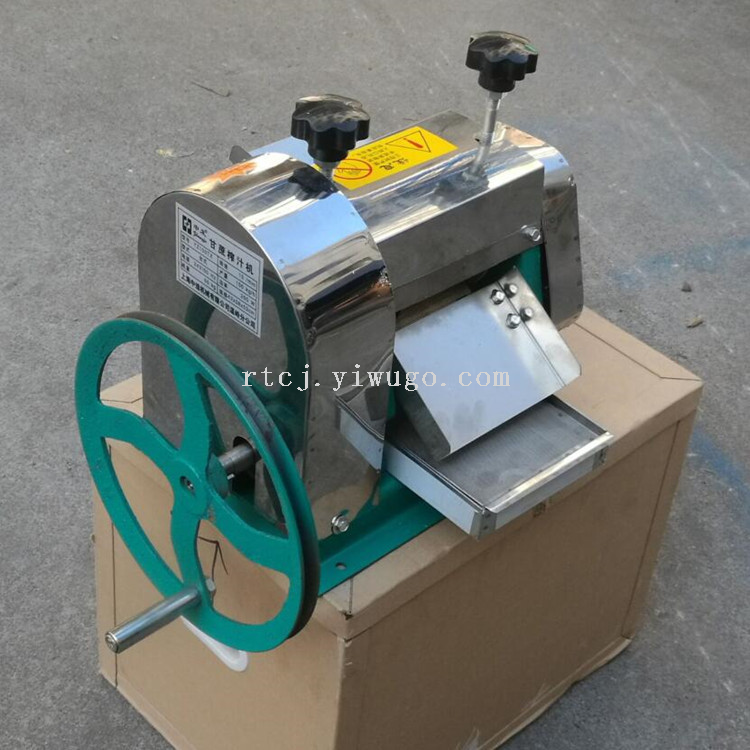

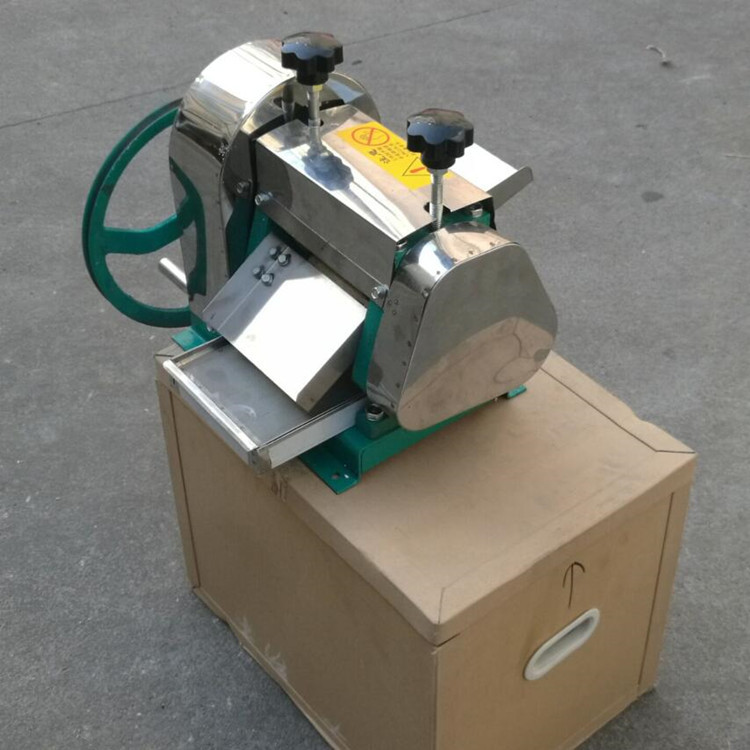

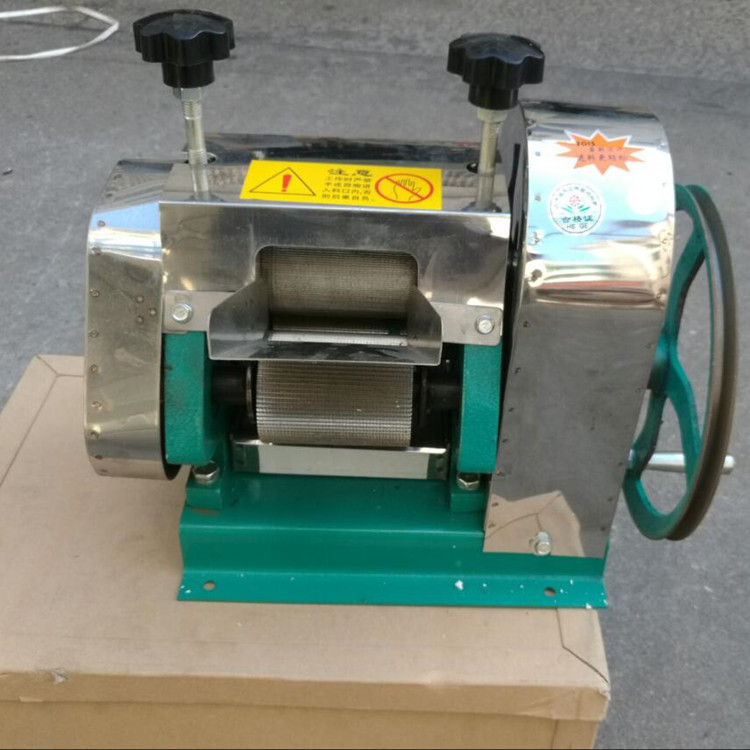

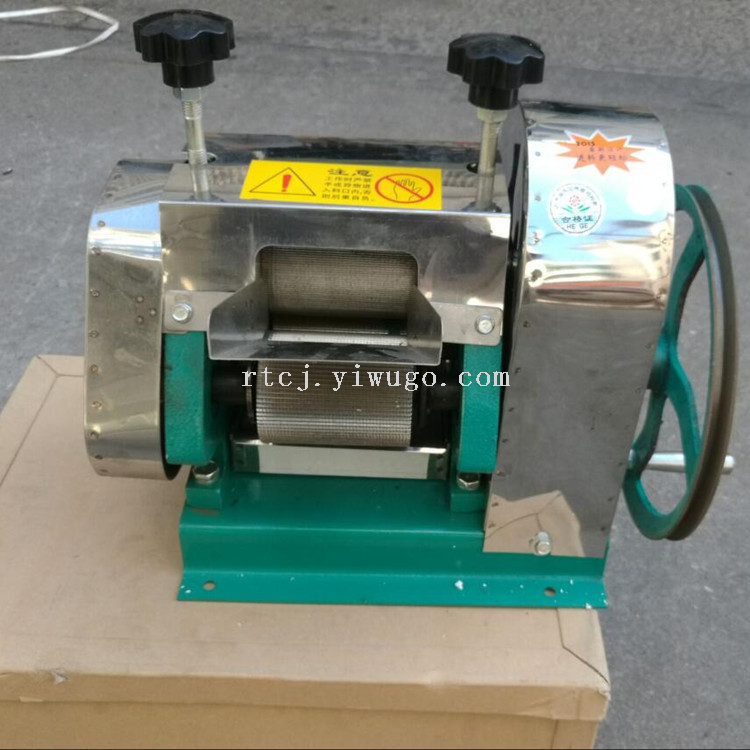

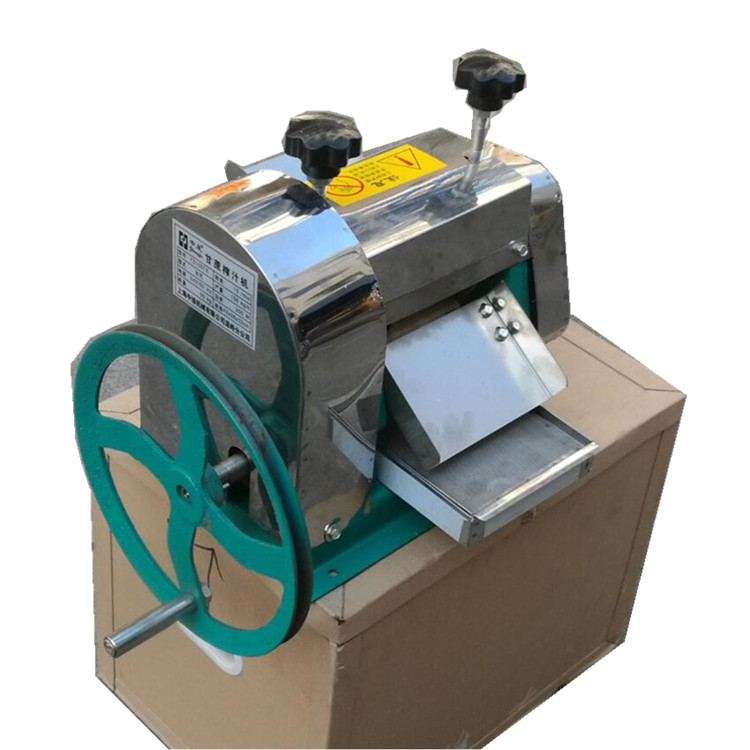

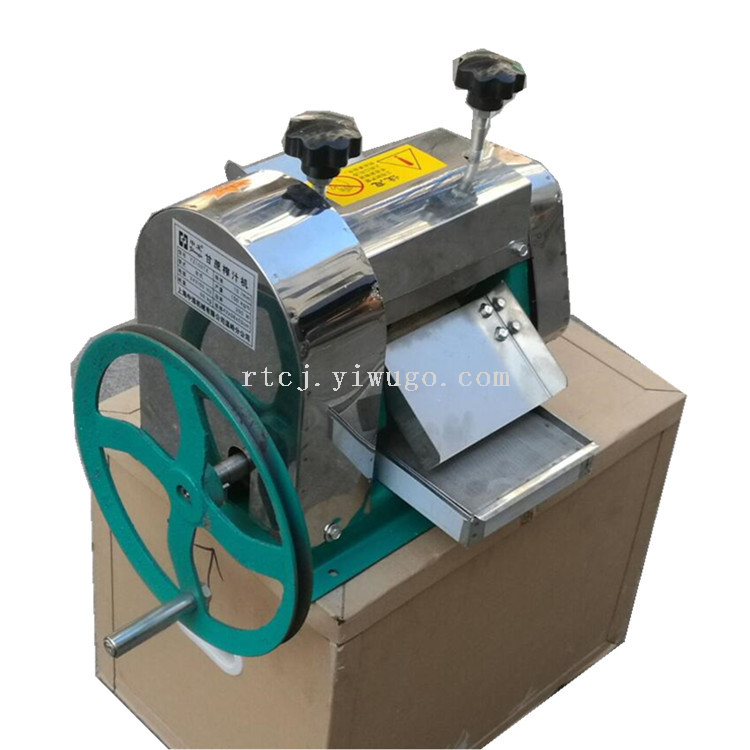

Hand-cranked Sugar Cane (Ginger) Juice Extractor Instruction Manual

1. Product Overview

The production of sugar cane is widespread in China, with a long supply period. Sugar cane is juicy and contains a variety of main nutrients such as sugar, protein, fat, calcium, phosphorus, iron, and vitamins B1, B2, B6, and C. Sugar cane juice is cool and tastes good, making it a favorite beverage for children, middle-aged and elderly people.

This juice extractor can also extract ginger juice. The ginger residue can be used to make ginger sugar. Ginger juice mixed with eggs is a good choice for women to replenish their bodies. Ginger juice can also be used to season noodles to stimulate appetite. If you set up a stall at the market, your business will definitely do well, and it is a good way to make money.

This juice extractor is based on extensive research and is meticulously designed. All major parts are made of stainless steel, featuring beauty in appearance, convenience in operation, low investment, and high juice yield. It is a new product of the new millennium. This machine is suitable for service industries such as urban and rural markets, markets, individual businesses, or small beverage production. It is easy to operate for all ages and genders, with low costs and high profits. It is sold fresh after extraction, making it a new way to make a living. It is used for extracting juice from sugarcane, ginger, apples, sorghum stalks, and corn stalks.

Sugarcane bagasse, sorghum stalk residue, and corn stalk residue can be recycled to manufacture sound-absorbing and heat-insulating sugarcane boards, which are light and inexpensive, making them excellent building materials. They can also be used in the paper-making and synthetic silk industries.

Section Two: Usage Precautions

1. The sugarcane is peeled, cut off the top, and then pressed. It is divided into one to one and a half jin per piece, and can be pressed to produce one cup of juice. 2. For sugarcane with a diameter over 30mm, it needs to be broken in half to press, to avoid overloading and stopping the press. 3. If the press stops due to overloading, for electric-driven models, turn off the power immediately. You can pull the transmission belt with your hands to reverse the rollers and remove the sugarcane. For manual models, simply reverse the shaking to remove the sugarcane. 4. Apply lubricant to the transmission gears once a week. 5. After pressing, rinse the rollers in time, and ensure that the juice box is free of adhesion to maintain cleanliness.
