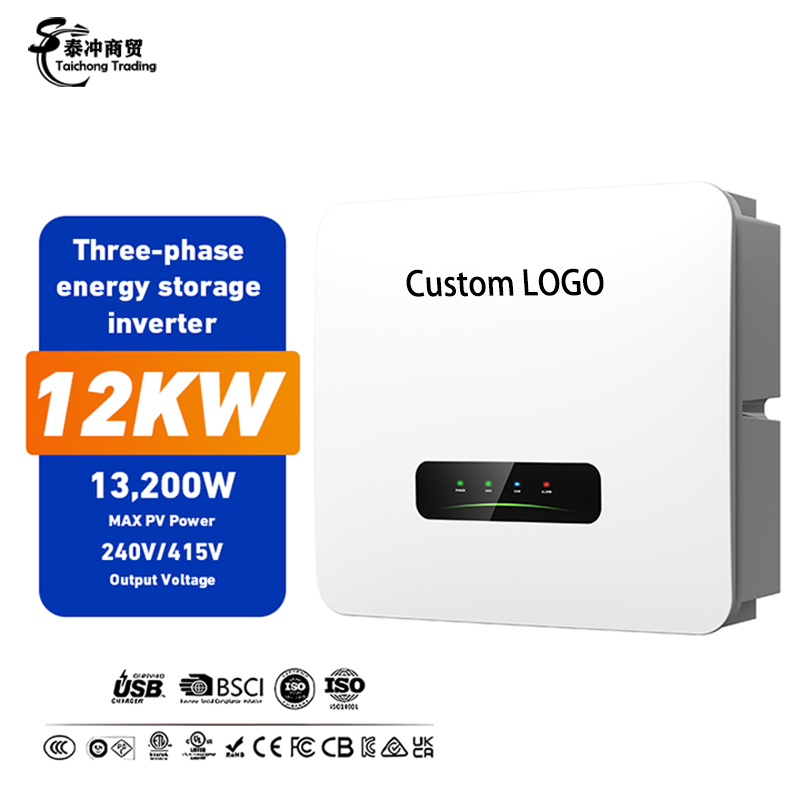

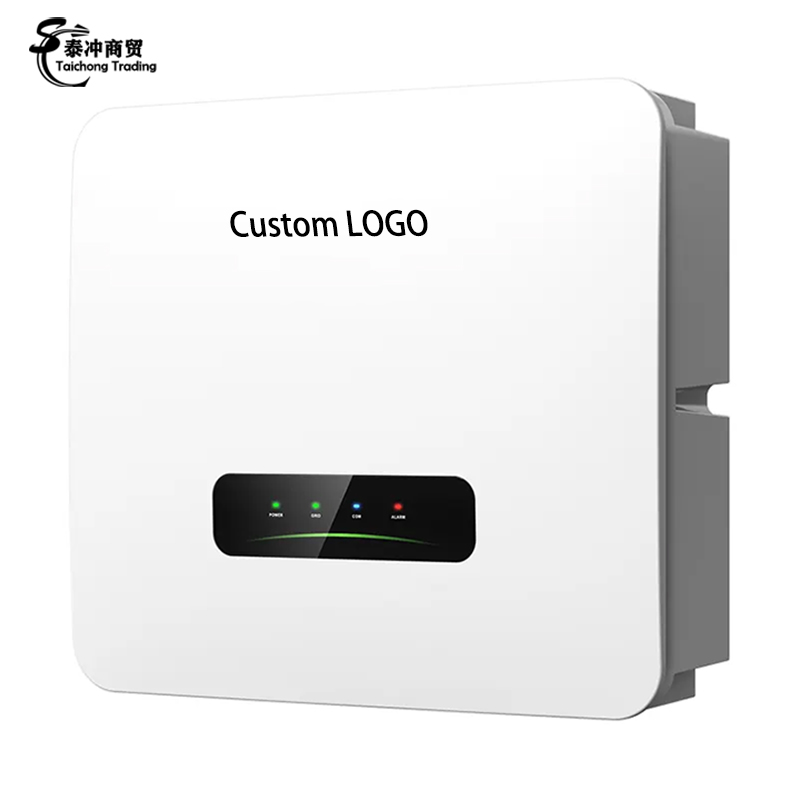

ul/ce certification 5-12kw photovoltaic three-phase energy storage inverter ip65 grid-connected off-grid hybrid with mppt

QR code
Scan the QR code,
view in your mobilephone.

ul/ce certification 5-12kw photovoltaic three-phase energy storage inverter ip65 grid-connected off-grid hybrid with mppt 中文版

EXW Price:

From: ¥ 6812.0

Min. order: 1 set

1 set

Weight 35.0 kg/set
Item No. HYX-T

type
hybrid solar system supports grid connection and off-grid

power
5kw 6kw 8kw 10kw 12kw

5kw	¥6812.0	50000 set available
6kw	¥7567.0	50000 set available
8kw	¥8895.0	50000 set available
10kw	¥10529.0	50000 set available
12kw	¥11293.0	50000 set available

Summary 0 set Subtotal:¥ 0 Selected ∧

Please select a product

Send Inquiry Chat with supplier

A new item has been added to your Shopping Cart. You now have items in your Shopping Cart.

Continue Shopping View Shopping Cart

Taichong e-commerce firm 2yr.

Contacts:

Yang BoChat

Mobile:

86-13732441469

E-mail:

yangbo330624@gmail.com

Click to Contact Yiwugo official customer service for International sourcing.

Yiwugo official customer service X

Whatsapp:

Email： yiwubuy@yiwugo.com

Description

Product Model	HYX-H5K-HT	HYX-H6K-HT	HYX-H8K-HT	HYX-H10K-HT	HYX-H12K-HT
DC input
The maximum configurable power	10,000W	12,000W	16,000W	20,000W	24,000W
Maximum input power	5,000W/3,000W	6,000W/4,000W	6,400W/6,400W	6,400W/4,800W/4,800W	6,400W/6,400W/6,400W
Maximum input voltage	1,000V
Starting voltage	160V
MPPT operating voltage range	140 ~ 980V
Maximum input current	36A (18 / 18)	36A (18 / 18)	36A (18 / 18)	54A (18 / 18*2)	54A (18 / 18*2)
Maximum short-circuit current	60A (30 / 30)	60A (30 / 30)	60A (30 / 30)	90A (30 / 30*2)	90A (30 / 30*2)
MPPT lanes	2
Number of PV inputs (number of MPPT strings per channel)	2 (1 / 1)	2 (1 / 1)	2 (1 / 1)	2 (1 / 2)	2 (1 / 2)
AC input/output
Nominal output power	5,000W	6,000W	8,000W	10,000W	12,000W
Maximum output apparent power	5,500VA	6,600VA	8,800VA	11,000VA	13,200VA
Maximum input apparent power	11,000VA	13,200VA	17,600VA	22,000VA	26,400VA
Nominal output current	7.6A	9.1A	12.2A	15.2A	18.2A
Maximum output current	8.4A	10.0A	13.4A	16.7A	20.0A
Maximum input current	16.7A	20.0A	26.7A	33.4A	40.0A
Nominal output voltage	3 / N / PE, 220V / 380V, 230V / 400V, 240V / 415V
Total harmonic distortion	< 3%
Frequency	45 ~ 55Hz; 55 ~ 65Hz
Adjustable power factor	0.8 Lead ... 0.8 lag
DC current injection	< 0.5% In
Off-grid output
Nominal Output Power	5,000W	6,000W	8,000W	10,000W	12,000W
Maximum Continuous Output Apparent Power	5,500VA	6,600VA	8,800VA	11,000VA	13,200VA
Peak Output Power	7,500W; 10s	9,000W; 10s	12,000W; 10s	15,000W; 10s	15,000W; 10s
Nominal Output Current	7.6A	9.1A	12.2A	15.2A	18.2A
Maximum Output Current	11.4A	13.7A	18.2A	22.8A	27.3A
cutoff time	< 10ms
Battery Input
Battery Type	LiFePO4
Battery Voltage Range	150 ~ 600V
Maximum charge/discharge current	40A
Maximum Charge/Discharge Power	5,500W	6,600W	8,800W	11,000W	13,200W
Efficiency
Maximum efficiency	98.60%
European Weighted Efficiency	98.20%
MPPT Efficiency	99.90%
Battery charge/discharge efficiency	97.50%
safeguard
DC insulation resistance detection	yes
Residual current detection	yes
DC reverse polarity protection	yes
AC/DC lightning protection	Level 2
DC switching	yes
Anti-islanding protection	yes
AC Overcurrent Protection	yes
AC Short Circuit Protection	yes
AC overvoltage protection	yes
Ground fault detection	yes
Basic Information
Operating Temperature Range	-30 ~ + 60°C
Relative working humidity	0～100 %RH
Maximum working altitude	4,000m
Cooling method	Natural cooling
Display	LED / App / Web
Methods of communication	CAN / RS485 / WIFI / 4G / LAN
weight	34kg
Dimensions ( Width * Height * Thickness )	542478186mm
Ingress protection	IP65
Installation	Wall mounting
