| 15kw | ¥13550.0 | 50000 set available |
|
| 20kw | ¥15089.0 | 50000 set available |
|
| 25kw | ¥19284.0 | 50000 set available |
|
A new item has been added to your Shopping Cart. You now have items in your Shopping Cart.
Yang BoChat
Mobile:86-13732441469
E-mail:
|

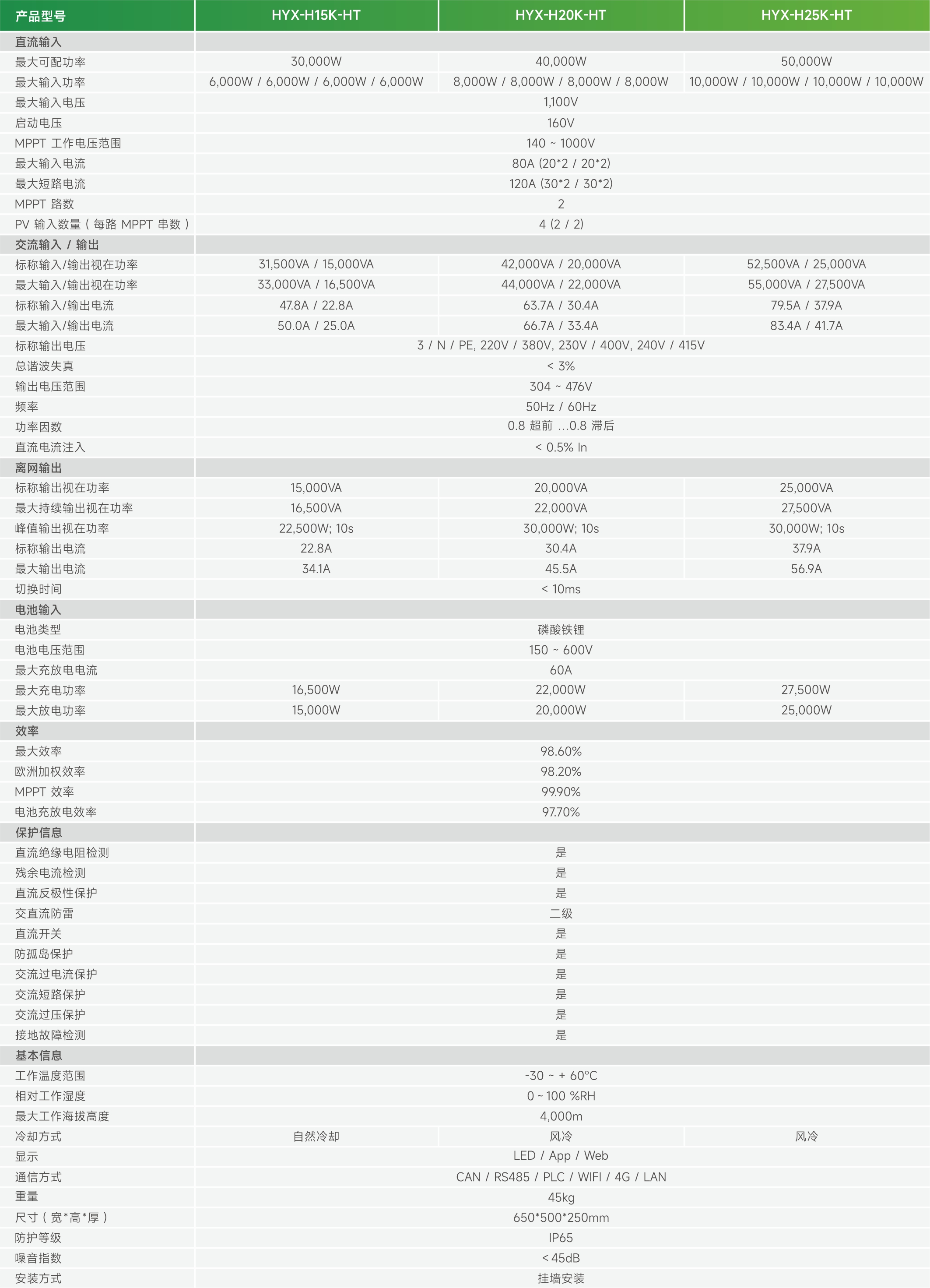

Product Model
|
HYX-H15K-HT
|
HYX-H20K-HT
|
HYX-H25K-HT
|
||||
|
DC input
|
|||||||
|
The maximum configurable power
|
30,000W
|
40,000W
|
50,000W
|
||||
|
Maximum input power
|
6,000W / 6,000W / 6,000W / 6,000W
|
8,000W / 8,000W / 8,000W / 8,000W
|
10,000W / 10,000W / 10,000W / 10,000W
|
||||
|
Maximum input voltage
|
1,100V
|
||||||
|
Starting voltage
|
160V
|
||||||
|
MPPT operating voltage range
|
140 ~ 1000V
|
||||||
|
Maximum input current
|
80A (20*2 / 20*2)
|
||||||
|
Maximum short-circuit current
|
120A (30*2 / 30*2)
|
||||||
|
MPPT lanes
|
2
|
||||||
|
Number of PV inputs (number of MPPT strings per channel)
|
4 (2 / 2)
|
||||||
|
AC Input/Output
|
|||||||
|
Nominal input/output apparent power
|
31,500VA / 15,000VA
|
42,000VA / 20,000VA
|
52,500VA / 25,000VA
|
||||
|
Maximum input/output apparent power
|
33,000VA / 16,500VA
|
44,000VA / 22,000VA
|
55,000VA / 27,500VA
|
||||
|
Nominal input/output current
|
47.8A / 22.8A
|
63.7A / 30.4A
|
79.5A / 37.9A
|
||||
|
Maximum Input/Output Current
|
50.0A / 25.0A
|
66.7A / 33.4A
|
83.4A / 41.7A
|
||||
|
Nominal output voltage
|
3 / N / PE, 220V / 380V, 230V / 400V, 240V / 415V
|
||||||
|
Total harmonic distortion
|
< 3%
|
||||||
|
Maximum Input/Output Current
|
304 ~ 476V
|
||||||
|
Frequency
|
50Hz / 60Hz
|
||||||
|
Adjustable power factor
|
0.8 Lead ... 0.8 lag
|
||||||
|
DC current injection
|
< 0.5% In
|
||||||
|
Off-grid output
|
|||||||
|
Nominal Output Power
|
15,000VA
|
20,000VA
|
25,000VA
|
||||
|
Maximum Continuous Output Apparent Power
|
16,500VA
|
22,000VA
|
27,500VA
|
||||
|
Peak Output Power
|
22,500W; 10s
|
30,000W; 10s
|
30,000W; 10s
|
||||
|
Nominal Output Current
|
22.8A
|
30.4A
|
37.9A
|
||||
|
Maximum Output Current
|
34.1A
|
45.5A
|
56.9A
|
||||
|
cutoff time
|
< 10ms
|
||||||
|
Battery Input
|
|||||||
|
Battery Type
|
LiFePO4
|
||||||
|
Battery Voltage Range
|
150 ~ 600V
|
||||||
|
Maximum charge/discharge current
|
60A
|
||||||
|
Maximum Charge/Discharge Power
|
16,500W
|
22,000W
|
27,500W
|
||||
|
Efficiency
|
|||||||
|
Maximum efficiency
|
98.60%
|
||||||
|
European Weighted Efficiency
|
98.20%
|
||||||
|
MPPT Efficiency
|
99.90%
|
||||||
|
Battery charge/discharge efficiency
|
97.70%
|
||||||
|
safeguard
|
|||||||
|
DC insulation resistance detection
|
yes
|
||||||
|
Residual current detection
|
yes
|
||||||
|
DC reverse polarity protection
|
yes
|
||||||
|
AC/DC lightning protection
|
Level 2
|
||||||
|
DC switching
|
yes
|
||||||
|
Anti-islanding protection
|
yes
|
||||||
|
AC Overcurrent Protection
|
yes
|
||||||
|
AC Short Circuit Protection
|
yes
|
||||||
|
AC overvoltage protection
|
yes
|
||||||
|
Ground fault detection
|
yes
|
||||||
|
Basic Information
|
|||||||
|
Operating Temperature Range
|
-30 ~ + 60°C
|
||||||
|
Relative working humidity
|
0～100 %RH
|
||||||
|
Maximum working altitude
|
4,000m
|
||||||
|
Cooling method
|
Natural cooling
|
air cooling
|
air cooling
|
||||
|
Display
|
LED / App / Web
|
||||||
|
Methods of communication
|
CAN / RS485 / WIFI / 4G / LAN
|
||||||
|
weight
|
45kg
|
||||||
|
Dimensions ( Width * Height * Thickness )
|
650*500*250mm
|
||||||
|
Ingress protection
|
IP65
|
||||||
|
noise level
|
＜45dB
|
||||||
|
Installation
|
Wall mounting
|
||||||
