All-purpose intelligent hand-held reinforcing steel binding machine with lithium battery charging function.

Lithium battery charging steel reinforcement binding machineFull-automatic Intelligent Hand-held Reinforcing Steel Bonding Machine

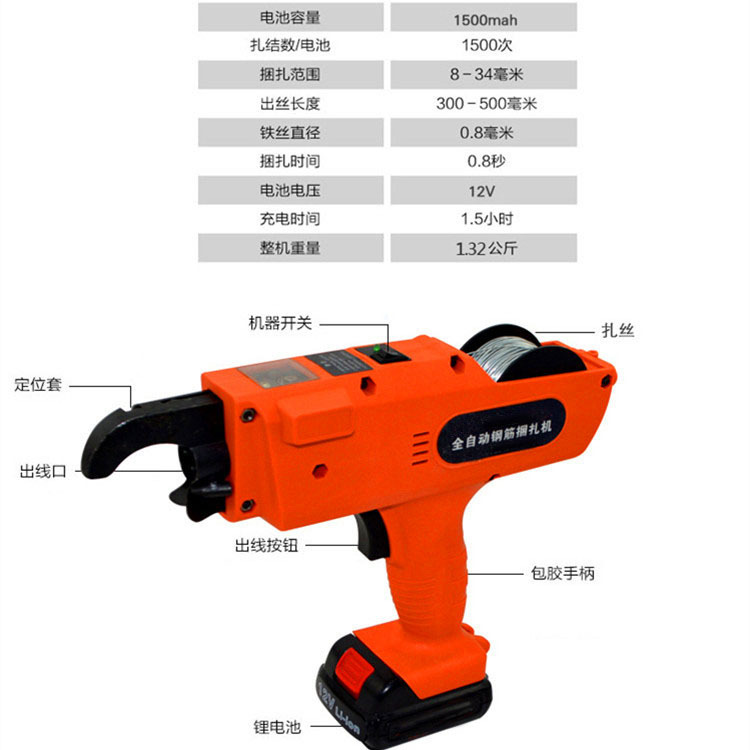

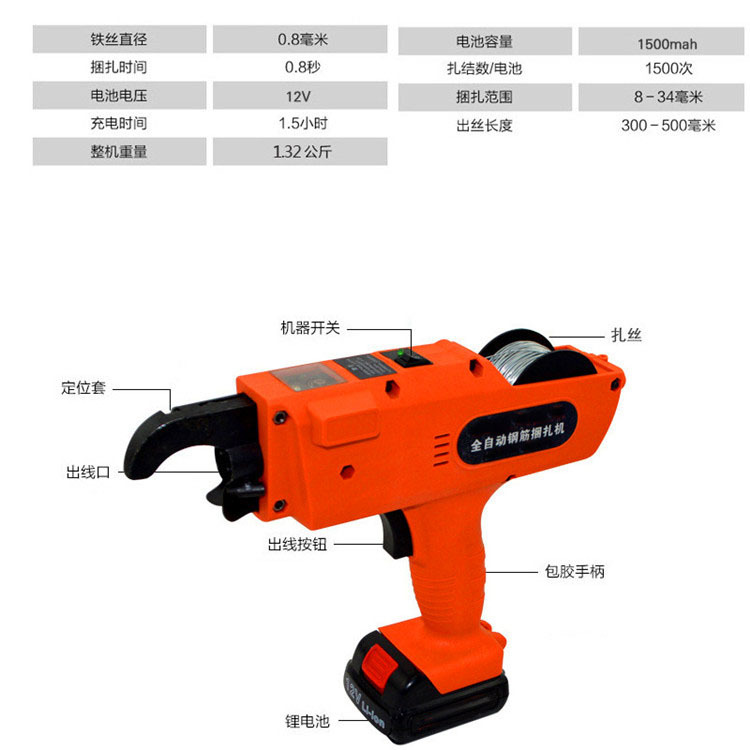

Bundling Machine Parameters:

Overall Size: 270mm*65mm*230mm battery capacity: 00mAh

Battery Voltage: Charging time: 1.5 hours　　Continuous working time: hours

Silk length: Bundling Range: 8-34 mm Bundling Time: 0.8 seconds

heavyQuantity: The single machine weighs about 1 kilogram, and the entire set weighs about 3 kilograms. The wire diameter is 0.8 mm. The weight of the wire is 0.45 kilograms per roll. The standard configuration is one roll of wire with a length of 110 meters.

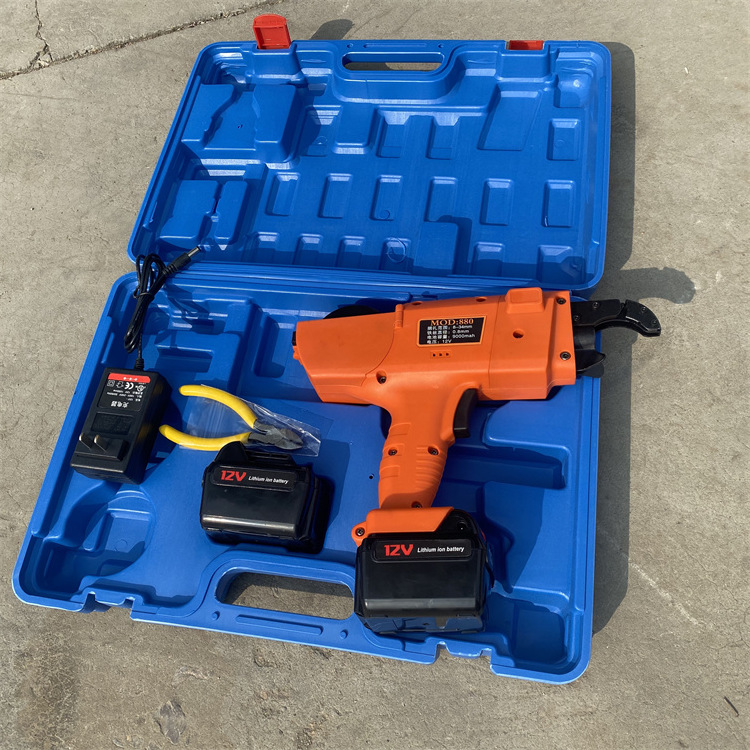

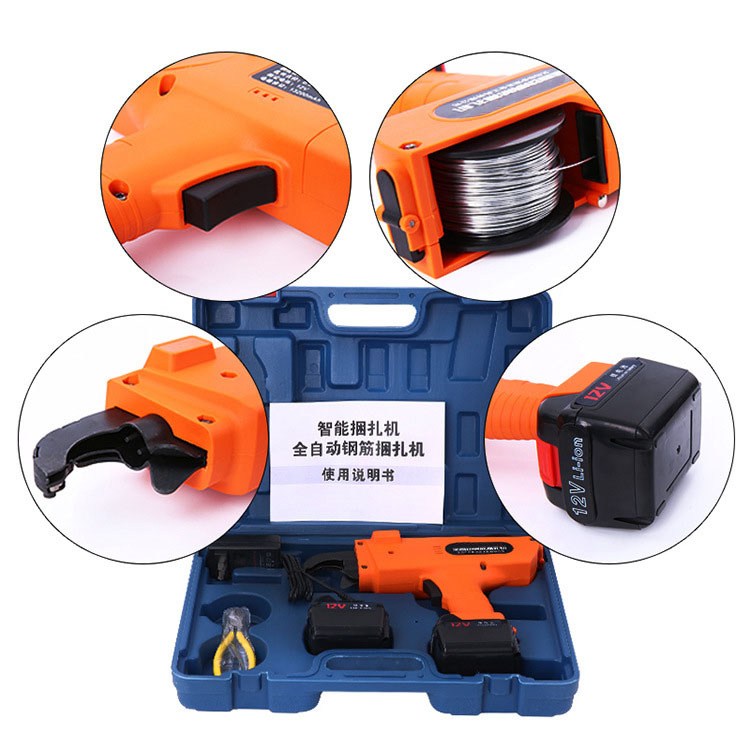

The complete list: One fully automatic reinforcing steel binding machine, two lithium batteries, one charger, one wire clamp, one wire spool, and one user manual.

Zhā sī shùmù: 0.8mm annealed black iron wire standard: Annealed black iron wire, also known as annealed wire, fire wire, annealed wire, annealed black wire, and soft iron wire, is a product obtained from low-carbon steel wire rod after acid washing, de-rusting, drawing, and annealing. This product, due to the annealing process, makes the wire softer, making it more suitable for use as binding wire.

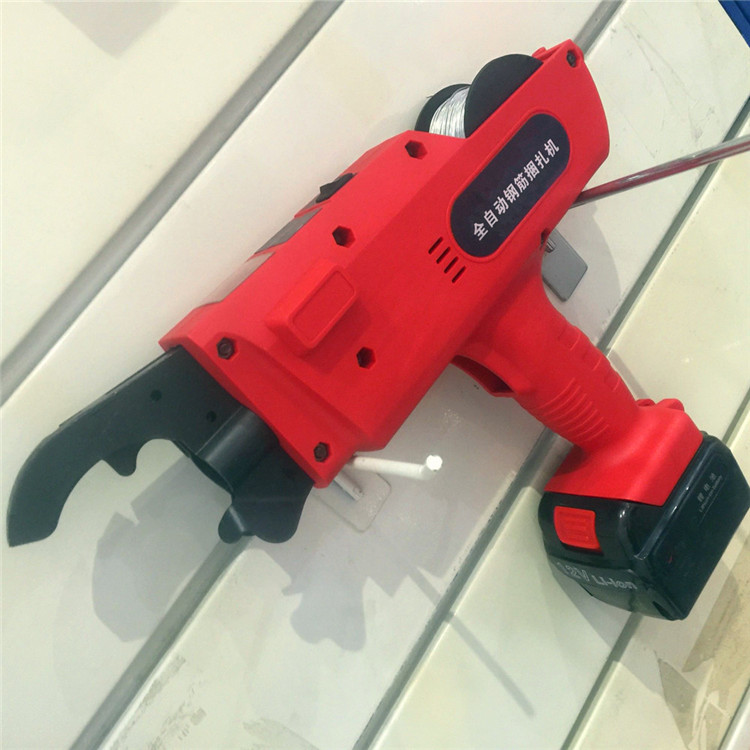

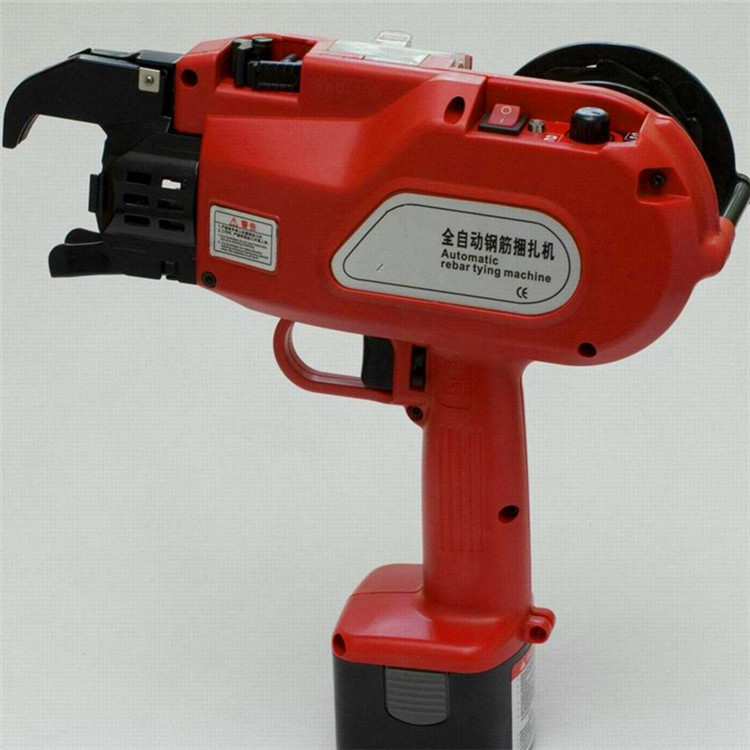

Reinforcing Steel Bonding Machine

Reinforcing Steel BondingThe feature of this machine is its speed.Convenient. Its efficiency is 3-4 times that of manual labor. It can save a lot of manpower and greatly reduce the labor intensity of workers.

Steel Reinforcing Bonding Machine Technical Performance

1. The operation is simple, and single-handed operation increases the safety factor for workers.

2. Fast Tieing Speed: The tying speed is 3-4 times that of manual operation, with each knot taking only 1 second to tie, significantly reducing the labor intensity of workers.

3. Lightweight and compact: The entire machine weighs only 2.5 kg, making it easy to operate.

4. Strong Lithium BatteriesCharging Time70-80 minutes, each charge can bind continuously 1300-1500 knots, making the machine convenient to carry and work.

The product model classification, currently, mainly because it is imitated from Japanese machines, although the names are different, the classification is essentially the same. By category, it can be divided into the main ones that can be adapted to the range.The main models include 24mm, 40mm, and 65mm. This means that the binding range of this model can reach 24mm, 40mm, and 65mm. Among them, the 40mm model is most popular in the market.

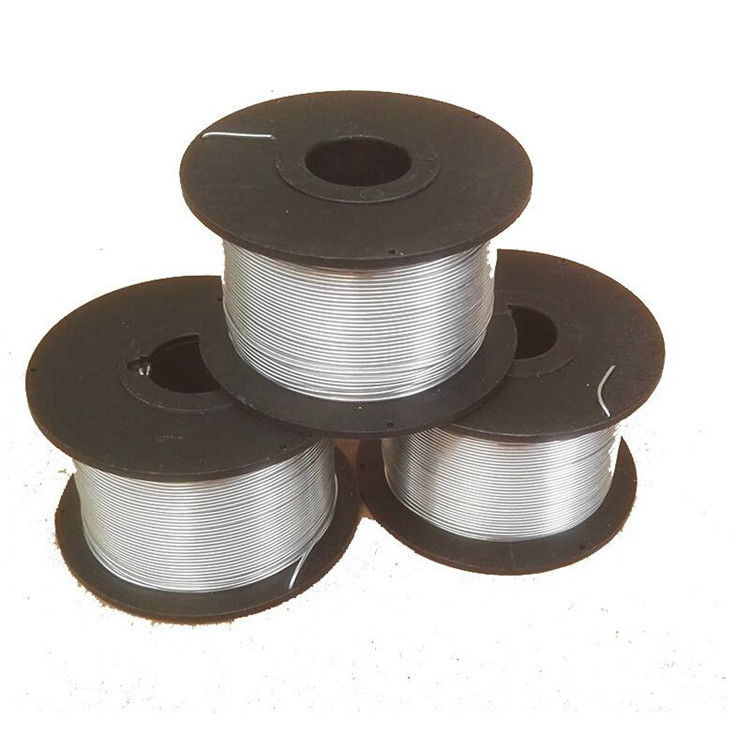

For the smaller and medium-sized models of this product, the consumption of the model is needed.0.8mm galvanized steel wireThe wire is wound around a special wire drum, which can be operated once it is inserted into the machine. Each roll of wire is approximately " long.95 meters or 100 meters. And the machine, depending on the model or the setting, can wrap 2 or 3 times, so the number of coils per reel of wire can be between 150 to 270.
