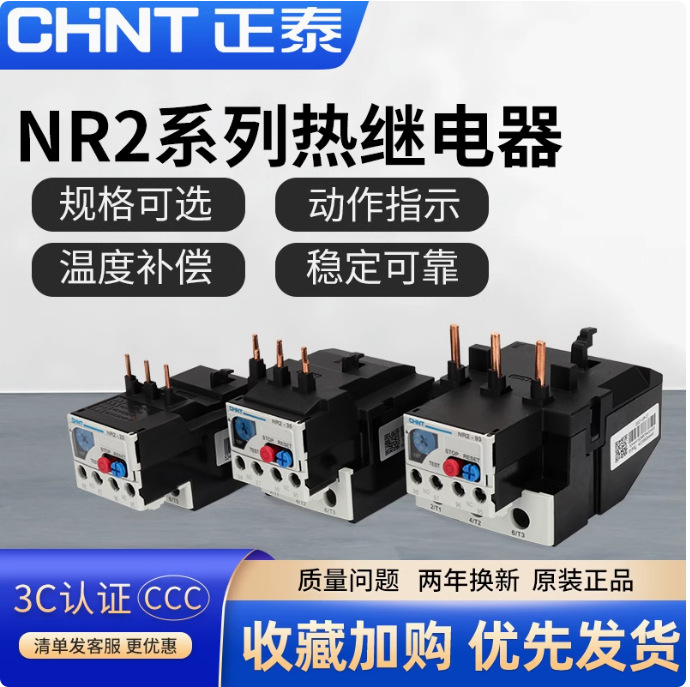

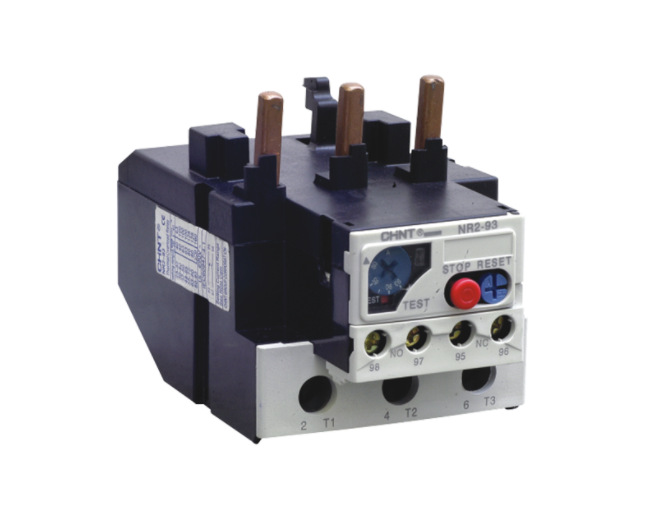

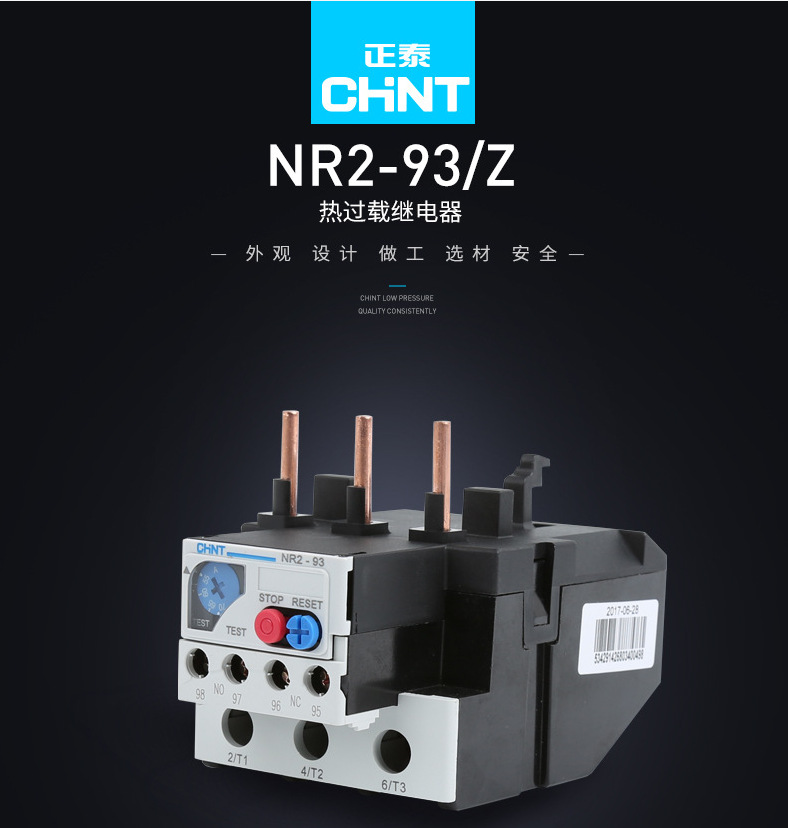

zhengtai nr2 series zhengtai thermal relay nr2-93 50a/65a/80a/150a with cjx2 nc1 nc7 中文版

EXW Price:

From: ¥ 25.2

Min. order: 24 only

24 only

Weight 0.6 kg/only
Item No. NR2

model

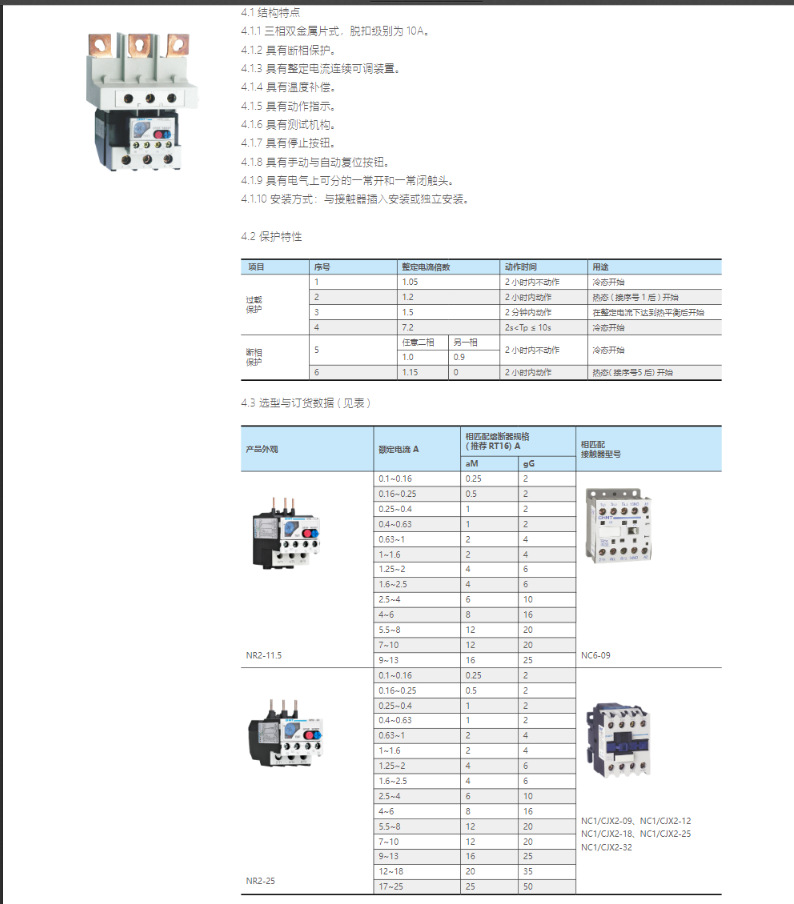

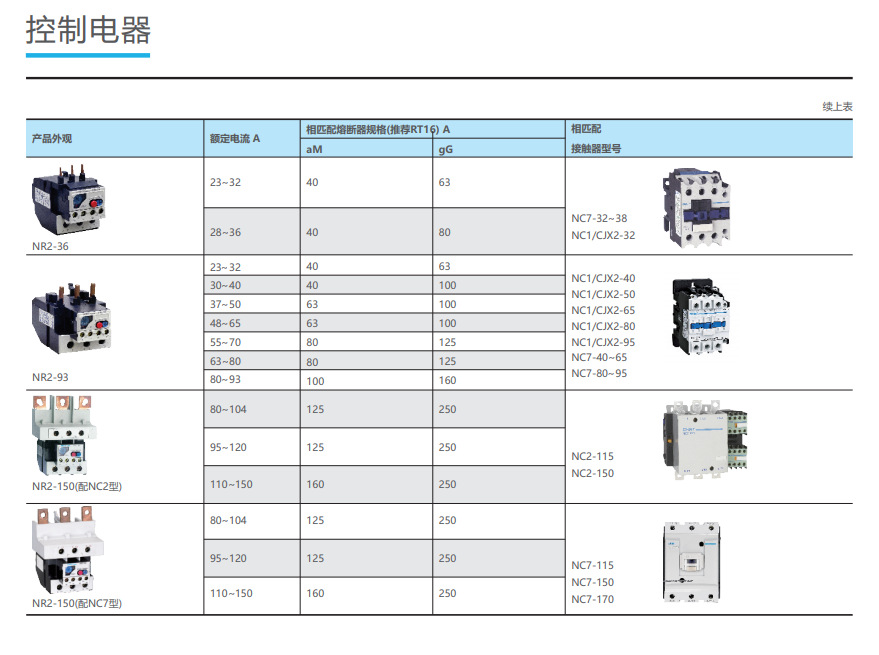

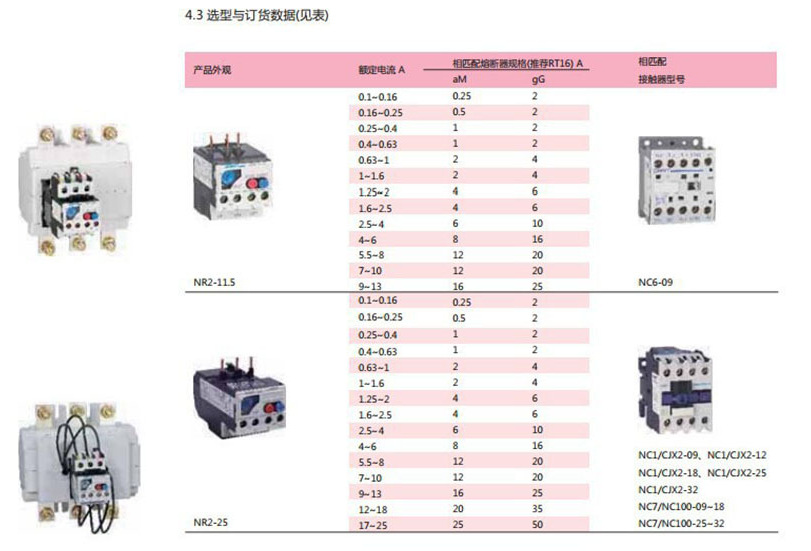

Specifications

Specifications	Price(RMB)	Stock
nr2-25 2.5-4a	¥25.2	998 only available
nr2-25 4-6a	¥25.5	998 only available
nr2-25 9-13a	¥28.5	998 only available
nr2-25 12-18a or more with type 25	¥28.5	998 only available
nr2-36 23-32a with 32-38 type	¥46.0	998 only available
nr2-93 37-50a with 4011	¥68.0	998 only available
nr2-93 48-65a	¥68.0	998 only available
nr2-93 63-80a	¥68.0	998 only available
nr2-25 17-25a	¥28.5	998 only available

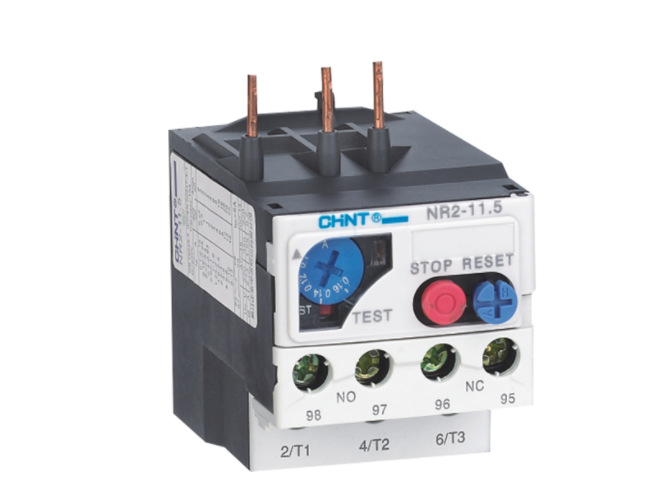

nr2-11.5 4-6a	¥33.0	998 only available
nr2-93 80-93a with 9511	¥77.0	998 only available
nr2-150 110-150a (with nc7 type)	¥119.0	998 only available
nr2-150 95-120a (with nc7 type)	¥119.0	998 only available
nr2-150 80-104a	¥119.0	998 only available
nr2-25 12-18a	¥28.5	998 only available
nr2-11.5 9-13a	¥33.0	998 only available
nr2-11.5 1.25-2a	¥33.0	998 only available
nr2-11.5 1-1.6a	¥33.0	998 only available
nr2-150 110-150a	¥120.0	998 only available
nr2-93 55-70a	¥68.0	998 only available
nr2-93 80-93a	¥78.0	998 only available
nr2-25 1.25-2a	¥25.5	998 only available
nr2-36 28-36a	¥46.0	998 only available
nr2-93 23-32a	¥68.0	998 only available
nr2-25 1-1.6a	¥25.5	998 only available
nr2-25 0.63-1a	¥25.5	998 only available
nr2-36 23-32a	¥46.0	998 only available
nr2-93 30-40a	¥68.0	998 only available
nr2-25 1.6-2.5a	¥25.5	998 only available
nr2-93 37-50a	¥68.0	998 only available
nr2-25 5.5-8a	¥25.5	998 only available
nr2-25 7-fiberglass	¥25.5	998 only available
nr2-0.1a-150a series other special products consult customer service to order 7-10 days	¥70.0	998 only available

Summary 0 only Subtotal:¥ 0 Selected ∧

Please select a product

Send Inquiry Chat with supplier

A new item has been added to your Shopping Cart. You now have items in your Shopping Cart.

Continue Shopping View Shopping Cart

SANSUN electrical power 2yr.

Contacts:

SANSUNChat

Mobile:

86-18664350107

Click to Contact Yiwugo official customer service for International sourcing.

Yiwugo official customer service X

Whatsapp:

Email： yiwubuy@yiwugo.com

Description

Packaging information

CTN Size: 38 × 35 × 33 cm

G.W./CTN:18 kg

QTY/CTN:24 only/carton

NEW7Q选型.png0

NEW7Q选型.png0.png1

NET2高压胶布.png选型.png16

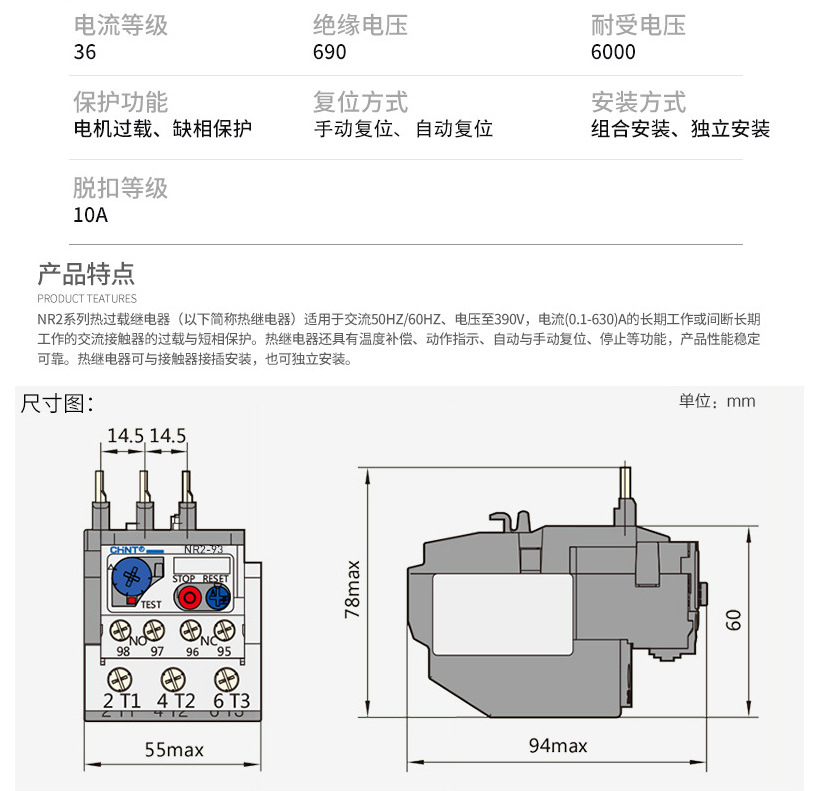

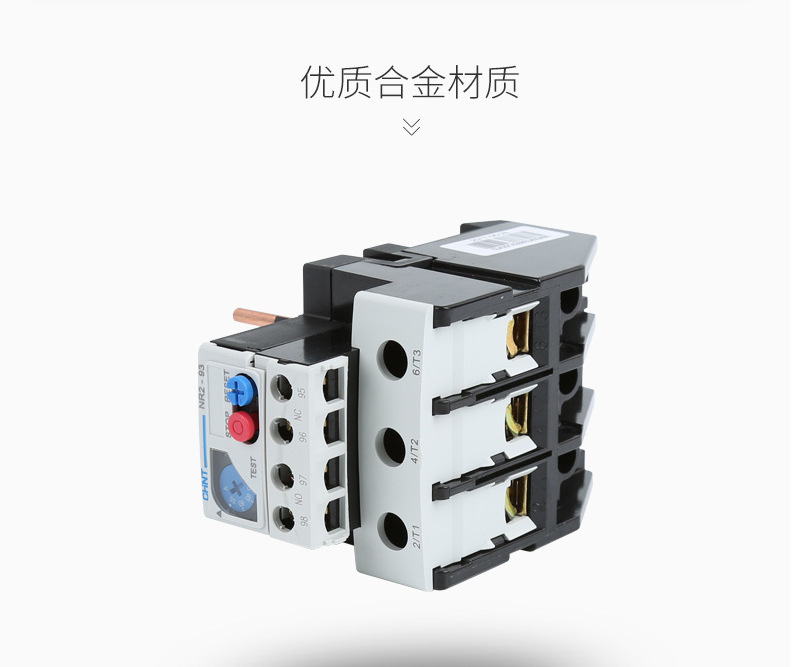

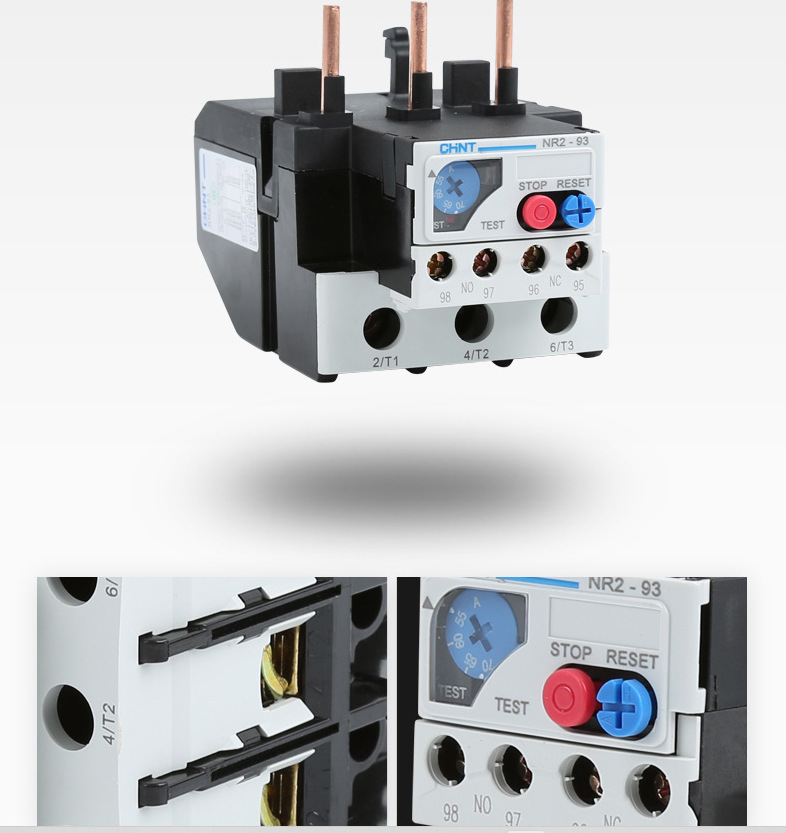

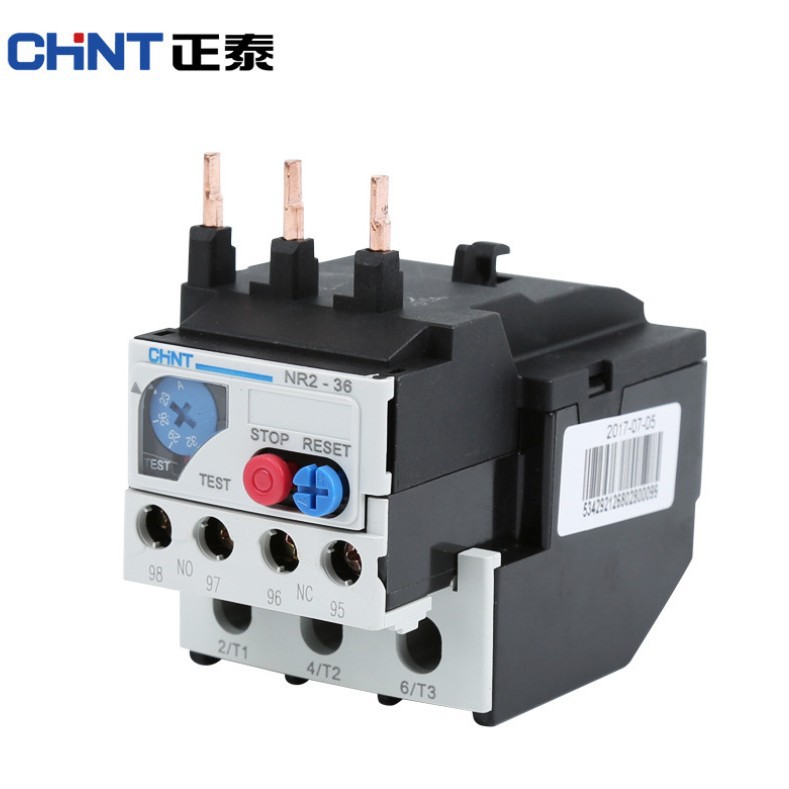

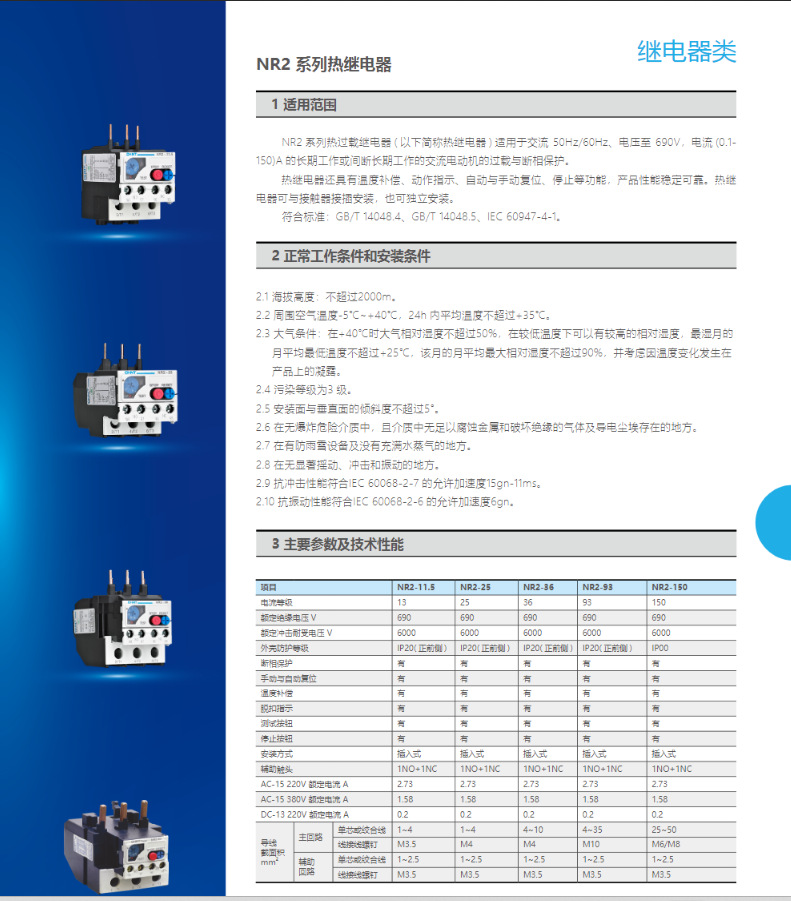

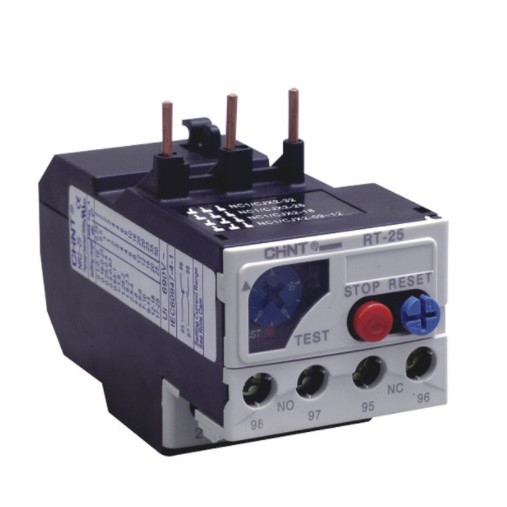

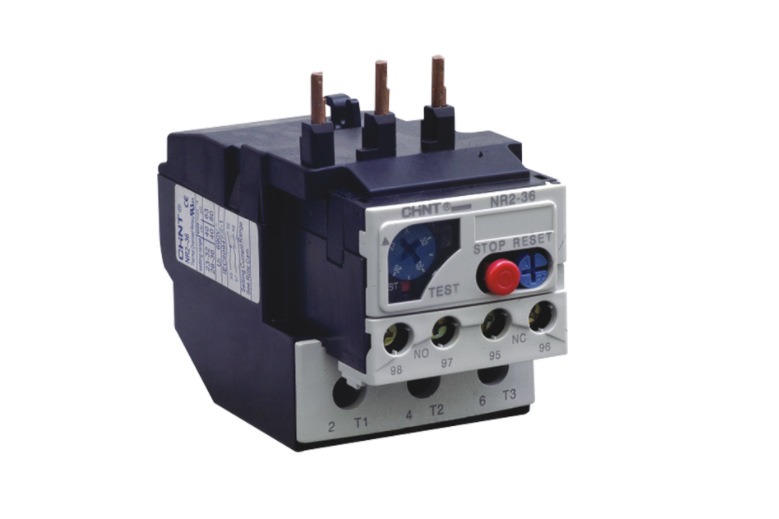

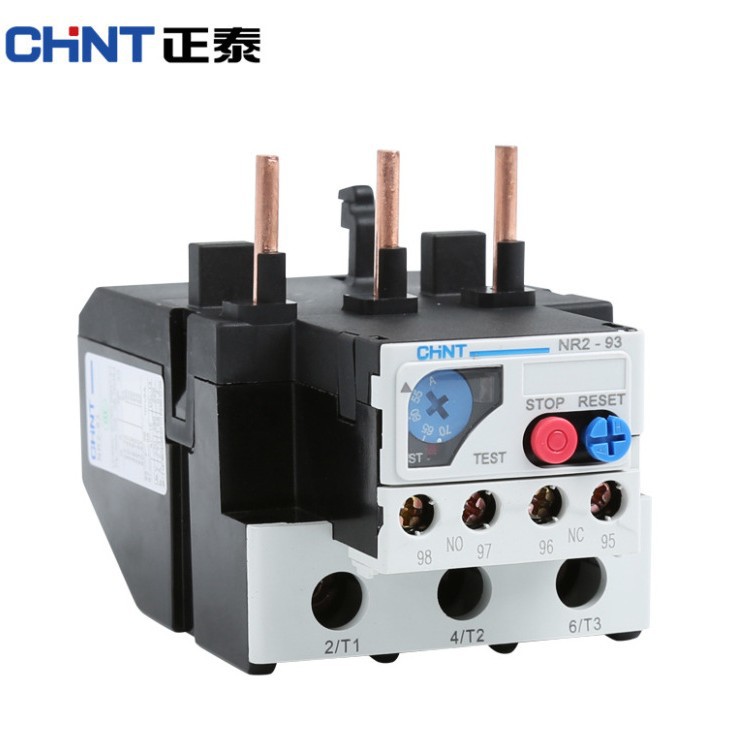

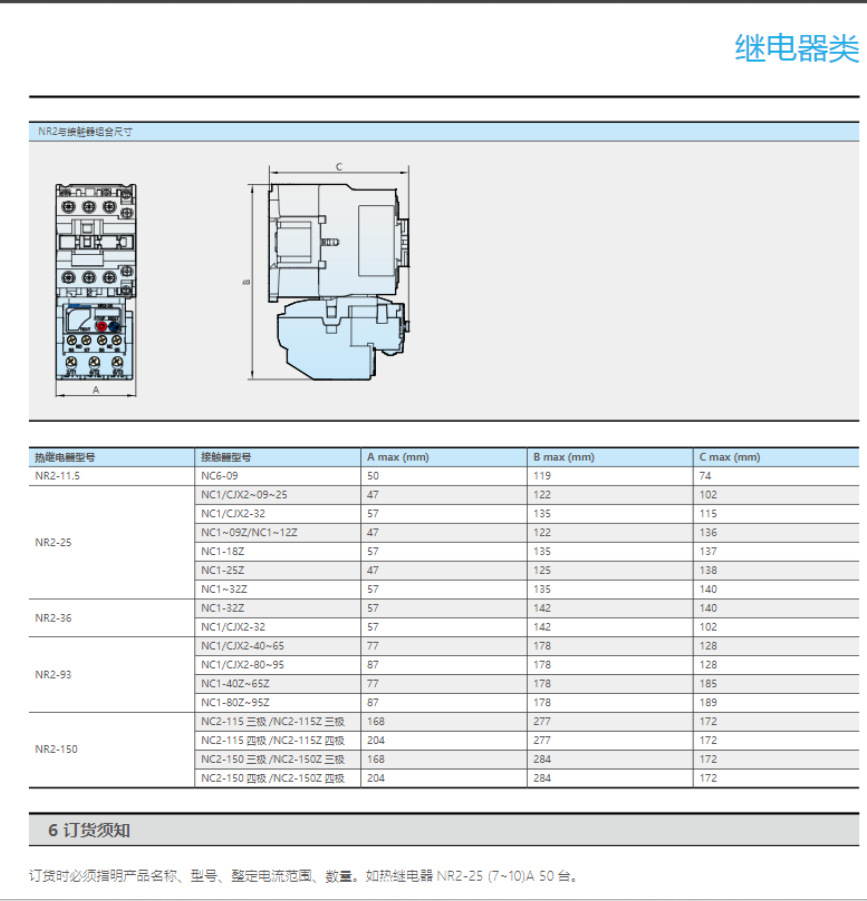

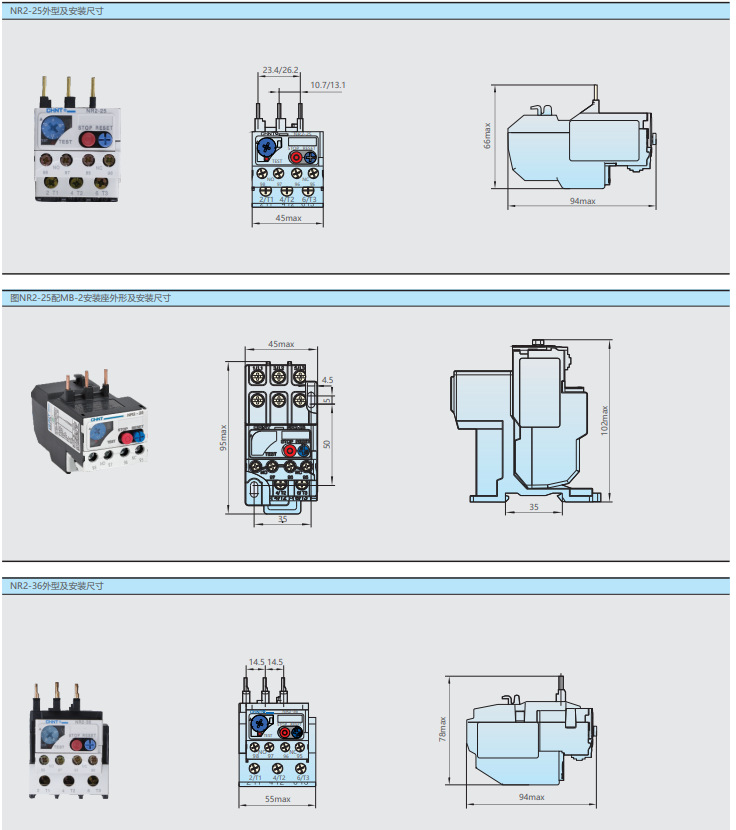

NR2 Series Thermal Relay (Compatible with CXJ2-09--150A Contactor)

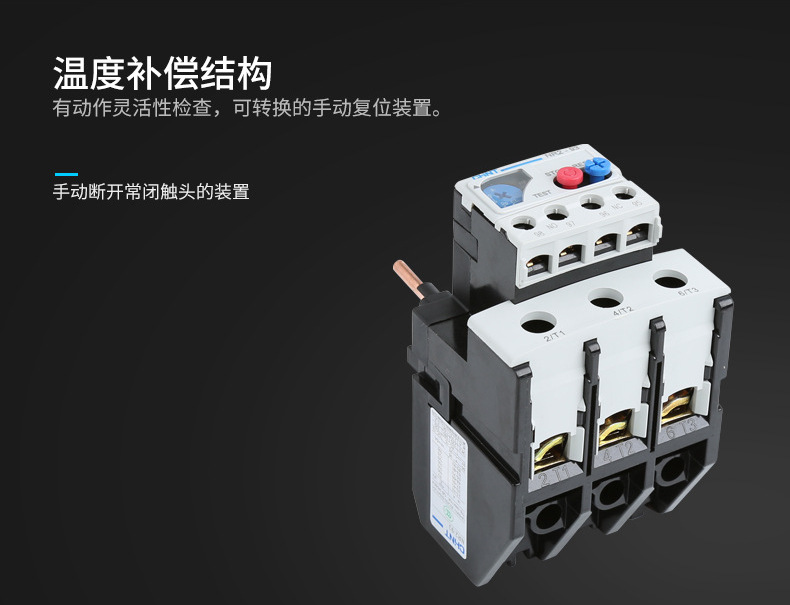

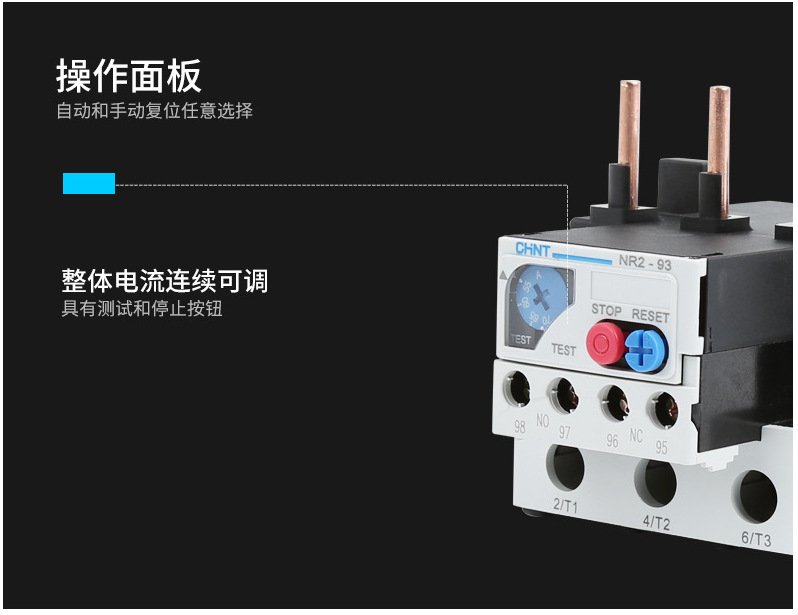

The NR2 series of thermal overload relays (hereinafter referred to as thermal relays) are suitable for the protection of overloading and phase failure of AC motors operating under long-term or intermittent long-term conditions at 50Hz/60Hz, voltage up to 690V, and current (0.1-150)A. The thermal relays also have functions such as temperature compensation, action indication, automatic and manual reset, and stop. The product performance is stable and reliable. Thermal relays can be installed with contactors, or they can be installed independently. Complies with standards: GB/T 14048.4, GB/T 14048.5, IEC 60947-4-1.

Shell frame current: 13/25/36/93/150
Setting current range: 0.1~95/150A

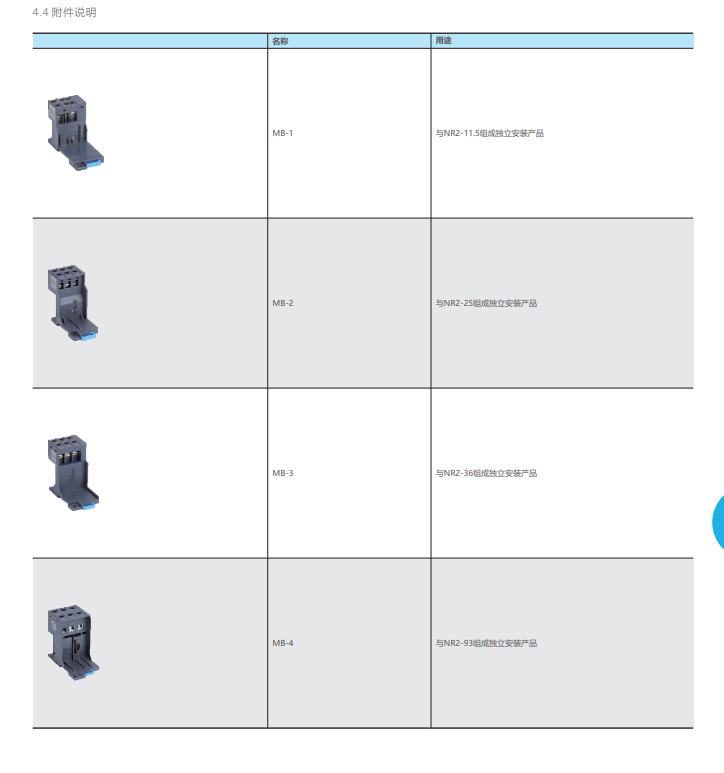

Installation Method: Composite, Independent

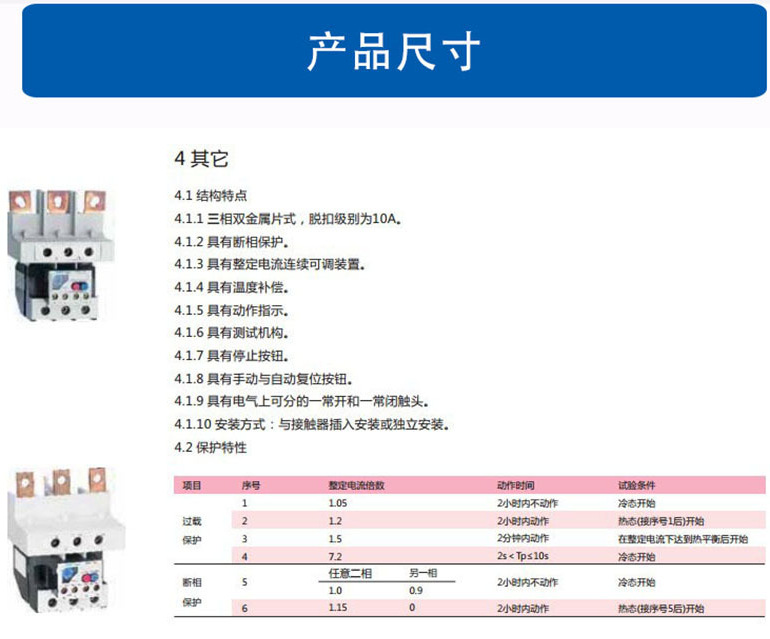

Advantages/Core Features

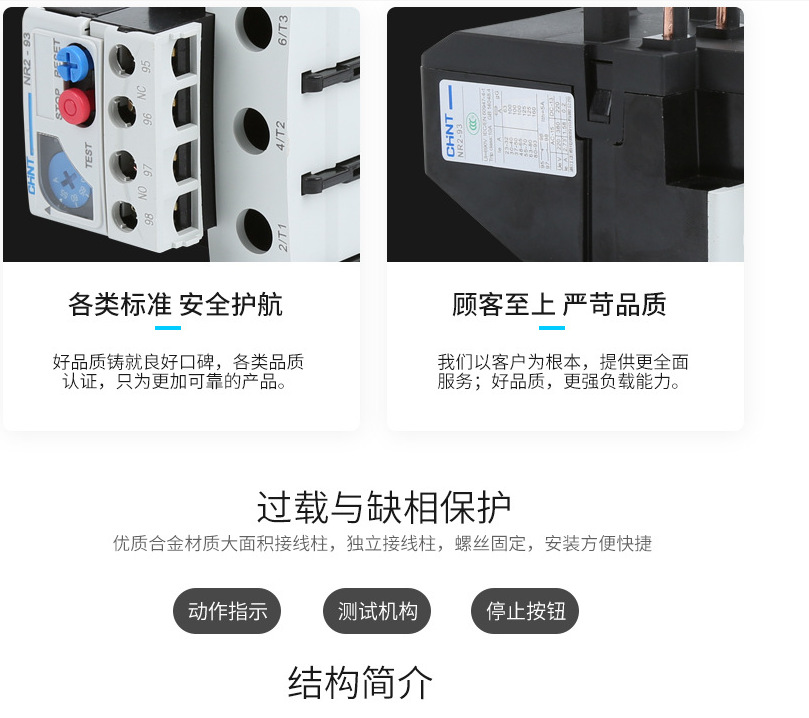

- 01 Three-phase dual metal sheet type, with phase failure protection, with operating mechanism, with testing mechanism
  NR5 Series Thermal Overload Relays (Project Product Ordering)

  The NR5 series of thermal overload relays are suitable for AC 50Hz (or 60Hz), with a rated working voltage up to 690V and working currents of 0.1 to 630A for the protection of overloading and phase failure of AC motors that are subject to long-term or intermittent long-term work. They also have functions such as temperature compensation, action indication, automatic and manual reset, test, and stop buttons.

  Setting current range: 0.1~630A

  Release level: 10A

  Installation Method: Plug-and-Play Installation, Stand-alone Installation

  Shell frame current rating: 25A, 38A, 100A, 200A, 630A

  Advantages/Core Features

  01 Reliable and Secure:

  Above 100A uses a monolithic structure, more sturdy and reliable.

  Smart Manufacturing, Automated Verification, Ensuring Product Consistency and Reliability

  02 性能卓越：

  Three gold heat elements, more precise action.

  The terminal torque is larger, and the connection is more secure.

  03 灵活应用：

  Operating temperature: -25°C to +55°C, meets various environmental applications
