This machine is free for one year warranty and provides lifetime maintenance. We are self-produced and sold, ensuring more after-sales security.

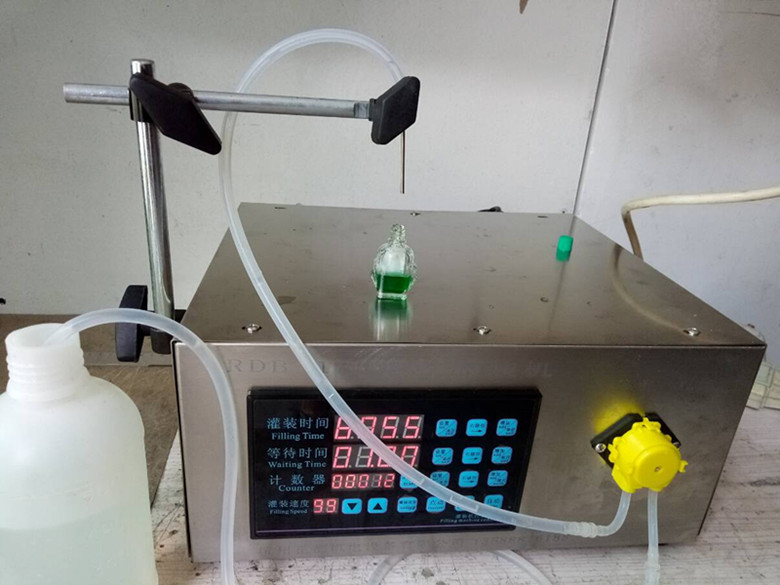

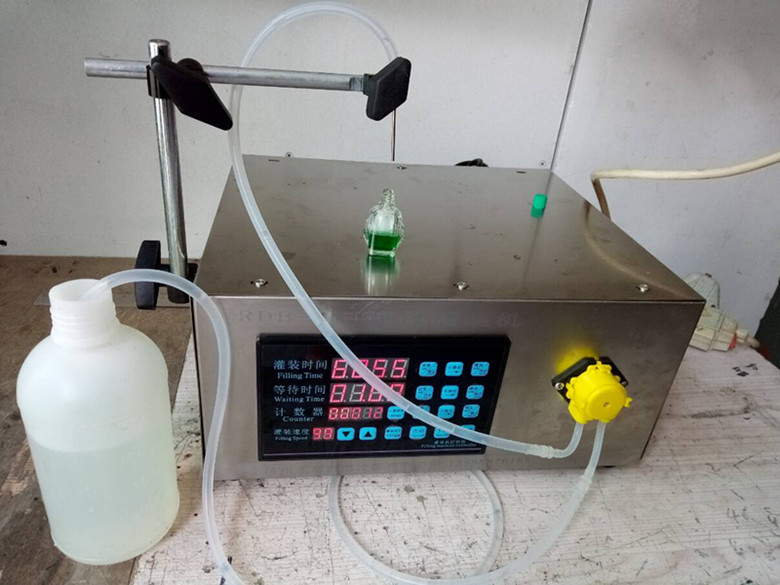

Name: Micro-volume Liquid Multi-function Filling Machine

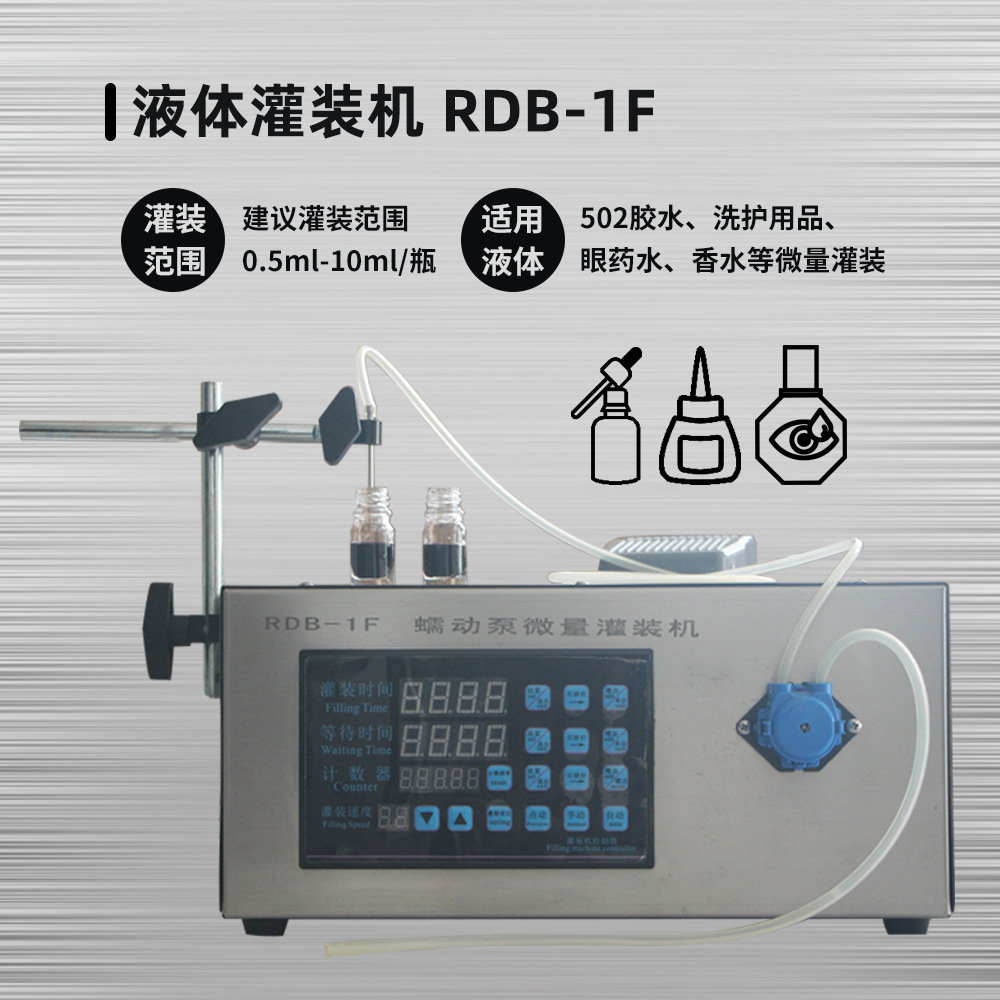

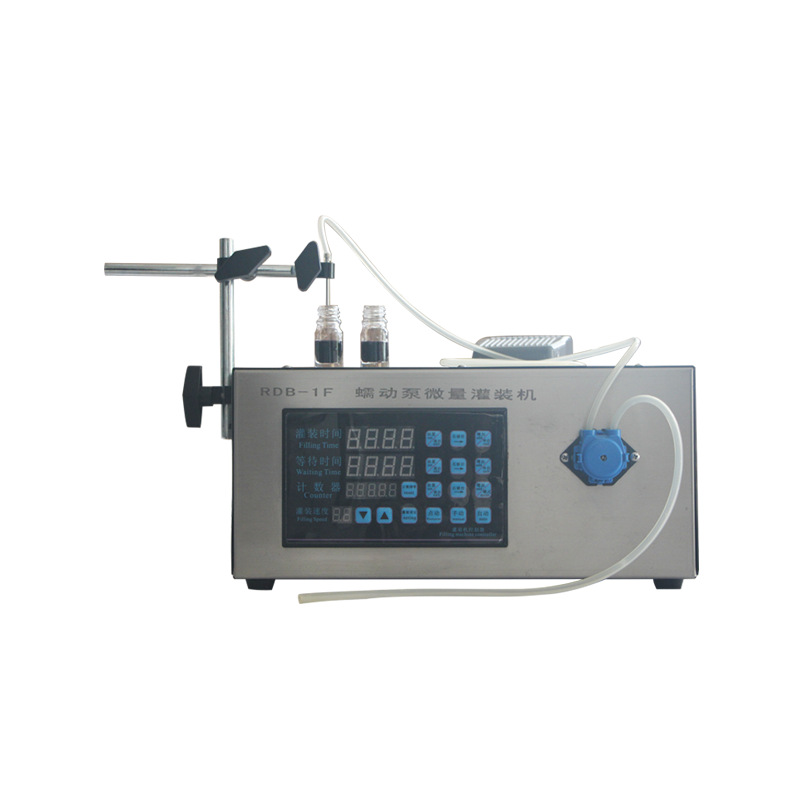

Model: RDB-1F

This machine uses a micro-suction peristaltic pump, controlled by a microcomputer to set the working and rest periods, and to automatically dispense a precise amount of liquid. It is designed for the filling of liquids over 0.5ml with small error margins.

Technical parameters:

Working Power Supply: AC220V

Power: 50W

Flow rate: 90ml/minute

Delay Range: 0.01s～999.9s

Counting range: 1 to 59999 times

Work Mode: Power-on Delay Data Program Setting

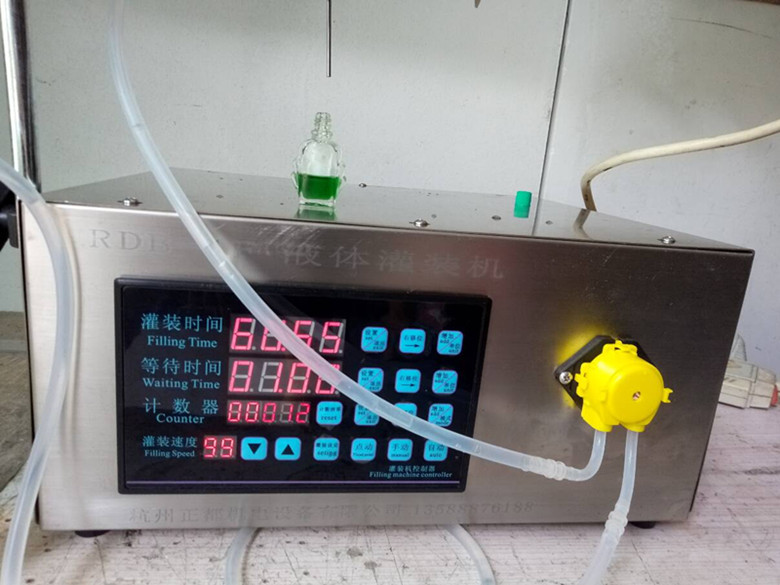

Display mode: top row shows filling time, middle row shows interval time, bottom row shows count.

Dimensions: 160*250*330mm

Weight: 6.0kg

Error; 0.5%

Filling nozzle diameter: 1.2mm

Body Material: Stainless Steel

The unique feature of this machine is

1. Filling time can be adjusted to 999 seconds,

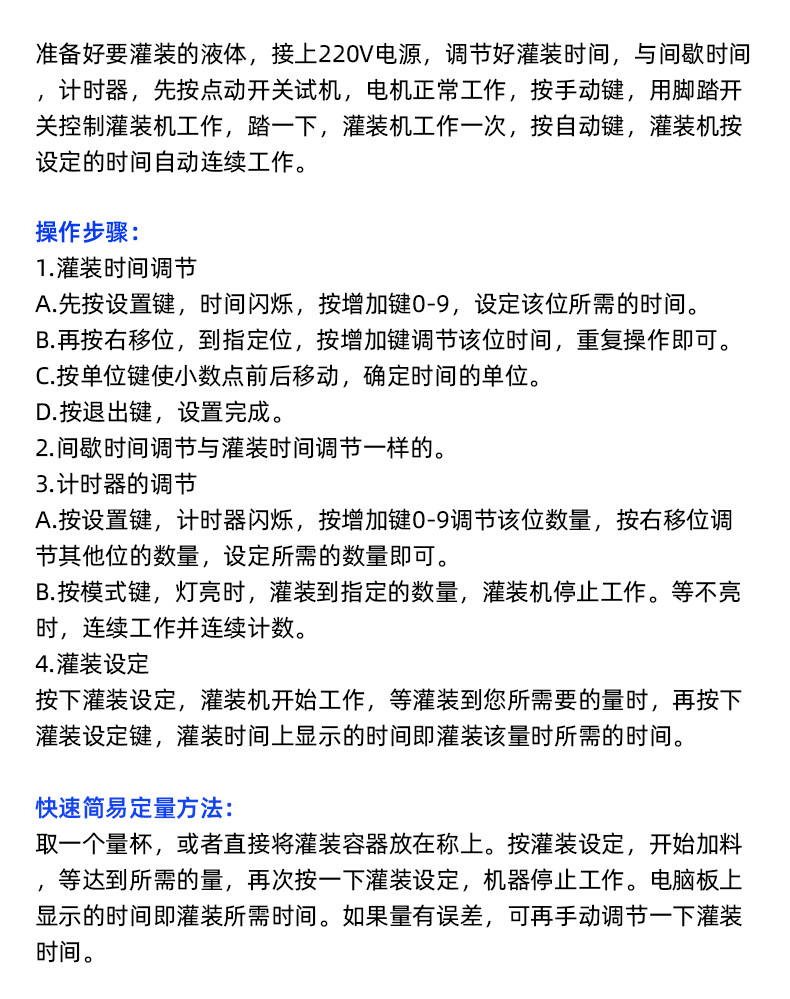

2. This machine's controller has the function of filling setting, which can quickly set the required time for the amount of filling you need. Similar machines generally do not have this function.

3. The filling machine controller typically uses full-Chinese display for easy operation and understanding.

4. Small volume liquid filling, the minimum volume can be 0.2ml
