OR31 Series Fiber Home Entry Optical Receiver

Product Overview: The OR31 series is a multi-purpose optical receiver developed by our company to meet the diverse needs of fiber-to-the-home (FTTH). It features low heat generation, high reliability, and high performance indicators. Suitable for use in residential optical receivers for cable TV fiber transmission, building-level optical receivers, and indoor optical receivers, it has an optical control AGC function. It can maintain a constant output of 80dBm when the optical input power is within the range of 0 to -15dbm, and the FTTB-031 model can output at least 102dbm.

1: Product Features:

● Select high-quality E-O photoelectric conversion and GaAs amplification integrated optical receiving module.

● Full-automatic optical AGC control, input optical power -0～-15dBm, output level remains unchanged, CTB, CSO remain essentially unchanged.

● RF channels of all-GaAs low noise amplifiers.

● Reliability: Average Mean Time Between Failures (MTBF) exceeds 40,000 hours.

● Low-power design, using efficient switch mode power supply, specially designed for CATV, ensuring high reliability and stability of the power supply. The total power consumption is less than 5W, which will significantly reduce electricity consumption when used on a large scale.

●Components are tidy, the appearance and internal workmanship are good, the whole machine parts are fixed without looseness, in line with national standards.

● Built-in multi-stage lightning protection devices (TVS transient voltage suppression diodes), the lightning protection system is tight, ensuring the safe operation of the equipment.

●220V power supply, with an external power source for convenience in maintenance.

● Fiber optic connection interface FC/APC, SC/APC two options available.

● RF interface F type with metric and imperial options.

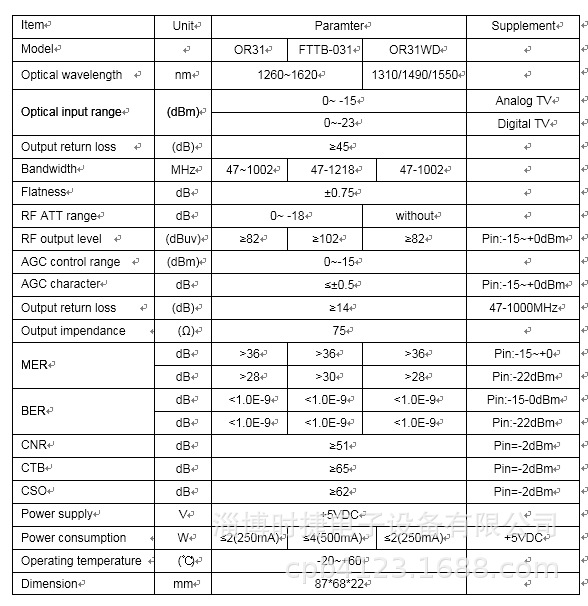

 Three: Product Technical Parameters:

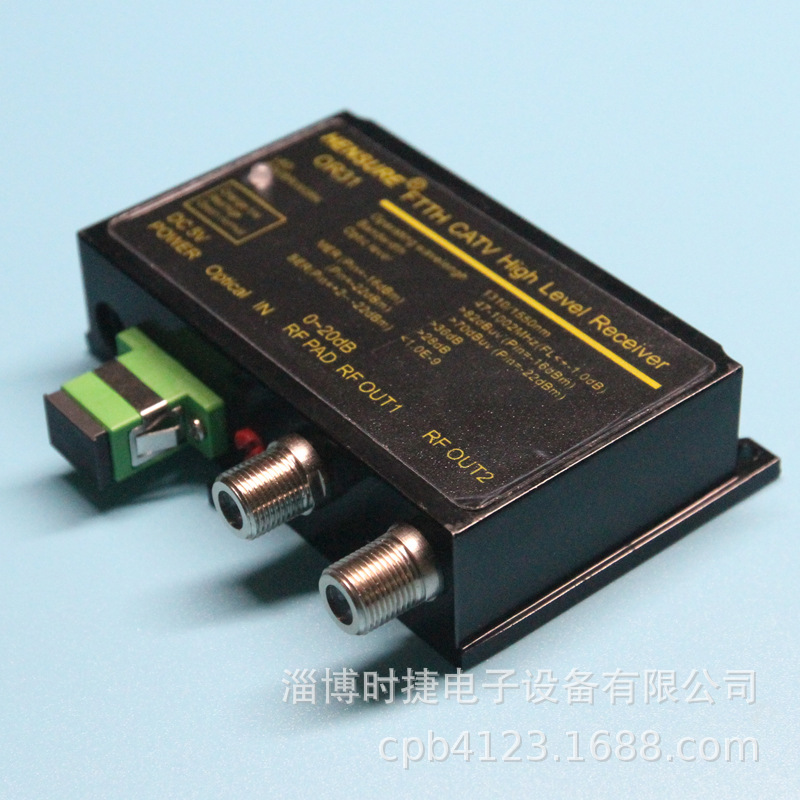

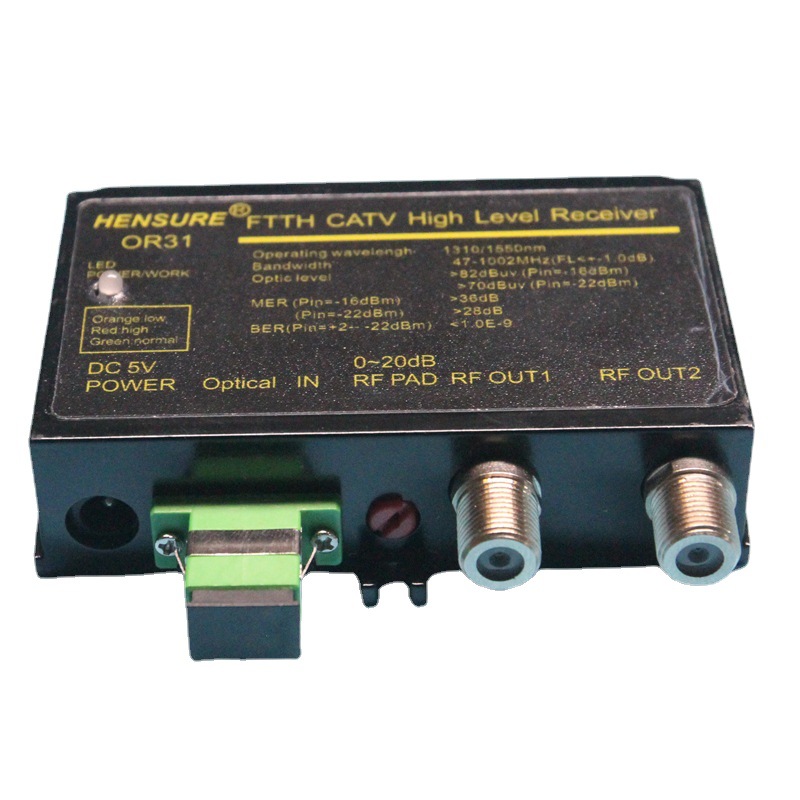

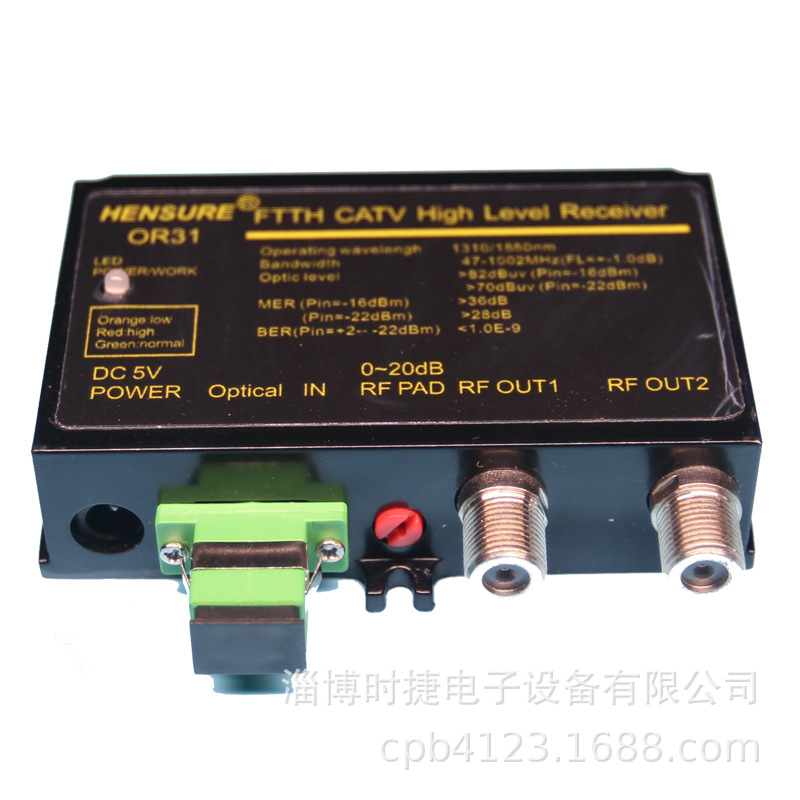

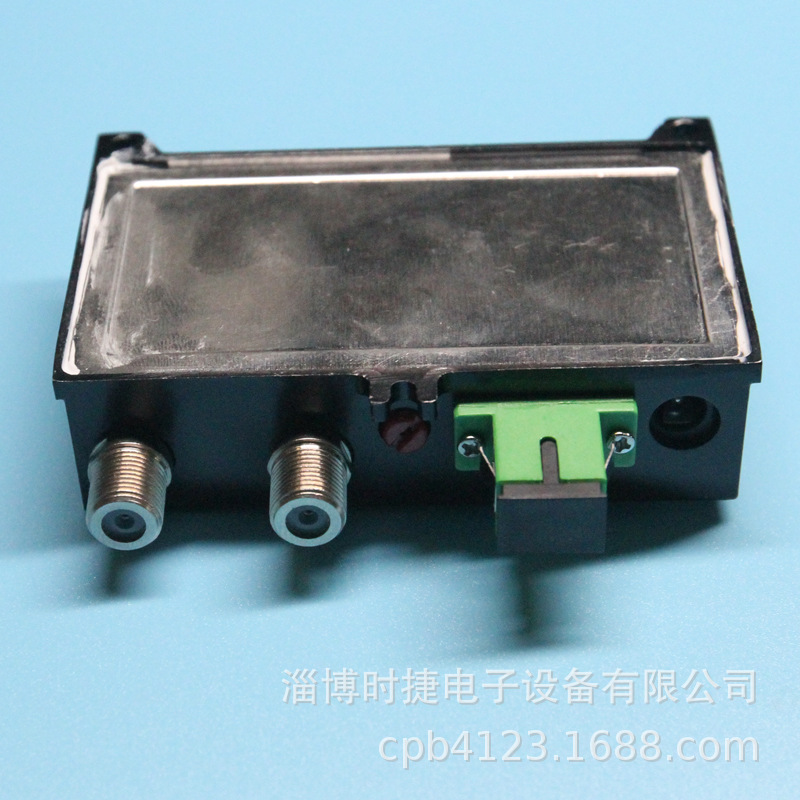

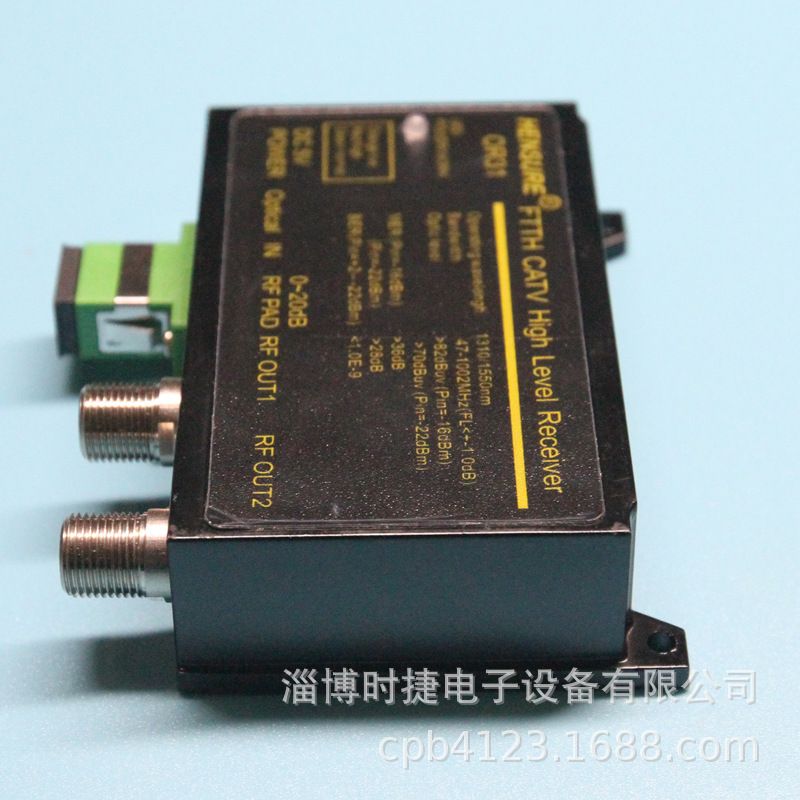

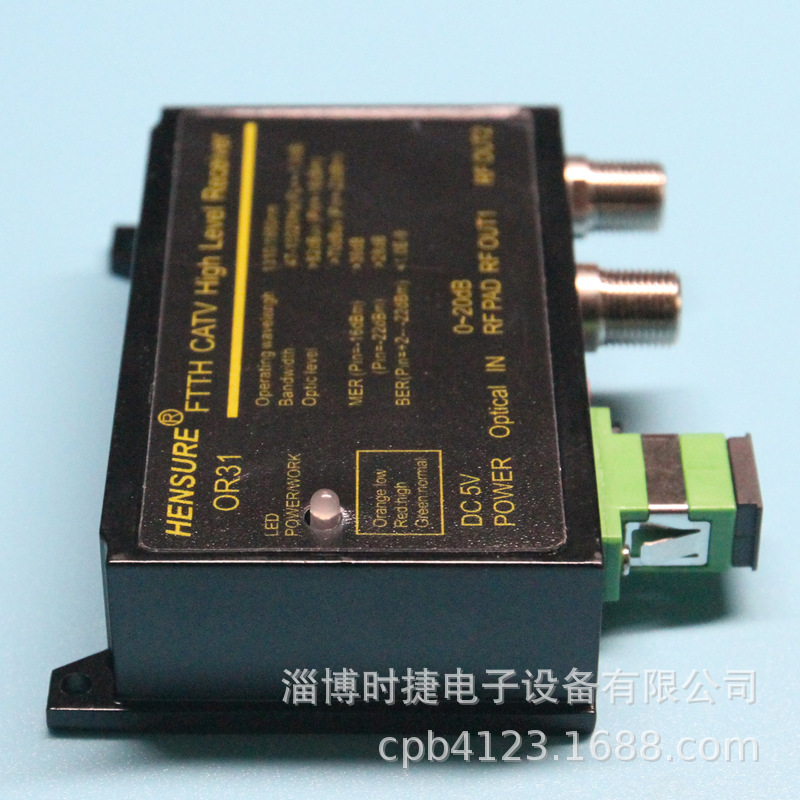

Four: Product Physical Photos












Five: Ordering Instructions:

1)：The output port is metric or imperial, defaulting to imperial.

2）：Fiber Optic Input is SC/APC

3）：Output port is a distribution type

Six: After-sales Service Guarantee:

1)：All products manufactured by our company are equipped with a network certification from the Broadcasting and Television Department. The warranty period for the products is 13 months from the date of manufacture. (Damage caused by natural disasters such as lightning strikes, mudflows, or human interference is not covered by the warranty.). We offer lifetime maintenance.

2)：If the product is damaged within six months, the repair freight is borne by the buyer and seller respectively, each bearing their own shipping costs. If the product is damaged beyond six months, the buyer bears the round-trip shipping costs.

3）：Our company has passed the ISO9001 certification.Quality system certification, all products shipped from the factory are numbered, which accurately reflects the device's production date, shipping logistics, flow, producer, and equipment inspection indicators upon entry. Please save the equipment code, and for those lost, the warranty period will be calculated based on the company's production date.

Accessories: One AC adapter.
