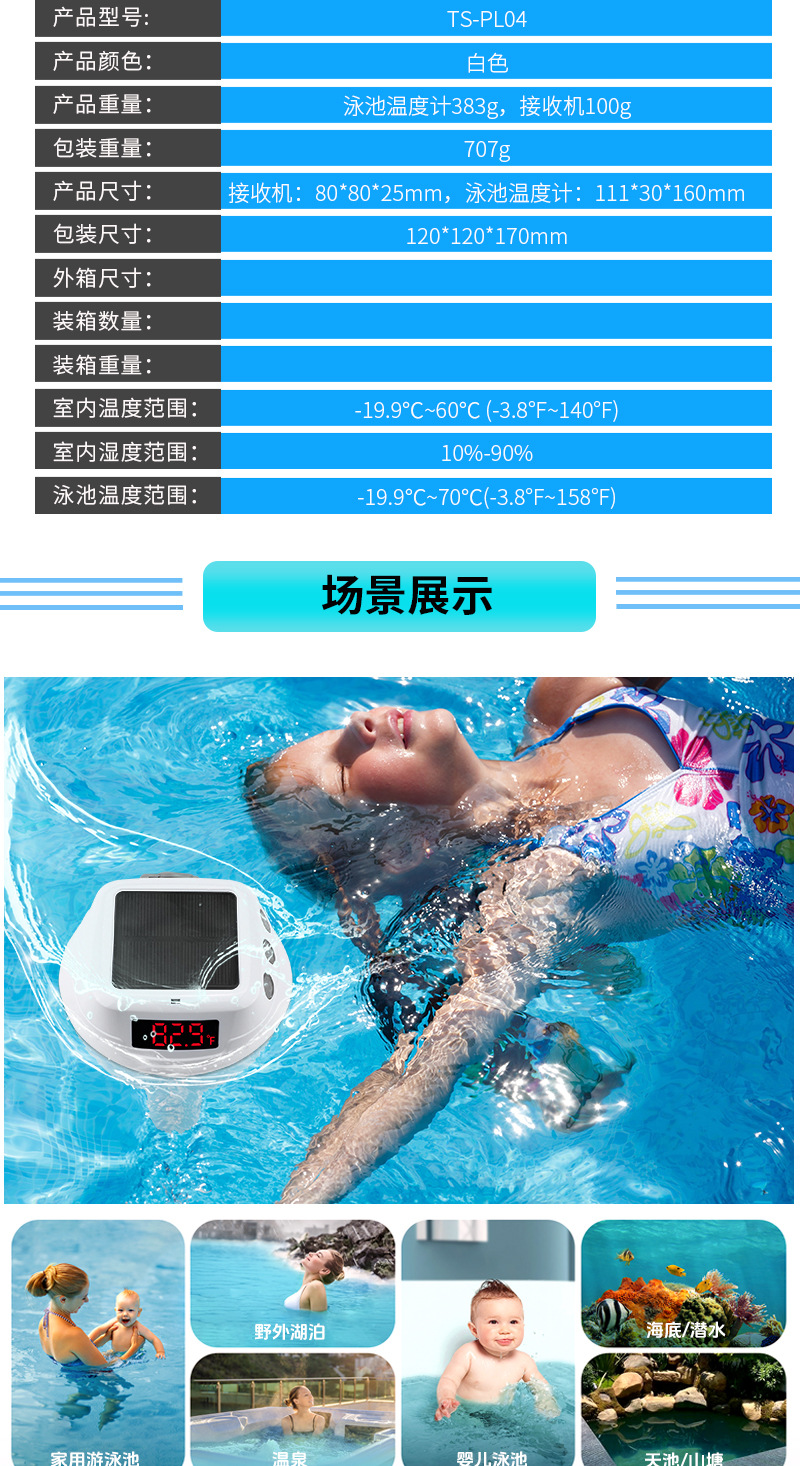

TS-PL04 Specification Introduction:
1. Receiver size: 8*2.5*8cm
Transmitter size: 11.1*3*16cm
2. Individual product packaging size: 11.6*11.6*16.4cm
Product Weight: 475g
4. Individual product packaging weight: 580g
Packing Data: 48.5*48.5*35.5cm/32pcs
Gross Weight: 19.34kg

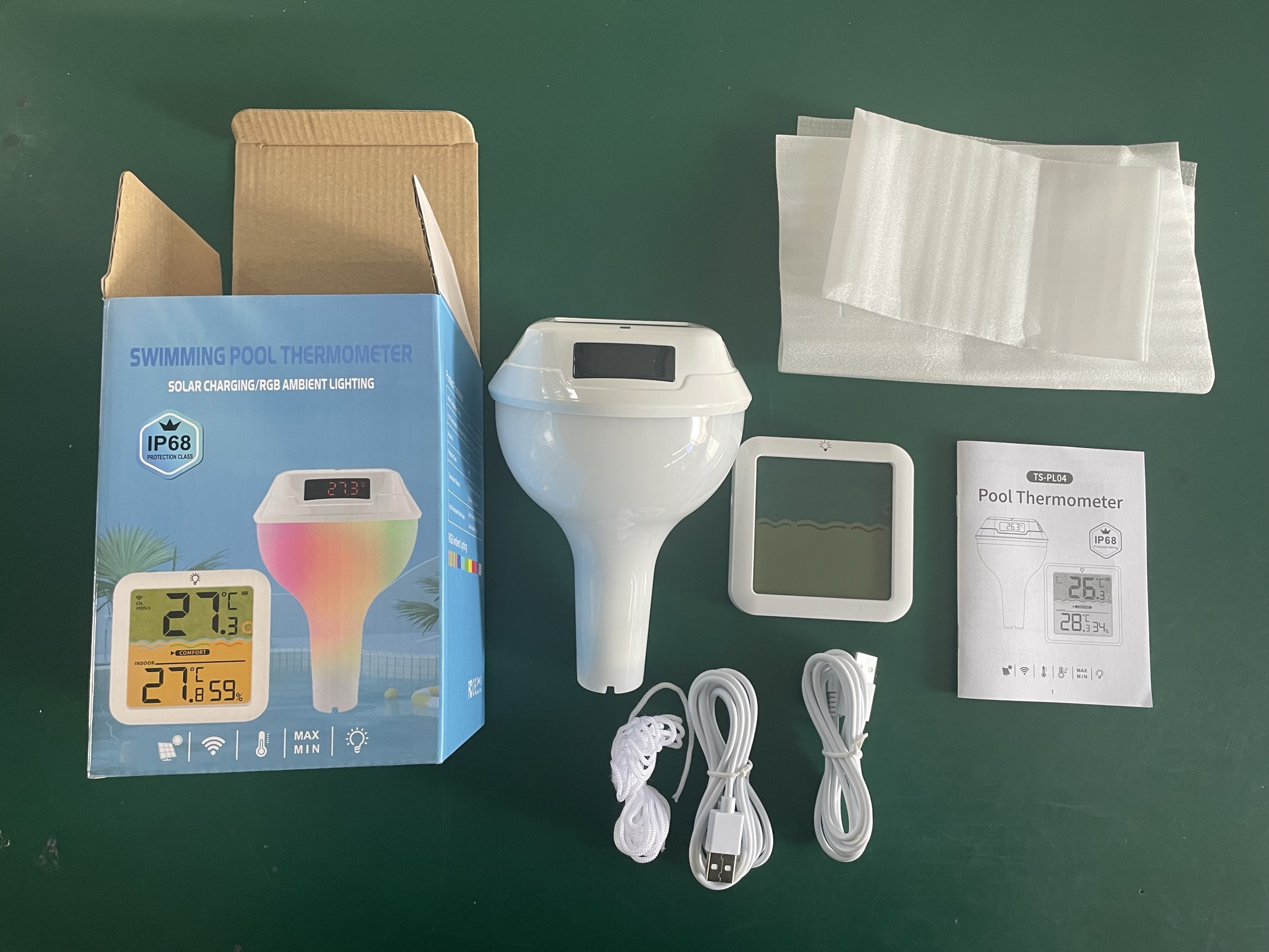

TS-PL04 Packing List:
Receiver * 1, swimming pool thermometer * 1, rope * 1, USB to Tpcy-C power cord * 1, USB to DC power cord * 1, pearl cotton bag * 2, English-Chinese instruction manual * 1, packaging box * 1, inner box * 1.
TS-PL04 Product Function Introduction:

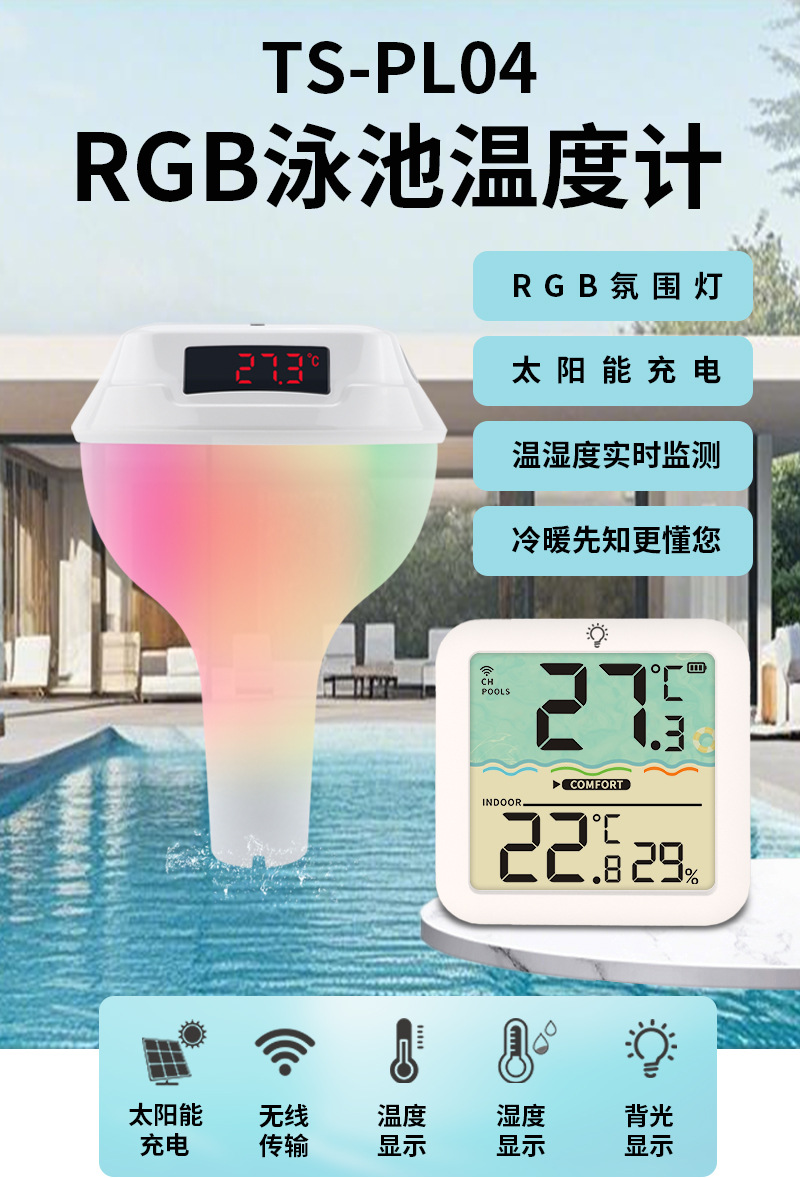

Transmitter
1. LED Temperature Display: -19.9°C to 70°C (-3.82°F to 158°F)
2. Temperature units can be switched: °C/°F Default display unit: Temperature [℉]
3. LED digital display on/off function

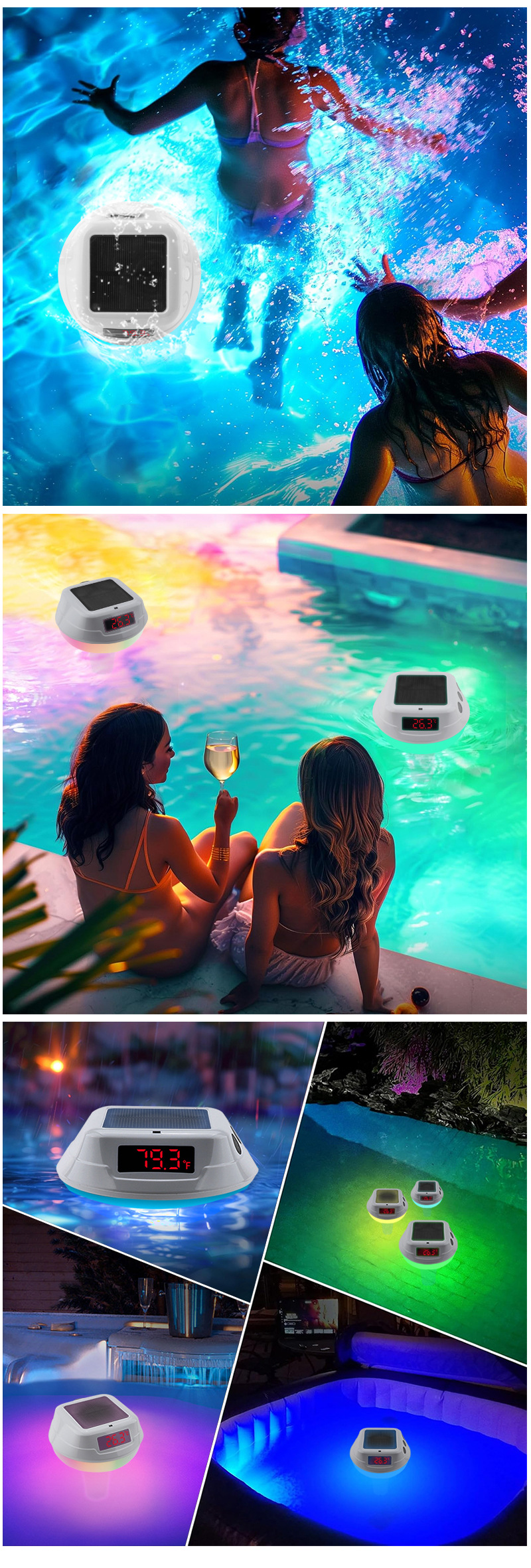

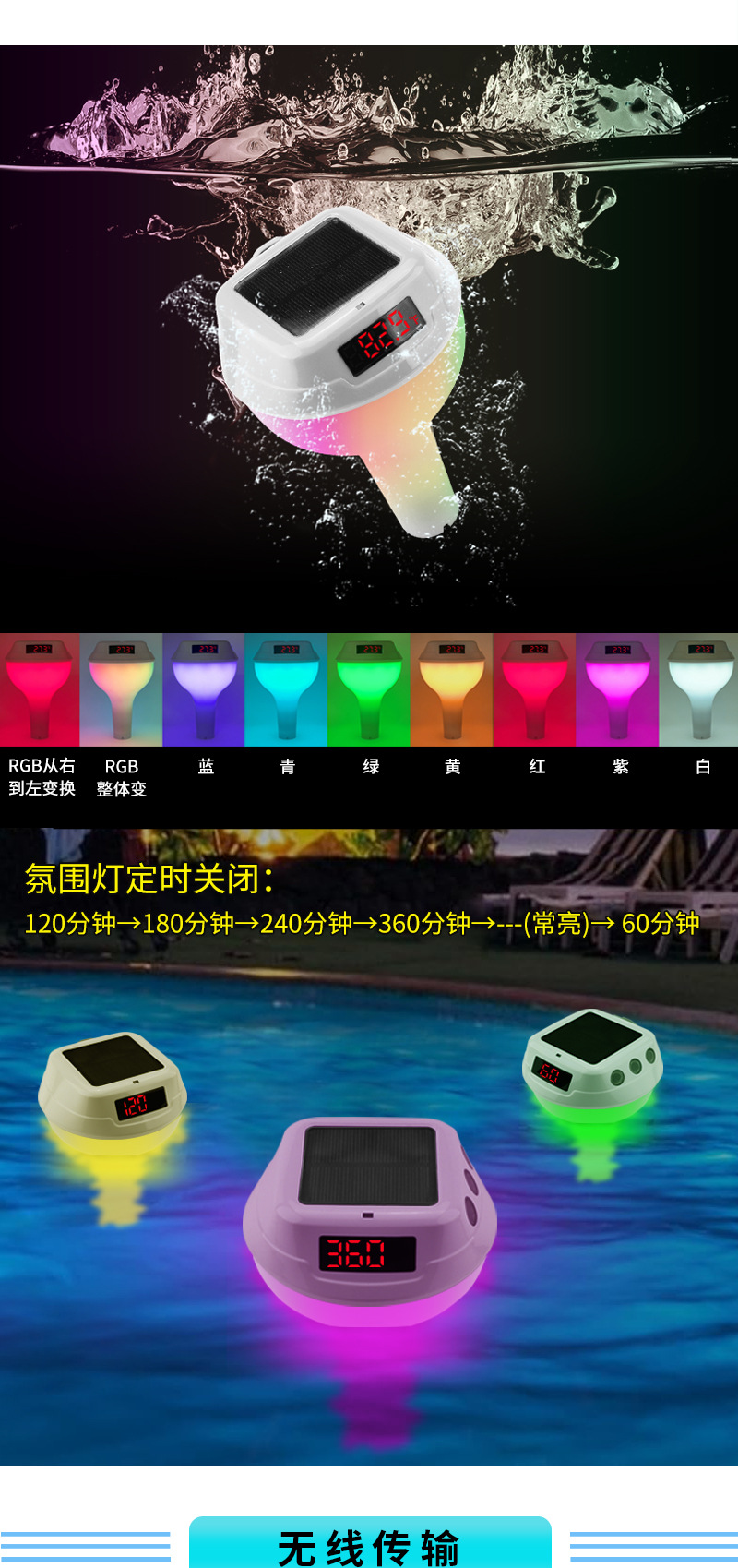

4. RGB Ambient Light Color Display: RGB overall change → RGB from right to left change → 7-color cycle → Blue → Light Blue → Green → Yellow → Red → Purple → White
5. Ambient Light Countdown Shutoff Function: Set time: Constant on → 60 → 120 → 180 → 240 → 360 minutes

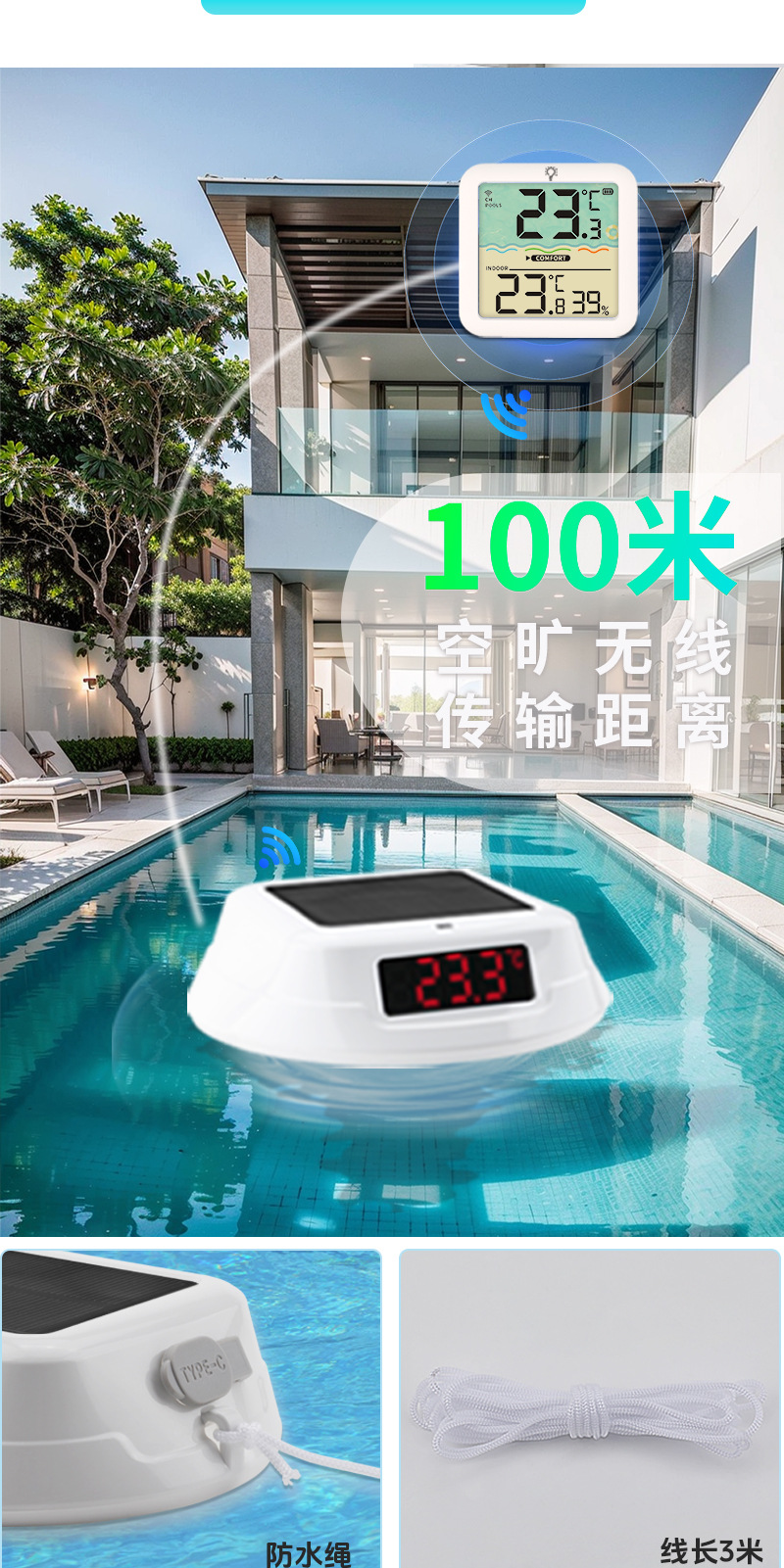

6. Wireless transmission distance: open space distance is 100 meters

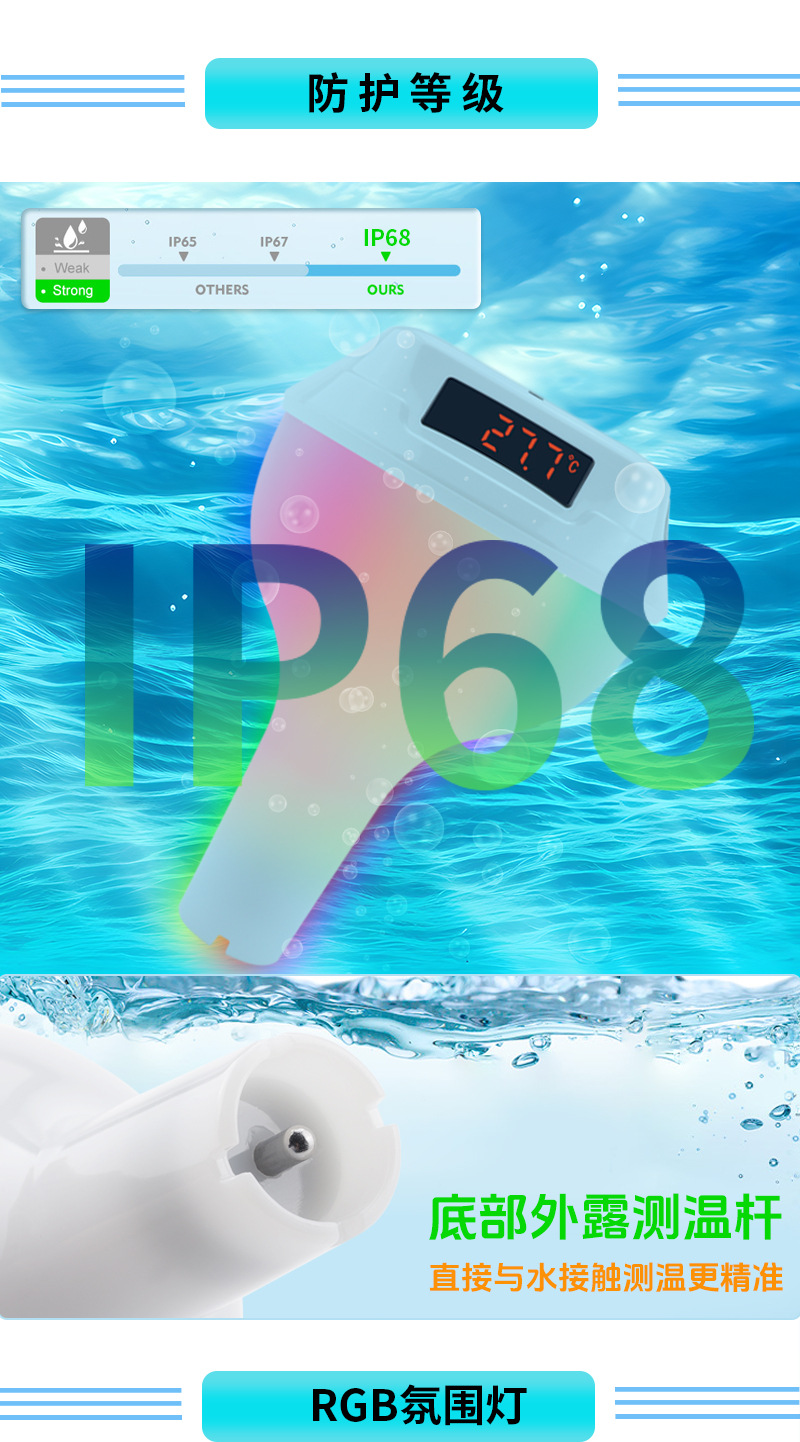

7. Protection Rating: IP68
8. Built-in 2200mAh battery
Solar Charging Panel Size: 3.0 inches
Screen size: 1.57 inches

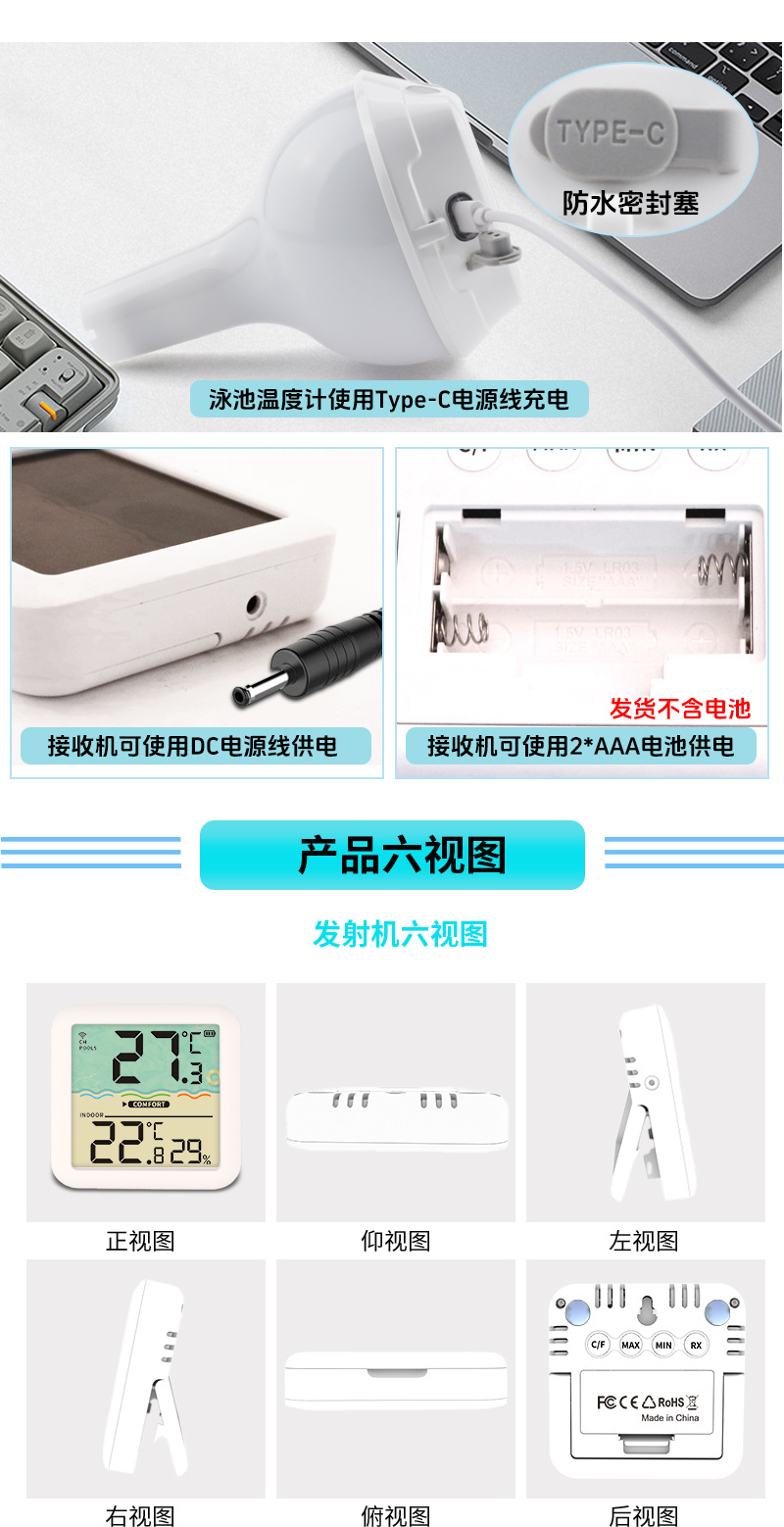

11. Waterproof Type-C Charging Port
12. Child Lock Function
Charging Method: Solar 3.5-5.5V/Type-C
14. Body Material: ABS

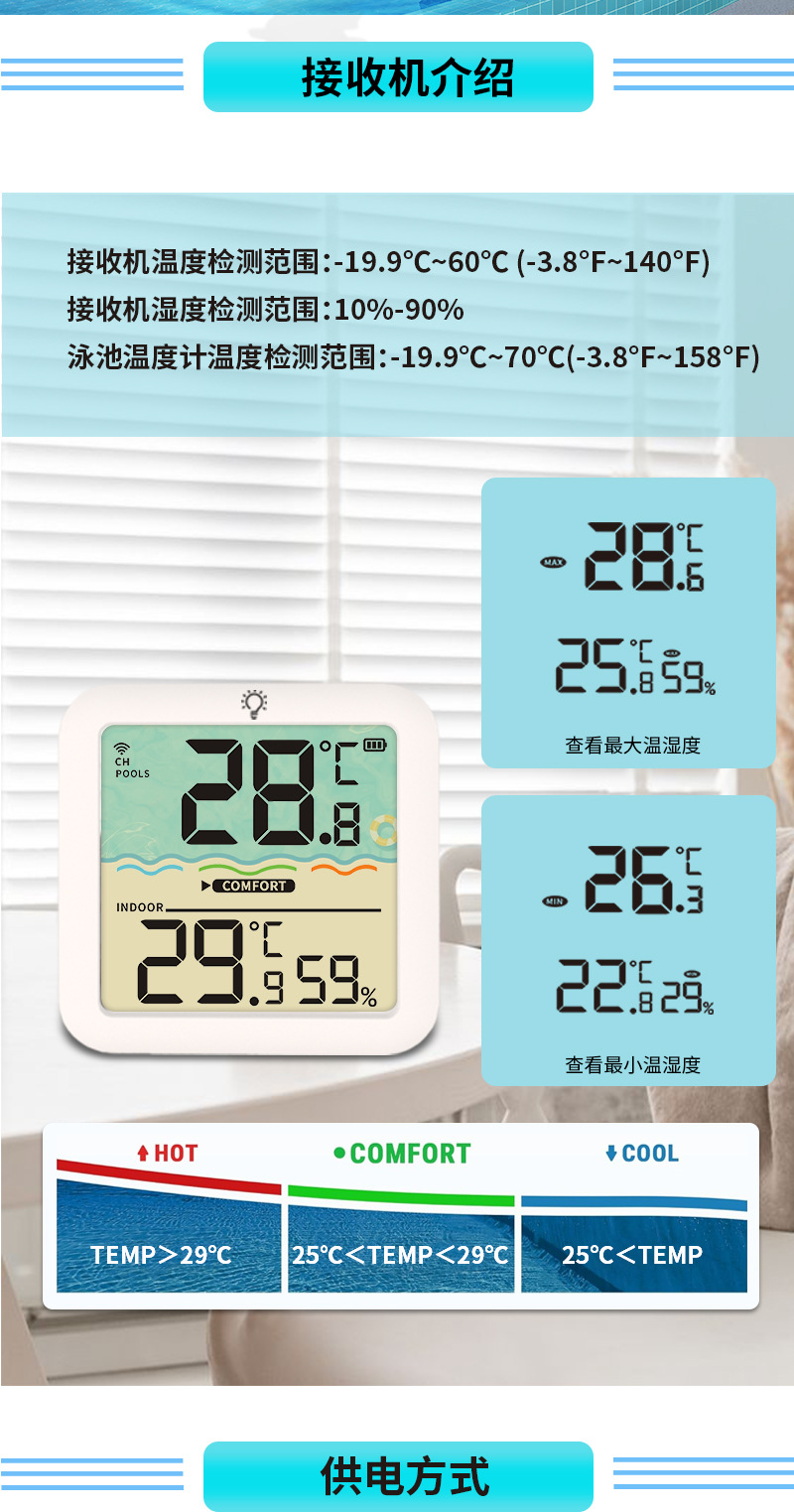

Receiver
1. Backlight: Press any button briefly to turn on the backlight for 10 seconds, and using a USB to DC power cable can keep the backlight on for a longer time.
2. Indoor Temperature Display: Range -19.9°C to 60°C (-3.82°F to 140°F)
3. Indoor Humidity Display: Range 10%-90%
4. Outdoor temperature display: Range -19.9°C to 70°C (-3.82°F to 158°F)
5. Temperature units can be switched: °C/°F Default display unit: Temperature [℉]
6. Pool water level comfort display: temperature below 25℃ displays COLD, temperature between 25-29.9℃ displays COMFORT, temperature above 29℃ displays HOT
Record the maximum and minimum temperature values of the transmitter on the same day, and display the recorded values within 24 hours after power-on.
8. Low Battery Indicator Function for Transmitter and Receiver
Screen size: 2.44 inches
10. Body Material: ABS
11. Power Supply: 2*AAA Battery/DC Power Cable
