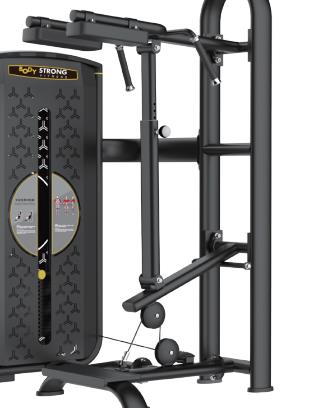

Product Introduction
* Main steel pipe model; Main frame Oval tube: T60 * 120 * 3MM small door flat Oval tube: PT50 * 150 * 3MM: movable arm round tube: 50 * 3.0MM
* Wire rope specification: diameter above 5.6mm,
* Seat cushion: Material: high density PU Foam, artificial PVC high strength leather, pneumatic cushion
* Guide rod: stainless steel guide rod with round 20 * 2.0MM
* Shield: The shield is designed with hollow iron shield
* Handle material: handle gloves made of TPV material, soft to the touch, non-slip and durable
* Adjustment: The adjustment part adopts gas spring adjustment structure
* Counterweight: the counterweight part adopts 18mm thick pure steel sheet, which is more excellent in impact resistance and abrasion resistance.

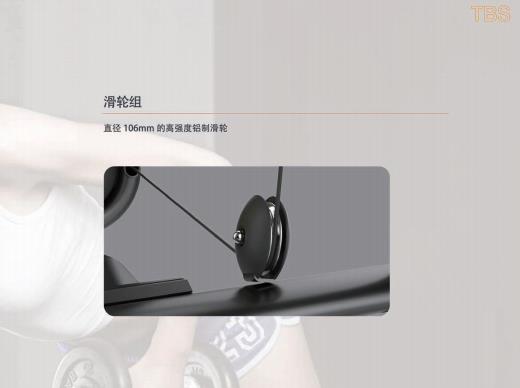

* Pulley: pulley adopts high-strength nylon pulley, which can meet more than 100000 uninterrupted tests.
* Standard parts: standard parts adopt high-strength bolts and nylon caps that conform to international grade 8.8 or above, with more outstanding strength and antirust capability

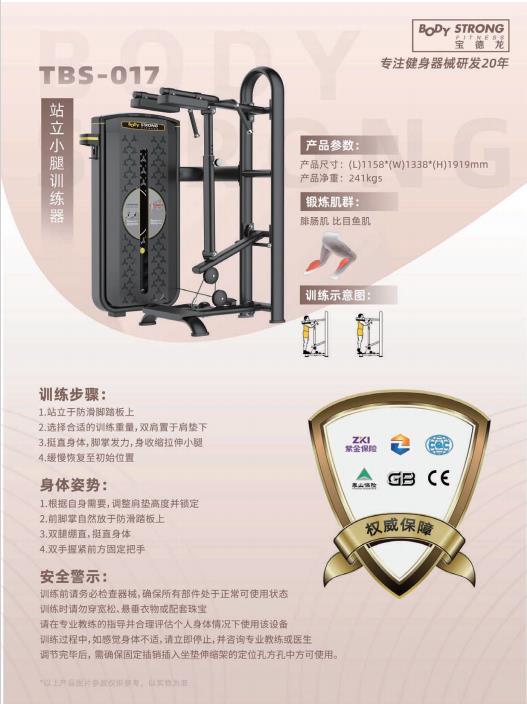

product Size:(L)1158*(W)1338*(H)1919mm
