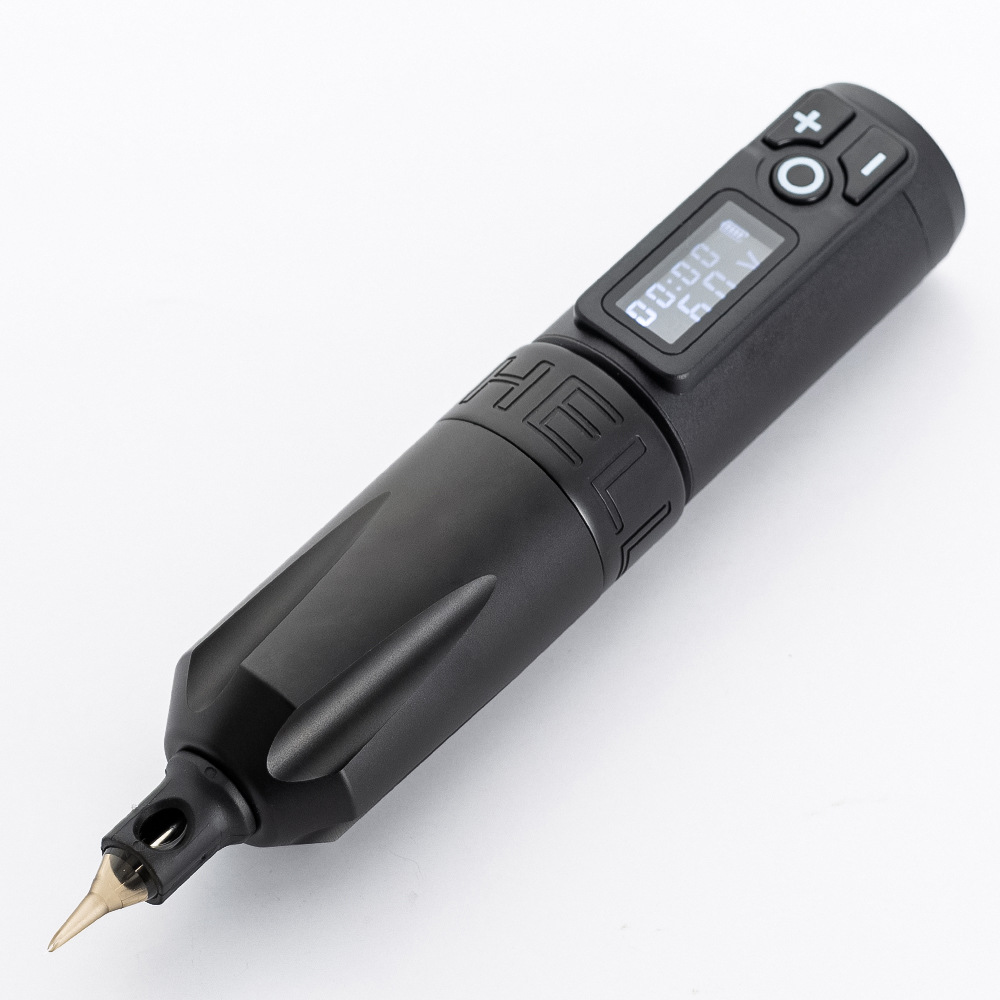

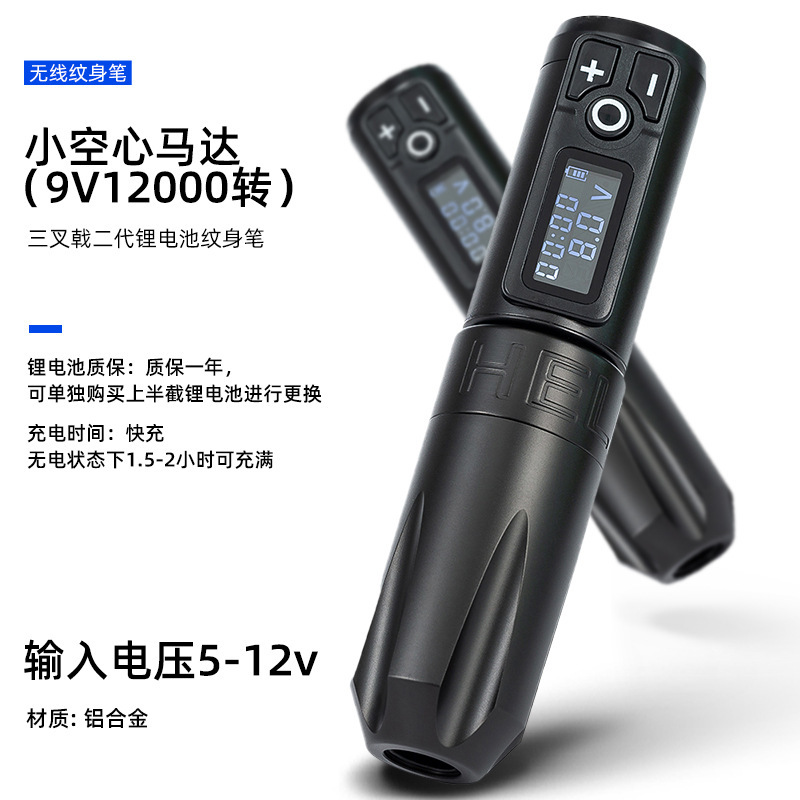

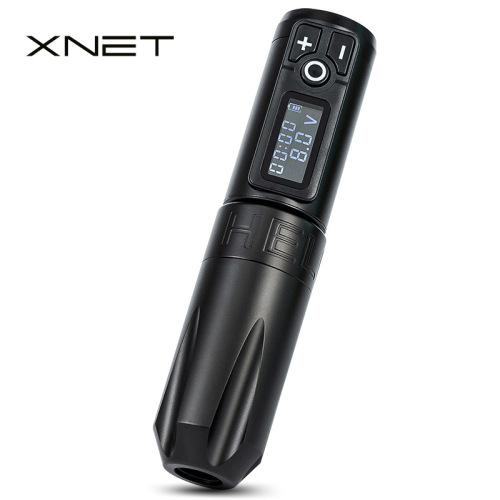

Product Name: Lithium Battery Tattoo Pen II

Net weight: 228g Gross weight: 363g
Size: 145.5*33mm (battery area) (grip area 33.5mm)
Package: Lithium battery tattoo pen + USB power cord
Color: Single color, black with black outline.

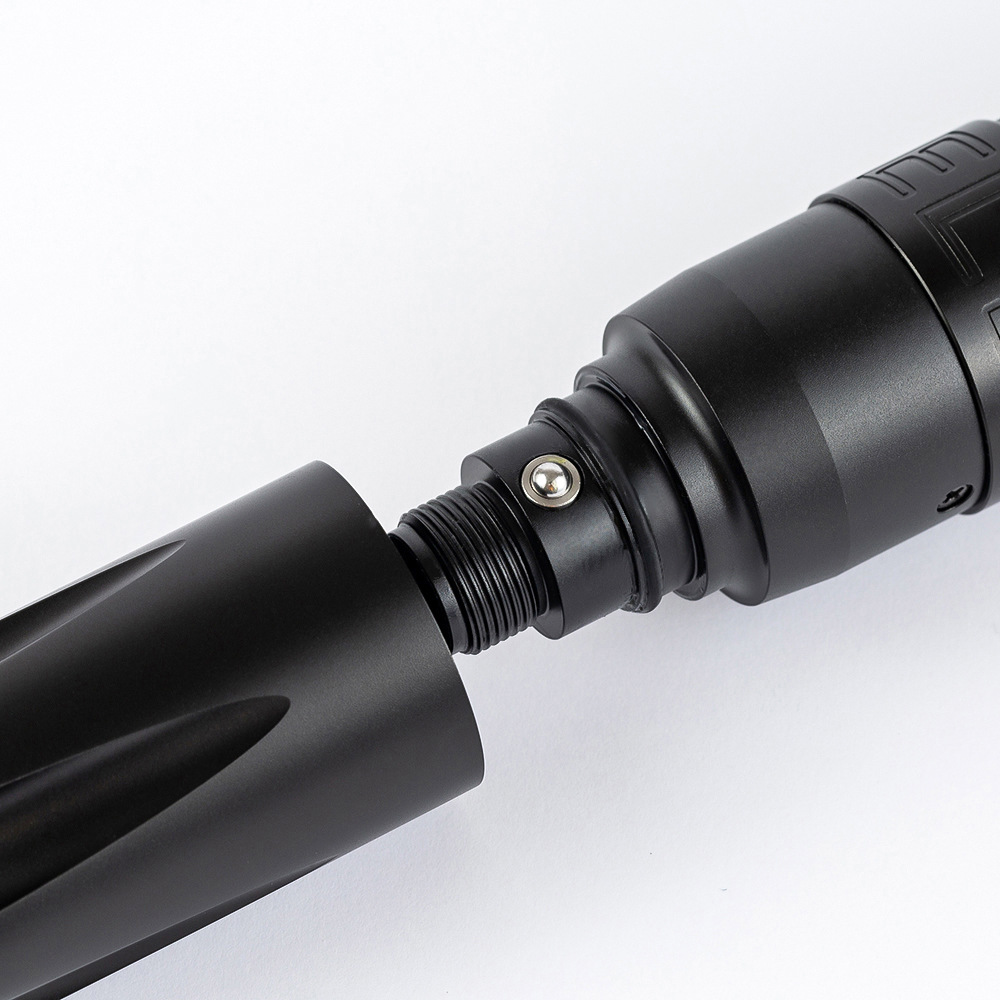

Structure: Built-in lithium battery, integrated tattoo pen, the middle can be rotated to replace the upper half of the lithium battery;
Applicable: 1. Android USB data cable 2. Most of the integrated pins on the market (Xiaan standard size) 3. The configuration does not include a charging adapter, and you can directly use the phone's charging adapter;

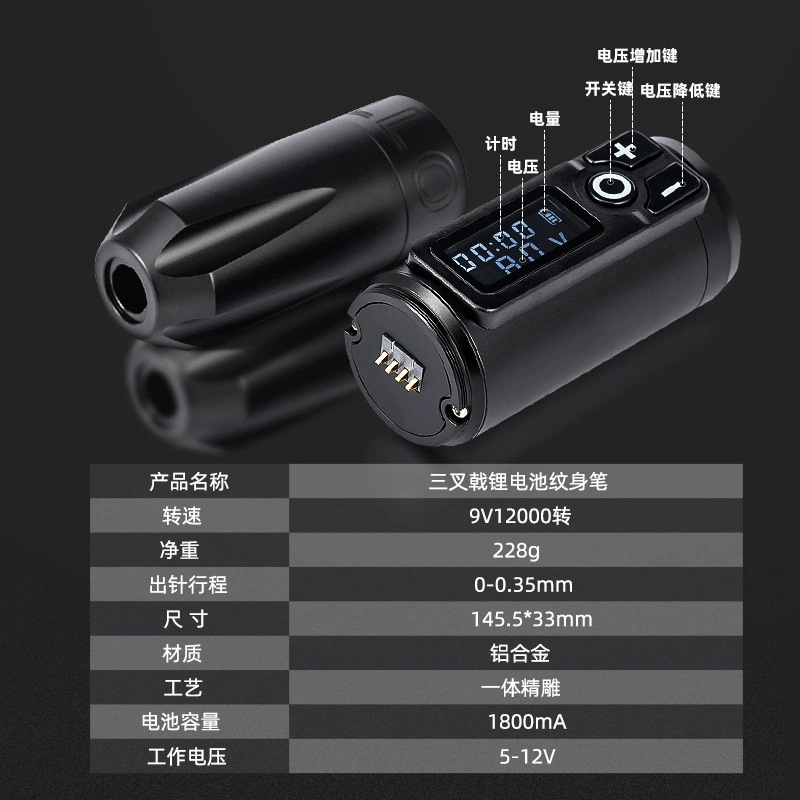

Product Parameters:
1. Material: Aluminum alloy.
2. Technology: CNC integrated precision engraving;
3. Charging Interface: Android USB port;

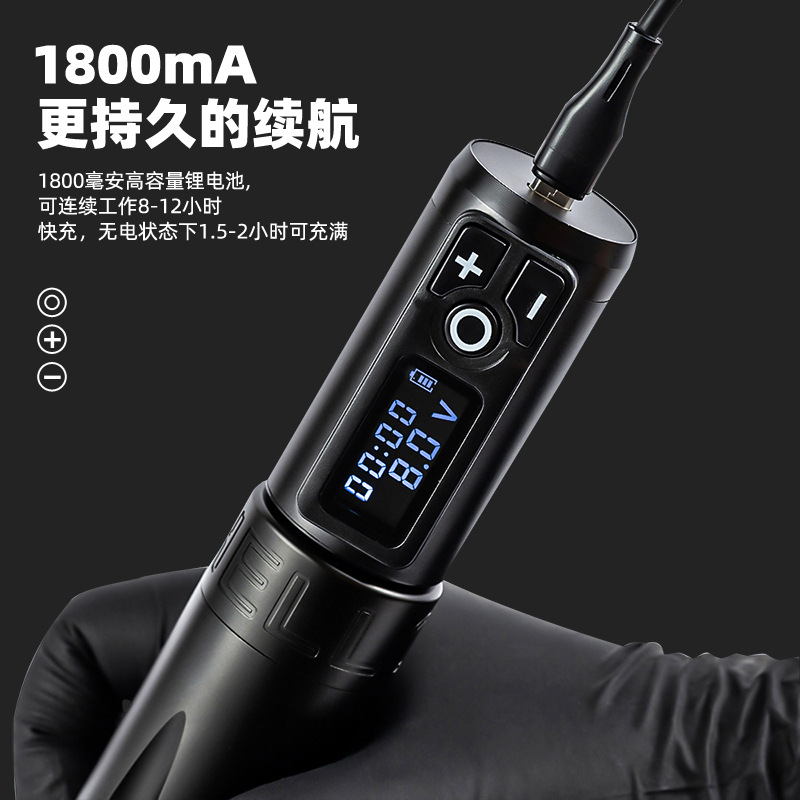

Battery capacity: 1950mAh (milliampere-hour);
Charging time: Fast charging, can be fully charged in 1.5-2 hours without power.
3. Operating Time: The output current is 2.0A, and it can sustain operation for over 7 hours under normal 8V voltage conditions. The voltage is stable, and intermittent use can last for about 8 hours;

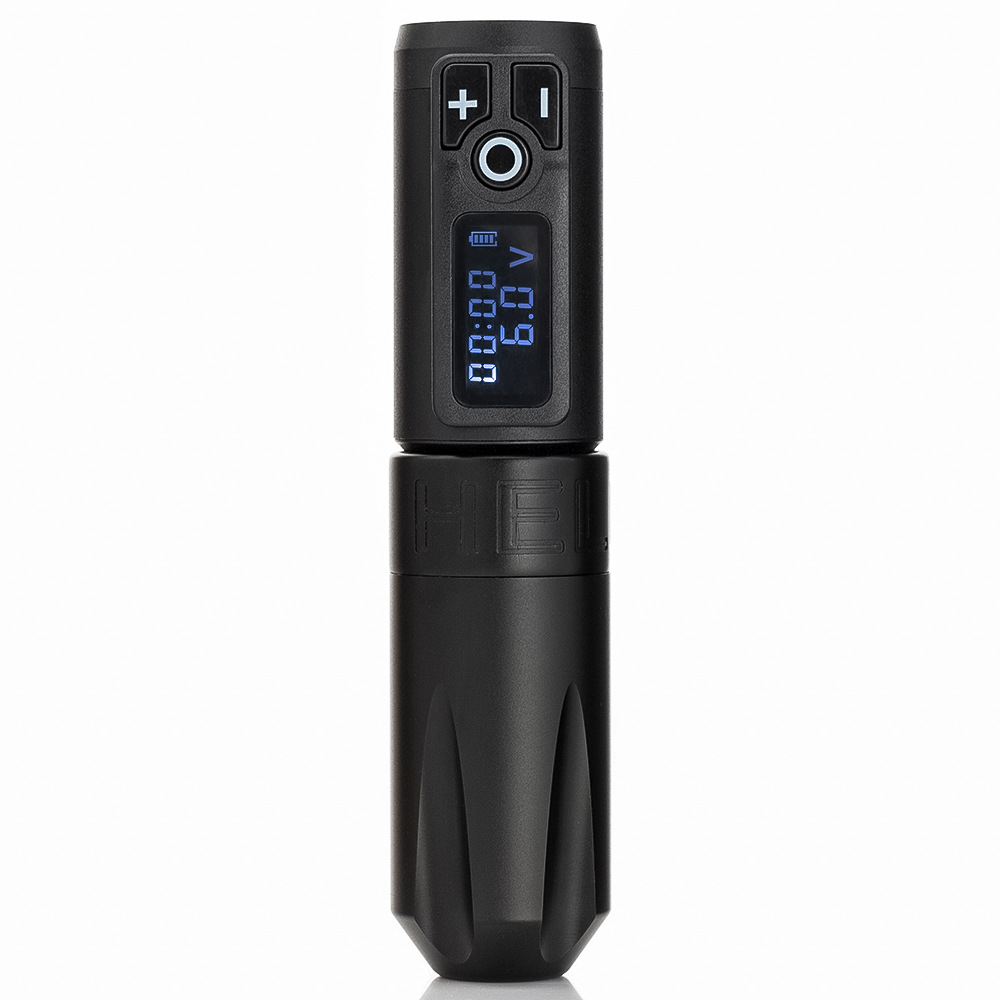

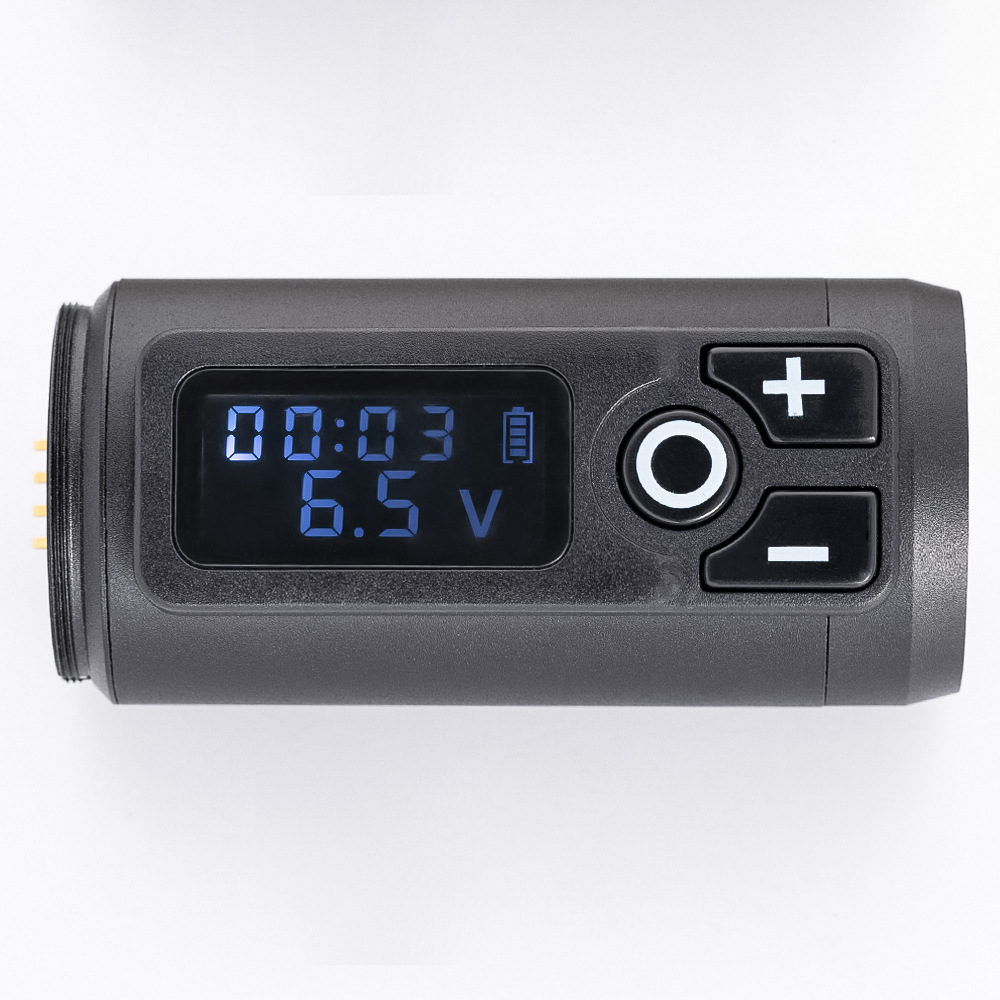

4. LCD screen display content: working time count (hours-minutes count) + binary output voltage + battery capacity status;
5. Motor: Centripetal Cup Motor
6. Thickness: 0-0.35mm;
7. Start-up Voltage: With built-in memory function, the start-up voltage is the same as the last voltage value at which the machine was turned off.
8. Working voltage range: 5-12V;
Instructions:

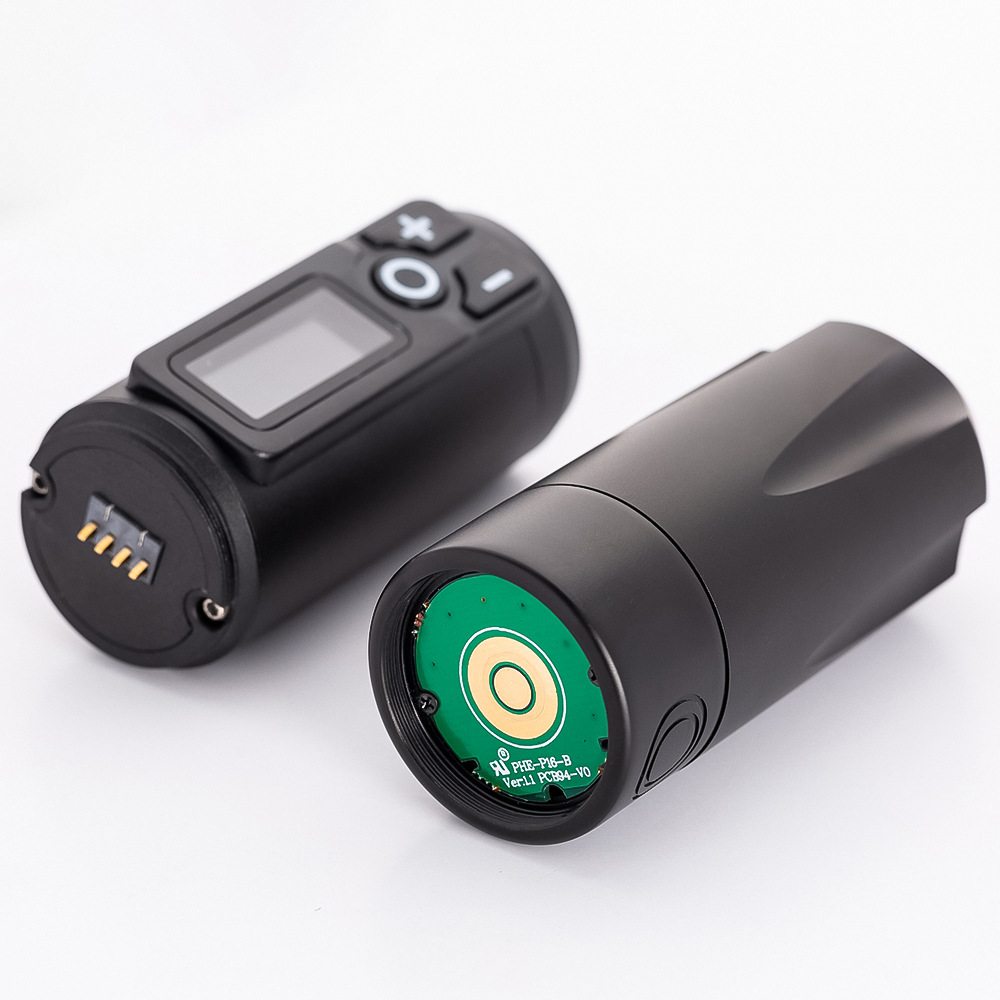

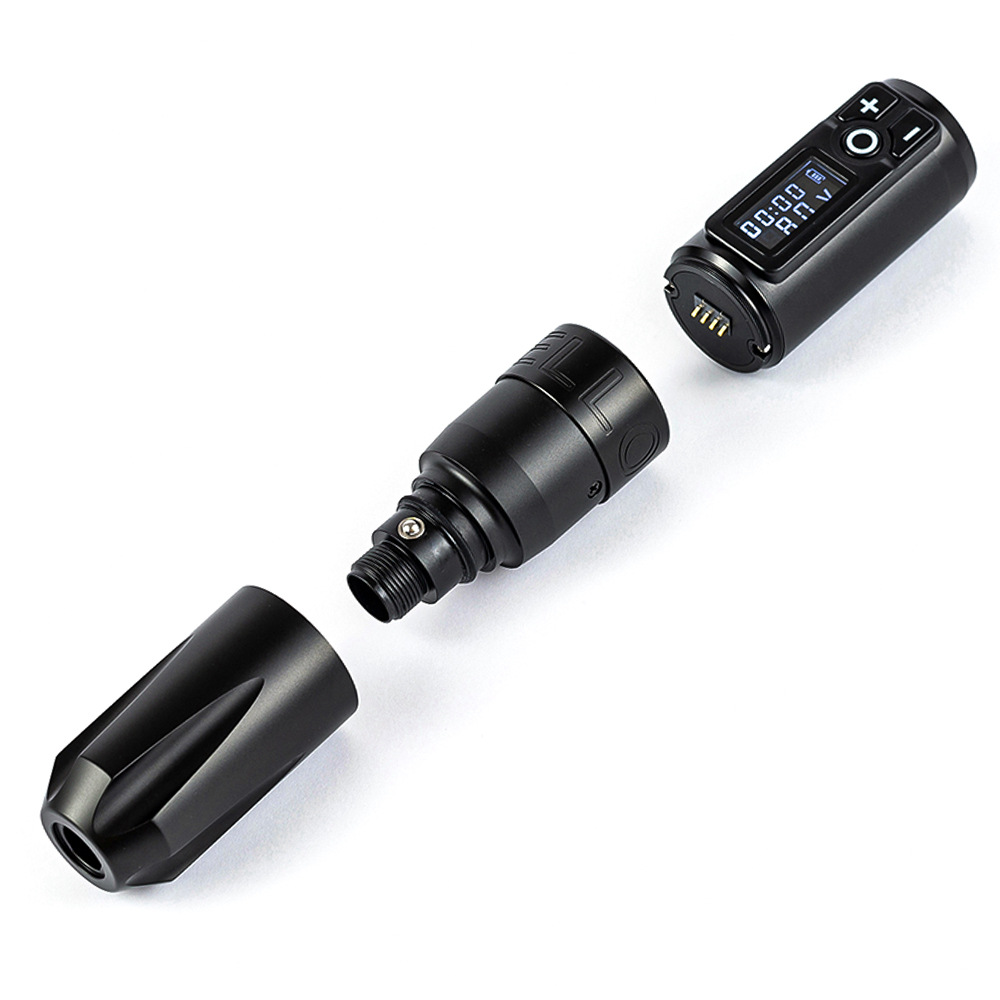

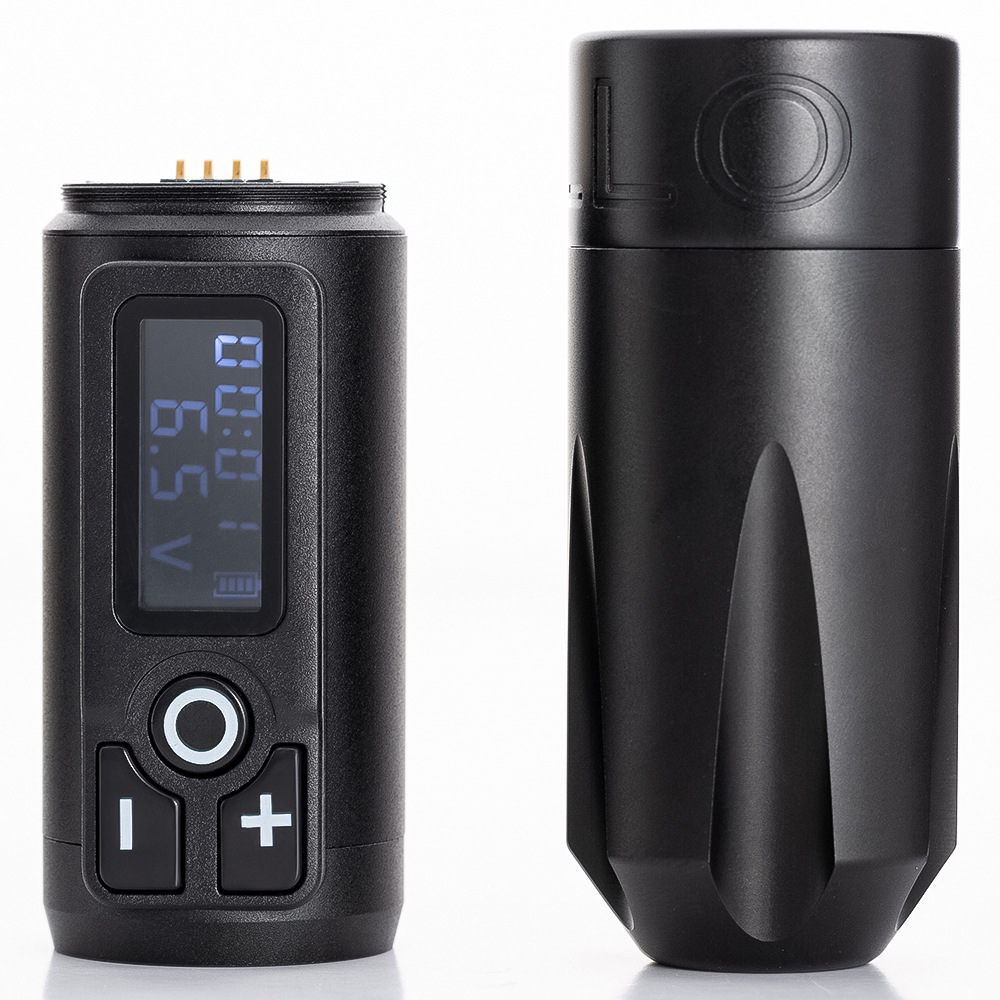

The device is a tattoo pen with built-in lithium battery, which can be used directly without the need for a foot pedal or guiding line. It is composed of two parts: 1. The upper half is the lithium battery power supply, and 2. The lower half is the tattoo pen. The middle part can be rotated to replace the upper half of the lithium battery. The specific function operation is as follows:
1. Power on: Press and hold the "O" button for 5 seconds to turn on the device, then press and hold for another 5 seconds to turn it off.
2. Pause: Press the 'O' key briefly to pause the work, and press it again briefly to resume the working state.

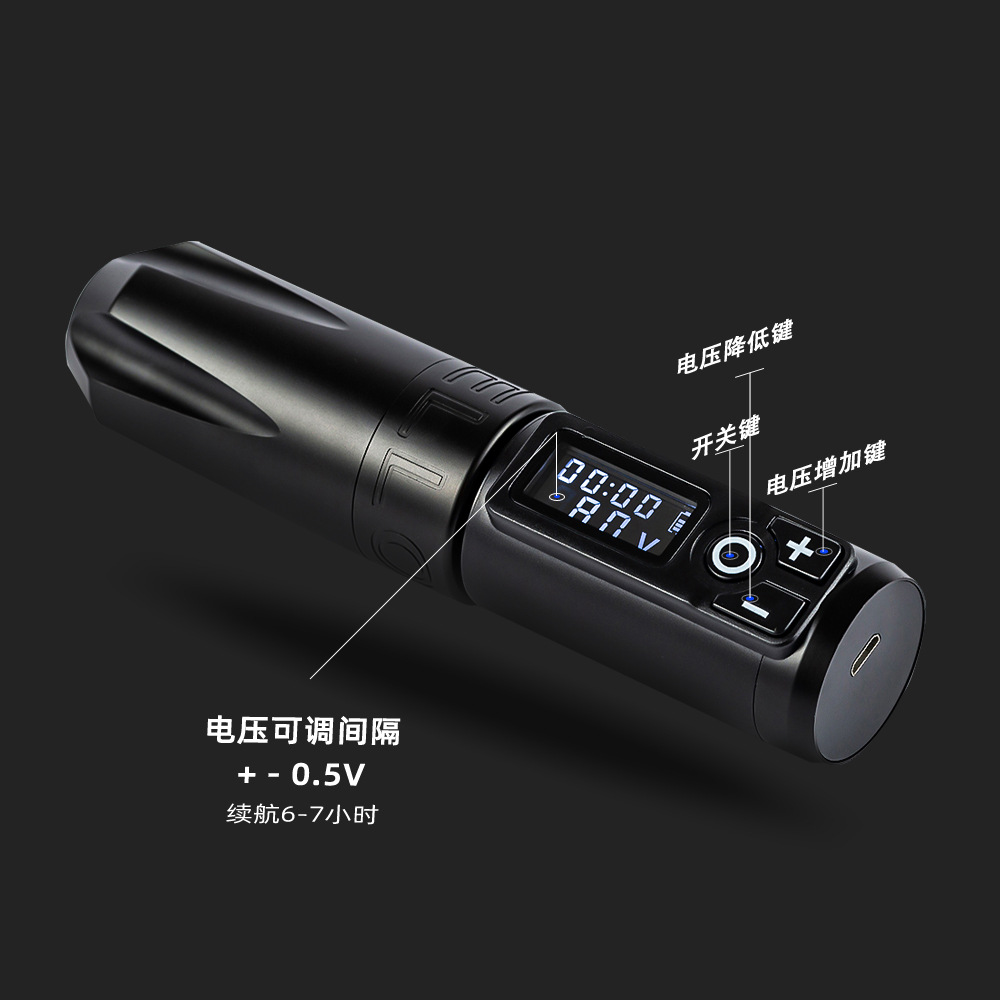

3. Adjust the voltage: Adjust the voltage level by pressing the '+' or '-' key. Each press adjusts 0.5V, with the minimum voltage at 5V and the maximum at 12V.
4. Battery Display: The LCD screen shows 4 bars for a full charge, and when the battery is down to the last bar, it needs to be charged.
5. Daily Charging: The external charging port allows you to charge using an Android USB cable.
6. Lithium battery warranty: one-year warranty, you can purchase the upper half of the lithium battery separately for replacement;
Power Parameters:
1. Input: The device is charged through a USB charging port, and then the lithium battery is charged. It has three built-in batteries, each with a capacity of 650mA, and the voltage of the battery is 3.7V.
2. Output: The output current is fixed at 2A. The lithium battery releases its stored charge through the start button, powering the built-in motor to start the tattoo pen. Voltage settings: (5-12V) Switch between voltage settings by pressing the "+" or "-" key. 5V is the lowest voltage, and 12V is the highest. Each adjustment step is 0.5V.
3. Battery capacity: Charge through the included USB cable, and it will take 1.5-2 hours to fully charge under normal conditions. The battery is fully charged when the indicator shows 4 bars. With 8V operation, the device can last more than 7 hours. The voltage is stable. When the battery is down to the last bar, it's necessary to charge to ensure normal operation in the future.
4. Key Features: 1. Simple operation and convenient use, a pen is all you need, no need for a foot pedal or power supply for tracing; 2. High-definition LCD display with a large screen and a beautiful design; 3. Enhanced battery life, at least 7 hours of continuous operation to ensure stable output; 4. Diverse display, the working time and voltage are directly displayed, providing intuitive and convenient practicality; 5. The grip area is finely carved with a non-slip design, ensuring comfort and grip even after prolonged use and with sweat; 6. You can purchase the upper half of the battery separately for replacement, having multiple spare parts for emergency use; 7. Can be paired with an RCA converter for operation using power, tracing, and a foot pedal, allowing one pen to be used for multiple purposes; 8. The card pin port is the standard size of Xiamen, suitable for most one-piece needles on the market; 9. Can be laser engraved with a logo, free for 20 sets, and large quantities can be customized for the lower half of the model; 10. Enhanced output, 2.0A output to ensure sufficient power, allowing for smooth cutting and fogging; 11. The adjustable handle area is equipped with stainless steel positioning beads, ensuring accurate adjustment with a clear sound, providing excellent performance.
