Product Introduction:

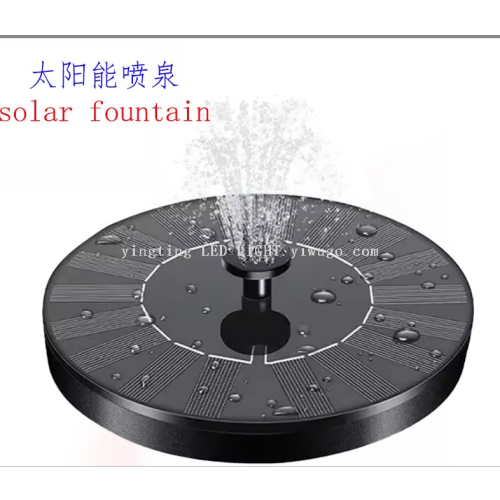

Solar-powered fountain is a landscape fountain device that uses solar energy to drive the water pump to pump water. This product uses high-efficiency solar panels and new brushless water pumps, which have the advantages of fast start-up, high efficiency, and strong stability. In addition, the product floats on the water surface, without external power supply, easy installation and operation. It is widely used in garden decoration, bird baths, small pond water body circulation oxygenation, rockery fountain and other places. Installation is simple and convenient, as long as there is direct sunlight, the water pump can start working.

This solar-powered brushless pump employs high-sensitivity low-power Hall-effect components, coupled with efficient and intelligent electronic circuitry for driving. It also incorporates a volute design from fluid mechanics in the impeller chamber to reduce water resistance, thereby enhancing the overall performance by 20% compared to traditional solar water pumps. This pump also addresses the challenges of difficult start-up, low efficiency, and poor stability of current brushless solar water pumps. It can be connected to various nozzles of different shapes to spray different water patterns.

Specifications:

Solar panels: 7V/1.7W monocrystalline silicon Solar panel size: diameter 130mm, 160mm, 180mm.
Pump Parameters: DC 4.5-12V Maximum Flow: 200L/h Maximum Head: 110cm

Diameter: 13cm:

Product net weight: 200g

A box gross weight: 12.5kg

Internal box size: 145*145*45mm

Crate Size: 450*440*290mm

Case/60 sets

Diameter 16cm:

Product net weight: 245g

A box gross weight: 10kg

Internal box size: 175*175*45mm

Crate Size: 480*360*360mm

Case/40 sets

Product performance:
Spray height: 35-65cm, the height of spraying will be different when connected to different nozzles.
When the solar panel receives sufficient sunlight, the pump will start in 3 seconds.

Notes:
This product is a solar-powered direct-drive water pump that does not require an additional battery. The height of the spray is completely dependent on the strength of the sunlight. When the sunlight is weak, the pump will not operate continuously, but it will automatically restart repeatedly until the sunlight reaches a certain intensity, at which point the pump will resume continuous operation. Please place the product in direct sunlight without any obstructions, as shadows can affect the normal operation of the pump.
The two pumps must be completely submerged in water and should not operate for a long time without being fully immersed. When the pumps are first submerged in water, as there is air inside the pumps, it is recommended to wait until the pumps are operating normally before inserting the nozzle.
Please maintain the cleanliness of the water source and regularly clean the pump to prevent foreign objects from being sucked into the pump, which could lead to the pump failing to operate normally.
