Description

import or not: no

order number: j2459

type: analog oscilloscope

brand: yangzhong guangyang

model: j2459 student oscilloscope (15022)

number of channels: single channel

bandwidth: 3

sampling rate: 0

record length: 0

waveform capture rate: 0

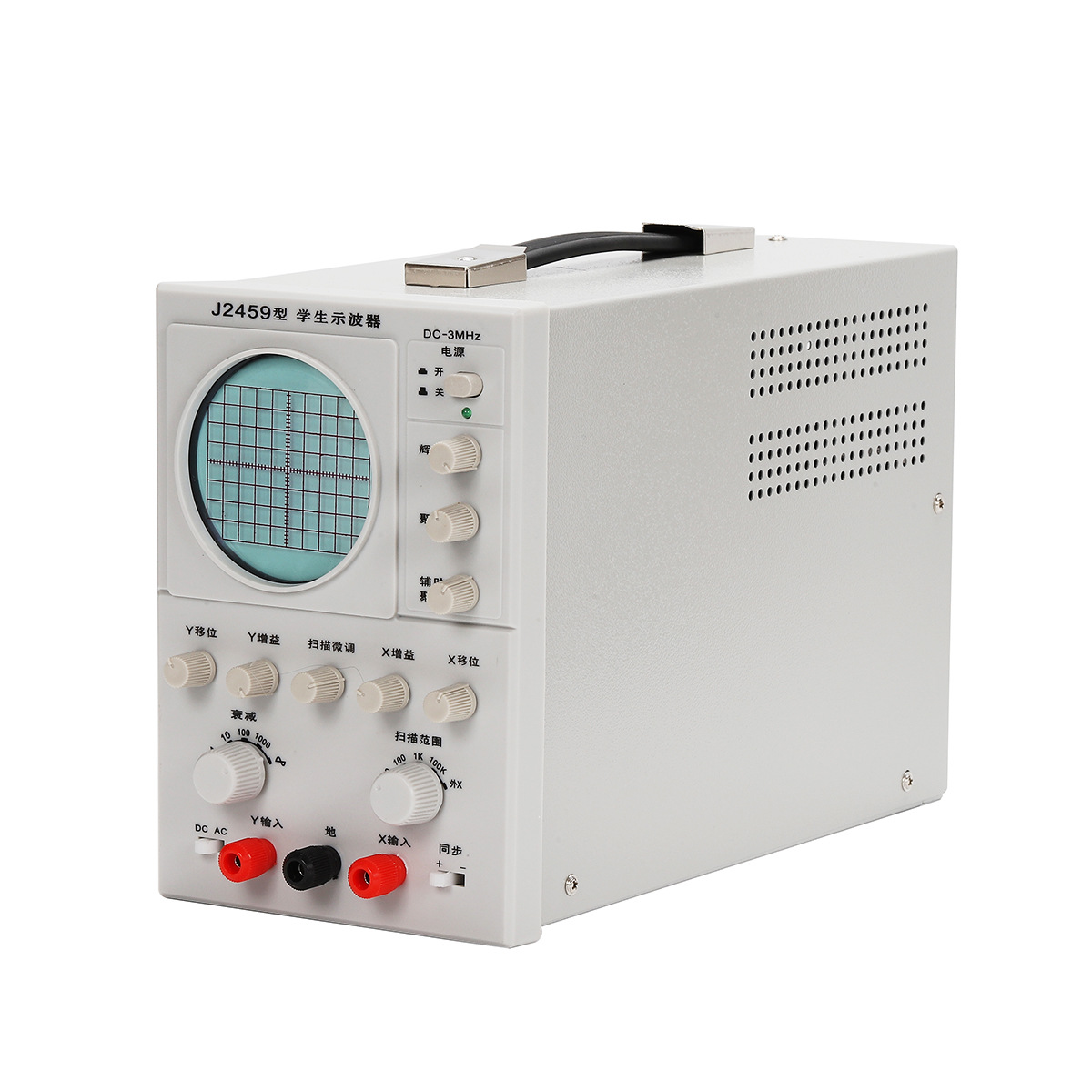

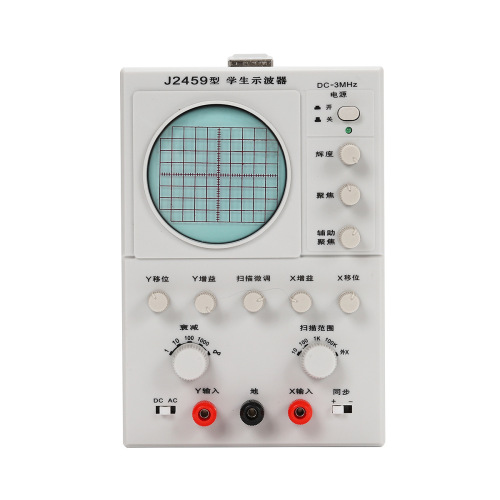

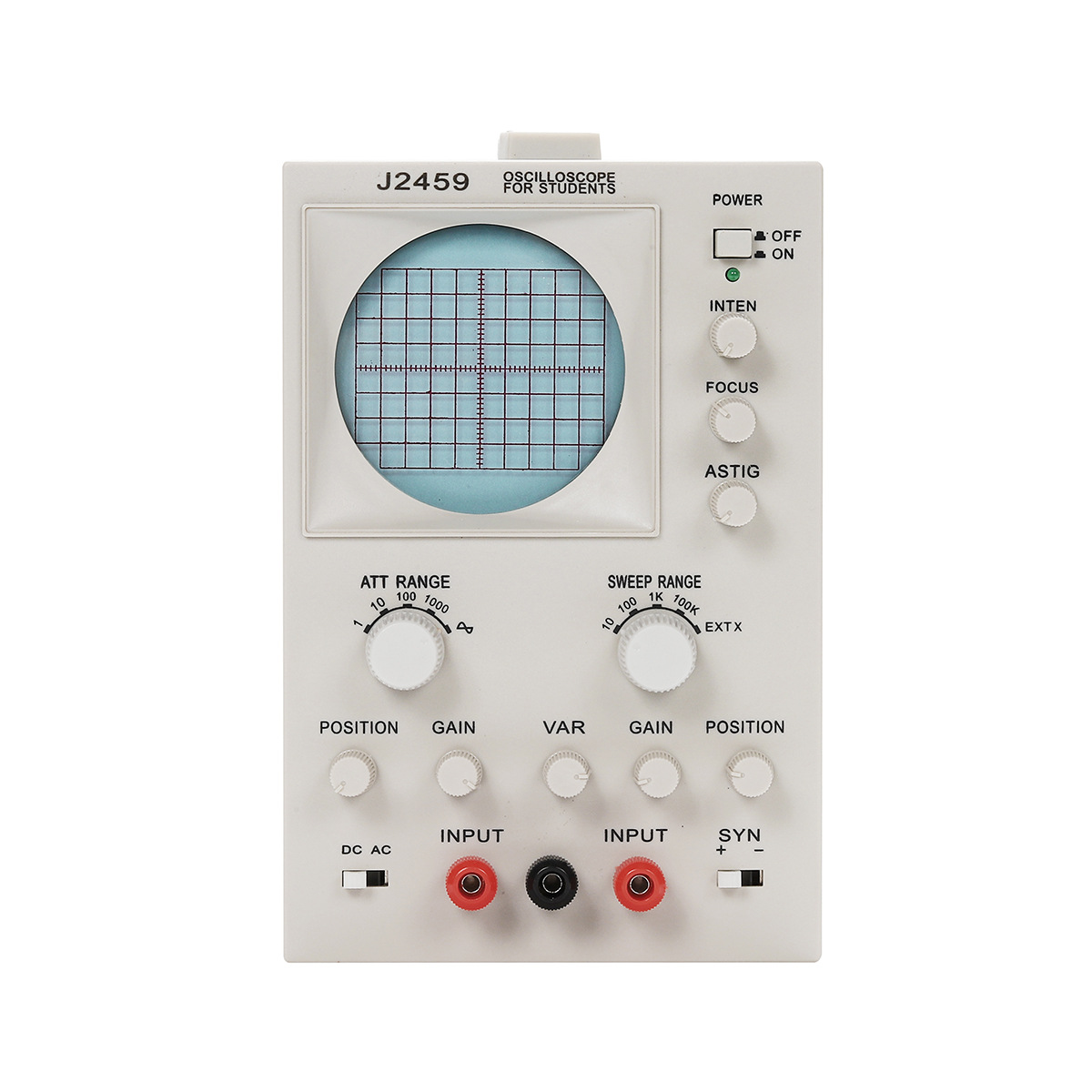

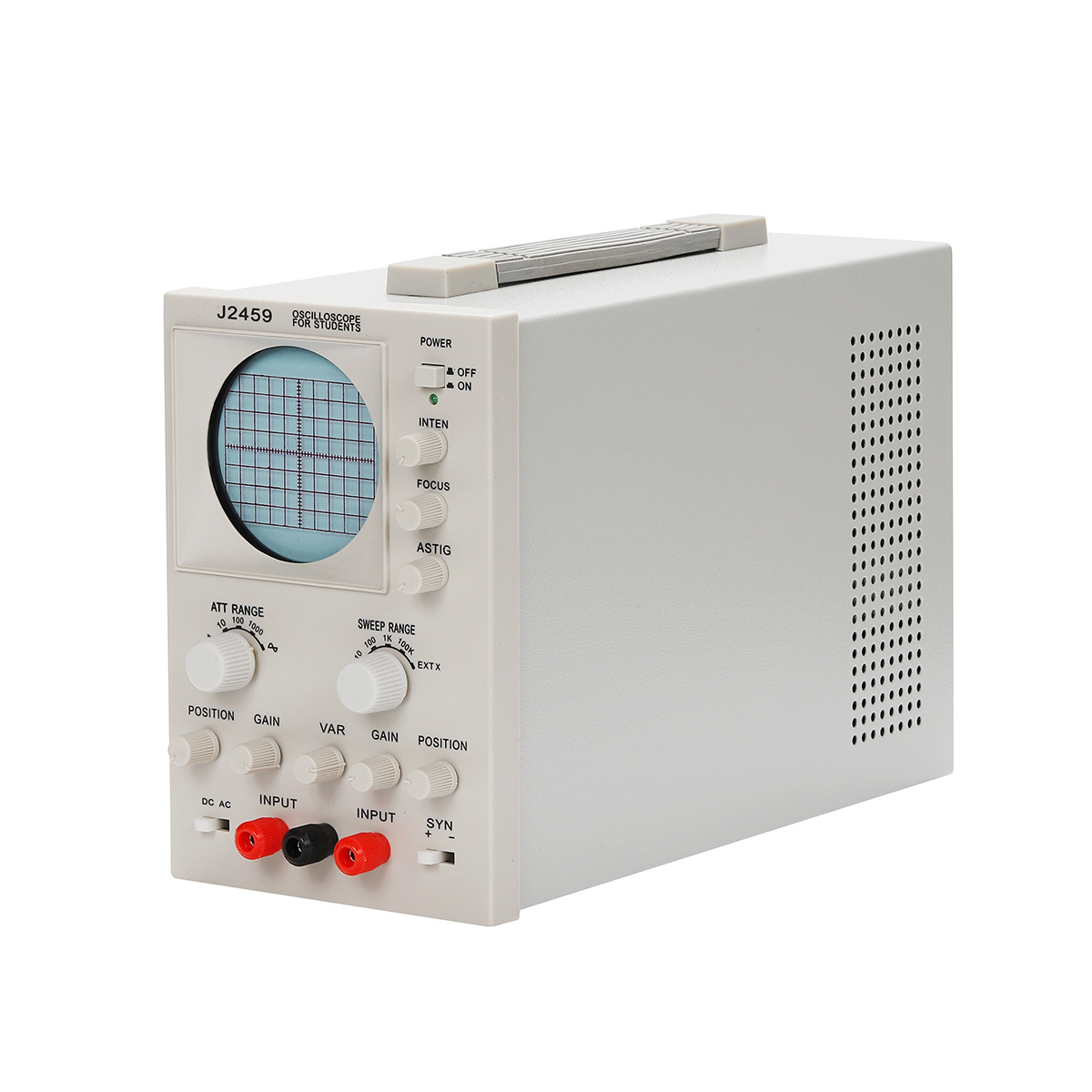

The J2₄₅₉ type student oscilloscope is a compact oscilloscope designed based on the national education commission industry standard JY₀₀₁₁-9₀; its frequency response ranges from DC to 3MHz, with a vertical deflection factor of 50mVp-p per grid, enabling quantitative measurement of waveform amplitude with an error not exceeding 10%. The instrument features a small size, light weight, easy operation, convenient portability, energy efficiency, and low cost. It is an ideal oscilloscope for student group experiments in middle school physics teaching, labor skills courses, and employee training programs.

Product Name<t_OriginalText> : </t_OriginalText>

J2459Student oscilloscope

Main

Skill

指

Label

J2459Vertical system frequency response: DCDC~3MHz ≤ 3 dB, communication10Hz~3MHz ≤ 3dB

·Deflection factors:50 mV p-p/t_ERROR_VALUE, error±10%
·Input Capacitor:1M∥40PF
·Decay Factor:1,10,100,1000, error±10%
·Input voltage resistance:400V(DC+AC pk)
·Scanning system scanning frequency:10Hz~100kHz, divided into four gears
·Synchronization: Positive internal synchronization, negative internal synchronization
·Horizontal system frequency response:10Hz~500kHz ≤ 3dB
·Deflection factors:100 mVp-p／格
·Input Capacitor:1M∥60PF
·Waveform: Sine wave50Hz
·Range:250 mV p-p ±10%
·Yu Hui: China
·Work environment: Temperature0℃~+40℃
·Relative humidity:≤90%(40℃)

Size and weight<t_OriginalText> : </t_OriginalText>

300×130×190(t_XXXXXXXX)×Wide×Deep)3 kg
