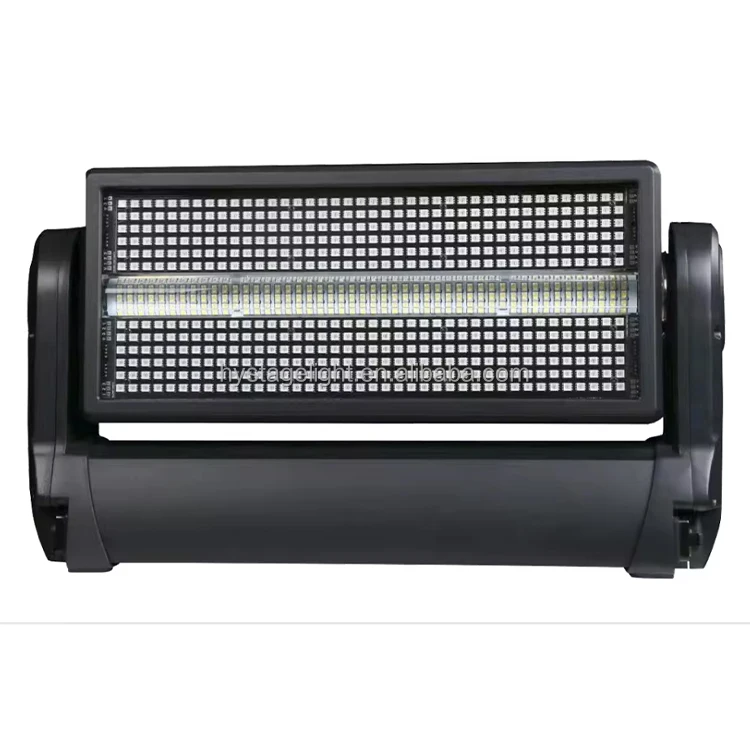

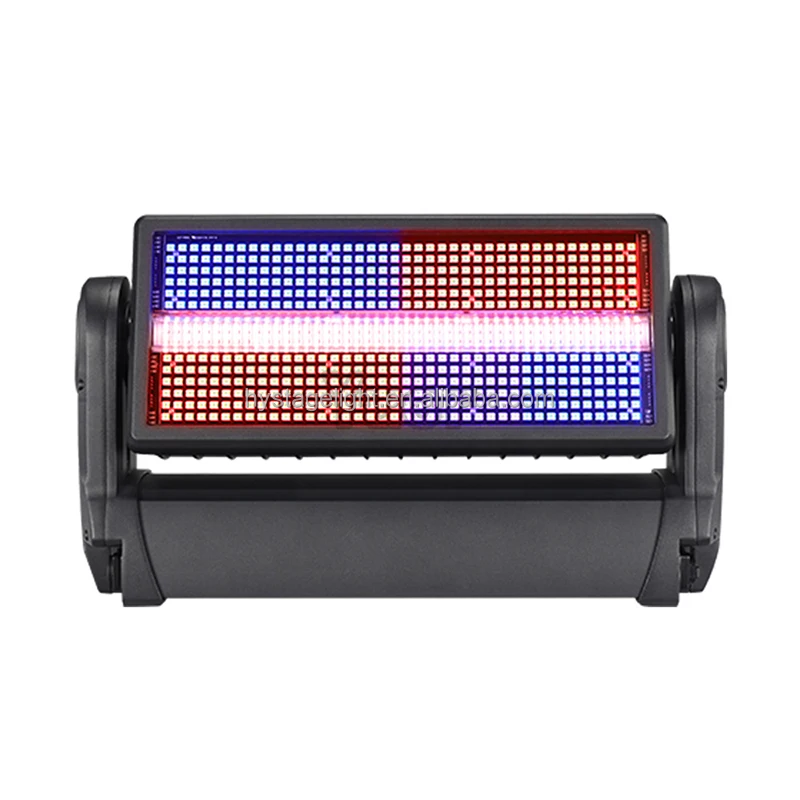

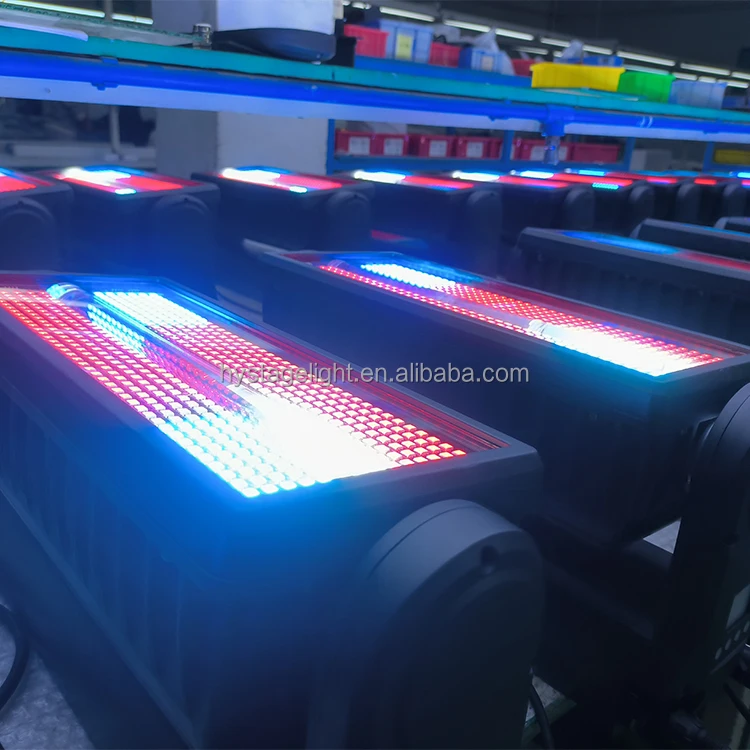

Strobe Panel LEDs
|
|
|
|
LED Type
|
5050 0.5W RGB 3in1 LEDs
|
|
|
LED Count
|
480
|
|
|
LED Colors
|
RGB
|
|
|
LED Segments
|
8 (2 x 4)
|
|
|
Strobe Tube LEDs
|
|
|
|
LED Type
|
3535 5W 6500K LEDs
|
|
|
LED Count
|
144
|
|
|
LED Colors
|
Cool-White
|
|
|
LED Segments
|
4
|
|
|
Movement
|
|
|
|
Resolution
|
8-16 Bit
|
|
|
Tilt (Degrees)
|
185°
|
|
|
Control
|
|
|
|
Control Modes
|
7CH / 14CH / 16CH / 42CH / 44CH
|
|
|

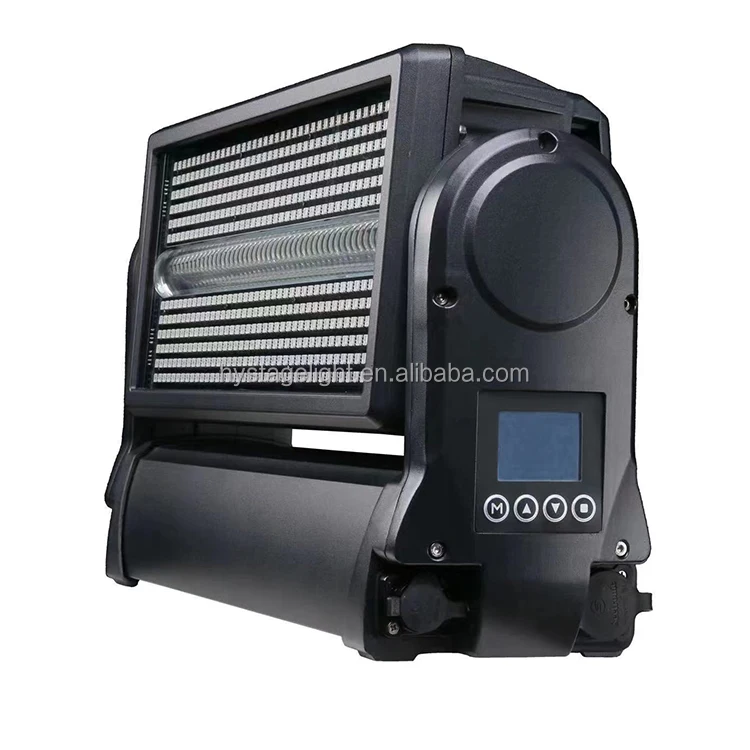

Display
|
Illuminated graphic LCD
|
|
|
Protocol
|
USITT DMX-512, RDM
|
|
|
RDM
|
Bidirectional communication
|
|
|
Wireless DMX
|
2.4 GHz W-DMX™ (optional)
|
|
|
Cooling
|
Temperature controlled, overheating protection
|
|
|
Effects
|
|
|
|
Dimmer
|
0-100% electronic
|
|
|
Shutter
|
electronic, max. 20 Hz
|
|
|
Internal Effects
|
LED Macro Effects
|
|
|
Connectors
|
|
|
|
Signal connection
|
Seetronic IP65 XLR 5-Pin or 3-Pin In/Out
|
|
|
Power Input
|
Seetronic PowerCON TRUE1 In/Out
|
|
|
Operating Conditions
|
|
|
|
Mains voltage
|
100-240V AC / 50-60Hz
|
|
|
Power
|
1000W
|
|
|
Maximum ambient temperature
|
-30°C / 86°F, 50°C / 122°F
|
|
|
Operating Position
|
any
|
|
|
Mounting Options
|
|
|
|
Hanging
|
Omega-Bracket
|
|
|
Safety wire attachment
|
foldout eyelets
|
|
|
Shipping
|
|
|
|
Single fixture
|
cardboard (inner and outer cartons)
|
|
|
Tourpack
|
4-way Flight Case
|
|
|
Housing Colors
|
|
|
|
Standard colors
|
black
|
|
|
Dimensions
|
|
|
|
Length
|
482 mm / 18.9 in
|
|
|
Width
|
178 mm / 9.0 in
|
|
|
Height (head horizontal)
|
243 mm / 9.5 in
|
|
|
Weight
|
|
|
|
N.W
|
10 kg
|
|
|
G.W
|
12.5 kg
|
|
