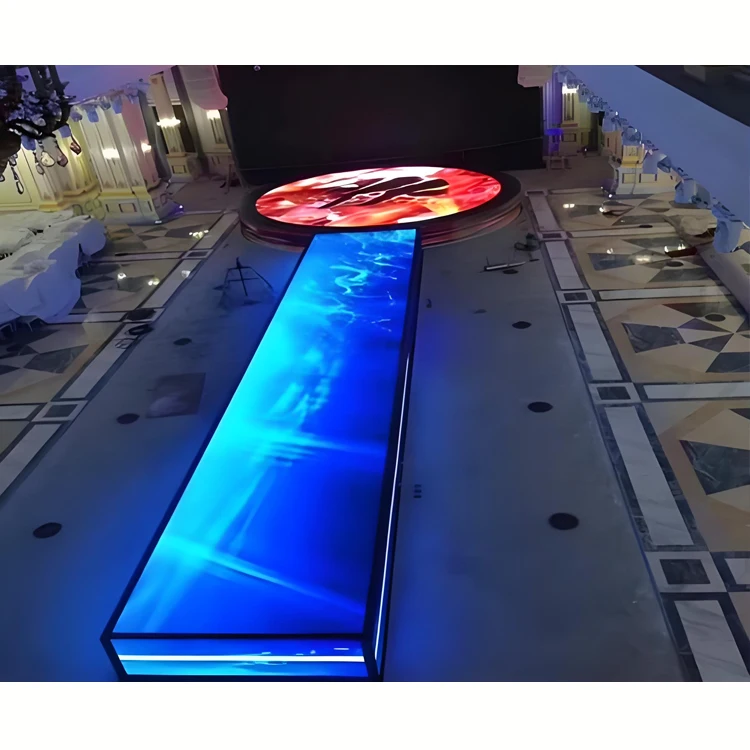

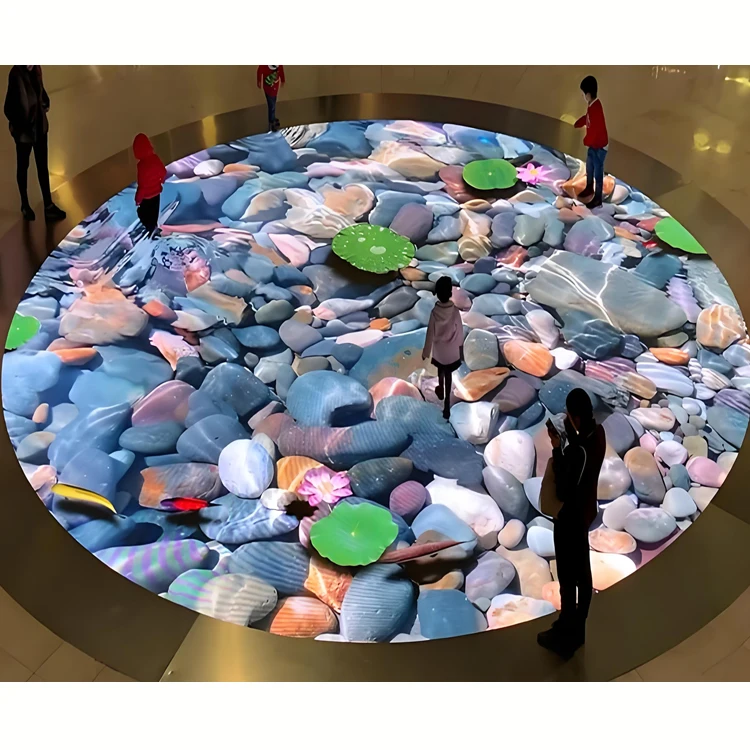

Outdoor HD Floor Tile LED Screen | ||||||||||
Pixel Pitch(mm) | P2.5 | P2.976 | P3.91 | P4.81 | P6.25 | |||||
LED Encapsulation | SMD1415 | SMD1415 | SMD1921 | SMD1921 | SMD1921 | |||||
Pixel Density(dots/m2) | 160000 | 112896 | 65536 | 43264 | 16000 | |||||

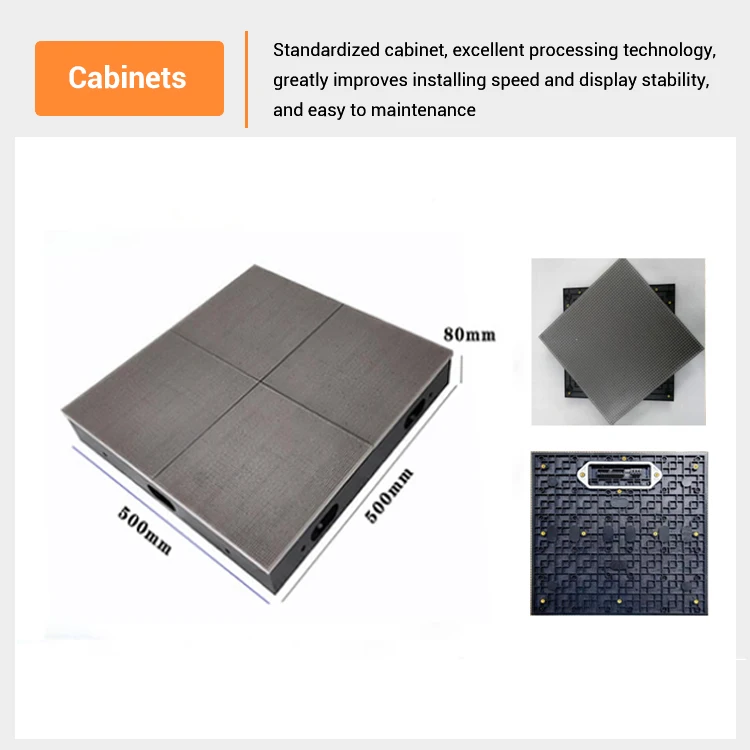

Module size | 250*250mm | |||||||||
Panel Size | 500*500mm / 500*1000mm optional | |||||||||
500*500mm Panel Resolution | 200*200 pixel | 168*168 pixel | 128*128 pixel | 104*104 pixel | 80*80 pixel | |||||
500*1000mm Panel Resolution | 200*400 pixel | 168*336 pixel | 128*256 pixel | 104*208 pixel | 80*160 pixel | |||||
500*1000mm Panel weight | 25kgs/m2 | |||||||||
Brightness | 2800nits | |||||||||

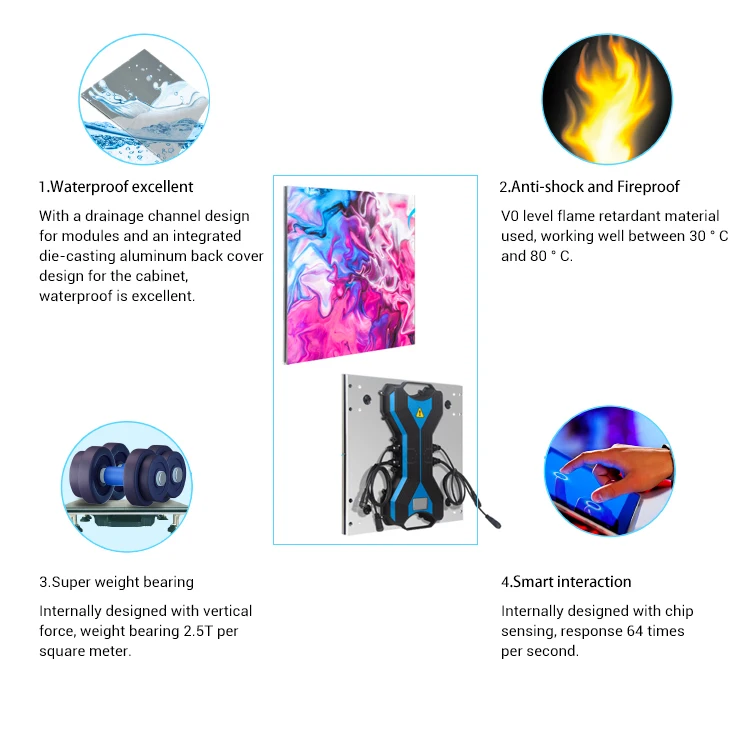

IP grade | Front: IP67, Rear: IP66 | |||||||||
Scanning way | 1/25s | 1/21s | 1/16s | 1/13s | 1/10s | |||||

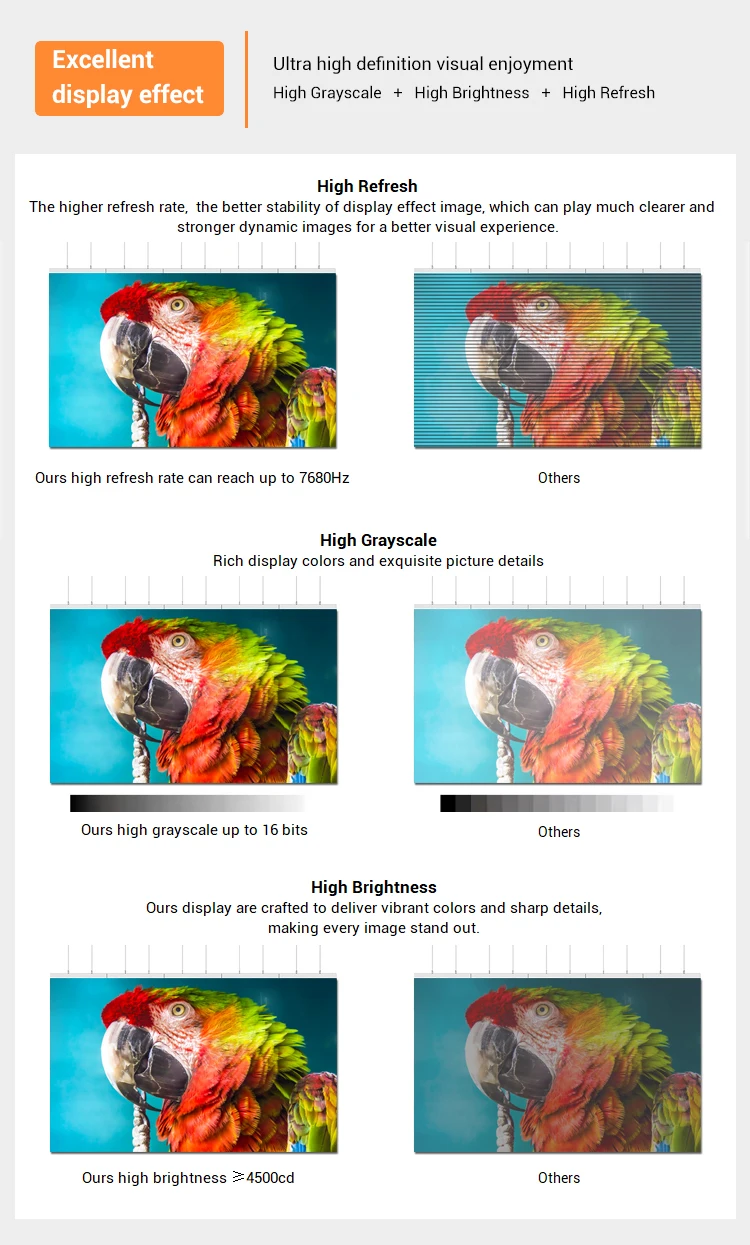

Refresh Rate | 3840Hz | |||||||||
Viewing Angle | H: 160° / V: 160° | |||||||||
Greyscale | 14 bit/16 bit | |||||||||
Power consumption | Maximum 800w/sqm, Average 260w/sqm | |||||||||
Working Voltage | Input: AC100-240V +15% 50/60Hz, Output: 5V DC | |||||||||
Working Temperature | -20℃~60 ℃ | |||||||||
Humidity Storage | 10%~90% | |||||||||

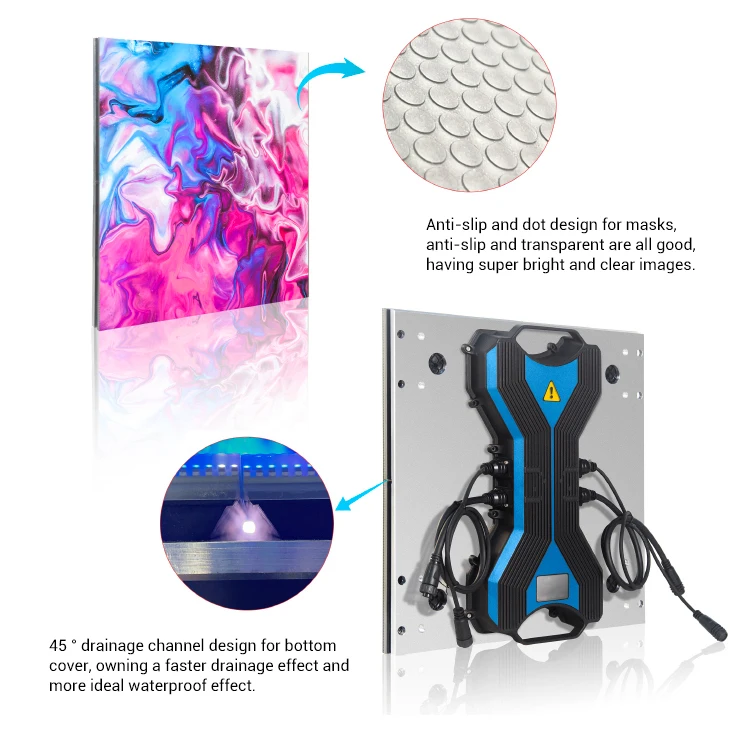

Cabinet Material | Iron cabinet | |||||||||
Weight bearing | 2.5T per square meter | |||||||||
Maintenance Type | Front maintenance | |||||||||
Life time | >100,000hrs | |||||||||
Working System | Windows | |||||||||
