Voltage: AC100~240V50/60Hz
Power: 800W
Light source: 600w LED module light source
Light source life: ≥20000 hours
Color temperature: 7500k
Dimming angle: electronic linear zoom 5.5°-50°
Dimming: 0-100% linear dimming, resolution 16bit, dimming effect is particularly smooth
Aperture: 5%~100% smooth adjustment
Color wheel: 1 color wheel with 7 color chips
CMY infinite color mixing
CTO color temperature correction (3300-5800K)
Color rendering index: adjustable rendering index mode, standard mode Ra>75, high rendering>90

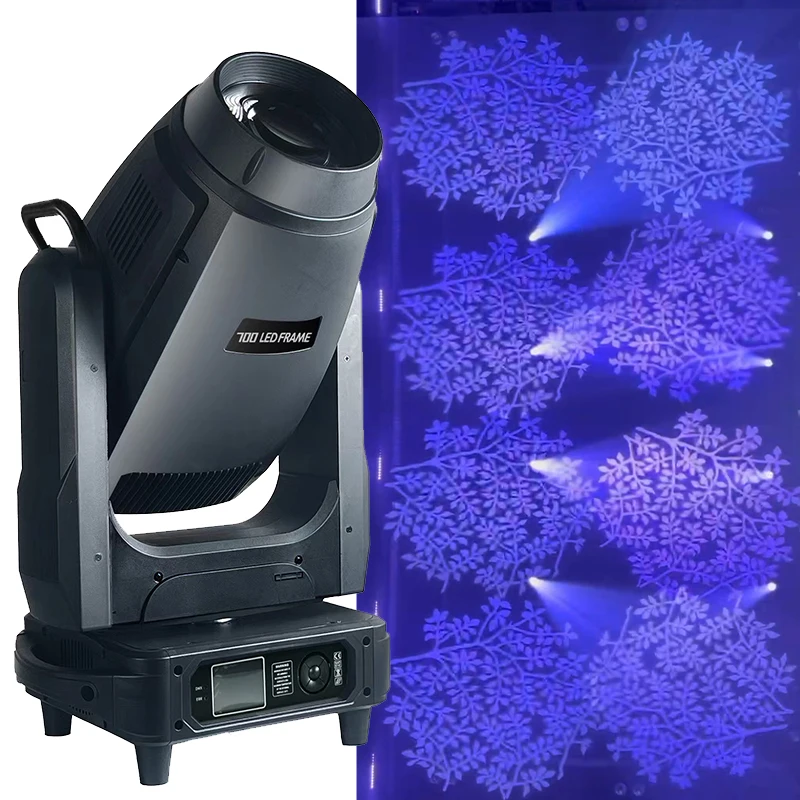

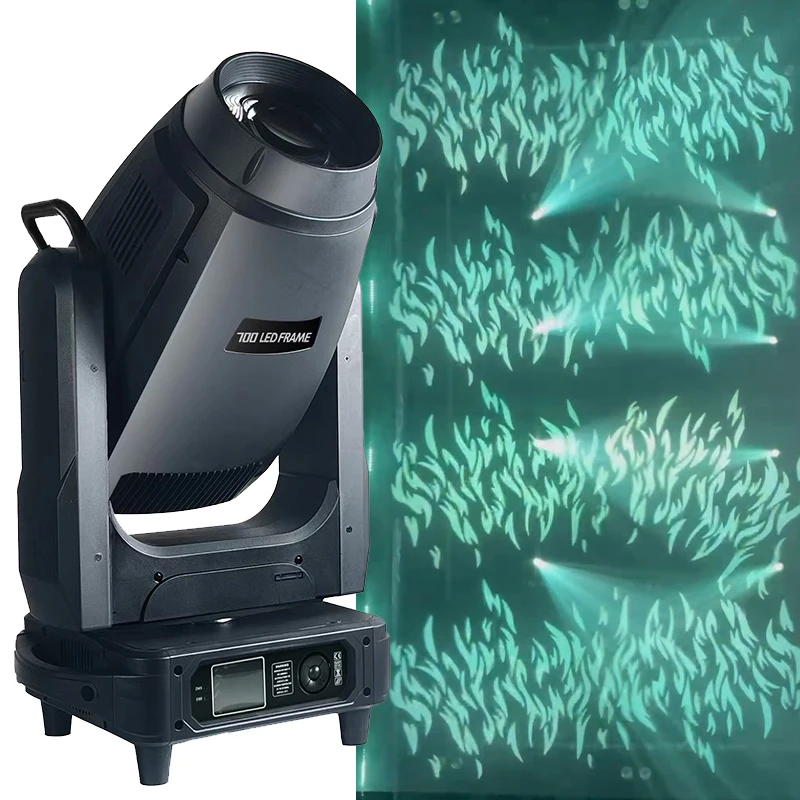

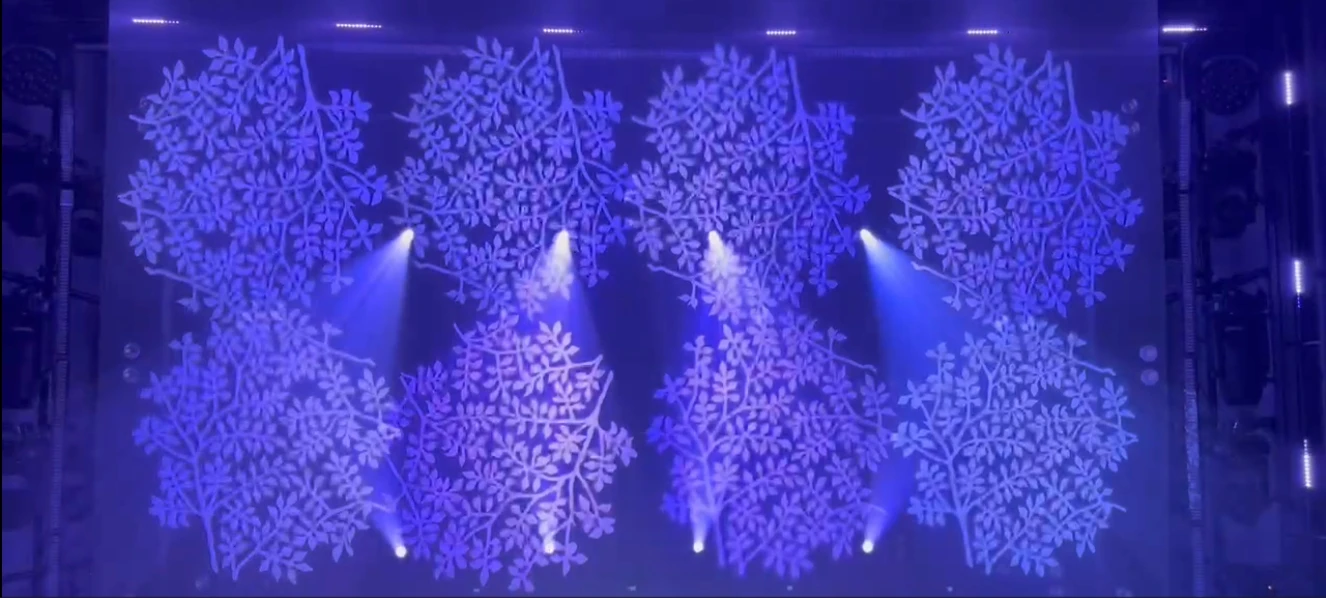

Pattern wheel: 2 pattern wheels, one of which has a fixed pattern with 6 metal pattern + fire plate; the other is a rotating
pattern plate with 7 replaceable glass patterns, with pattern positioning, two-way rotation, pattern water flow and shaking
effects
Dynamic effect plate: super cool simulation of dynamic flames, gurgling water and other dynamic effects

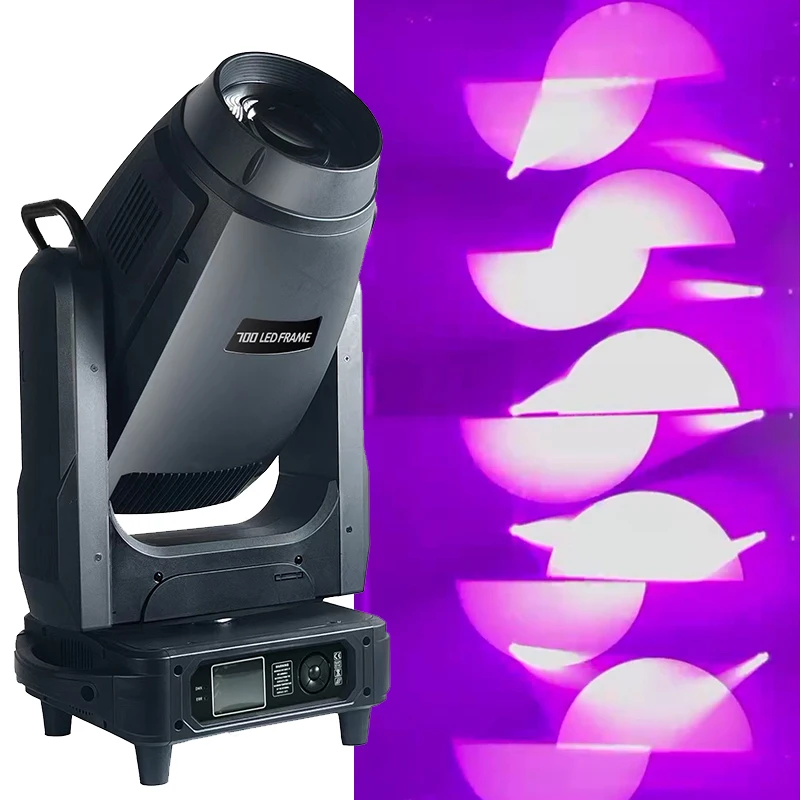

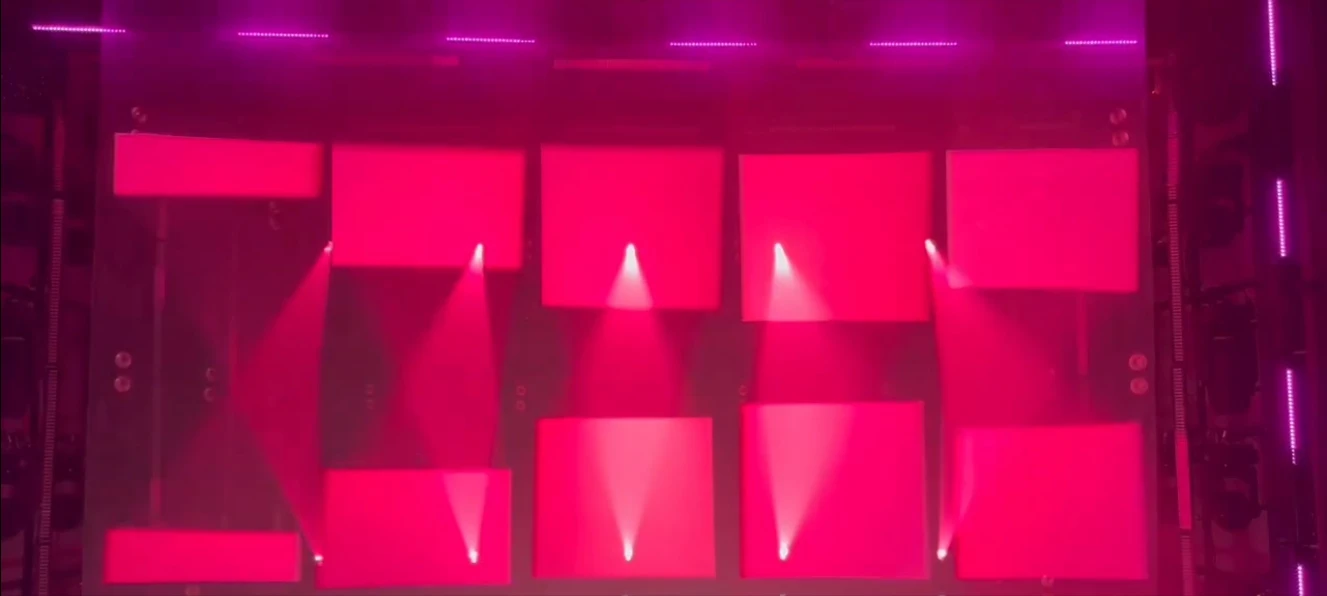

Cutting plate: 4-piece full cutting system, the cutting plate can rotate 90 degrees
Prism: 1 rotating 3-prism
Atomization: 1 independent soft light mirror + 1 display finger
Strobe: electronic strobe
Channel mode: 34 international standard DMX512 channels
Display system: 2.7-inch LCD touch screen, Chinese and English display, 180-degree rotation
Control method: Support DMX512, RDM, self-propelled
Horizontal: 540°, resolution 8/16Bit
Vertical: 270°, resolution 8/16Bit

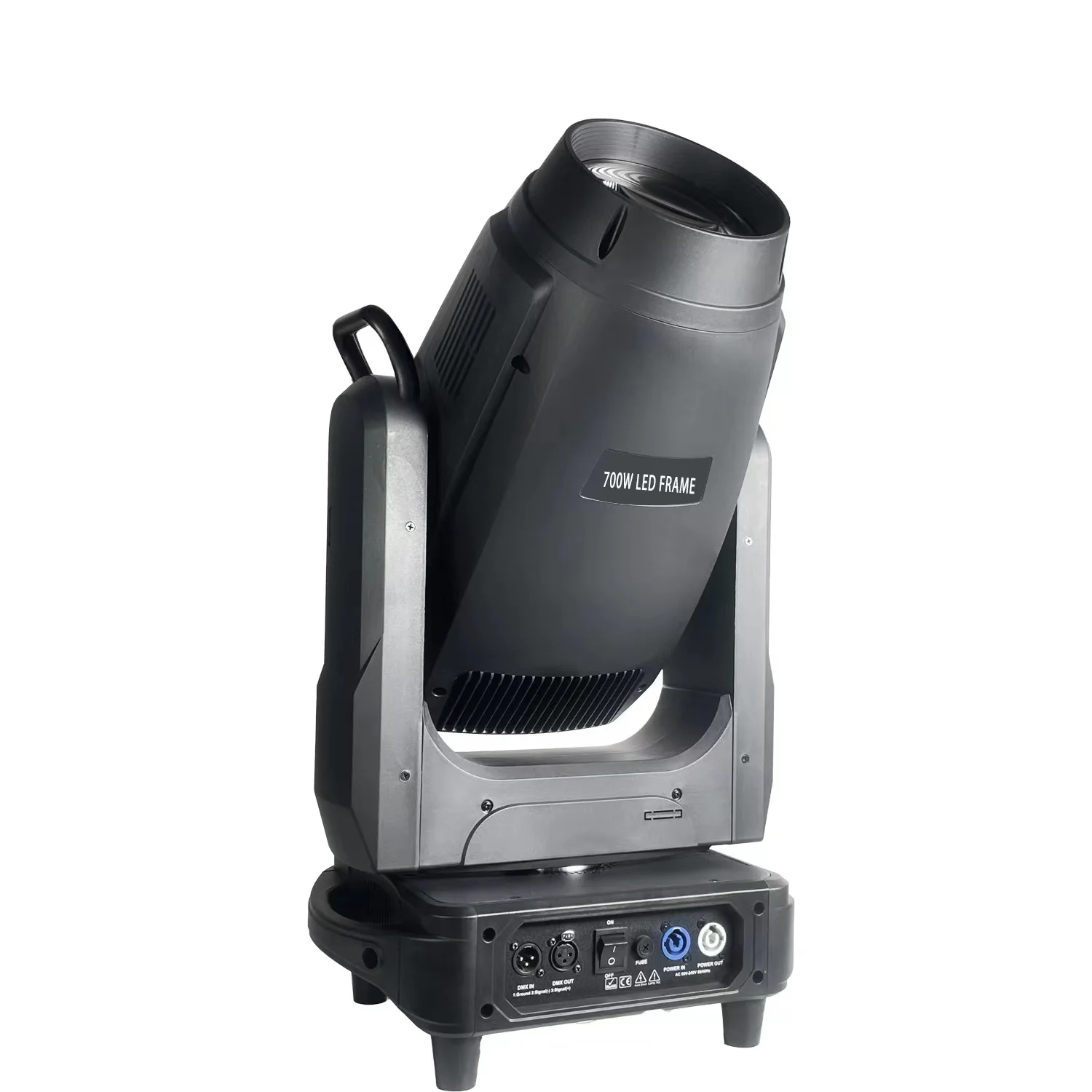

DMX signal interface: 3-pin XLR, 5-pin XLR optional
RDM mode: With RDM function, address code can be played directly on the console
Cooling system: With intelligent fan speed adaptive function, temperature electronic sensor detection
Product appearance: flame retardant, high temperature resistant, integrated folding lamp hook
Cooling: The cooling system uses a high-density copper tube radiator to achieve intelligent temperature management, which is
quieter and more efficient
Protection level: IP20
Working environment: 0-45℃
Product size: 380(L) x 269(W) x 685(H)mm
Net weight: 26kg
