Brand new multi-functional digital printing equipment, the new generation of digital 8-in-1 multi-functional transfer machine. The operation is simple, and it can cover all the functions of thermal transfer printing. The new function of the cone-shaped baking cup pad is included, which includes the processing function of the new cone-shaped cup, and achieves a technical breakthrough in processing non-standard cups.

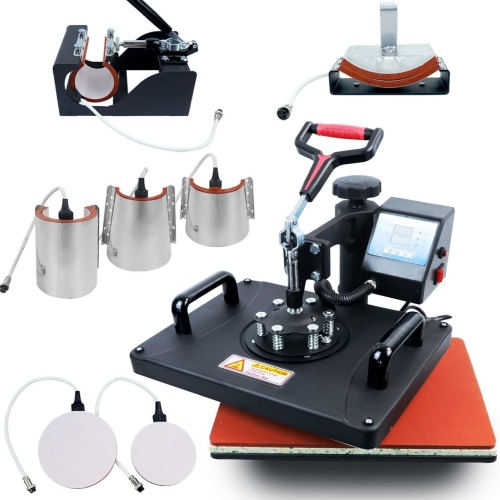

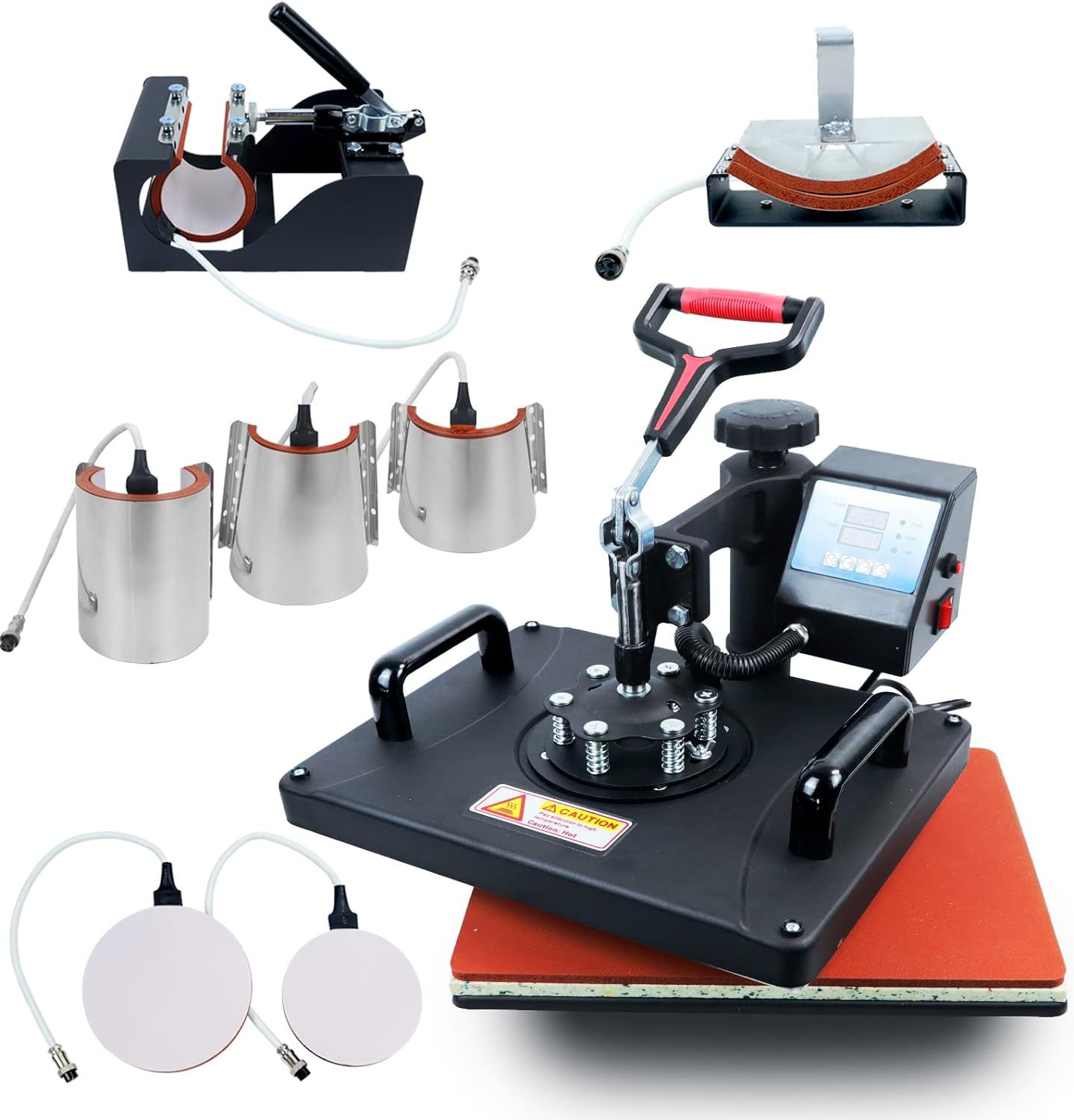

This machine includes one CNC main unit, one flat transfer component, two cup baking components, two conical cup baking components, two baking trays, and one baking cap component.

The difference between heat transfer machine and other similar multi-function machines.

The flat ironing part is very particular about materials. The flat ironing part is the key to the multi-function machine technology and also the cost. The material cost of the board alone can differ by one hundred to two hundred yuan. Our machine uses a joint venture heating film from Japan and China as the heating body for the flat ironing heating board, with two aluminum plates as the heat storage body, ensuring even heating; and our heating boards are all adjusted for flatness to ensure even heating of the heating board; the heating elements are between the two aluminum plates, and they are sealed, so they have a long service life and are resistant to air burning.

AttentionBefore using this machine, please read the operating warnings on the instruction manual carefully. When replacing the heating components, please turn off the machine and unplug the main power cord. The printing head connection plug must be aligned with the socket on the electrical control box. Do not turn on the machine if the electrical control box is not connected to the heating components.The machine should not be burned without fuel.。

【Product Usage】

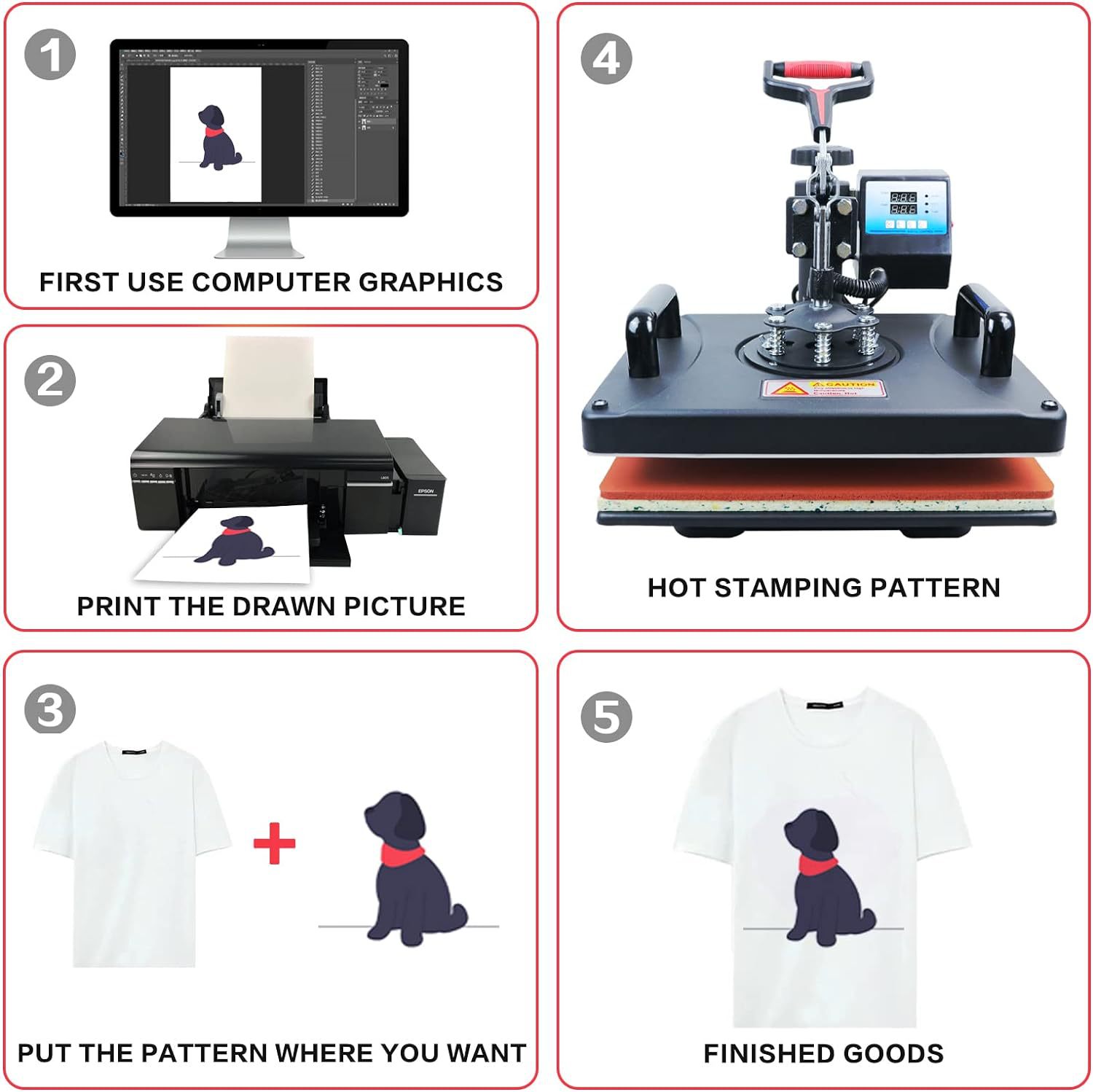

This machine can print any colored labels, portraits, landscapes, and other patterns.Ceramic Cup,On T-shirts, hats, plates, and so on.This product is particularly suitable for use in advertising, gifts, promotional activities, etc. It can also be used as a personalized gift for friends and relatives, combining artistic appreciation and practical use.

【Product Features】

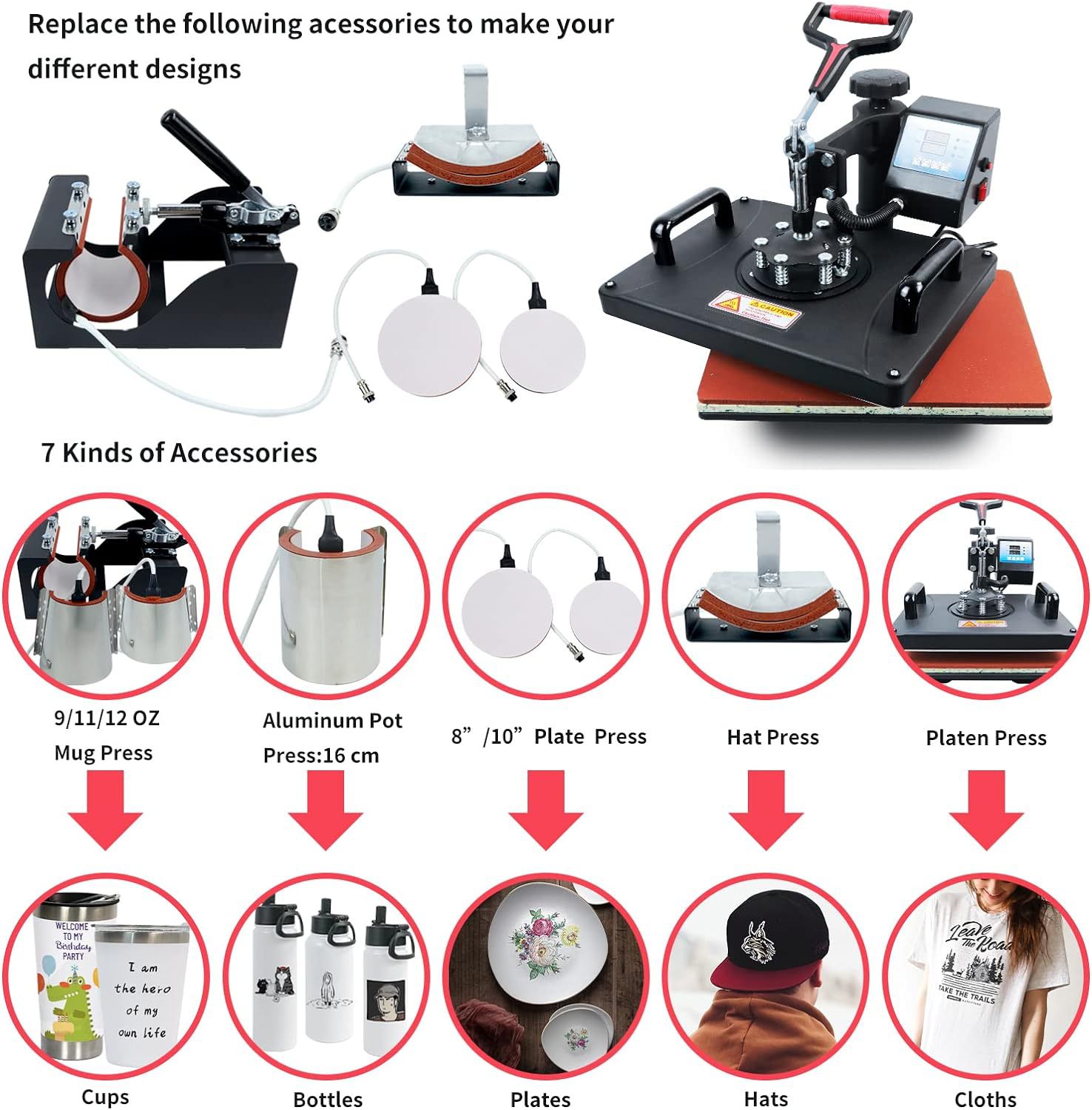

This product is a heat transfer multi-functional heat transfer machine, which can bake regular cups, small cups, heat transfer, heat transfer, bake hats, bake 8-inch plates, 10-inch plates, print T-shirts, pillows, mouse pads, jigsaw puzzles, porcelain plates, metal plates, etc. It is a multi-purpose machine, suitable for new store users.

【Parameters】

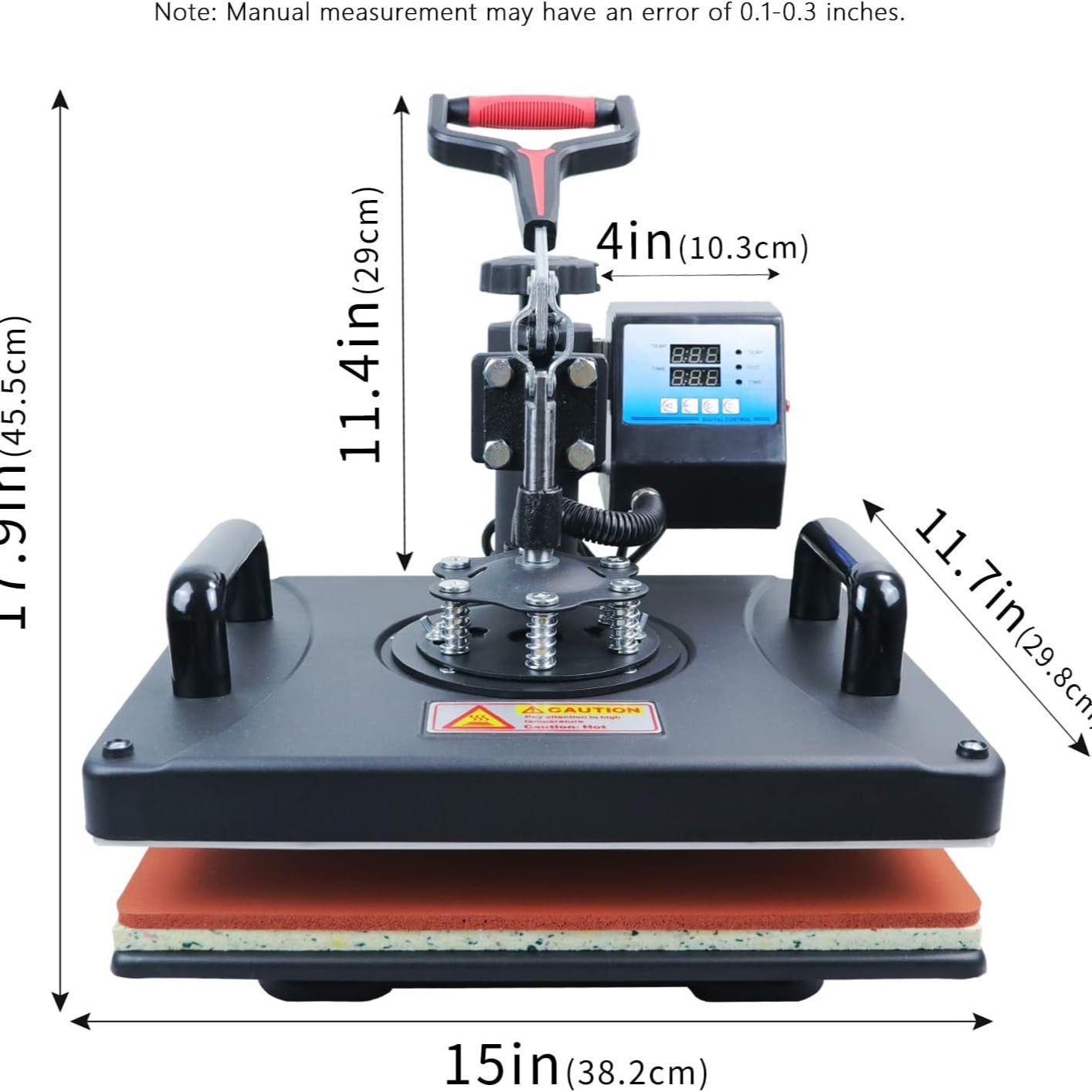

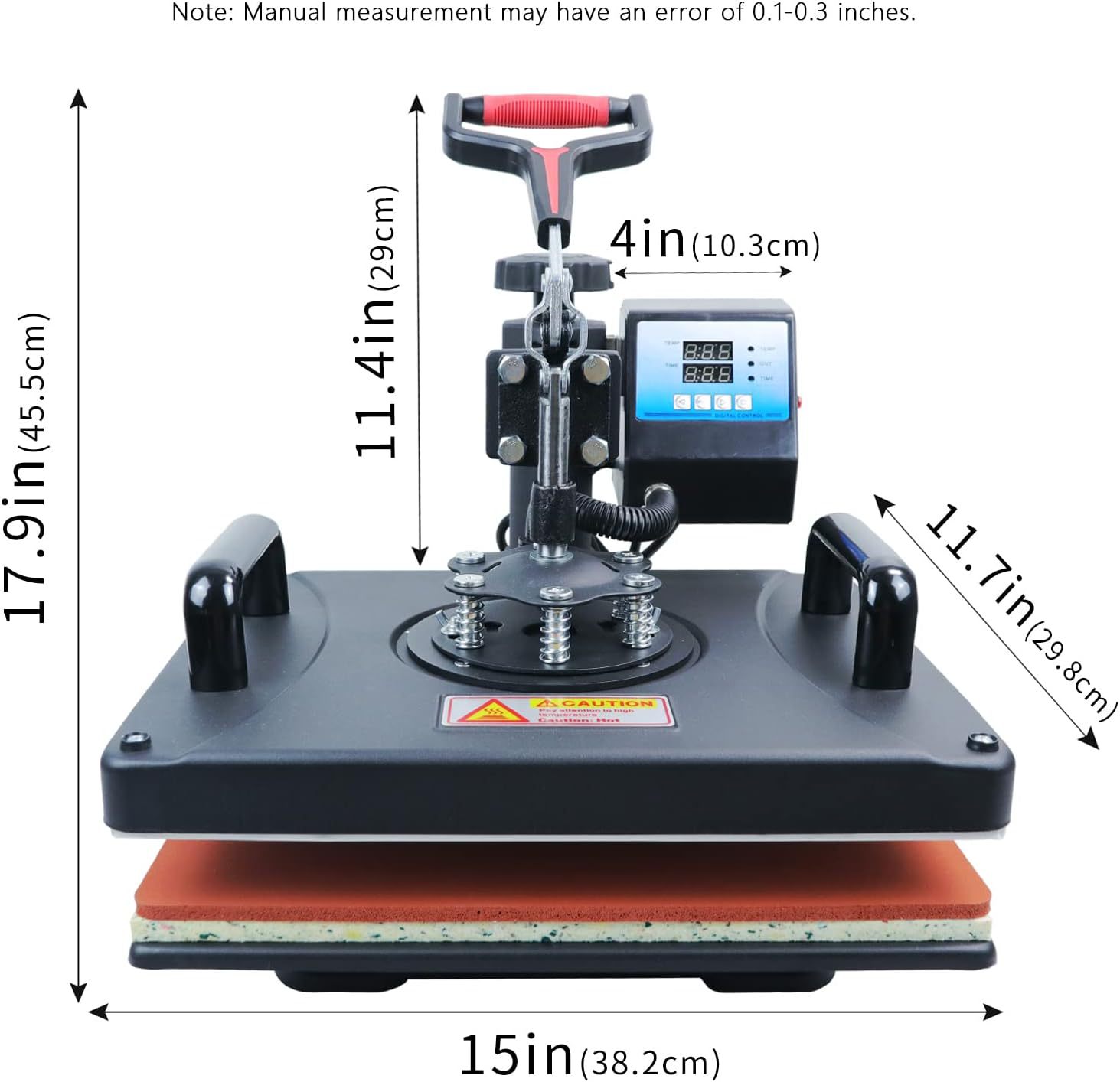

Size (LWH): 38X43X34cm
Net Weight: 32Kg
Gross Weight: 34Kg
Voltage: 220V
Power: 1250W
Temperature range: 0-380℃
Time Range: 0-999 Sec.

8-in-1 Configuration:
Standard cup mat size: 7.5~9cm

cup heater" 或 "cup baking machine

Standard baking mat 8 inch/11 cm
Large Griddle Mat 10 inch/15cm
Flat ironing piece 30X38cm

17OZ Standard Conical Baking Cups

12OZ Standard Conical Cake Pads
Roasting Hat Assembly
