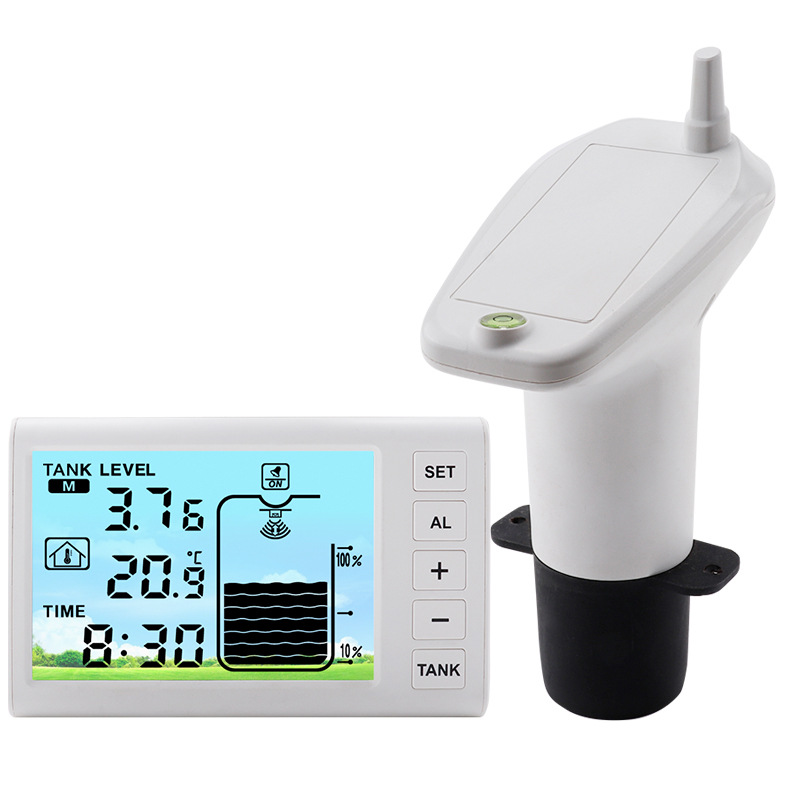

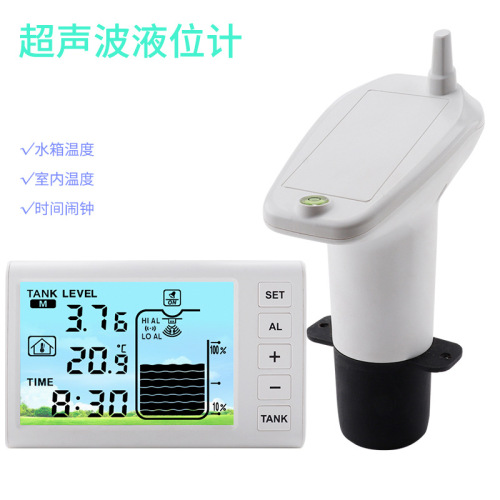

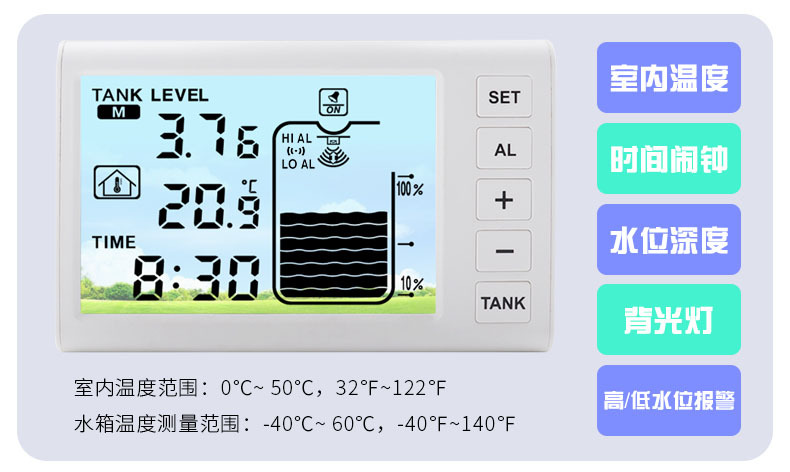

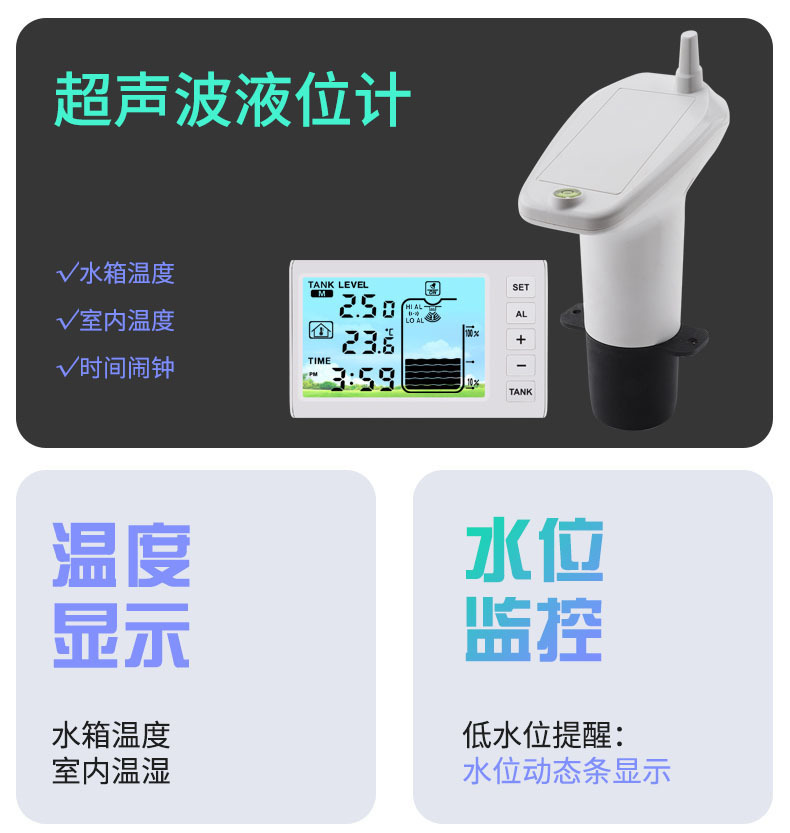

TS-FT005 Product Function Introduction:
1. Backlight On/Off Function
2. Time function 12H/24H system (default display on power-on: 0:00 24-hour format)
3. Low Battery Reminder for the Transmitter
Alarm function (default display: 0:00 upon power-on)
5. Beeper on/off (The activation or deactivation of the beeper function only affects the button sound; the alarm sound mode is not affected by this)

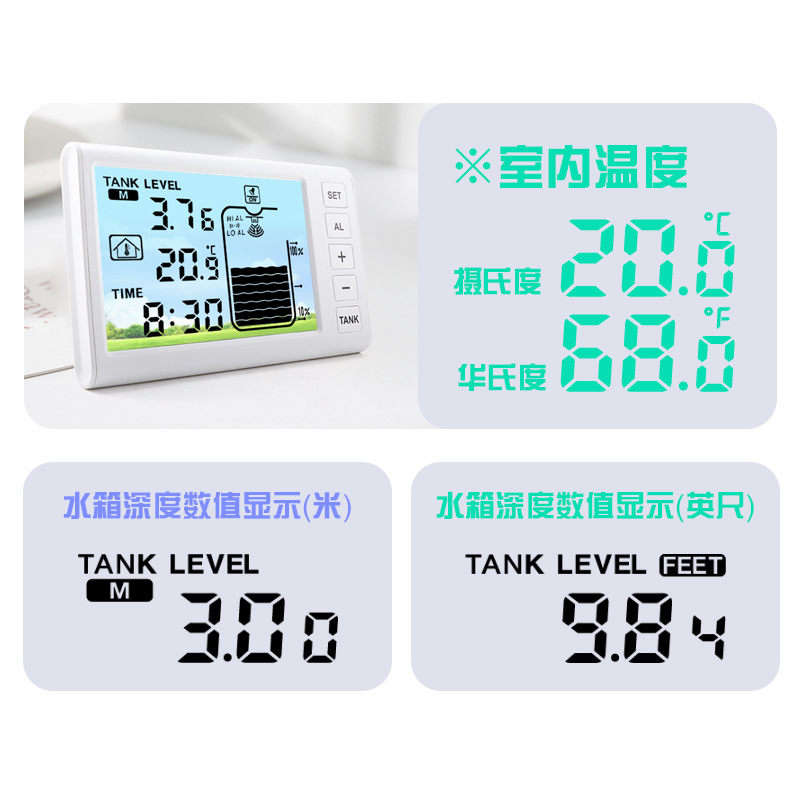

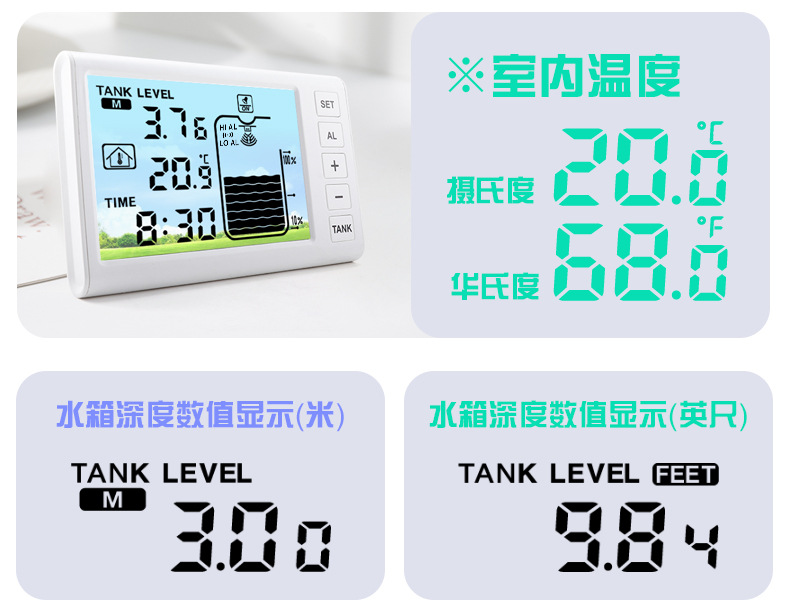

6. Indoor temperature °C/°F (Default °C)
7. Data Signal Indication
8. Tank temperature °C/°F (Default °C)
9. Tank level display unit: meters/feet (default: meters when power on)

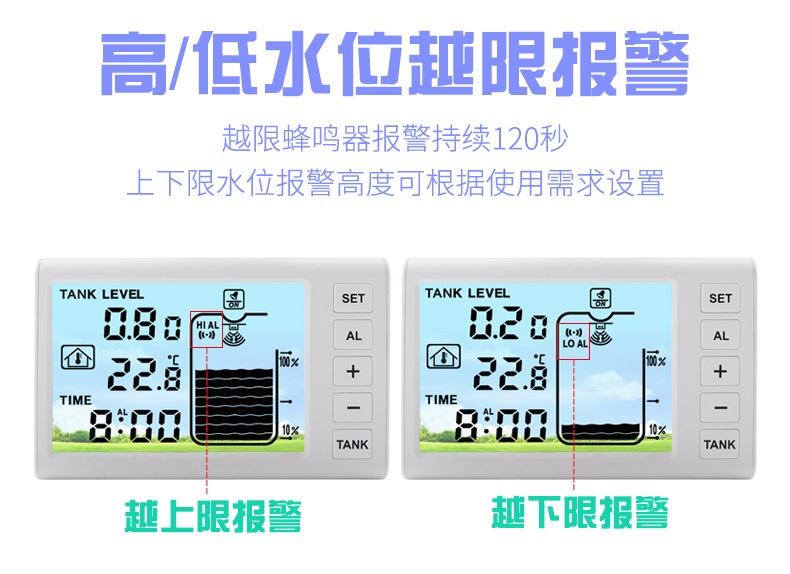

10. Tank Level High/Low Alarm Mode
11. Alarm sound on/off icon display, default on
Alarm duration: 120 seconds
13. High/Low Water Level Icon Display

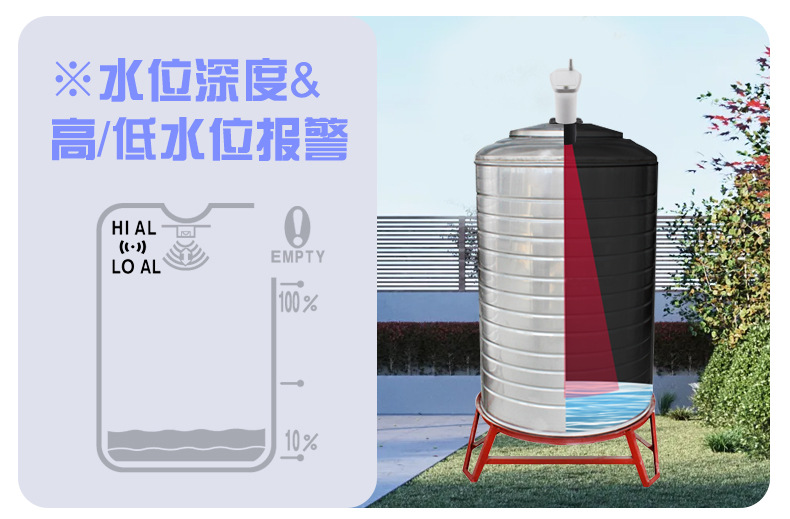

14. Simulate the display of water level depth on a 10-element LCD bar graph

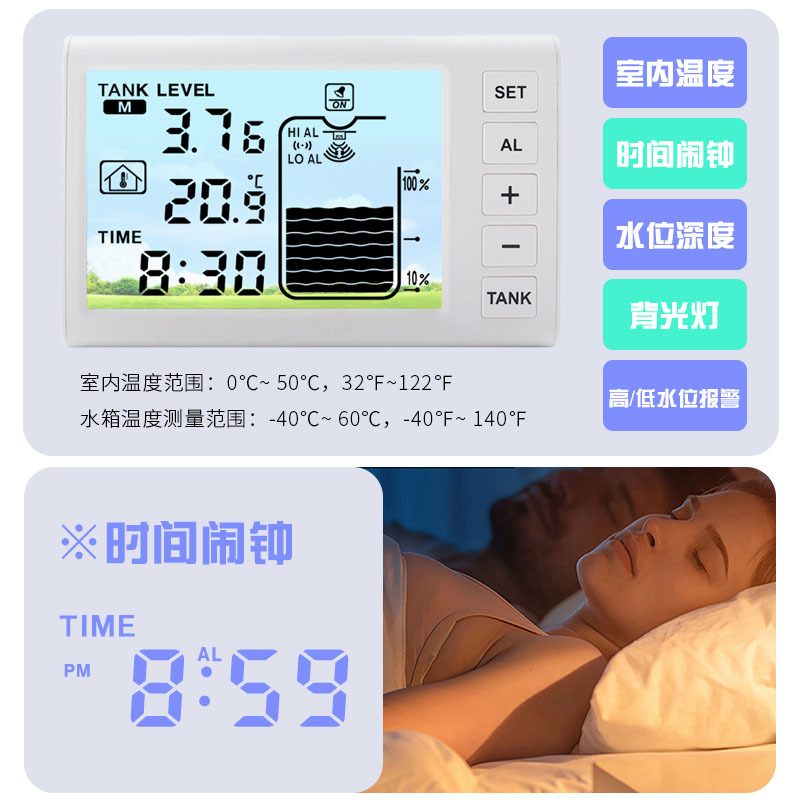

15. Receiver indoor temperature range: 0°C~50°C / -32°F~122°F
16. Transmitter tank temperature measurement range: -40°C~60°C/-40°F~140°F
Water level measurement range: 1~5m
18. Temperature Resolution: 0.1°C Accuracy: ±1°C
Water level resolution: 0.01m, accuracy: ±0.05m

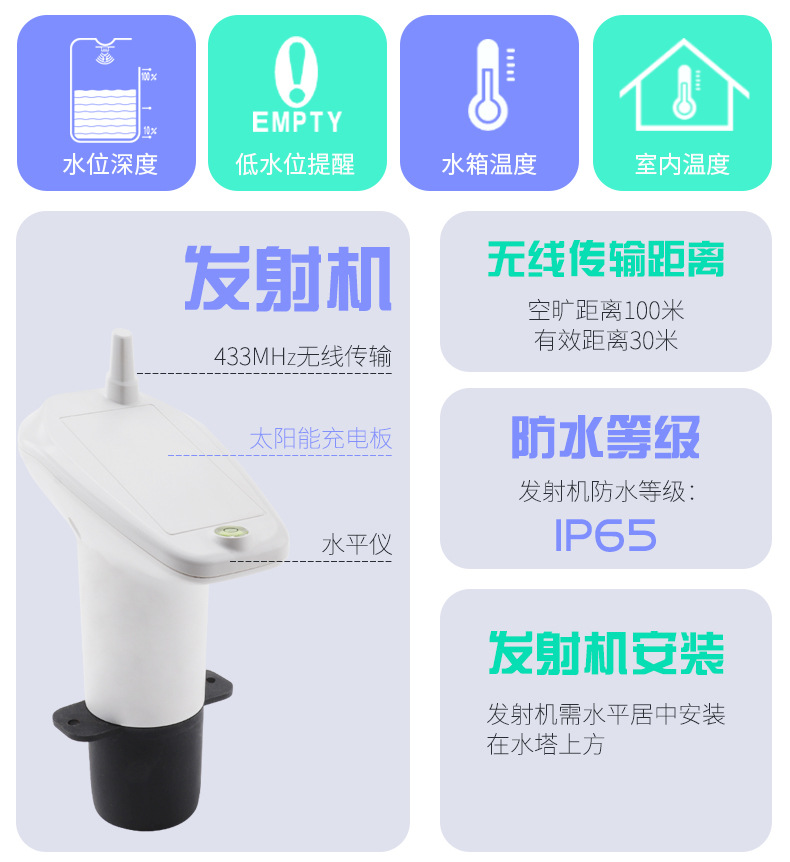

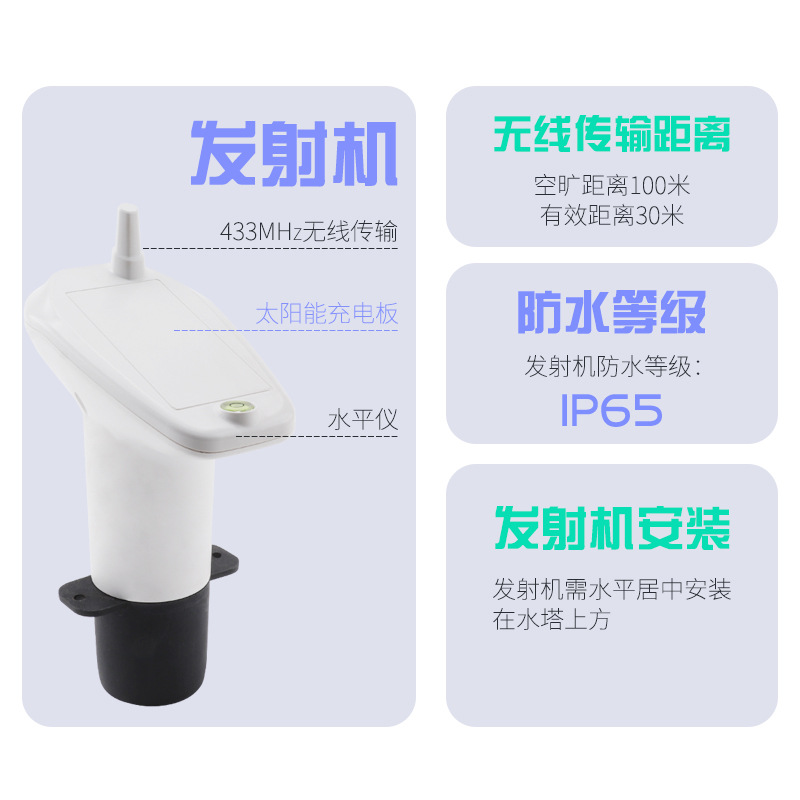

20. Transmitter protection level: IP65 (effectively protects against spraying rain from any direction)
21. Wireless transmission distance: open space distance is 100 meters
Screen size: 4.3 inches
23. Body Material: ABS
24. Product Certification: ① FCC-ID; ② ROHS; ③ CE-EMC; ④ CE-LVD; ⑤ IP65; ⑥ UL (60335-1) testing.
⑦ Salt Spray Test; ⑧ (-20°C-60°C) High-Low Temperature Test;
25. Power Supply Method (Battery Not Included in Shipping):
Receiver: Powered by 3*AAA batteries / Powered by TYPE-C power cable;

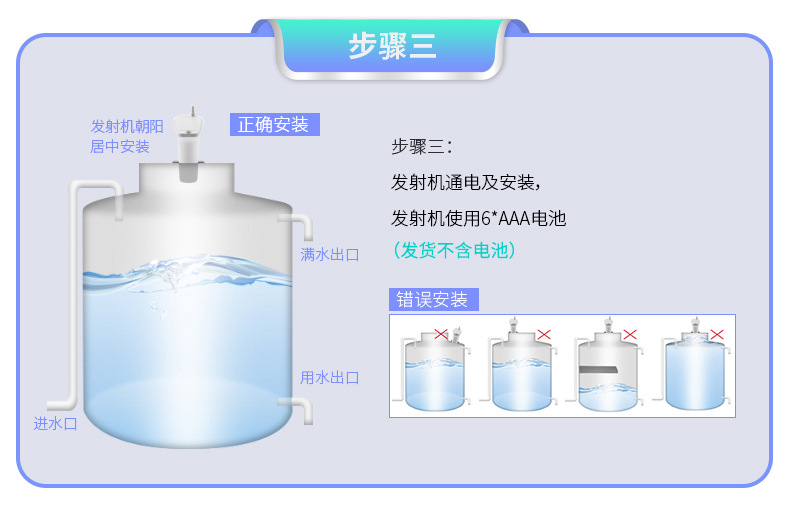

Transmitter: Powered by 6*AAA batteries.

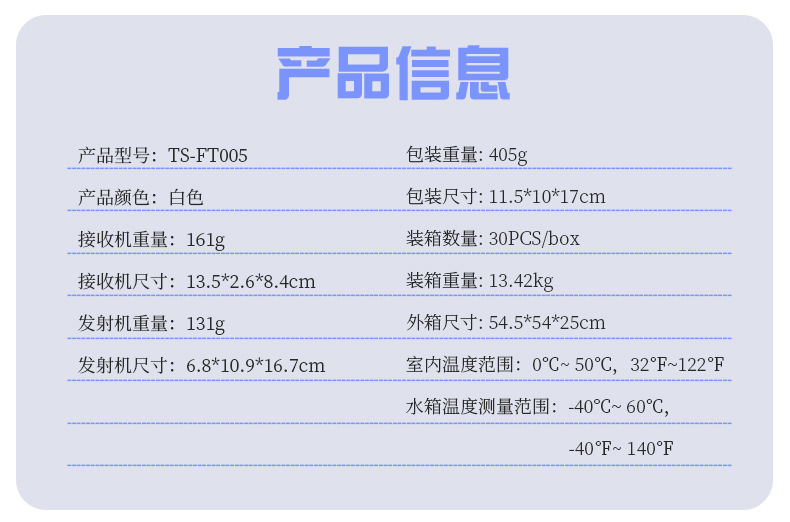

TS-FT005 Specification Introduction:
1. Product Size: Transmitter: 6.8*10.9*16.7cm; Receiver: 13.5*2.6*8.4cm;
2. Individual product packaging size: 11.5*10*17cm
3. Product Weight: Transmitter: 131g; Receiver: 161g;
4. Individual product packaging weight: 405g
5. Packing Quantity: 30PCS/box
6. Case Specification: 54.5*54*25cm
Gross Weight: 13.42kg

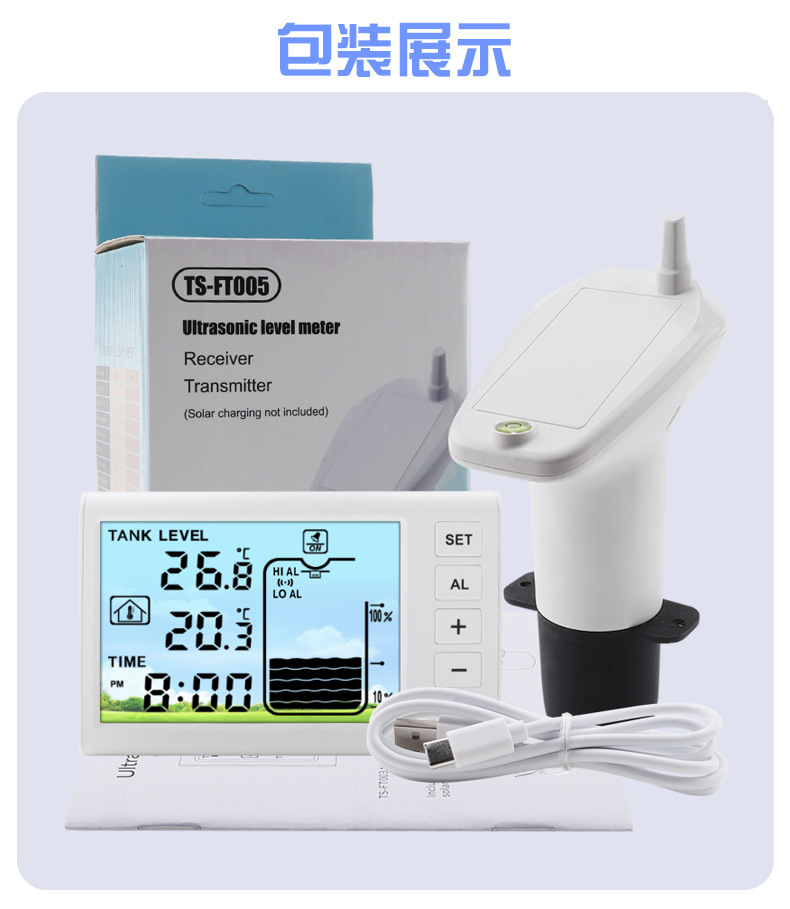

TS-FT005 Packing List:
Receiver * 1, Transmitter * 1, Installation Screws * 2, TYPE-C Power Cable * 1, Pearl Cotton Bag * 2, Bilingual Instruction Manual * 1, Transmitter White Box * 1, Color Box * 1
