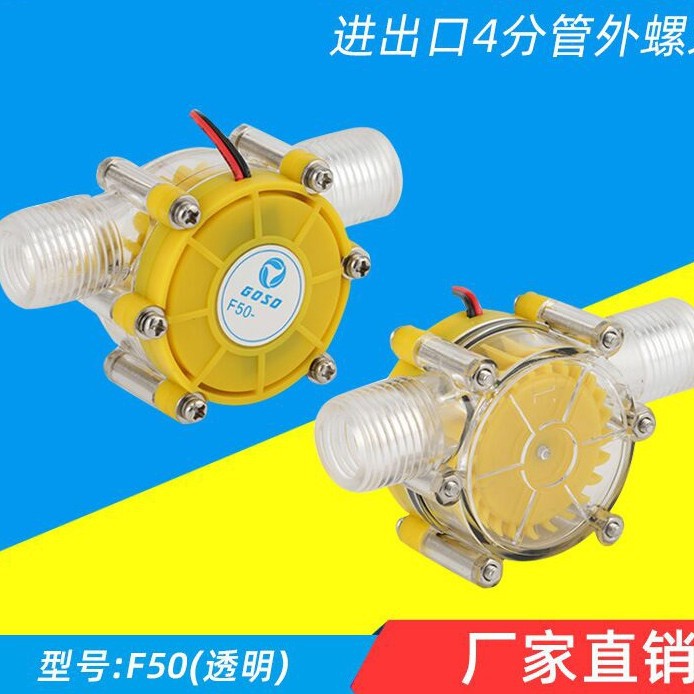

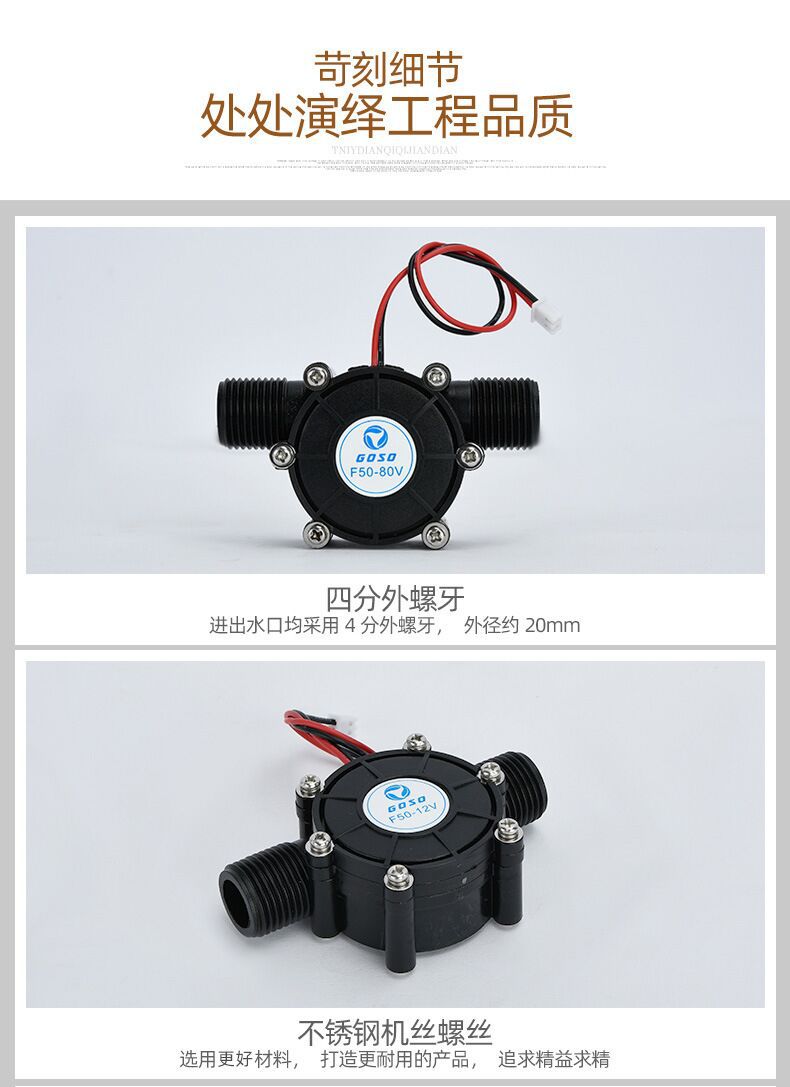

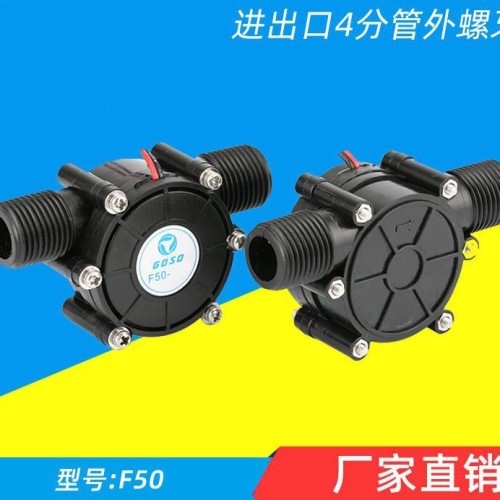

1. Model Corresponding to Generating Output Type: (This generator has 4 different types of generating output, which are divided into the following 4 sub-models:)

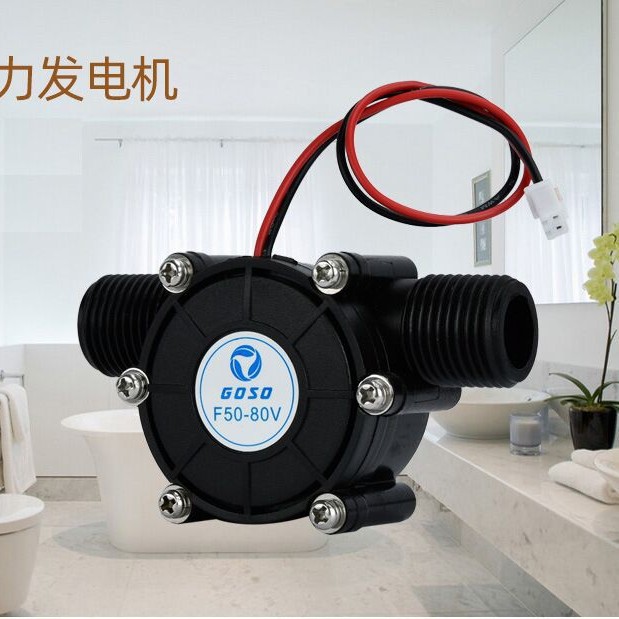

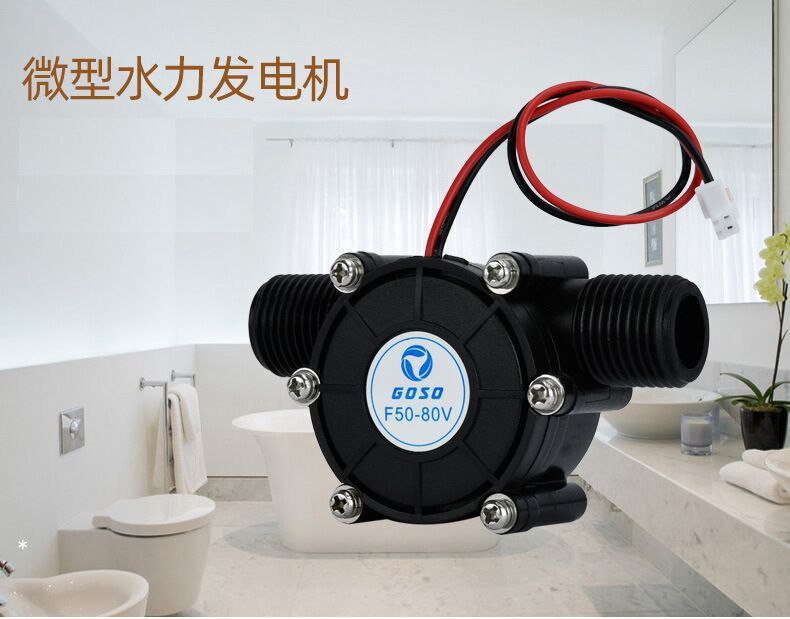

（1）F50-80V：DC 0-80V output, the generator does not have a stabilization circuit, the peak voltage reaches 80V, which can directly power around 3-12V 10W LED lights, and can directly charge small batteries, with a charging peak current of about 220mA. Since the electricity generated is used up in time, the voltage will automatically remain around 14V, maintaining a suitable voltage to ensure that all the electricity generated is used for charging the small battery.

（2）Three-phase brushless AC generator basic parameters: output voltage AC0-20V, output current 0-150MA, flow range 3-18L per minute, pressure range 0.15-0.8MPA

（3）F50-5V：DC 5V stable output, capable of charging mobile phones, and also charging lithium batteries with charging management chips.

（4）F50-12V: DC 12V stable output, can supply power to 12V radios, charge, and supply power to LED lights.



Section Two: Technical Conditions:

（1）Output peak voltage: 80V (1.2Mpa)

（2）Output Peak Current ≥ 220mA (12V)

Line resistance: 10.5±0.5Ω

Insulation Resistance: 10MΩ (Measured with a DC100 Megohmmeter)

Outlet closure peak pressure resistance: 0.6Mpa

(6) Outlet peak pressure resistance: 1.2Mpa

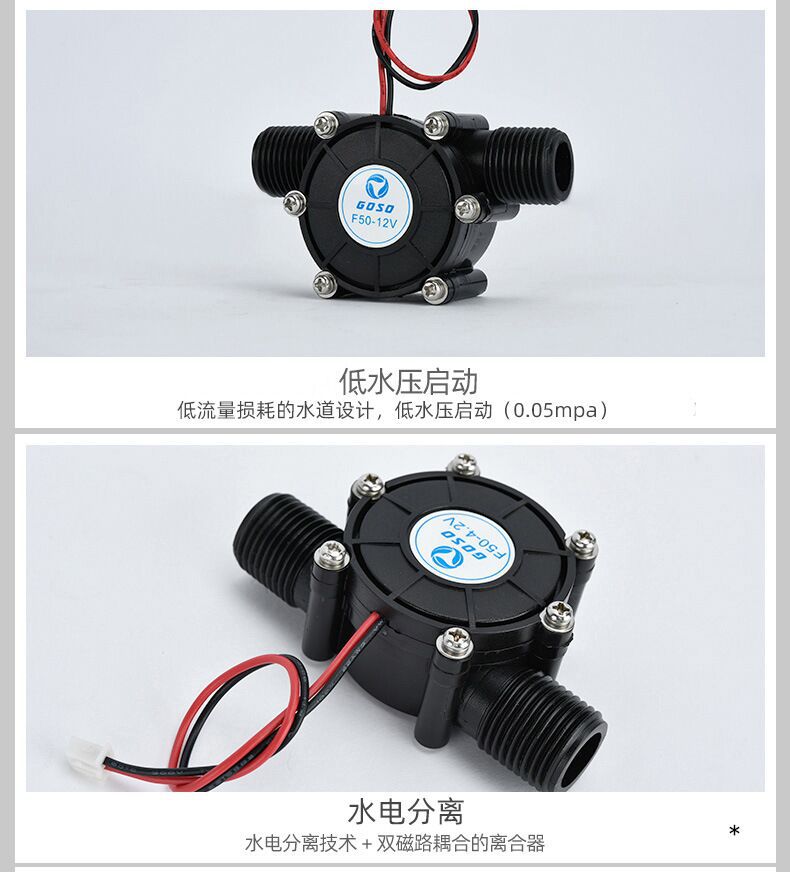

Start water pressure: 0.05Mpa



Section 3: Mechanical Characteristics and Operating Environment:

(1) Appearance: The surface is clean, without rust or any visible scratches, and the structure is solid.

(2) Axial clearance: 0.2-1.0mm

（3）Mechanical noise ≤ 55dB

The generator weight is about 90g.

Generator life: ≥3000h

(6) Output Characteristics: The output voltage without a stabilization circuit is proportional to the water pressure.
