Packing List

Crate Size: 435*425*300MM

 Quantity per box: 40 pieces

Weight: 17KG

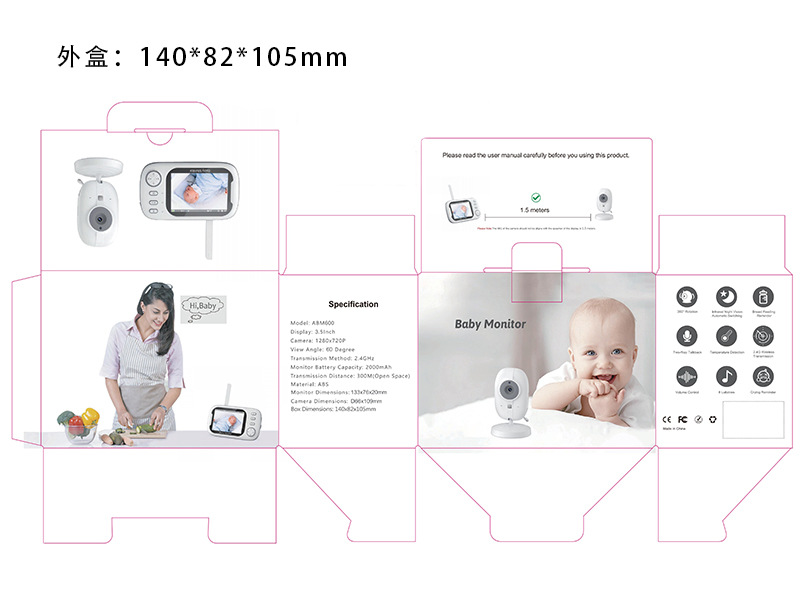

Color box size: 140*82*105MM

A set weight: 400g

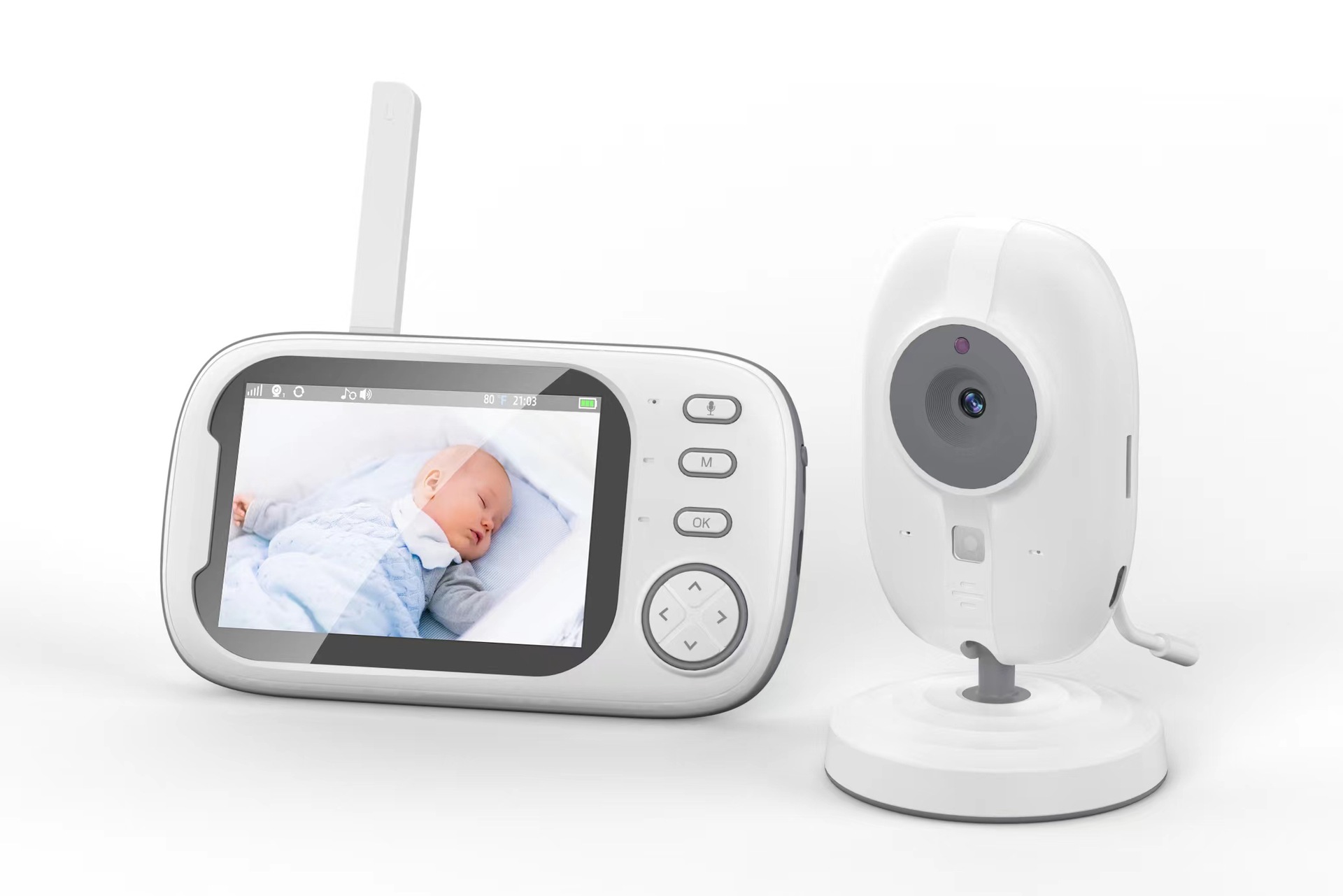

ABM600 Product Specification Book
1. Technical Specifications
Model ABM600 Camera 1280*720P Crying Alarm Supported Operating Temperature 65°C to -20°C
Display 3.5-inch, shooting angle 60 degrees, lullaby supported, transmission method FHSS.
Resolution: 800*480, Sensor: 1/4" COMS, Milk Feeding Timer Reminder, Supported, Transmission Range: 300M Outdoor
Host power consumption: 1.6W Camera power consumption: 1.5W Night vision (automatic): Supported Camera net weight: /
Battery: 1500MA/H, Camera Recording Supported, Temperature Alarm Supported, Display End Net Weight:
The main body size is 133*76*20MM long, and the camera body size is 66*108MM in diameter.
Camera button definition and pairing
Press the power button twice quickly to enter the pairing mode, and the blue light will flash.
Display the end-to-end code. Open the menu and select to add a camera, press the OK button to enter the pairing mode, and the blue light will blink. When the pairing is successful, the flashing will stop.
Display end button definition
Power button: Long press to turn on/off; Short press to turn on/off screen (you can hear the sound from the camera)
The talk button can be pressed to send voice messages to the camera.
Menu key - Open/return to menu selection: Volume, Breastfeeding Reminder, Rocking Cradle Song, Time Setting, Temperature Unit Switch, VOX, Brightness
Up key, Direction key
Down key, Direction key
Left Mouse Button + Direction Keys
Right-click and direction keys
OK button for function confirmation
M key - Menu key/Return key. Short press to display the menu, short press in 3rd-level menu to return to the 2nd-level menu.
Reset button - Reboot function
Function: Two-way radio, infrared night vision, temperature monitoring and alarm outside 20℃-30℃, sound detection and alarm.
Purpose: Caregivers need to go to other rooms to do other things, can bring the display terminal, can monitor the temperature of the baby room at any time 20-30℃.
Observe the baby's current situation, such as kicking off the blanket, if the baby wakes up crying at this time, you can open the intercom to comfort the baby with words, so that the family love is uninterrupted; when the baby needs to rest, you can play lullabies, so that the baby is easy to fall asleep, and at night, you can turn on the VOX mode, and the screen will be turned off after 30 seconds. When the sound in the baby's room is greater than the set value, the screen will be lit up.

4. Function Introduction
1. The sound and image of the baby are transmitted in real-time to the display end, and adults can monitor the baby's condition in real time. When the talk key on the display end is pressed, it can communicate with the baby.
Children's language development,
2. Breastfeeding Reminder Function: When set to 0:30H, an image and sound alarm will be displayed at the current time plus 30 minutes to remind you when you are busy.
It's time for the baby to nurse. The time is the same as above.
3. The display end can choose to play 8 lullabies for the baby end.
4. Set the time based on different time zones
5. Set the display temperature to: ℃/℉ based on personal preference.
6. You can choose the baby monitor you want to display, such as if two baby monitors are connected simultaneously, you can switch automatically or manually.
7. VOX mode: Defaults to off. When the sound level at the infant end is less than the set value, the display on the display end will turn off after 30 seconds. When the infant is in an environment where the sound level is less than the set value.
When the sound exceeds the set value, the display on the display end will light up, and the environment can be selected: HIGH/MED/LOW
3 操作说明
Coding: When the CAM is in power-on state, quickly press the power button twice to make the blue light flash (approximately 10 seconds), which enters the coding mode. Meanwhile, turn on the display, and press the M key to open the menu.

Find the up key to enter the matching mode, the red light on the top left corner of the display flashes, and the message appears: CAM1 Matching Success.

CAM2 operation is similar to pressing the menu key to return to the main screen, pressing the camera key to switch to the CAM for coding, and after entering the coding mode for 10 seconds without connection, it will automatically exit the coding mode.
Note: One baby terminal can only be connected to one display terminal, and one display terminal can simultaneously connect two baby terminals; baby terminals cannot be connected to adult display terminals.
"Stay away to avoid feedback")
4. Use the distance
Open space: 300M
Indoor: 30M, distance varies depending on the material of the wall.
5. Howling
The baby monitor continuously transmits sound to the display end to monitor whether the baby is crying. Therefore, this work will amplify the ambient sound and send it to the display end.
The display end will always hear this 'noise' loop, and the sound will get louder. When the adult end approaches the baby end, the sound from the speaker will be louder.
The sound is received by the baby's microphone and amplified again before being sent to the adult end, thus forming howling.
