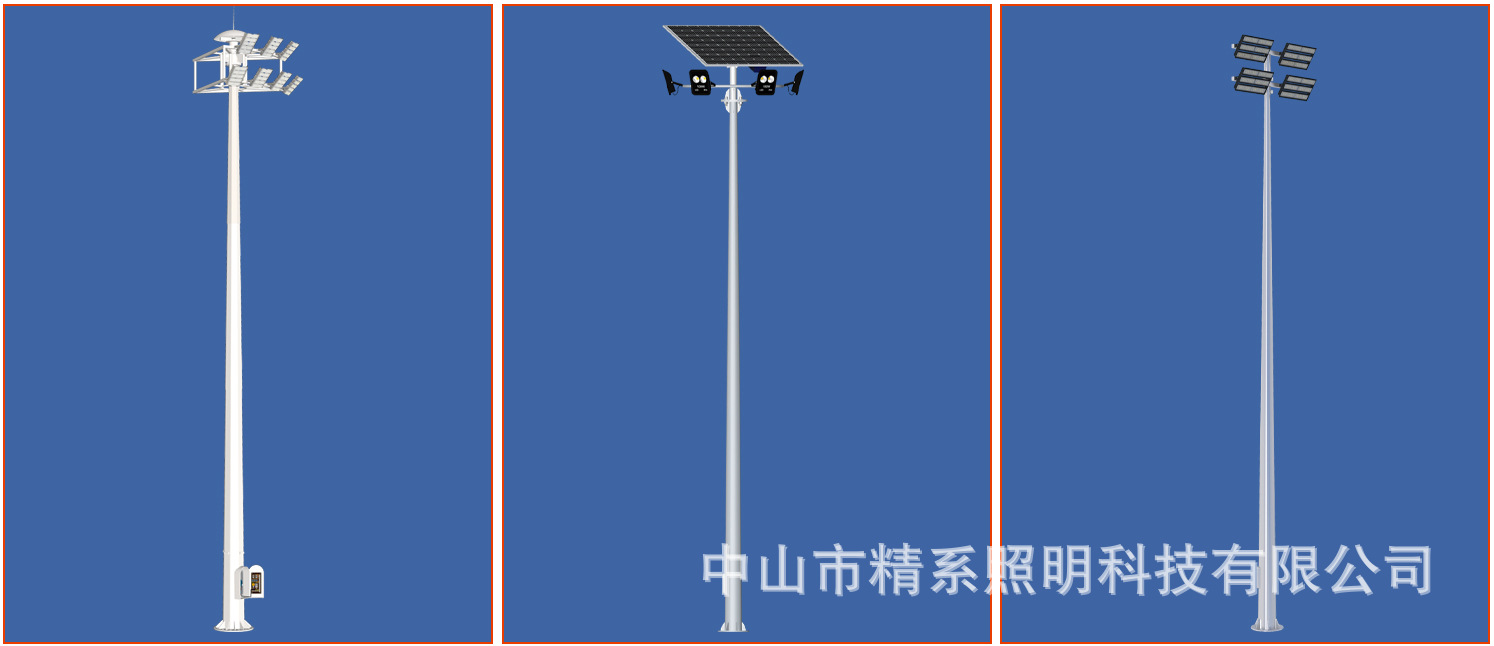

Football Stadium High Pole Light

Solar powered stadium light

Blue Stadium High Pole Light

solar street light

solar street light

AC/DC Hybrid all in one
LED solar street lighting

solar street light

solar street light

Solar Garden Light

Advantage

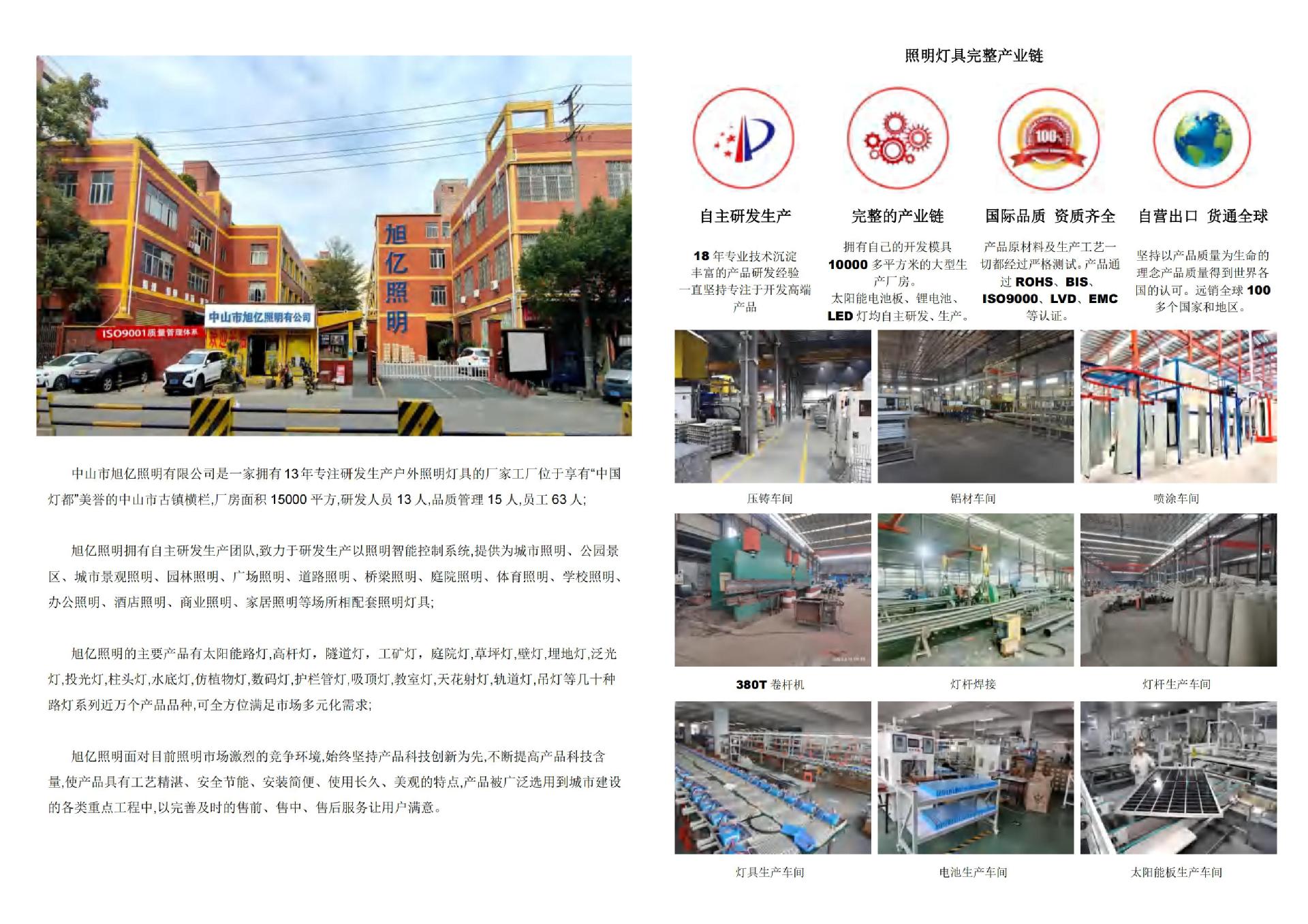

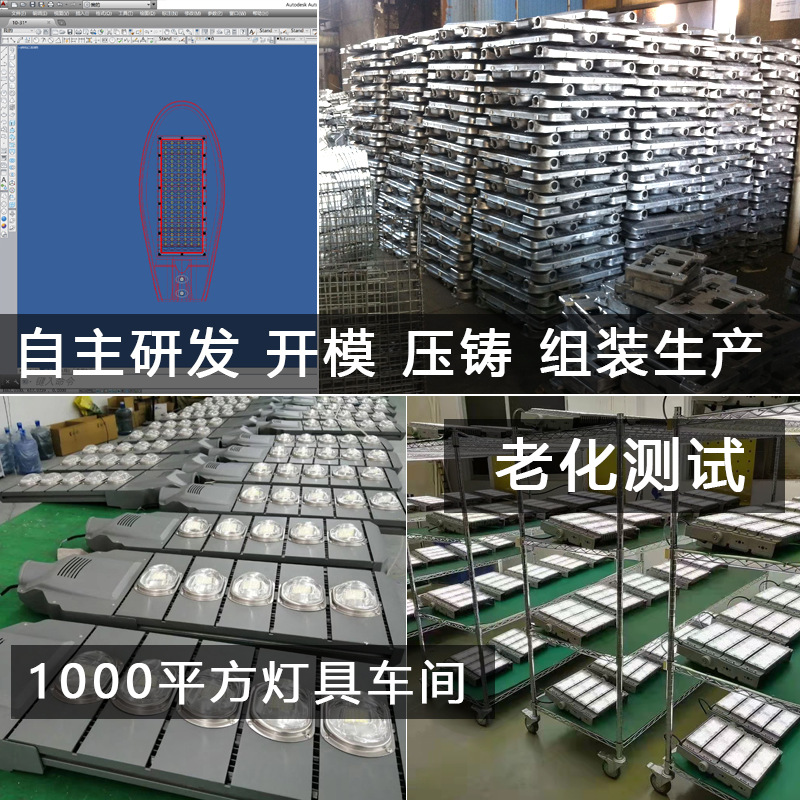

• 18 years of R&D and manufacturing experience
• Focusing on research and development and manufacturing of green and low-carbon LED lighting fixtures for outdoor roads
• No electricity bill required
• 12 hours of lighting per day
• Durable for 15 years
• Charging efficiency of monocrystalline silicon solar panel > 23%
• High-tech power battery ensures 12 hours of daily lighting

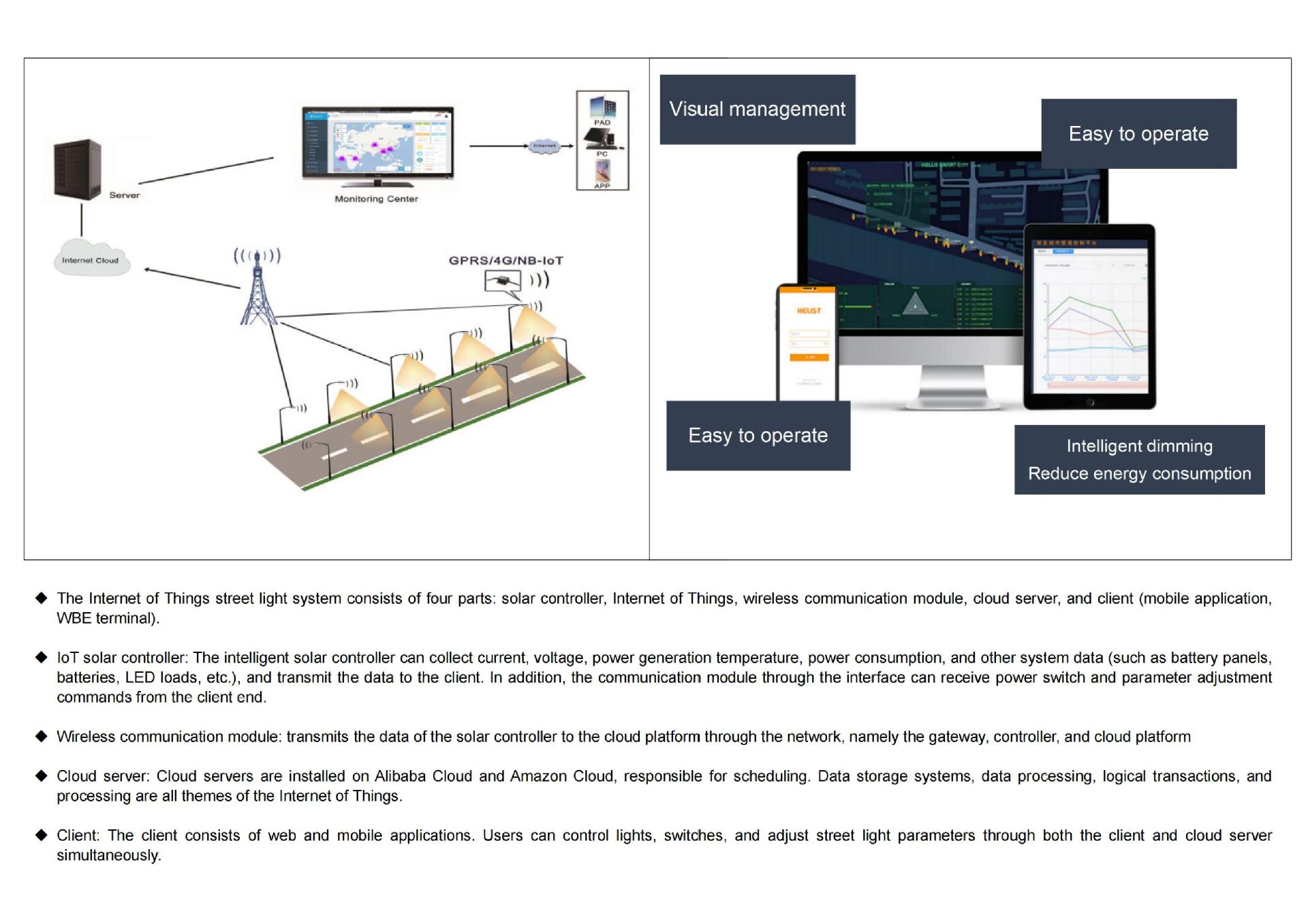

• MPPT intelligent controller, intelligent monitoring
• of electricity, ensuring 12 hours of daily lighting
• LED high-efficiency light source 220 lumens per watt

Overview

   LED solar street light uses solar energy as power supply to provide road lighting at night. It adopts high-efficiency LED light source design, which has high brightness, green environmental protection, easy installation, stable and reliable work, no cable laying, no conventional power consumption, and long service life.etc Advantages especially the controller of this product adopts multiple energysaving circuit design with overcharge overdischarge reverse connection automatic light control device comprehensively improve the LED luminous efficiency and greatly save electricity This product uses solar panels to convert solar energy into electrical energy during the day to charge the batteryand discharges the battery at night to make the LED light work. It is an eco-friendly energy product that is strongly advocated in today's society.

advantage

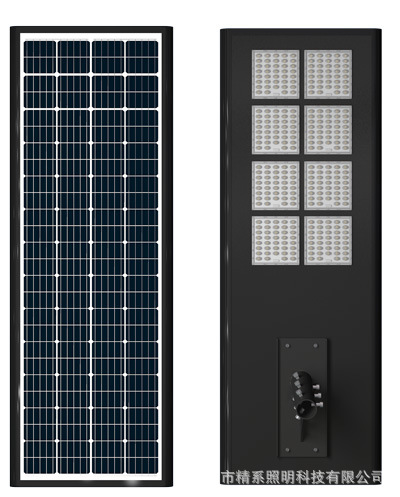

•  Integrated design, LED high-efficiency light source, new high-capacity lithium battery, solar battery pack and automatic controller integration.
• Convenient installation and maintenance, no need to install cables, no need to equip special lamp poles, modular design of functional components, convenient and quick installation, maintenance and replacement.
• Using solar power generation system, pure green energy, inexhaustible, the best energy for environmental protection.
• Using high-capacity lithium-ion batteries, high energy, long service life, light weight, green and environmental protection, does not produce any harmful substances.
• Using LED lighting sources with no diffuse reflection effect and extremely high light efficiency, coupled with the unique secondary optical design, it can illuminate a wider area and improve the light efficiency again to achieve the purpose of energy saving. The LED light source has the advantages of long service life.High luminous efficiency, uniform light color, etc., and it is also the best product for blue environmental protection.
• The shell is made of all-aluminum material, which has the characteristics of light weight, corrosion resistance, wear resistance, etc., to ensure that the product is suitable for humid and hydrochloric acid environments.
• The control system is manufactured with industrial-grade components, which can adapt to various harsh environments and ensure that the street lights are bright every day.

Features

 High brightness, green environmental protection, easy installation, stable and reliable work, no cable laying, no conventional energy consumption, long service life

application

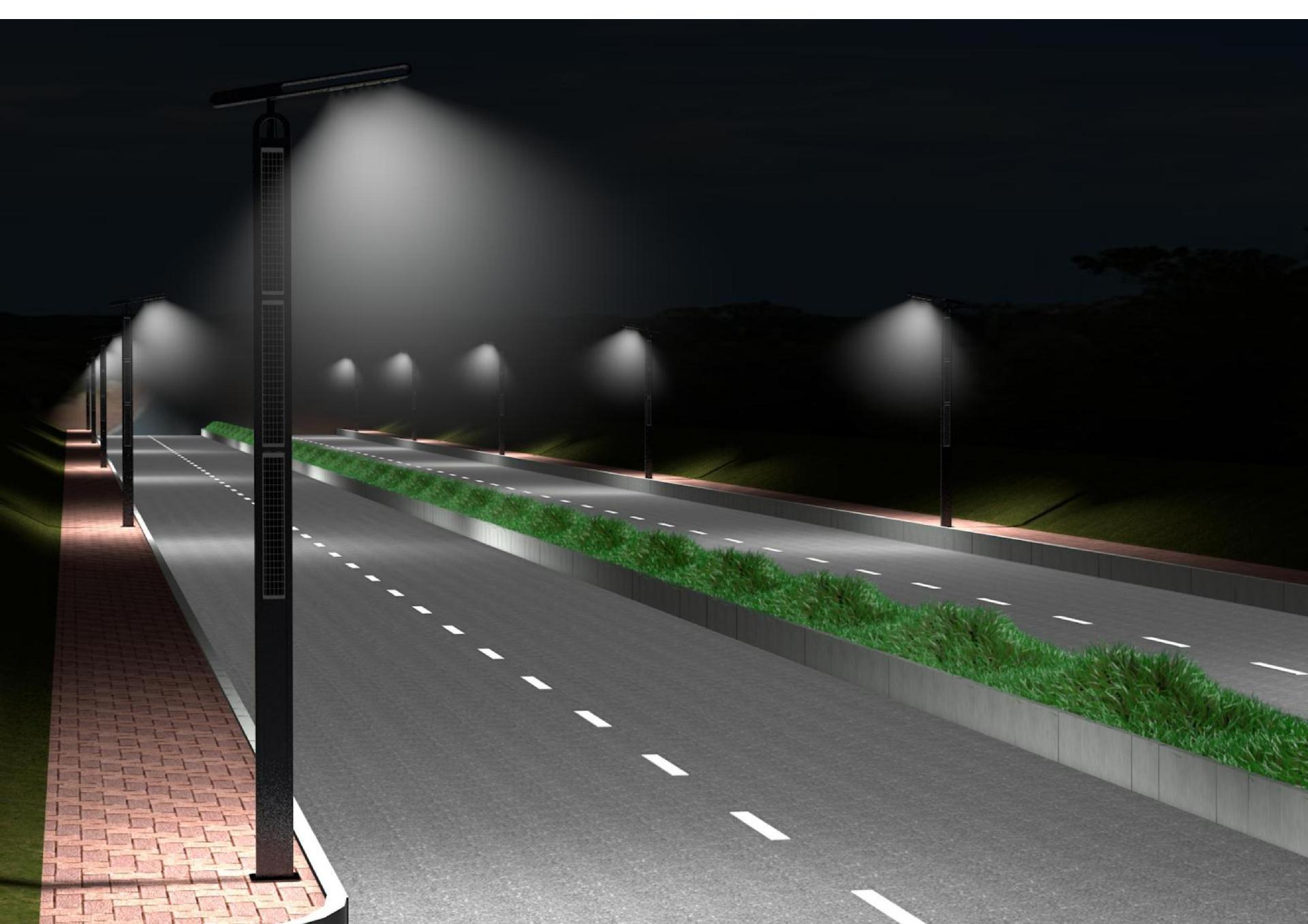

 Mainly used in urban roads, residential roads, industrial parks, landscape lighting, tourist scenic spots, parks, courtyard green belts, squares, pedestrian streets, fitness and leisure squares and other places.

safety warning

 Installing it under a tree or beside a high-rise building will cause the product to fail to charge or not be fully charged, thus affecting the lighting time of the product.

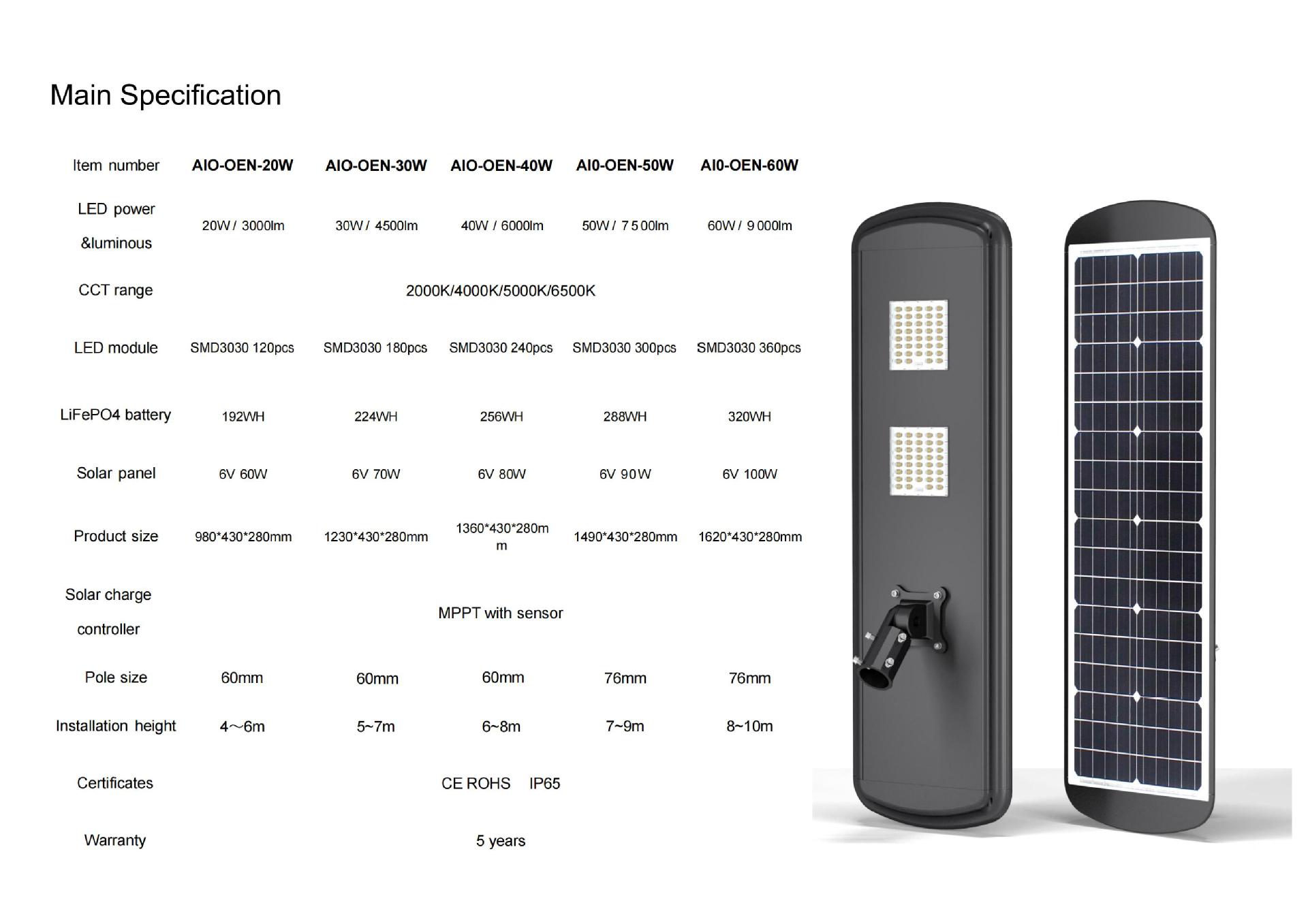

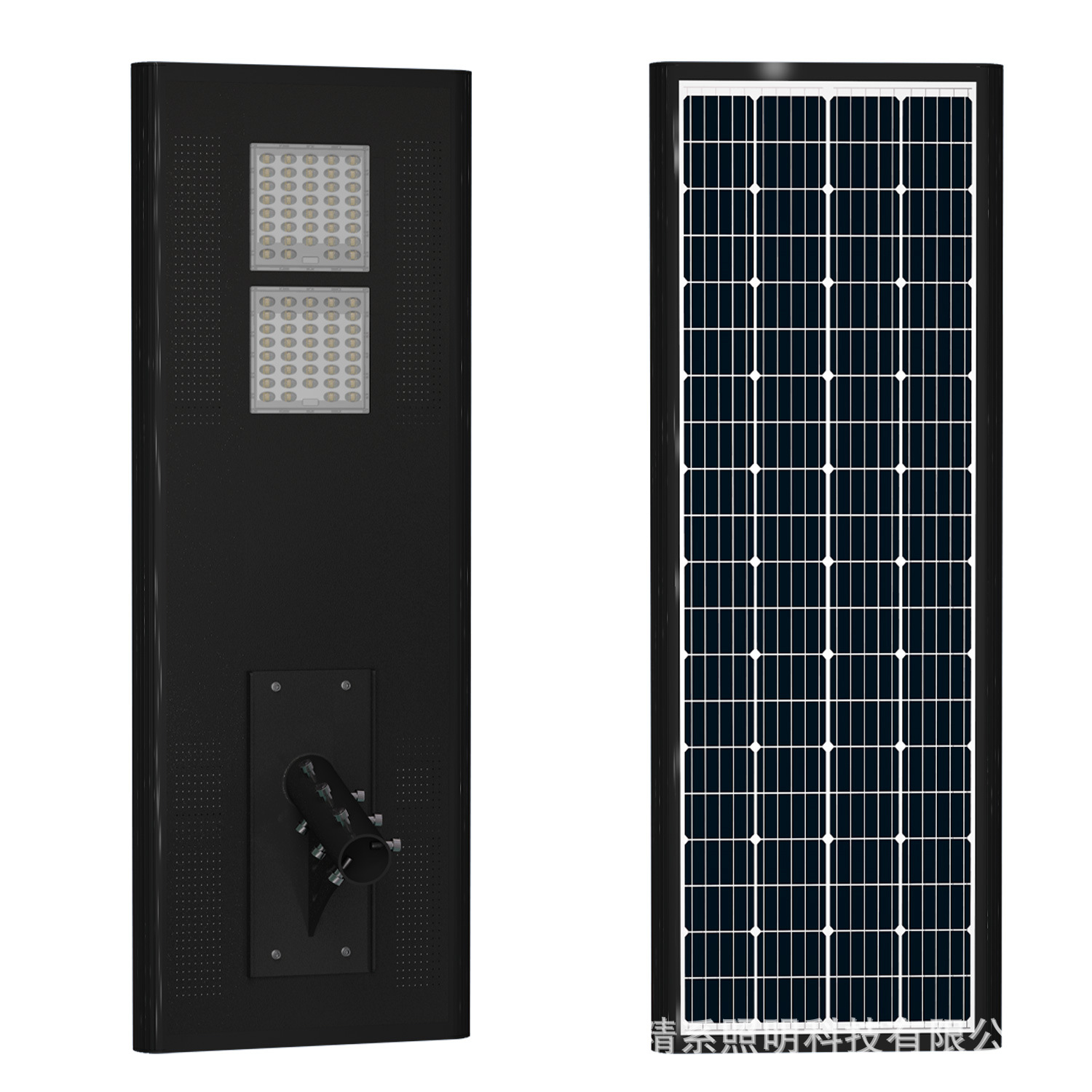

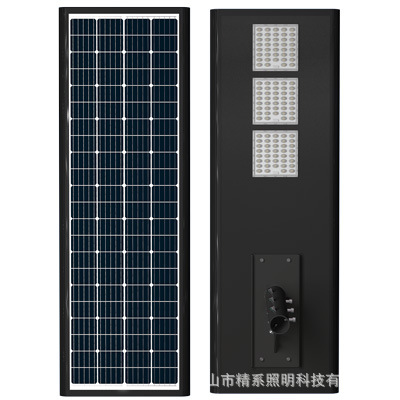

General  Information

Product Name:

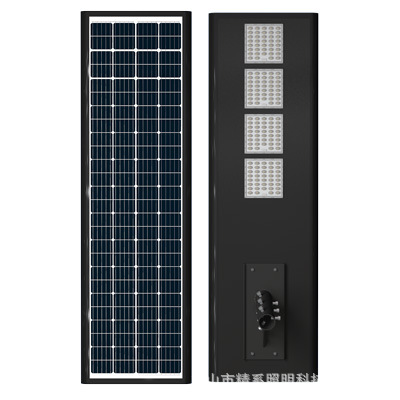

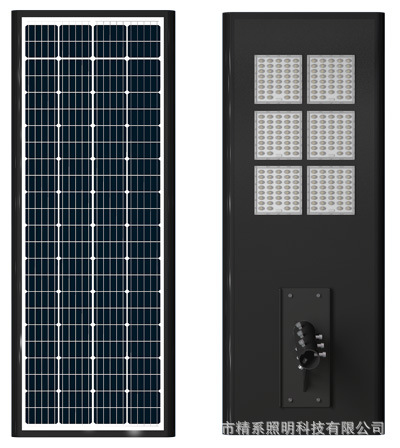

Solar Street Lights - All in One

model

SOLART800

Light source

Peak luminous flux

12750Im

Rated power

75W

Number of LEDs

140pcs

LED Type

SMD50505*28pcs

China Radio International

>80Ra

CCT

6000K

View Angle

140°*70°

Beam Angle

Bat wing pattern with polarized light

Battery

Battery capacity

120AH 12.8V (1536Wh)

Battery type

New LiFePO4 cell

Battery life

4000 cycles (50% depth of discharge)

Battery lifespan

8-10 years

Runtime

>20hrs, 100%

Solar Panel

Type;

Monocrystalline

Power Output:

18V, 140 watts Solar panel size

Solar Panel Lifespan

≥ 25 years

Material:

High-quality tempered glass with anti-reflective coating, i.e., Aluminum alloy

Controller

Type

Intelligent microprocessor-based controller

Operation mode

Automatic dusk-to-dawn operation with motion sensor option & Remote control.

Charging Method

MPPT (Maximum Power Point Tracking) with charging current ≤20A

Protection feature

过充、过放、短路和反极性保护

Solar Charging Time

6 hours by bright sunlight

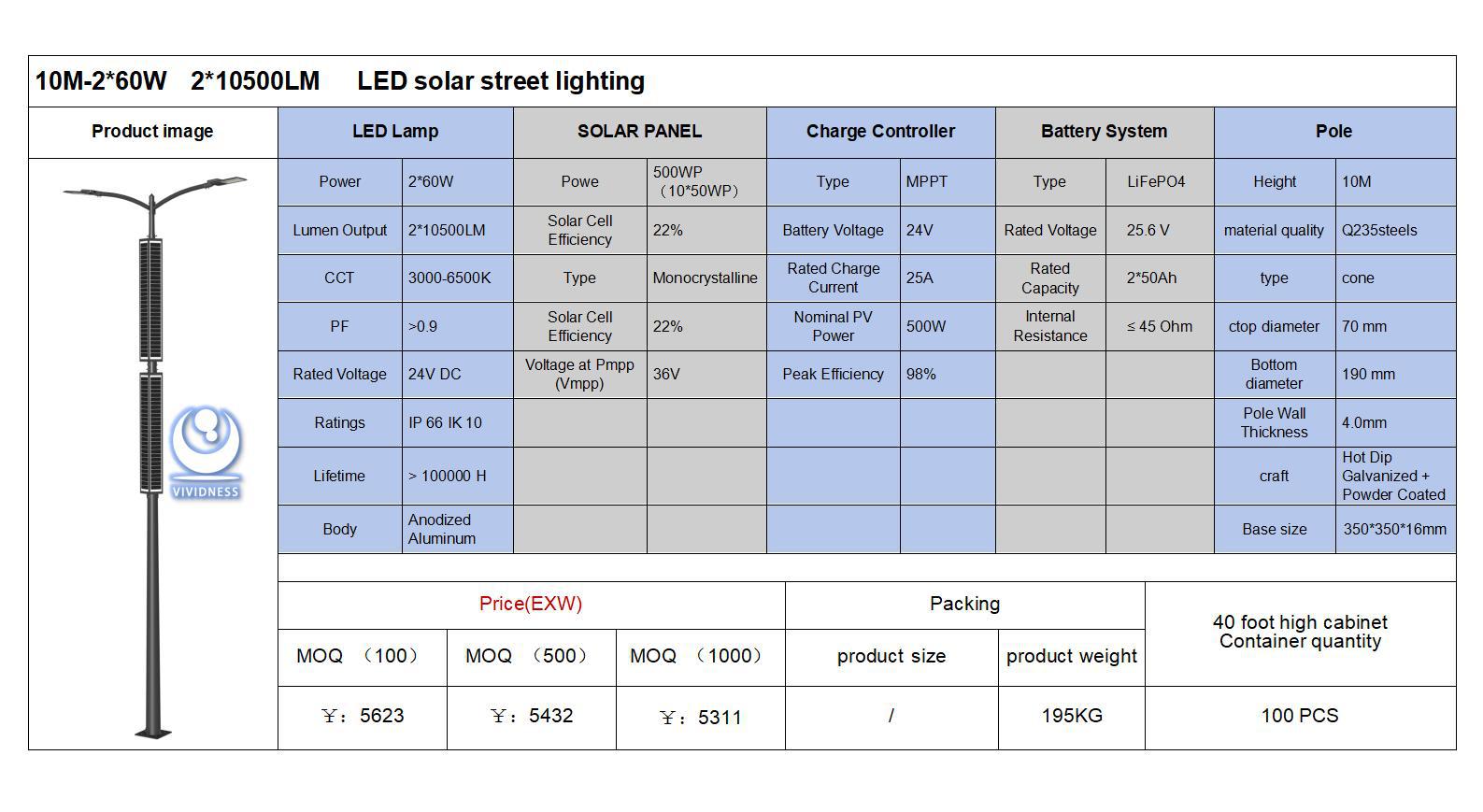

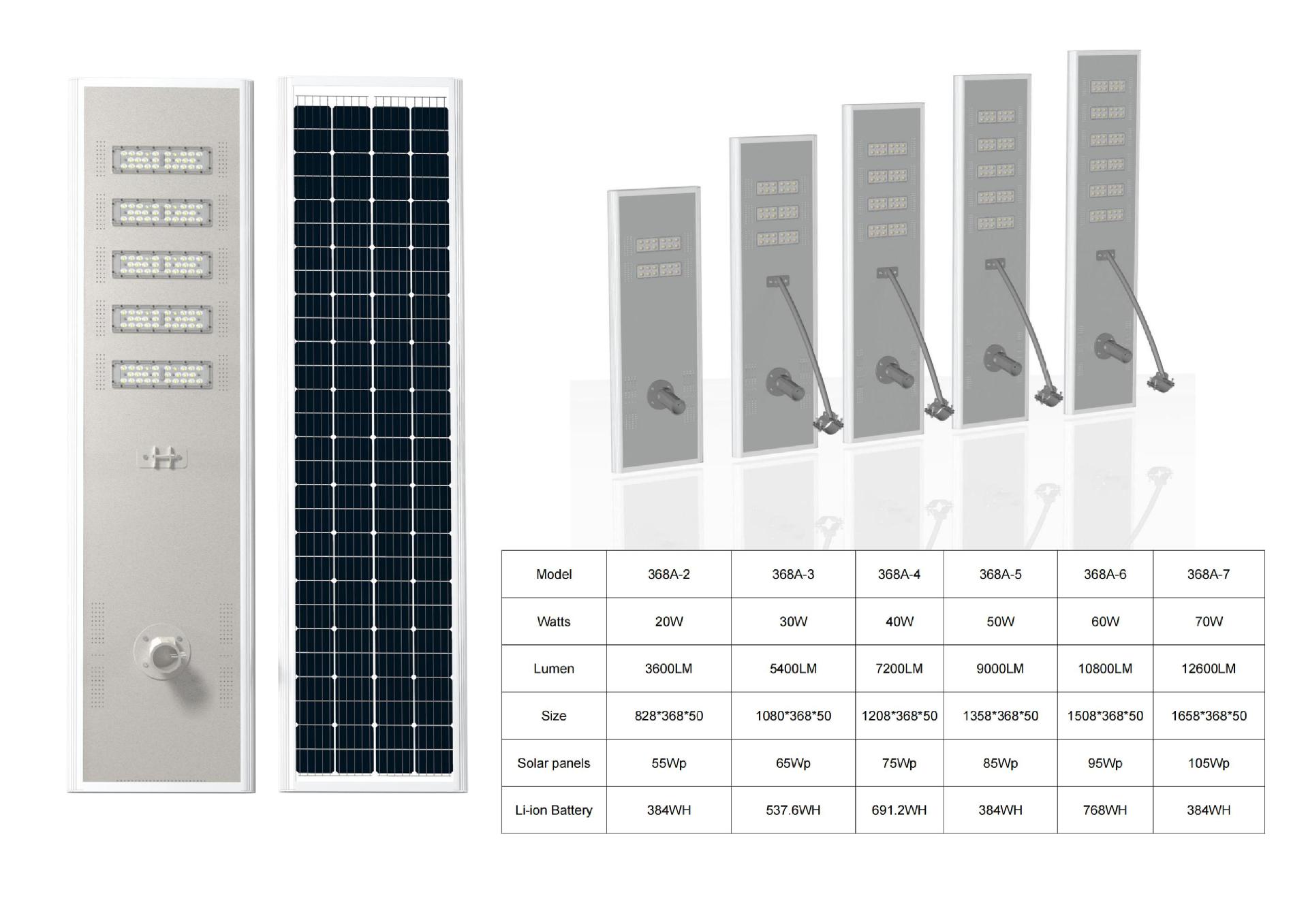

Model

LED solar street lighting - 368-400W

lumen (LM)

220 lm/W

SIZE

1780*500*50mm

LED Chip Brand

"SMD 5050 8*40 pieces

Solar panel

150W

Battery capacity

640WH

space between light

10-12m

space between light

30-40 meters

Packing size

185*55*13cm (1PCS)

Product Gross weight

24.7kg (1PCS)
