Model: HL-ST30P24G-8

Luminous color: 6000K white light, customizable

Luminous Flux: 3694 lm

Material: Aluminum alloy + PC

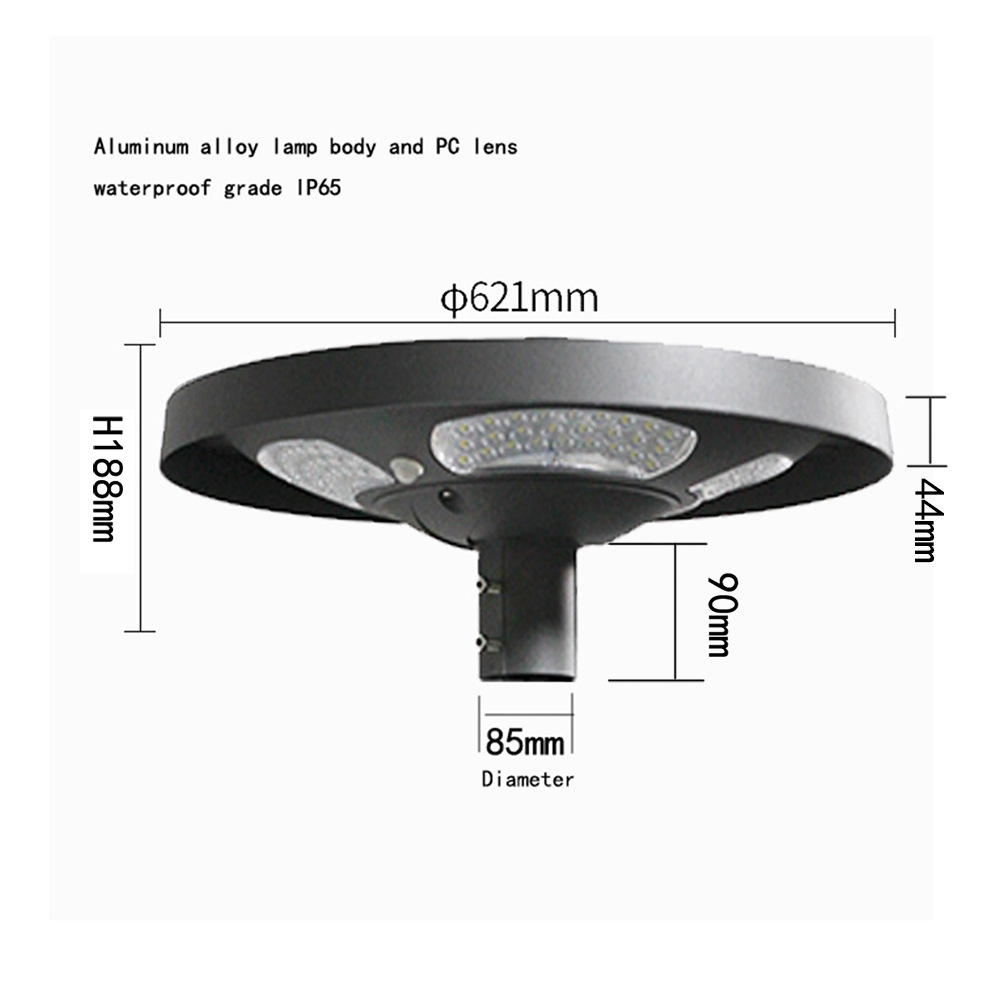

Lamp head size: 621x188MM

LED quantity: 5054 104 LEDs

Lamp body working voltage: 30V

Rated power: 30W

Solar panel specifications: 18V30W, size: diameter 600*5MM, monocrystalline glass lamination.

Battery Specification: 12.6V 10000mAh

Charging time: 6-8 hours

Battery life: 6-30 hours, with 8 modes to choose from (mode descriptions as shown in the figure below).

Product Features:

1.8 modes available, more adaptable to the needs of different work scenarios, and also more adaptable to the changes in sunlight throughout the seasons.

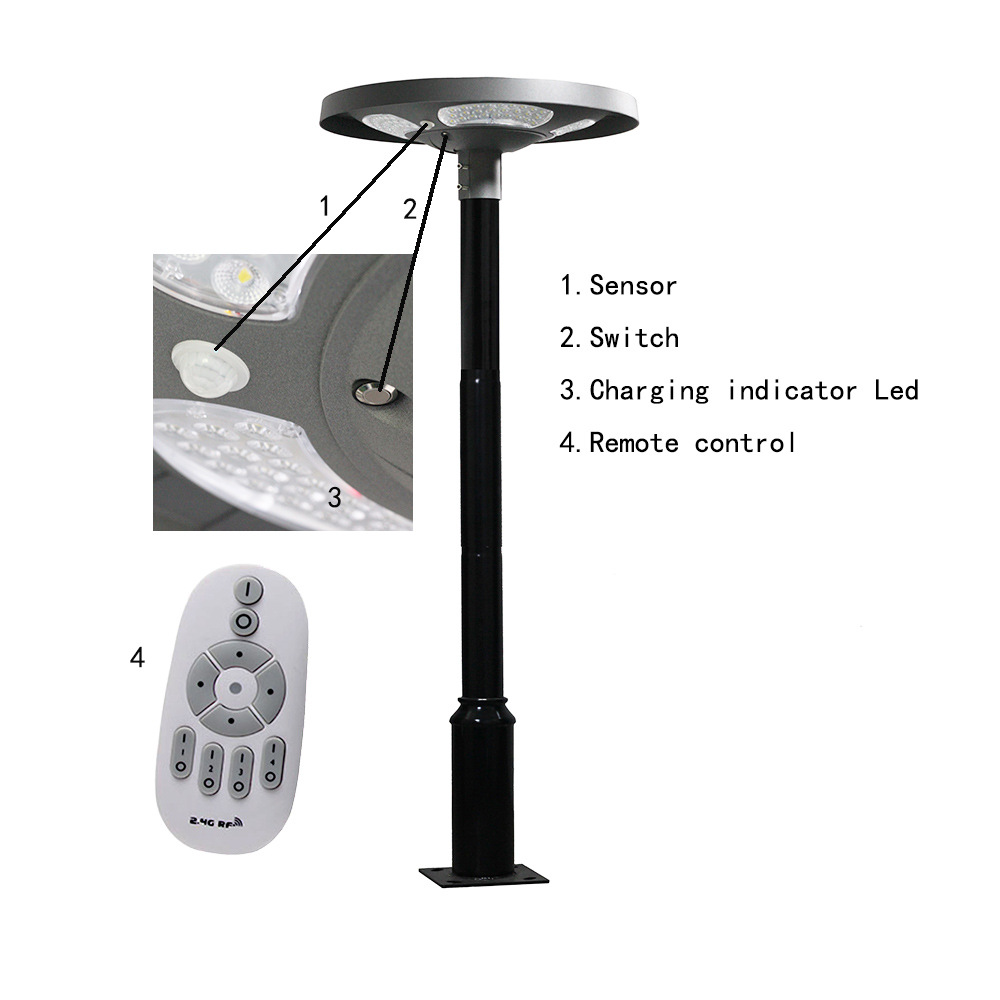

2. One-to-many control, where the same remote control can control all the lamps that have been coded; enabling the operation of switching on and off the lamps, selecting modes, and adjusting the brightness.

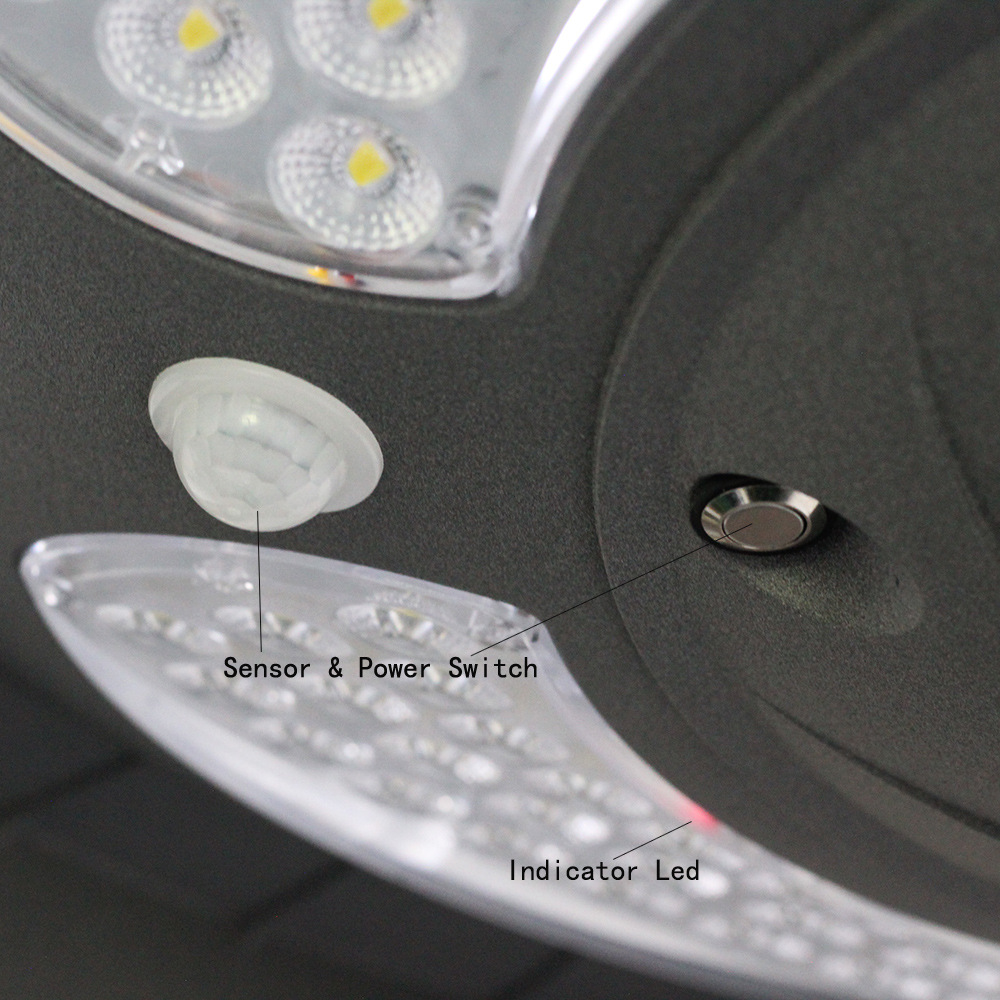

3. When charging, the indicator light flashes red or green, and turns green when fully charged.

  Charging indicator light – shows the current status. Please fully charge the board light before using it for the first time after unboxing.

 Green or red flashing = Battery charging

Green LED stays stable lit = Battery fully charged

Different indicator light colors mean different voltages.

Green LED = High Battery 100%-70%

Yellow LED = Medium battery level 70%-30%

Red LED = Low battery level 30% or below.

4. The induction delay time can be set before production to 10-300 seconds, with the default being 10 seconds.

5. During daytime charging, the light can still be controlled by remote mode (4O) to turn it on and off as well as adjust the brightness.

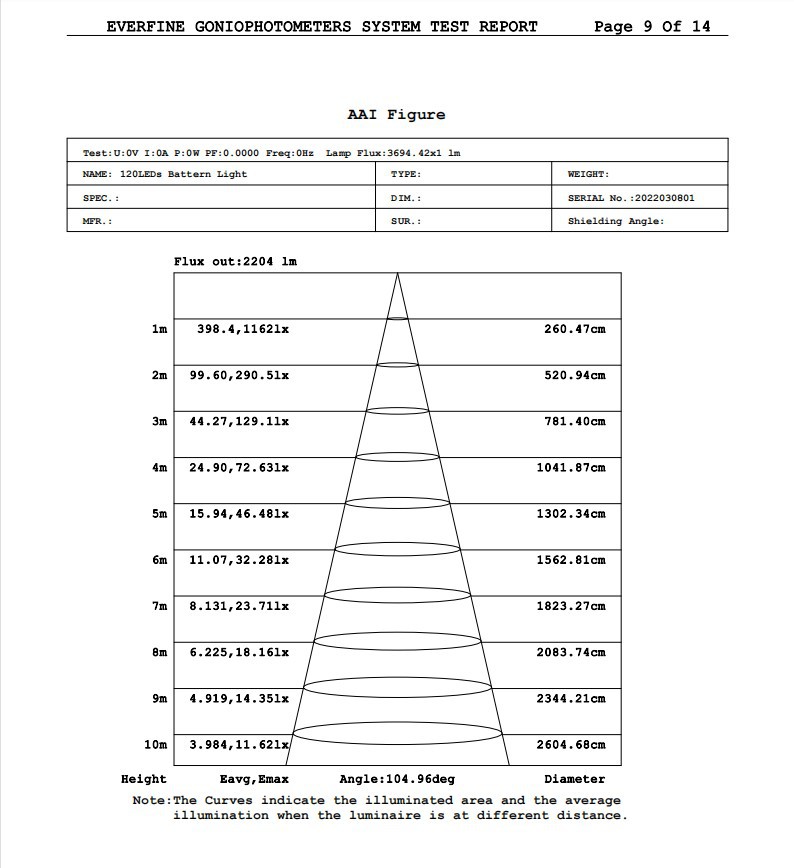

Luminous Distribution Curve Test Report (Please contact customer service for IES, GOS files if needed)
