Product gross weight: 171g (including the box)

Box Size: 11.8*12.6*5cm

Packing Quantity: 50pcs

Usage Method

Press the remote control, the alarm will enter the security state, and if anyone enters the security range, it will emit a sound.About 120 dB alarm sound,Press the remote control to disarm, and it can also be used at night.

Before going to bed at night, use the remote control to spread it out, and you can sleep peacefully at night. You can withdraw it the next morning after getting up with the remote control.

Product Features

1、Body temperature detection.

2andThe infrared receiver uses an infrared connector with a shielded iron housing to reduce misoperations, and is available for pairing.Two remotes work on the same principle as the TV remote.

3andLoud volume alarm120 dB alarm）

4andUsing a microcomputer dedicated module consumes less power.

Technical parameters

Alarm Level: 120DB

Remote control range:5-12 meters (open area)

Detection Range:110 degrees

Detection range: 5-10 meters

Working Voltage: DC6V (Can be equipped with 4 AA batteries, please prepare them yourself) or with an AC adapter

Installation Guide

1The probe should avoid directly facing door windows to prevent false alarms.

2Adjust the detector's tilt angle to extend its detection range.

3The probe's lens should be kept clean and there should be no obstructive objects.

4The probe should be kept away from heat and cold sources, such as air conditioner outlets, heaters, air-conditioning machines, etc.

5Power on10Enter alert status immediately, someone has reported an alarm.30～50second

6、将电池盖打开，按照电池盒内部的标识将4节5Insert the battery into the number

7When installing and using the device, avoid direct sunlight and car headlights, as the movement of curtains may cause false alarms.

8Installed on the corner or wall surface, it is recommended to install the height at a distance from the ground.2Meter position, adjusting the down-looking angle can prevent false alarms from small animals

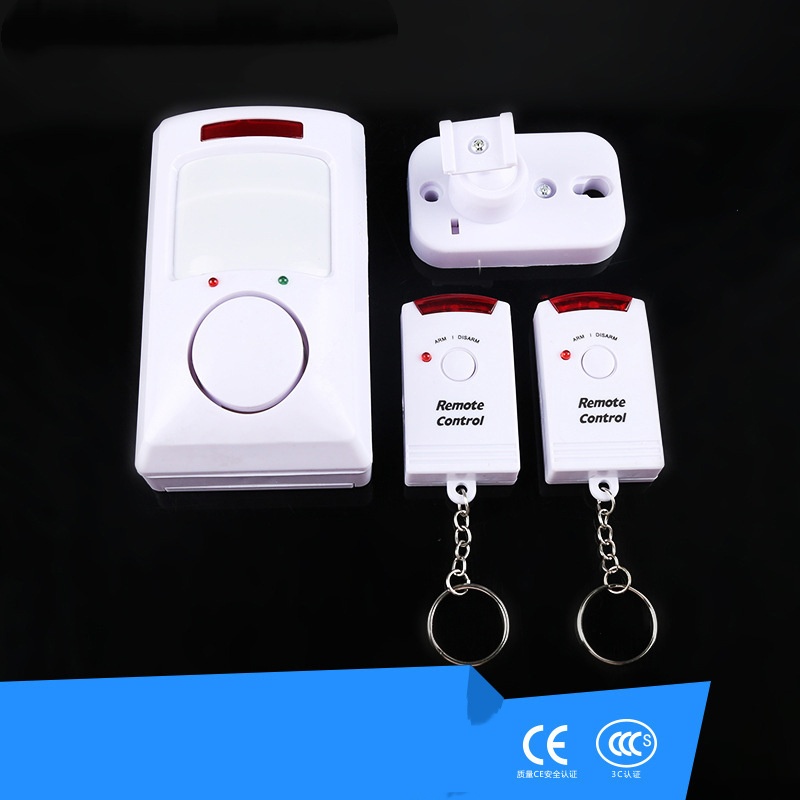

9Fix the remote infrared alarm device on the universal base, rotate the infrared alarm device to meet the installation requirements and detection needs.

Notes

When the remote control distance shortens, please replace the battery.

● When installing batteries in the detector, it is necessary to regularly check whether the battery leaks.

● Suggest you regularly check the infrared alarm system to ensure it is functioning normally to avoid false alarms.

● Detectors should be windproof and protected from direct sunlight exposure. They should be kept away from indoor sources of heat, such as air conditioners and fireplaces, to prevent false alarms.

● When the power-on indicator light is dim, the alarm sound becomes softer, and the infrared alarm device has a high false alarm rate, it is generally due to insufficient battery voltage. In this case, it is necessary to replace the battery in time.
