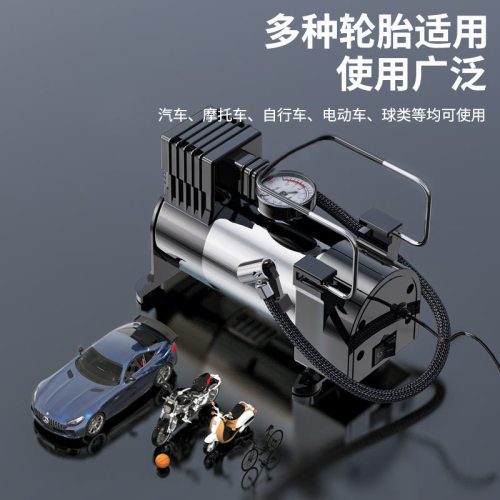

[product name]: vehicle air pump

[product brand]: follow the way/suitu

[product model]]:st-5001

[product size]: about16*8 * 10.2cm

[product material]]:pp, metal

[product weight]: net weight of the whole machine545g,gross weight (about)628g

[product cylinder]]:19cylinder

[product packaging list]: host1, inflatable nozzle3set, fusefiberglass * 1, manual1copy, mail order box1piece

[power cord length]: about300cm the length of the air pipe is about50cm

[product packaging]: kraft paper packaging size180*110 * 165mm

[output power]]:120(w)

[rated voltage]]:dc12(v)

[outer box size]]:46.5*68.5*53(h)cm g.w:16.5kgs/n.w:15.5kgs

[carton capacity]]:24pcs/ctn

[product features]]:

1, this machine is suitable12vcar tires,
2, also suitable for motorcycles, bicycles, ball games, rubber raft, beach floating beds, inflatable toys, etc.
3, when working on expressways, outdoors or in the morning, the tire suddenly leaks air or the tire is injected, which can give full play to first aid.
4, keep the correct tire pressure on the car tires, which can ensure driving safety and save gasoline. it can be used with the car in case of emergency.
5, equipped with a complete set of inflatable nozzle, can be used for tires, rubber raft, air cushion, inflatable toys, ball inflatable and other various purposes.

[instructions]]:

1. insert the air nozzle on the rubber hose head directly into the tire valve. when you hear the sound of air leaking from the tire, it means that the air has been circulated. continue to tighten the air nozzle. at this time, the air will no longer leak out.
2, insertdc12vwithin cigarette lighter
3. when inflating, the gauge pointer increases with the saturation degree of the tire. when the pointer reaches the appropriate tire pressure (generally, the tire pressure of the car tire is223kpa = 35psi), take out the plug and gas nozzle, that is, finish the work.
4. please use the professional ball needle and plastic nozzle provided by this machine to connect with the air nozzle to inflate the ball and other required air equipment.

[precautions]]:
1, do not use tire inflation on large and overweight vehicles, such as trucks, trucks, box-type containerized vehicles, etc;
2, when using, please start the car engine to enhance the power, without consuming the car battery power;
3, this machine is limited to dc (dc12v) power supply, do not use household high-voltage ac (ac220v) power supply;
4, when inflating, please work continuously10stop in minutes10it is cooled in minutes to prevent damage to the air pump and accessories and prolong the service life of the motor. rubber raft when inflated, it can work continuously30minutes;
5, generally, when the tire is inflated, about3-5minutes to arrive30psinormal tire pressure, large tires will take a little longer; for example, when inflation starts, the pointer of the instrument quickly rises50-100psi, it means that the air is blocked and the air does not enter the tire. at this time, the air nozzle connector should be pulled out immediately and operated again, otherwise the motor and instrument will be easily damaged.
6, when using, people should not leave the body, pay attention to tire pressure at any time, and should not be too saturated;
7. after the machine is used, the air nozzle wrench must be straight to avoid fatigue of rubber elasticity inside;
8. fuse is installed in the plug of this air pump. if the air pump does not start, open the plug to check and replace it (fuse isfiberglass);

9, this machine should avoid moisture, heavy fall and sand intrusion, avoid children playing with it, so as not to be damaged;
10. the pressure required for each tire is different. please refer to the mark on the side of the car tire or ask the car manufacturer.
