| Type | IGBT 1 PCB |
| Real Amp(A) | 120 |
| AC Input Voltage (V) | 220V (110V/220V) |
| Rated Input Power Capacity (KVA) | 3.5 |
| Input Frequency (Hz) | 50/60 |
| Non-load Voltage (V) | 60 |
| Output current range (A) | 20-200 |
| Rated Duty Cycle (%) | 60% |
| Efficiency(%) | 85% |
| Insulation Class | F |
| Case Protection Class | IP21 |
| Electrode diameter (mm) | 1.6-3.2 |
| Quick joint Size(mm) | 10-25 |
| Input power cable (m) | 1.2 |
| Net Weight/Gross Weight (kg) | 1.8/2.9 |

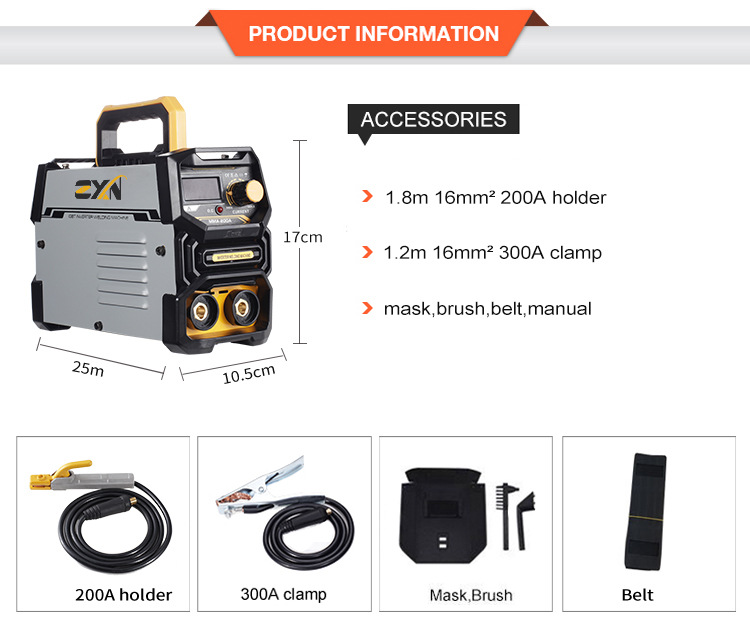

| Machine Size(LxWxH mm) | 250*105*170 |
| Package (LxWxH mm) /8 in 1 | 510*310*530 kraft paper box |

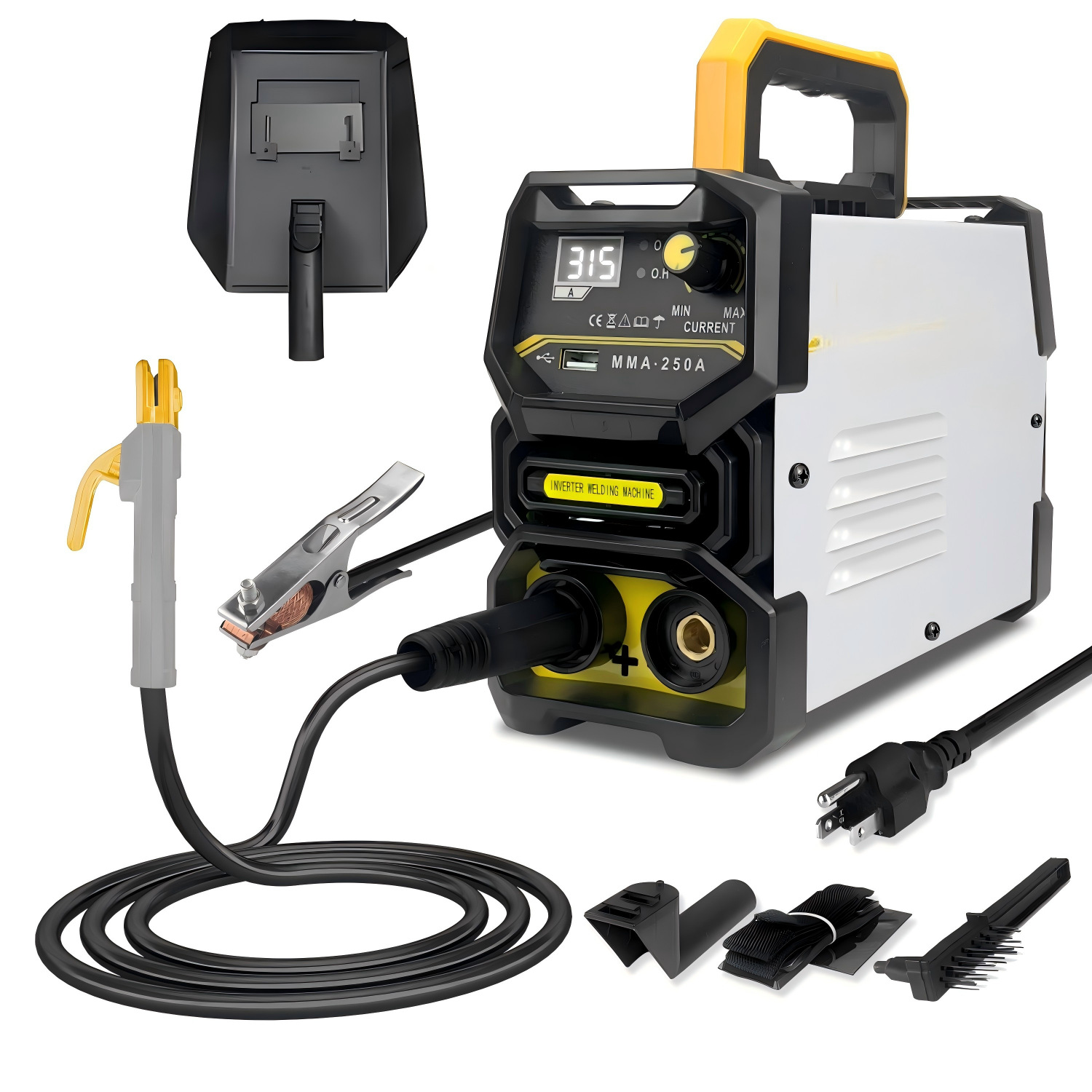

| Accessories | 1.8m 16mm² 200A holder |
| 1.2m 16mm² 300A clamp | |
| mask, brush, belt, manual |
