| open frame-weifang 100kw | ¥25036.0 | 100 piece available |
|
| mute-weifang 100kw | ¥35068.0 | 100 piece available |
|
| ats automatic | ¥1100.0 | 99 piece available |
|
| oil heater | ¥550.0 | 99 piece available |
|
A new item has been added to your Shopping Cart. You now have items in your Shopping Cart.

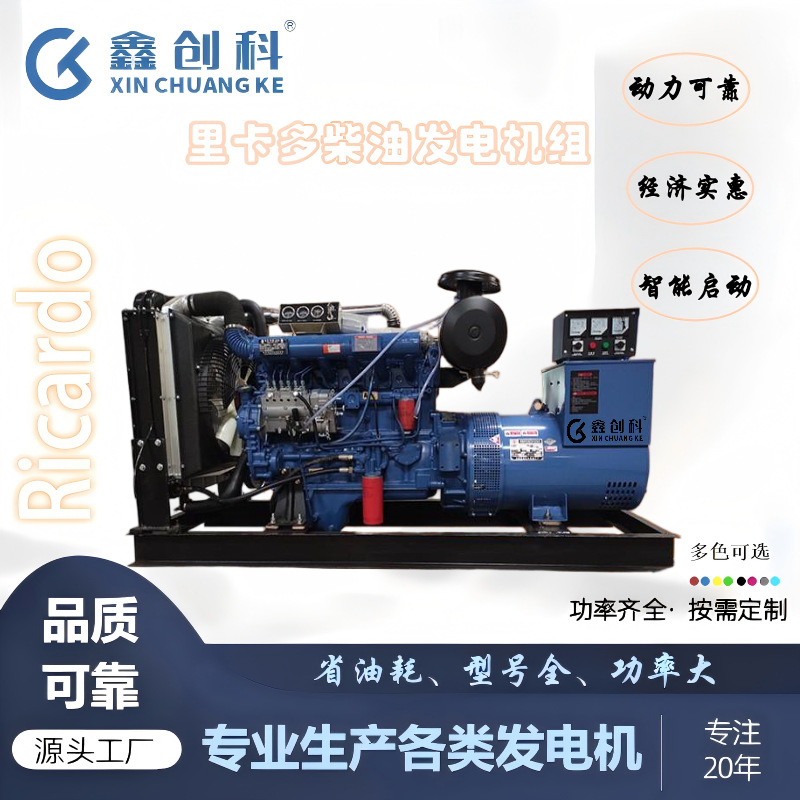

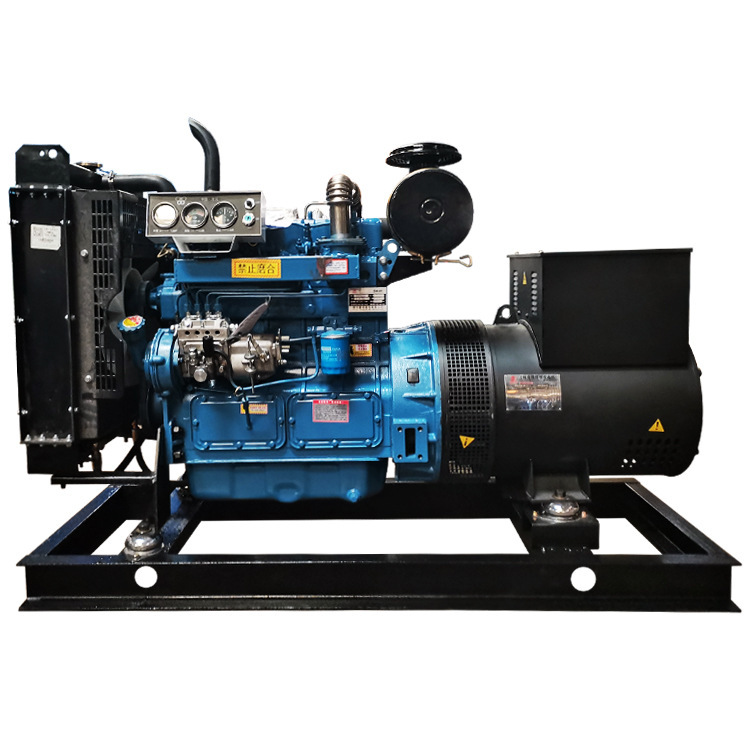

| Technical Specifications Parameters of 100KW/125KVA Weifang (Ricardo) Diesel Generating Set | |
| ★Technical parameters of the generator set: | |
| Generator Set Manufacturer: Fu'an Chuangke Electrical Appliances Co., Ltd. | |
| Model: LHGF-100 | Stable voltage regulation rate (%): ≤ ±1 |
| Rated Power (kW): 100 | Voltage Fluctuation Rate (%): ≤±0.5 |
| Nominal Capacity (kVA): 125 | Transient Voltage Adjustment Rate (%): +20～－15 |
| Rated Current (A): 180 | Voltage Stability Time (s): ≤1 |
| Rated Output Voltage: 400V/230V | Frequency Fluctuation Rate (%): ≤ ±0.5 |
| Rated Speed: 1500rpm | Transient frequency adjustment rate (%): +10～－7 |
| Rated Frequency: 50Hz | Frequency Stability Time (S): ≤3 |
| Start-up Control Method: Electric Start with 24V DC |
Noise (LP7m): 98dB |
| Rated power factor: COSφ = 0.8 (lagging) |
Dimensions: 2350×930×1550 (L×W×H mm) |
| Fuel Grade: (Standard) 0# Light Diesel (Normal Temperature) |
Crew weight: 1480kg |
| ★Diesel Engine Technical Specifications: | |
| Diesel Engine Brand: Weifang/Ricardo | |
| Diesel engine model: 6105AZLD | Fuel Injection Method: Direct Injection |
| Diesel engine power: 121kW | Displacement: 6.49L |
| Cylinder count/cylinder block structure: 6/L type | Speed Regulation Method: Mechanical Speed Regulation |
| Bore x Stroke: 105x130mm | Intake Method: Turbocharged |
| Fuel consumption rate (g/kW.h): ≤218 | Type: In-line, Four-stroke, Water-cooled, Direct Injection |
| Start-up Method: DC24V Electric Start | RPM: 1500 |
| ★ Generator Technical Parameters: | |
| Generator brand: Huitai | |
| Generator Model: TFS-100 | Wiring method: Three-phase four-wire, Y-type connection. |
| Rated Power (kW): 100 | Protection Rating: IP21 |
| Nominal Capacity (kVA): 125 | Regulation method: AVR (Automatic Voltage Regulator) |
| Rated Current (A): 180 | Rated Speed: 1500rpm |
| Rated Voltage: 400V/230V | Output Frequency: 50Hz |
| Insulation Class: H-class | Output Factor: COSΦ=0.8 (Lag) |

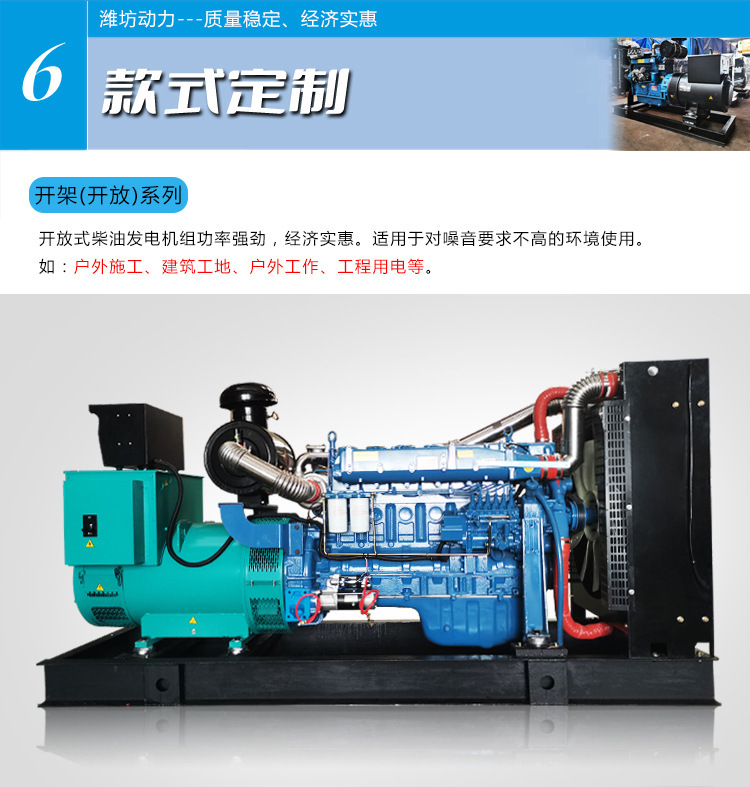

| The standard configuration of the generator set is as follows: | |
| Direct Injection Diesel Engine | |

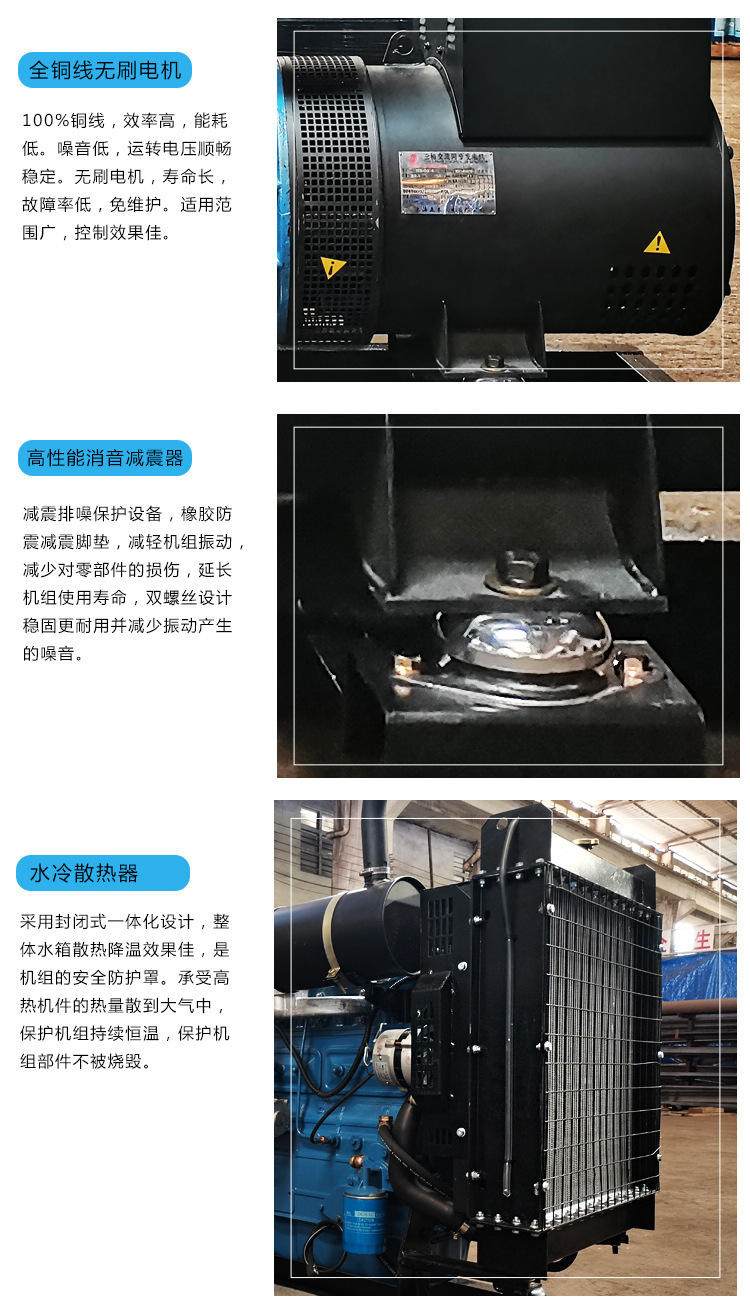

| Ø交流同步发电机（单轴承） | |

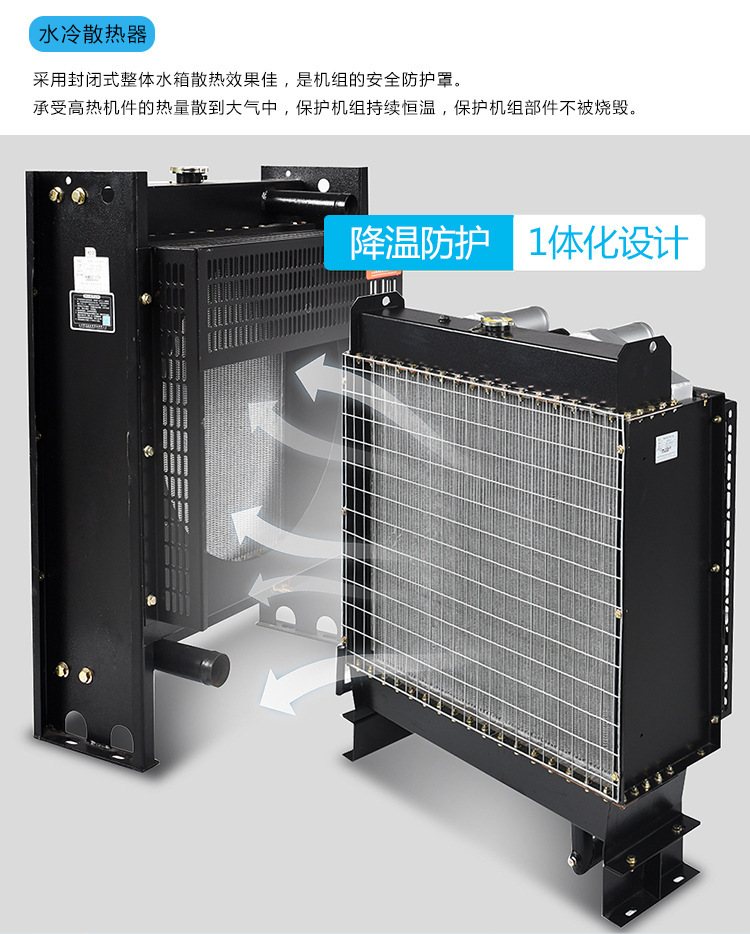

| Suitable for environments of 40℃ - 50℃: radiator tank, belt-driven cooling fan, fan shield | |
| Generating output air switch, standard control screen | |
| Ø Steel Common Base for the Unit (Including: Unit Vibration Dampening Rubber Pads) | |

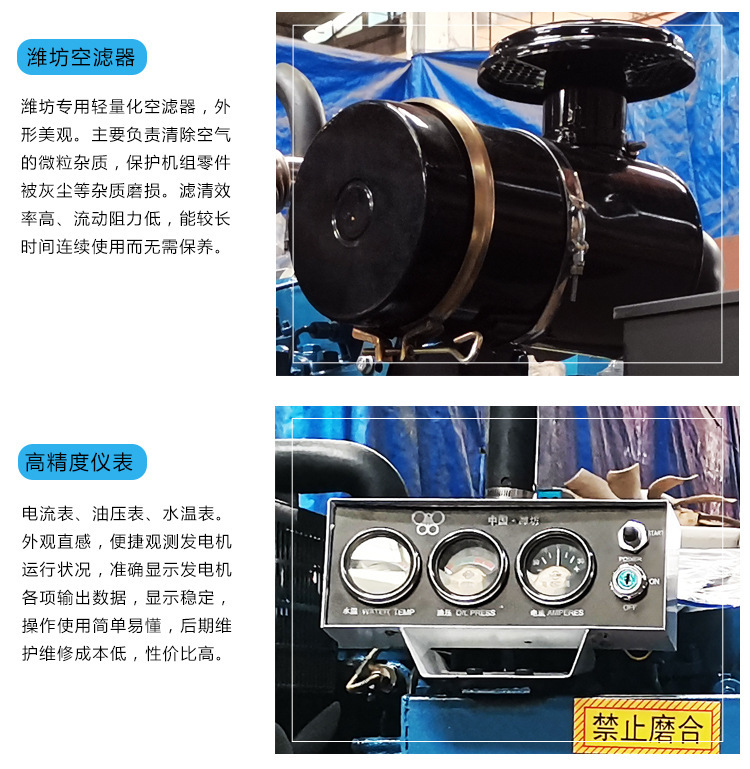

| Dry air filter, fuel filter, lubricating oil filter, starter motor, and equipped with a self-charging generator. | |
| Battery Start-up and Battery Start Cable Connection | |
| Industrial 9dB muffler and standard components for connection | |
| Random data: original factory technical documents for diesel engines and generators, operator's manuals for generator sets, test reports, etc. | |
| ★ Custom Configuration: | |
| Oil, diesel, water jacket, anti-condensation heater | Split-type daily fuel tank, integrated base fuel tank |
| Battery Float Charger | Ø防雨型机组（箱柜） |

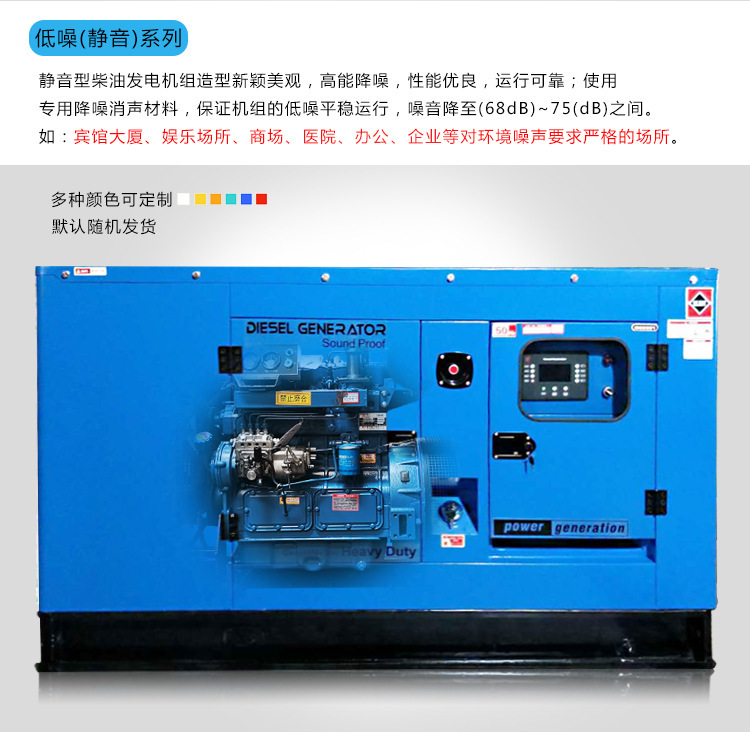

| Self-protection and self-starting unit control panel | Mute Type Unit (Cabinet) |

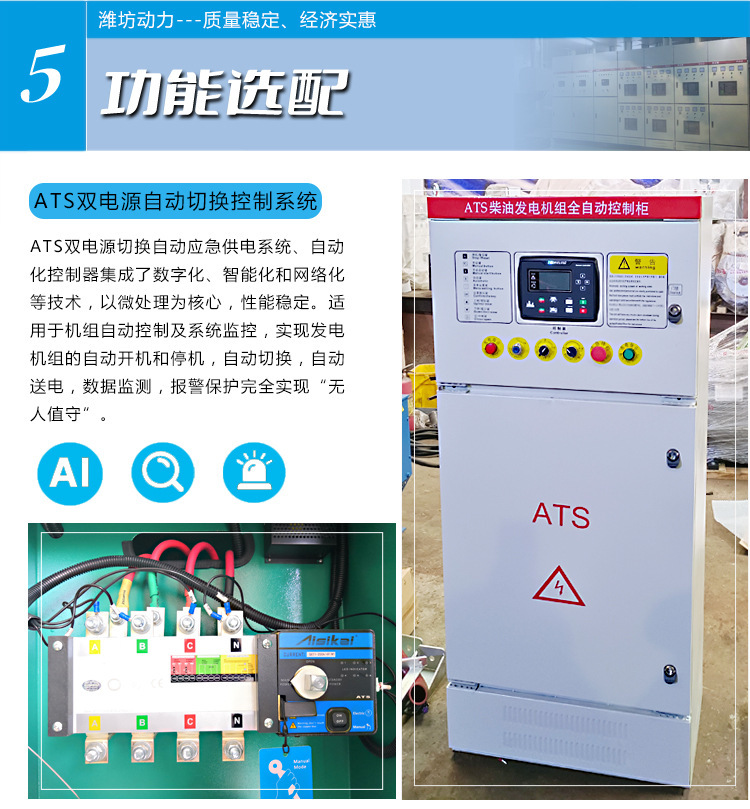

| ATS Automatic Load Conversion Screen | Mobile trailer-type power station (box trailer) |
| Remote monitoring | Mute-type mobile power station (box trailer) |
| Warranty Period: | |
| The 12-month period from the date of acceptance of the domestic unit's commissioning test or the cumulative 1000 operating hours, whichever comes first. | |
| Due to product quality issues, free maintenance or replacement parts are provided, with a lifetime of paid services. | |
| (Consumable parts, common parts, damage caused by human error, neglect of maintenance, etc. are not covered by the warranty) | |
| If the adjustment is made by the original factory, the original factory warranty regulations will be enforced. | |
| Contact us: | |
| Company Name: Fu'an City Chuangke Electrical Appliances Co., Ltd. | |
| Sales address: No. 12, Jinye Road, Tiehu Industrial Park, Chengyang Town, Fu'an City | |
| Consulting and purchasing machine hotline: 15205016027 | |
| After-sales service hotline:15205016027 | |
