konnwei rc10, 12v 10a automobile battery charger motorcycle battery charger

konnwei rc-10

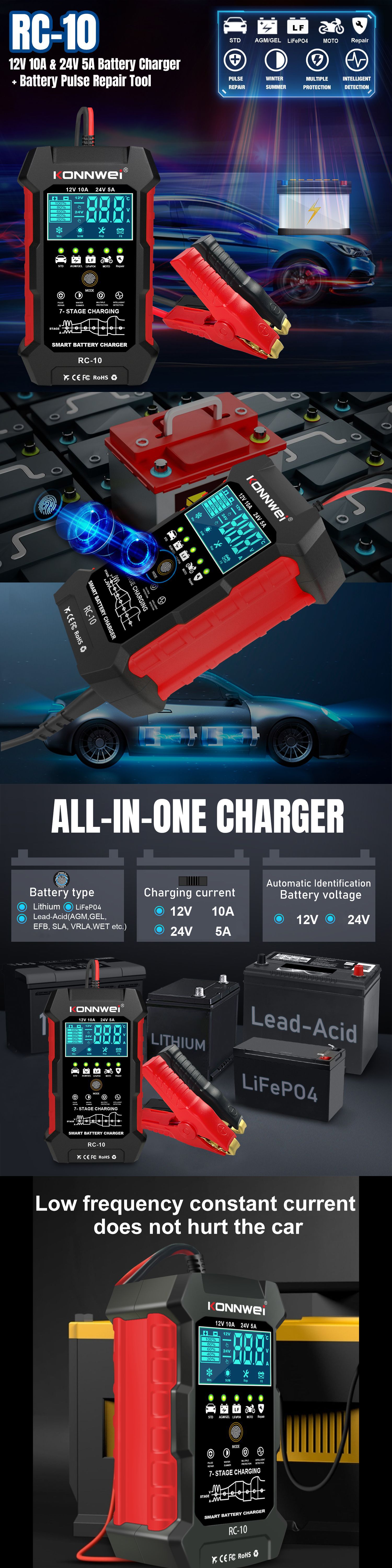

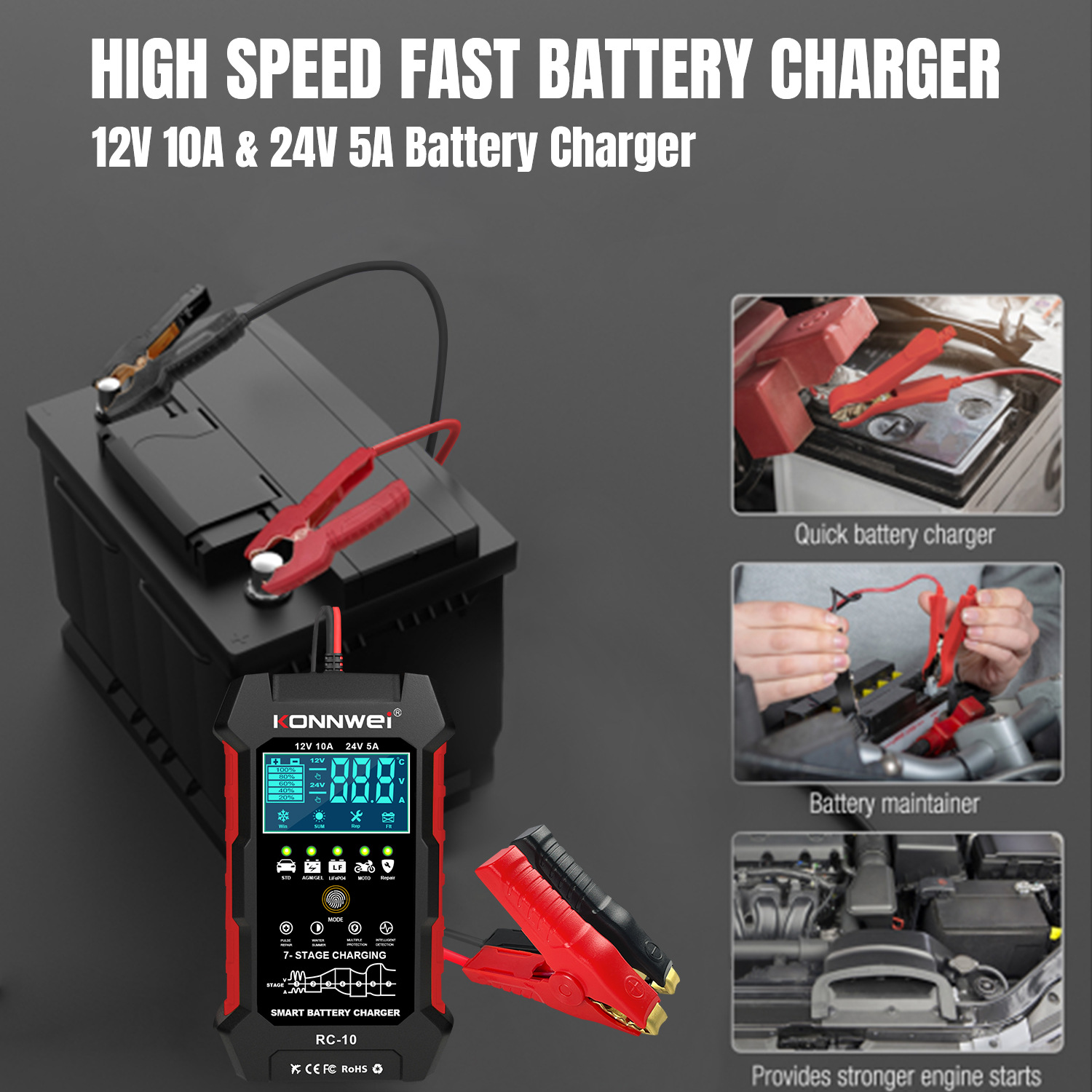

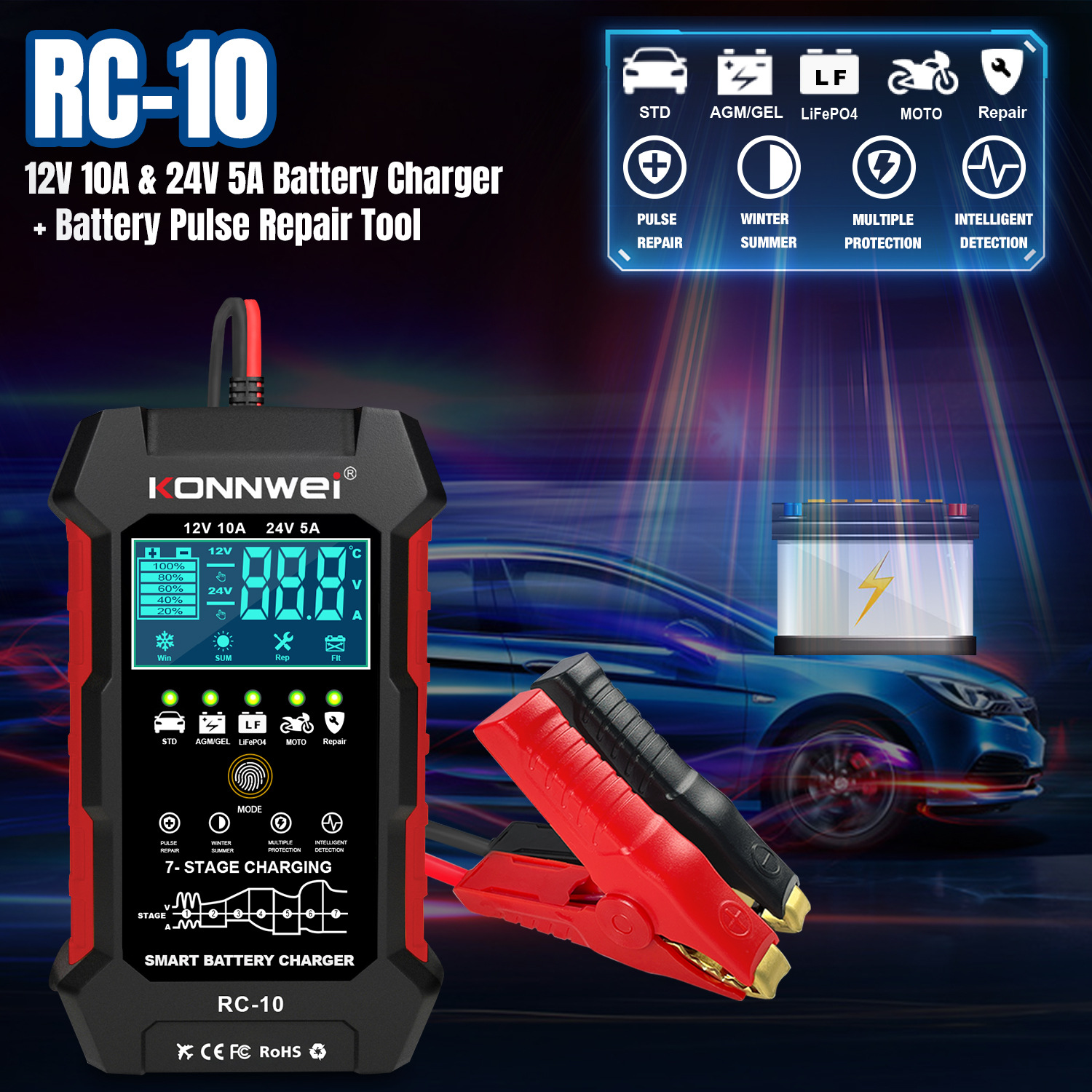

12v 10a & 24v 5a smart automatic battery charger & pulse repair tool

konnwie battery charger rc10 model is with 10amp quick charger 12v 10amp and 24v 5amp 7stage quick battery charger charging speed is much faster than 8amp or 5amp automatic chargers charge or repair all 12volt and 24volt leadacid automotive marine and deepcycle batteries including agm gel sla flooded in carstrucks suvs motorcycles lawn mowers boats marine etc new replacement available for any quality issue

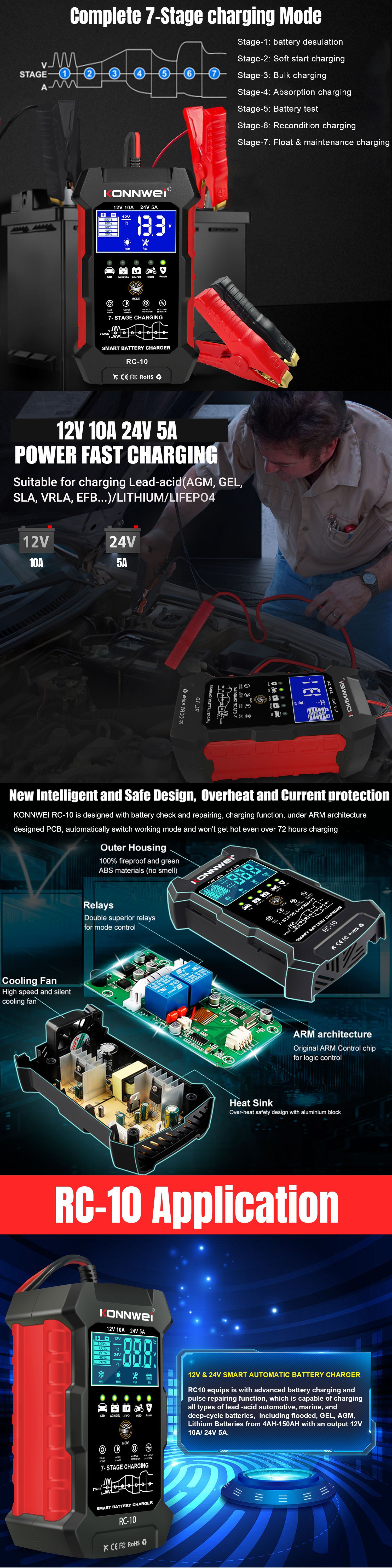

charging protection: smart control, temp compensation in hot climates and under-charging in cold climates, reverse protection, cooling system, overcurrent, fireproof material, overvoltage, short circuit. trickle charger with multiple protection ensure the safety charging at anytime anywhere. no worries!

high-efficiency pulse repair: automatically detects battery sulfation and acid stratification, take newest pulse repair function to restore lost battery performance for stronger engine starts and extended battery life. note: can not activate or charging totally dead batteries.

visualized charging: large lcd display the charging and battery status; charge voltage and current, inside temperature, charge percentage, summer mode, winter mode, etc. more convenient to use.

plug and play: no complicated steps, just plug and charge, stay at home and charge your batteries on your own. all-in-one battery solution as battery charger, battery maintainer, trickle charger, plus battery desulfator. the must-have tool for your garage.

float/trickle charge: switch to float/trickle charge mode to maintain batteries over the winter: 1, choosing corresponding modes(std/agm,gel/wet/motorcycle) to fully charge the battery, screen display "ful" 2, then switch to "motorcycle" mode will auto-enter trickle charging mode to keep batteries stay charged for a long time.

rc10nbspequipsnbspisnbspwithnbspadvancednbspbatterynbspchargingnbspandnbsppulsenbsprepairingnbspfunctionnbspwhichnbspisnbspcapablenbspofnbspchargingnbspallnbsptypesnbspofnbspleadnbspacidnbspautomotivenbspmarinenbspandnbspdeepcyclenbspbatteriesnbspincludingnbspfloodednbspgel agm batteries,lithiumnbspbatteriesnbspfromnbsp4ah150ahnbspwithnbspannbspoutputnbsp12vnbsp10anbsp24v5a

rc10 battery charger can charge power for all automotive cranking lead acid battery, including ordinary lead acid battery, agm flat plate battery, agm spiral battery, and gel battery, lithium iron phosphate battery (lifepo4) etc

pleasenbspselectnbspthenbspbatterynbspchargenbspoptionnbspfromnbspthenbspmainnbspmenunbspthenbsprc10nbspwillnbspautomaticallynbspchargenbspthenbspbatterynbspwithnbsp7stagesnbspoutputandnbspkeepnbspitnbspatnbspanbsptricklenbspcurrentnbspatnbsplastnbspsonbspnonbspneednbsptonbspworrynbspaboutnbspthenbspoverchargenbspornbspoverheatnbspissuesnbsp rc10nbspnbspbattery charging testernbspis also named as alternator ripplenbspvoltage test which is to check and analyze the vehicle battery charging system including generatornbsprectifie rectifier diode etc nbspthus to find out whether thenbspoutput voltage of the generator is normalthe rectifier diode works properly and the abnormalnbspit will lead to over charge or incomplete charge of the battery thus cause quick damage to the battery and greatly shorten the life of other loaded appliance

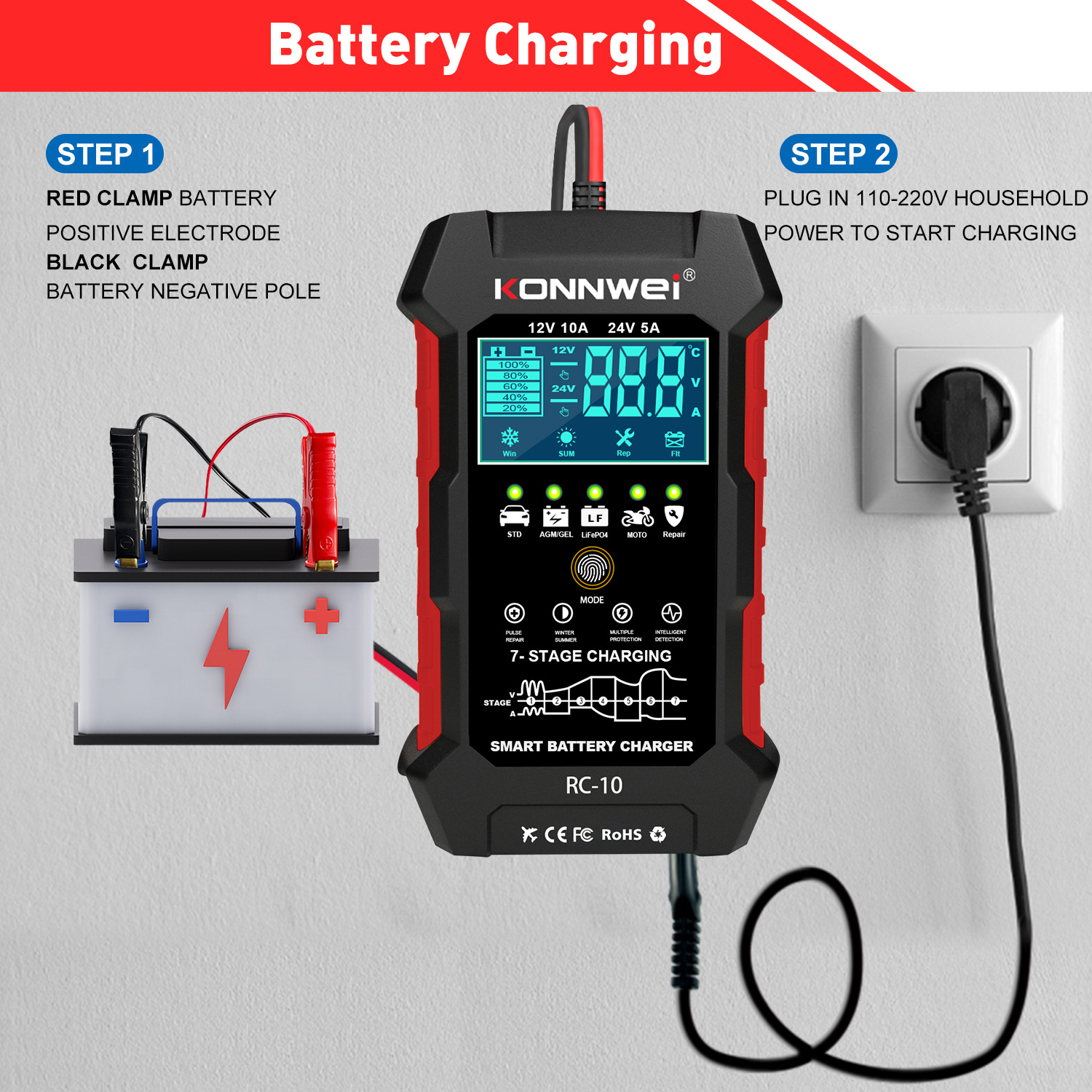

operation:

step1 , connect the red clamp to battery positive pole, black to negative pole. reverse connection will not damage battery but not able to charge or repair;

step2 , connect the kw520 power side to a/c supply 50/60hz 110-230v;

step3, select the battery charge option from the main menu. the kw520 will automatically charge the battery with 7-stages output, and keep it at a trickle current at last, so no need to worry about the overcharge or overheat issues.

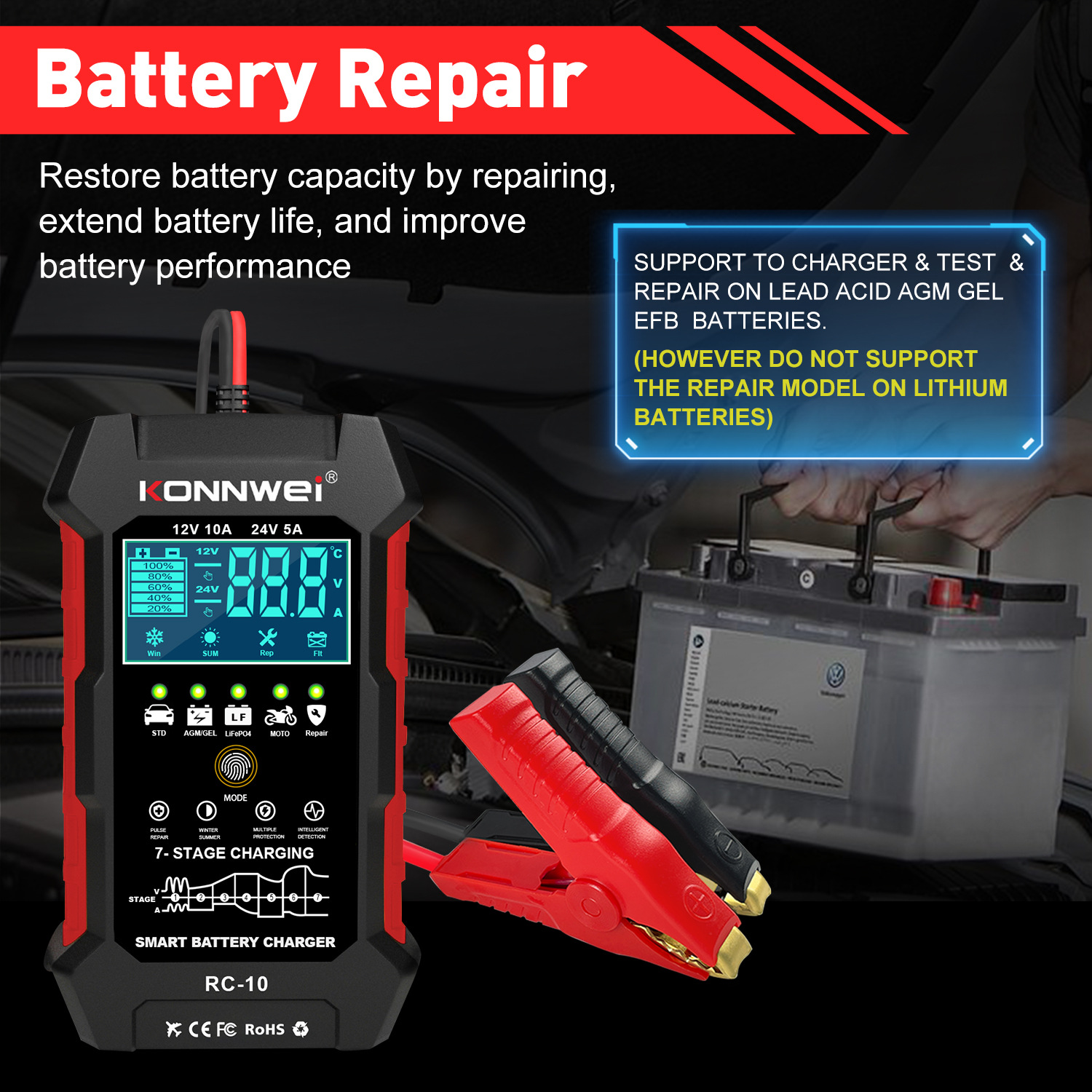

rc10 battery repair tool owns battery repair function to fix the battery s aging issues capable of detecting battery sulfation and acid stratification to restore lost battery performance by using pulse voltage and current with certain frequency it owns battery repairnbspfunction to fix the battery snbspaging issues capable of detecting battery sulfation and acid stratification to restore lost batterynbspperformance by using pulse voltage and currentnbspwith certain frequency the operations steps are as below notice repair function can not be used with battery connected with vehicle otherwise the pulse voltage will damage the vehicle electronic components

step1, connect the red clamp to battery positive pole, black to negative pole. reverse connection will not damage battery but not able to charge or repair.

step2, connect the konnwei kw520 power side to a/c supply 50/60hz 110-230v. select the "battery repair "from the main menu , the unit will automatically generate the pulse current and voltage to fix the battery and increase its performance.

battery charger specification:

ac input: 100-240v/50-60hz

output: voltage 12v

output: current 10a

output volt no load: 13.8v

minimum start volt: >5.0v

 input power with load: max 150w

input power no load: 5w

cooling: fan

charging capacity range :4ah-150ah

emperature compensation:yes, winter & summer mode compatible

battery type: all types of lead-acid batteries, agm gel efb battery , lithium battery.

battery charge and repair operation.

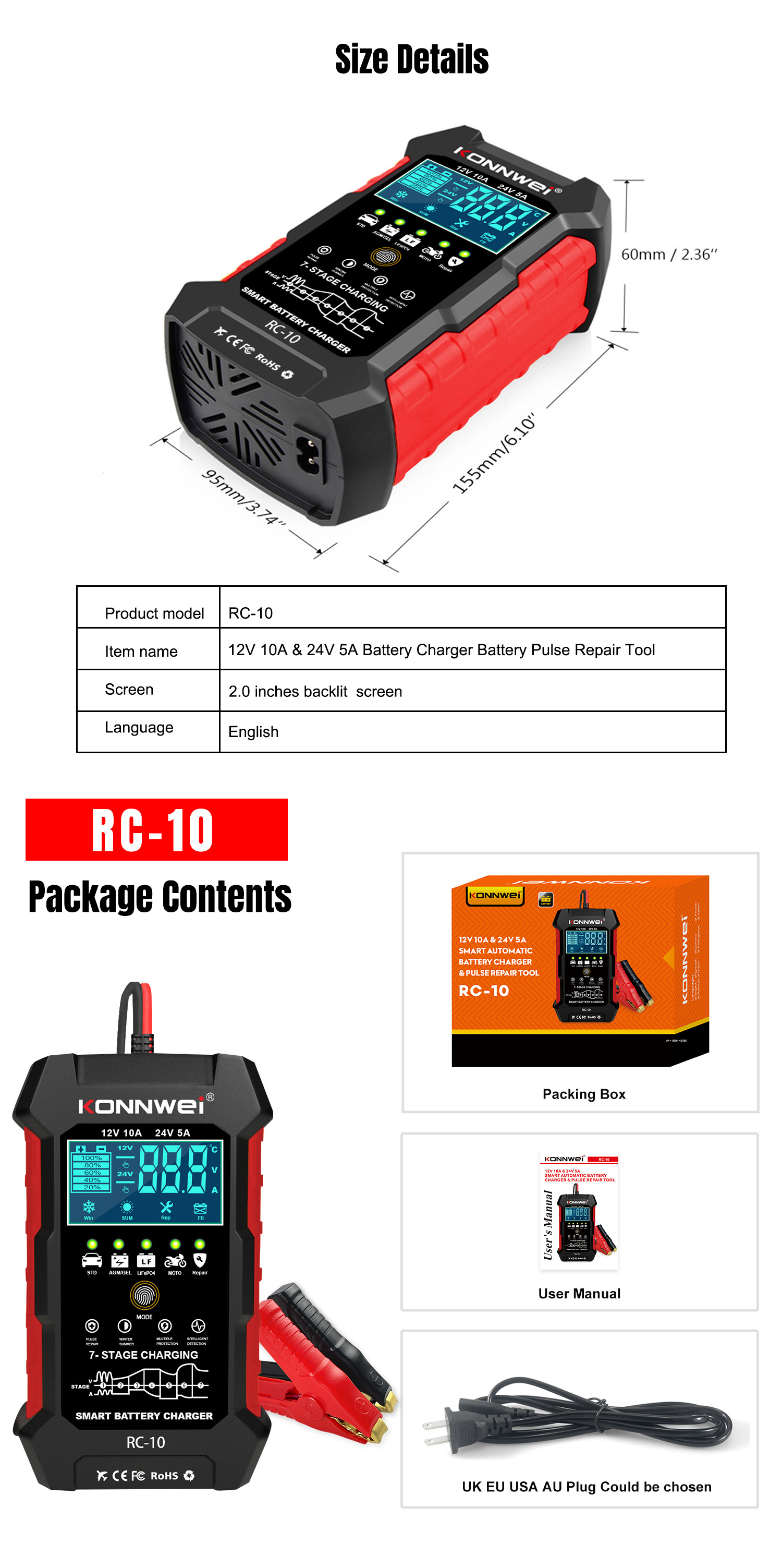

package contents:

* konnwei rc-10 battery charger & repair tool

* multi-language user manual

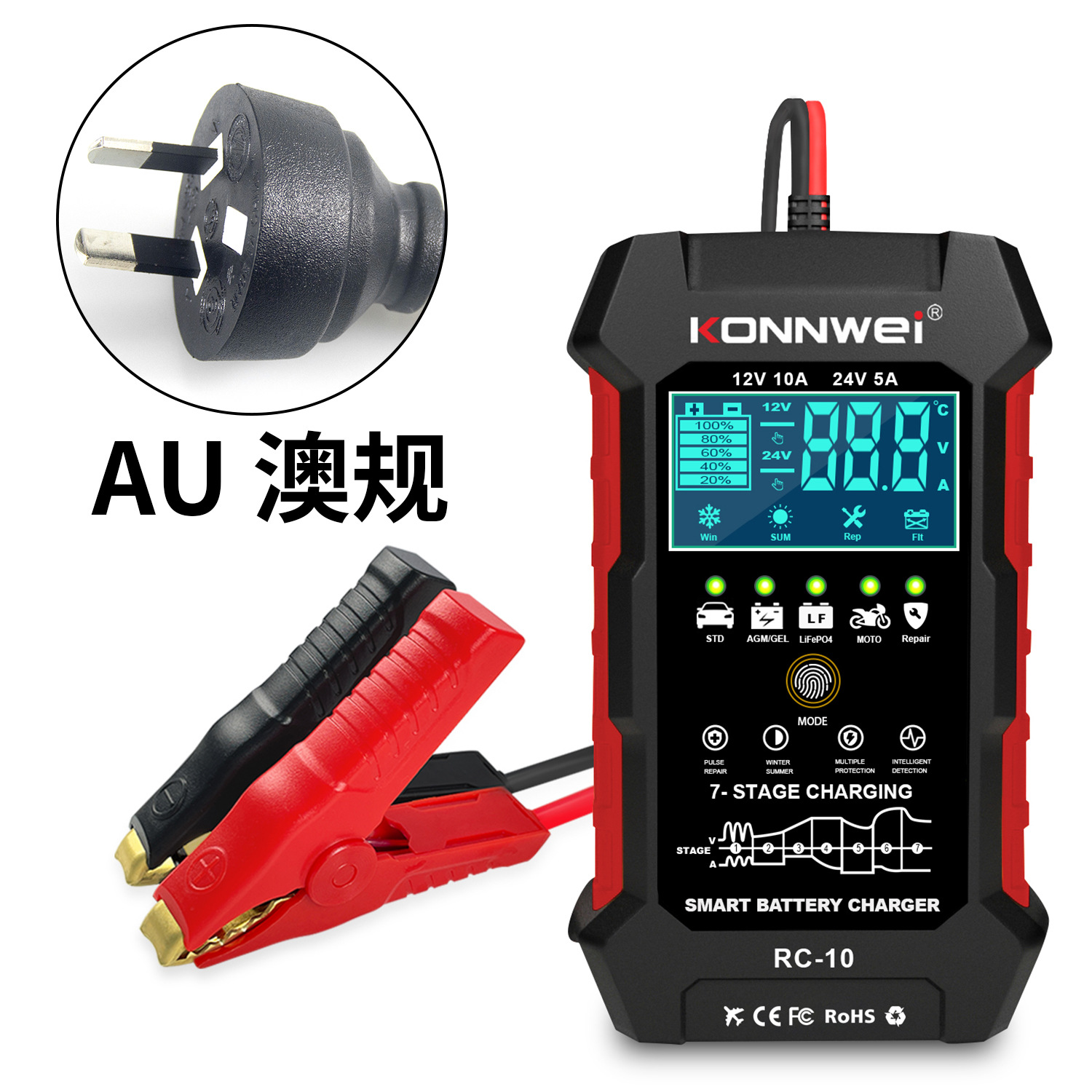

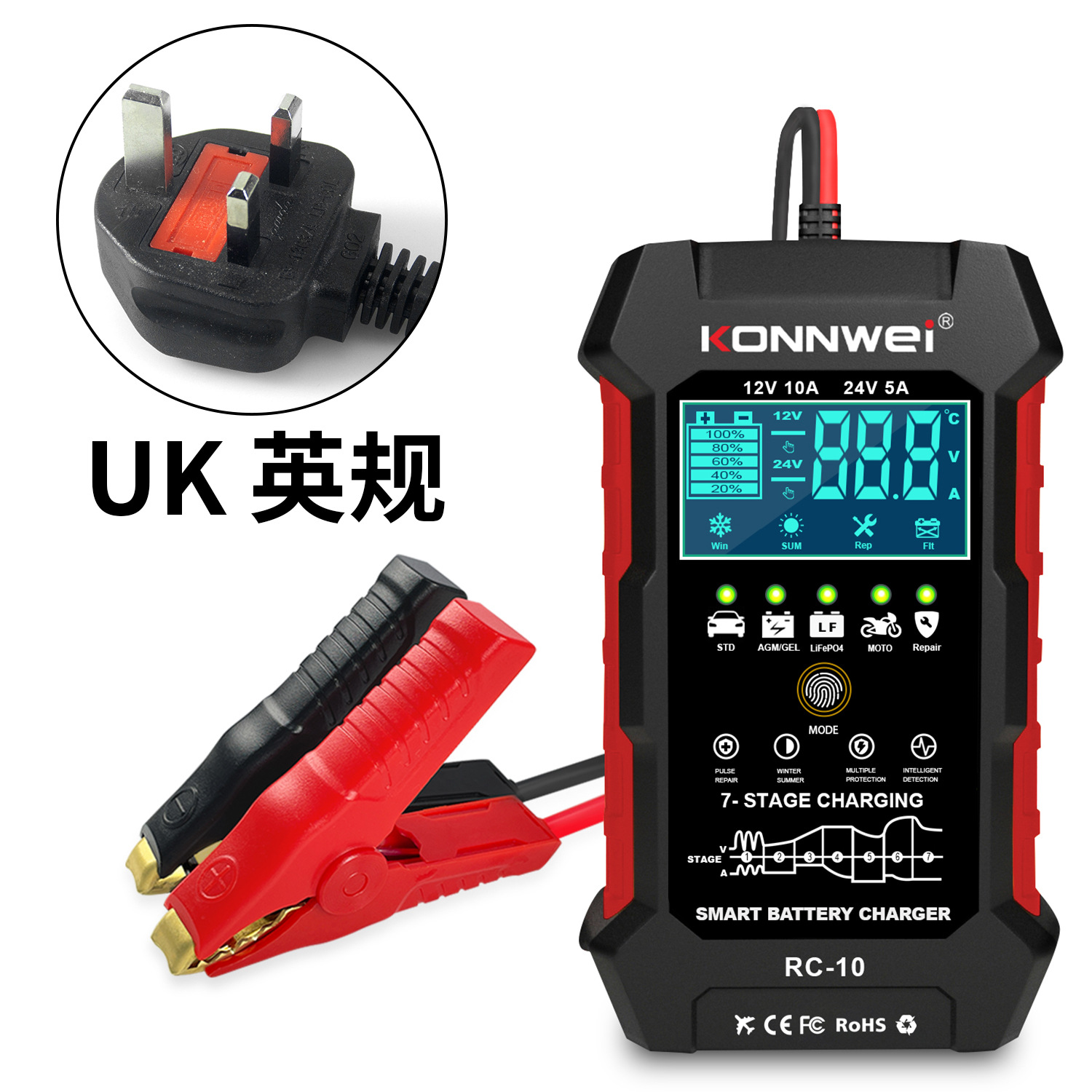

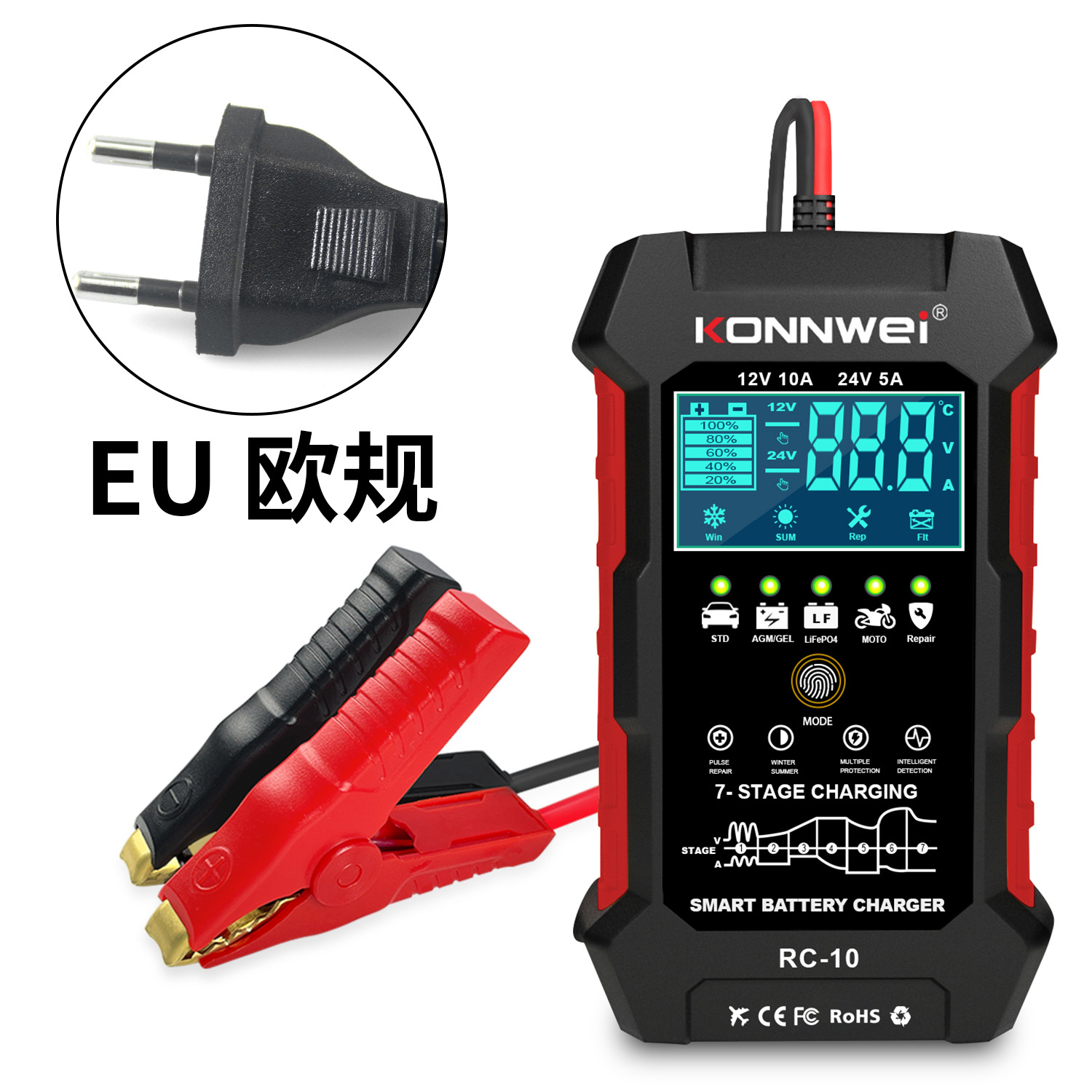

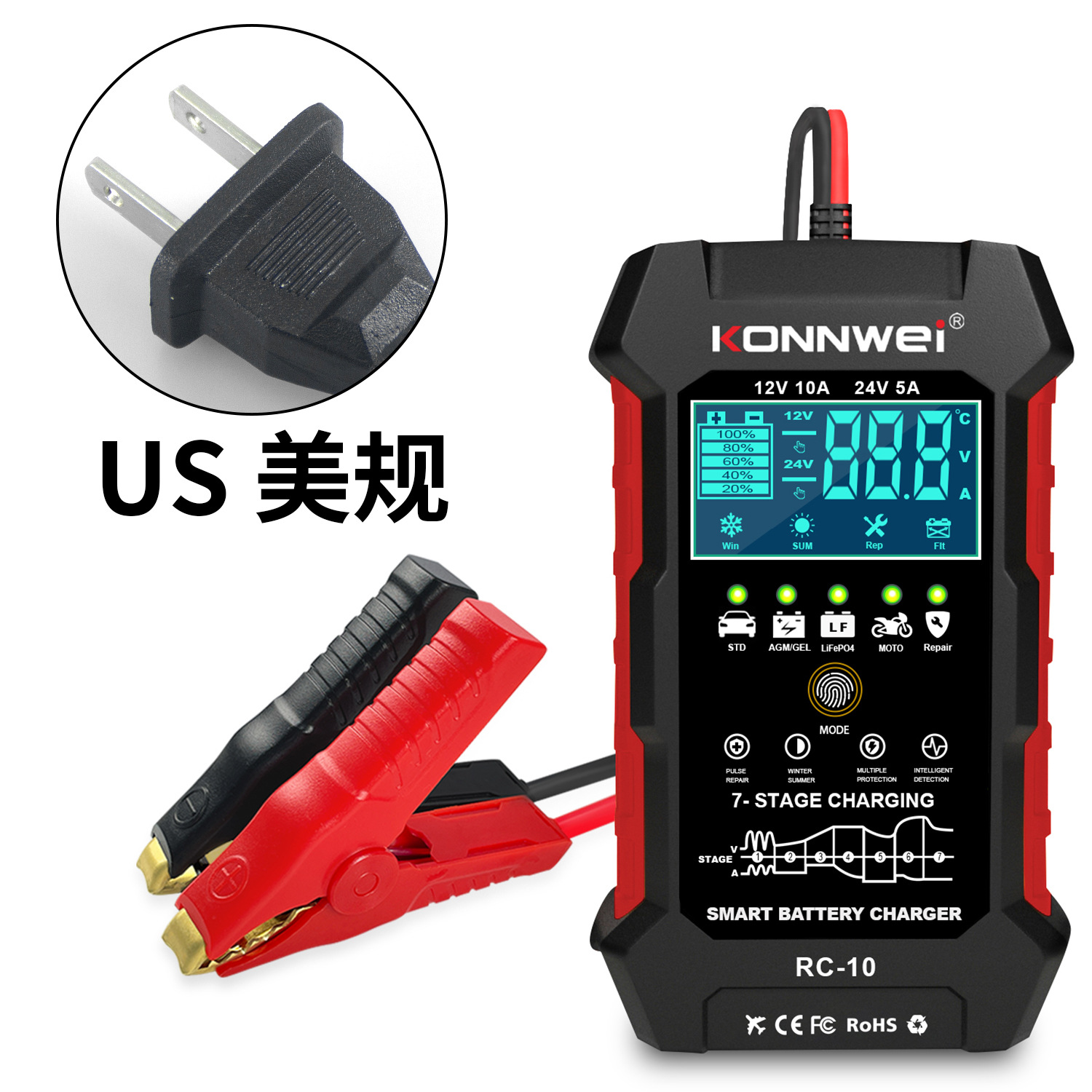

* charging cable (4 choices:au ,eu ,usa ,uk plug)

* retail box

technical specifications:

ac input :100-240v/50-60hz

output voltage: 12v 24v

output current :10a & 5a

output volt no load: 13.8v

minimum start volt: >5.0v

input power with load :max 150w

input power no load :5w

cooling: fan

product size (cm): 19.5*15*7.5cm
single weight :0.65kg(eu, us)
0.7kg (english gauge)
packing quantity: 30pcs/cn
outer box size :42*40*46cm
total box weight :22.5kg (us regulation) total box weight :23kg (uk regulation plug)
