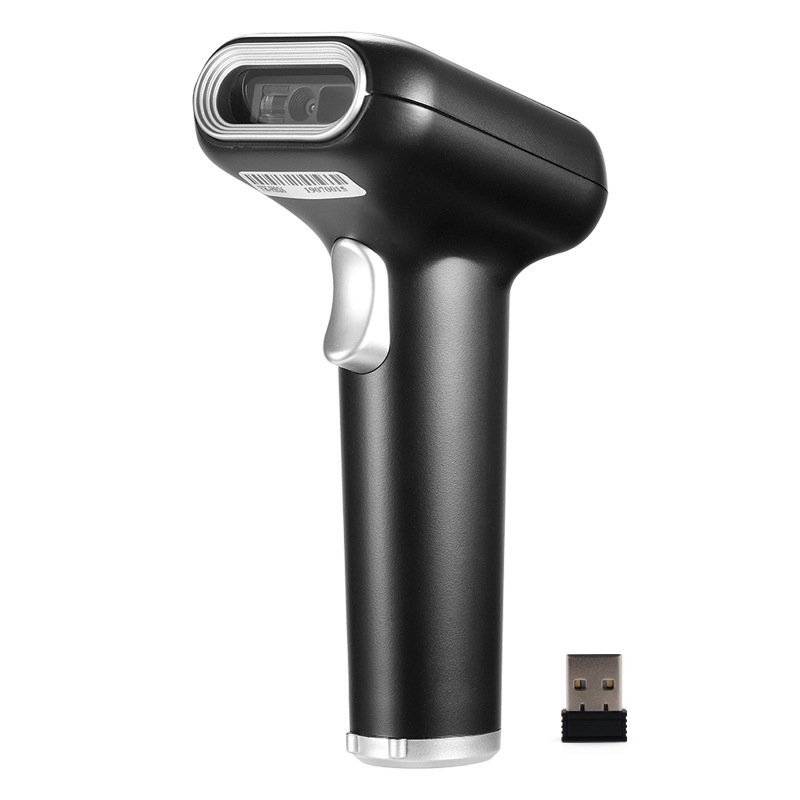

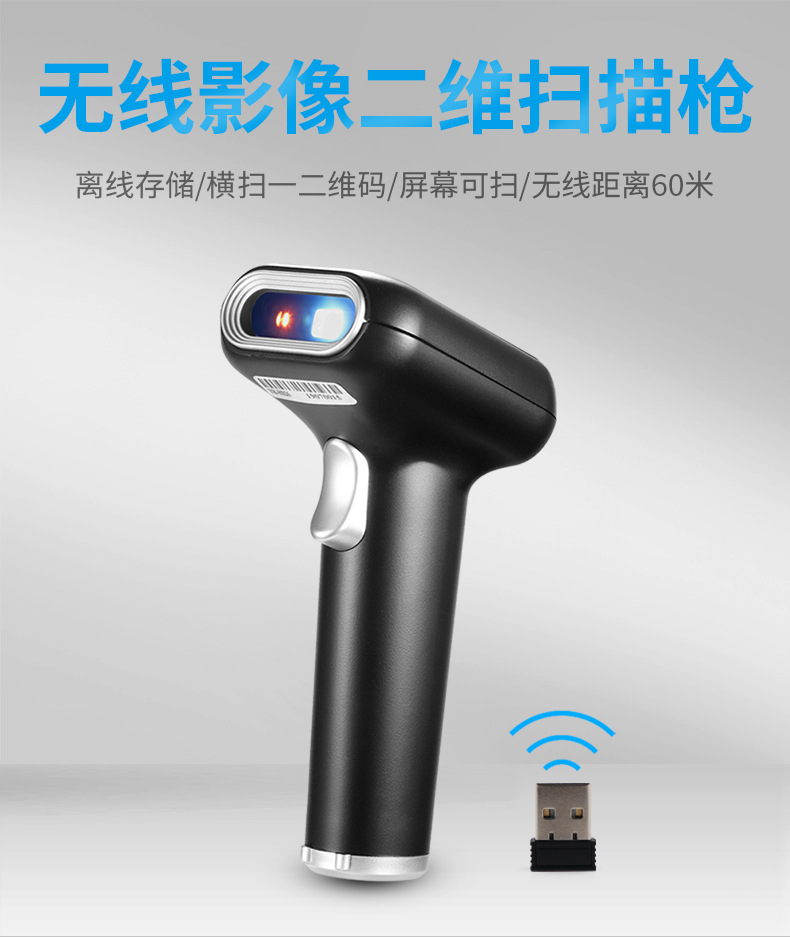

youku whs-26 high-speed two-dimensional code scanner 2.4g wireless bar code reader supermarket warehouse logistics express bar code scanner

sex

can

parameters

number

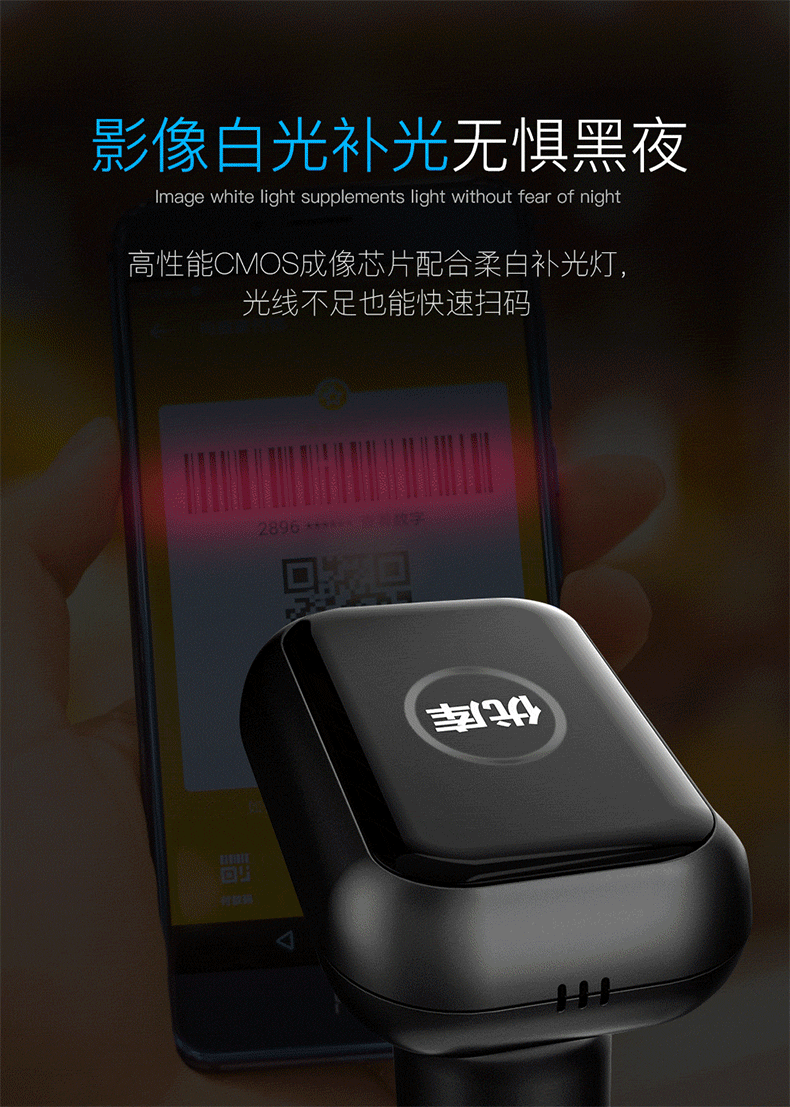

image sensor

960*640 cmos

decoding system

one-dimensional

ean-8, ean-13, ean-13 2 add-on, ean-13 5 add-on, issn, isbn, upc-a, upc-e, code 11, code 32, code 39, code 39 full ascii, code 93, code 128, codabar, industrial 2 of 5, gs1 databar(rss14), interleaved 2 of 5, matrix 2 of 5, gs1-128, gs1 databar limited, gs1 databar expanded

two-dimensional

pdf417, micro qr, data matrix, qr code, aztec code

scan range

test bar code

minimum range

maximum range

5mil code39

2cm

11cm

13mil upc

3cm

29cm

20 mil code39

7cm

50cm

20 mil qr code

2cm

22cm

system compatibility

android, windows xp, 7, 8, 10, linux, macos

scan mode

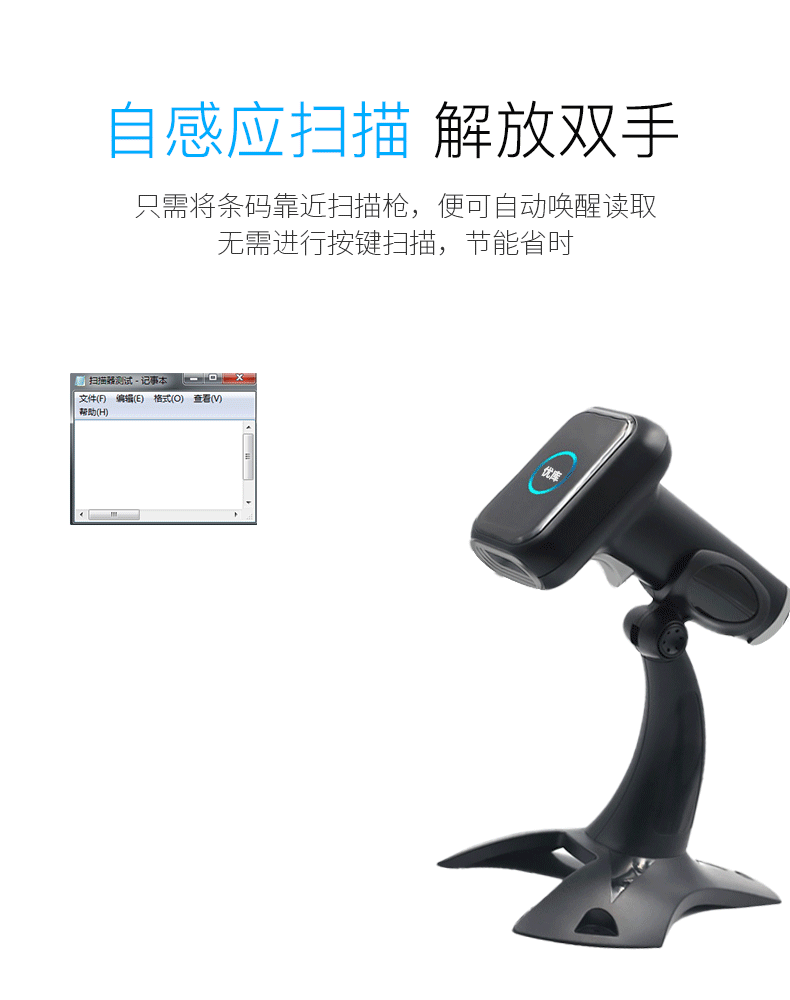

manual button scan and automatic induction scan

support keyboard

english, german, french, spanish, italian, japanese, belgian french, (international keyboard)

minimumrecognition accuracy

code 39 6.6mil

barcode type

one-dimensional and two-dimensional bar codes for paper and film; one-dimensional and two-dimensional bar codes for screens such as mobile phones and tablets

sports tolerance

1.8 m/s

printingcontrast

25%

identification angle range

angle ± 360 °, elevation angle ± 60 °, deflection angle ± 70 °

secondary development

secondary development is not supported.

barcode output editing

pre-suffix supported

none

line

parameters

number

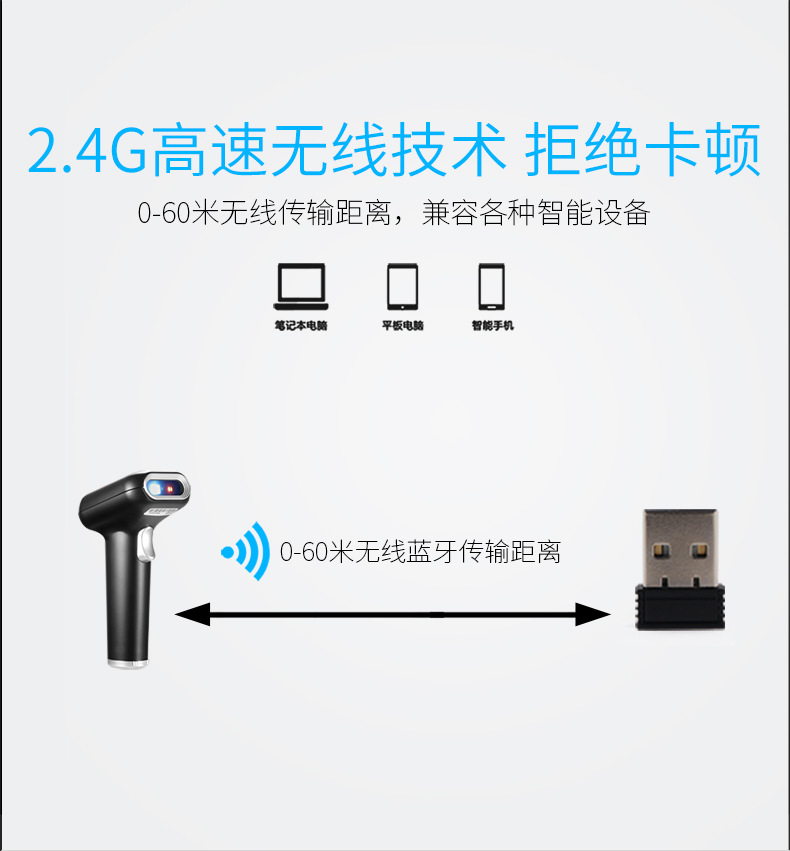

wireless technology

2.4ghz

transmission distance (open ground)

60m

wireless transmitting power

20dbm

wireless receiving power

20dbm

people

machine

delivery

mutual

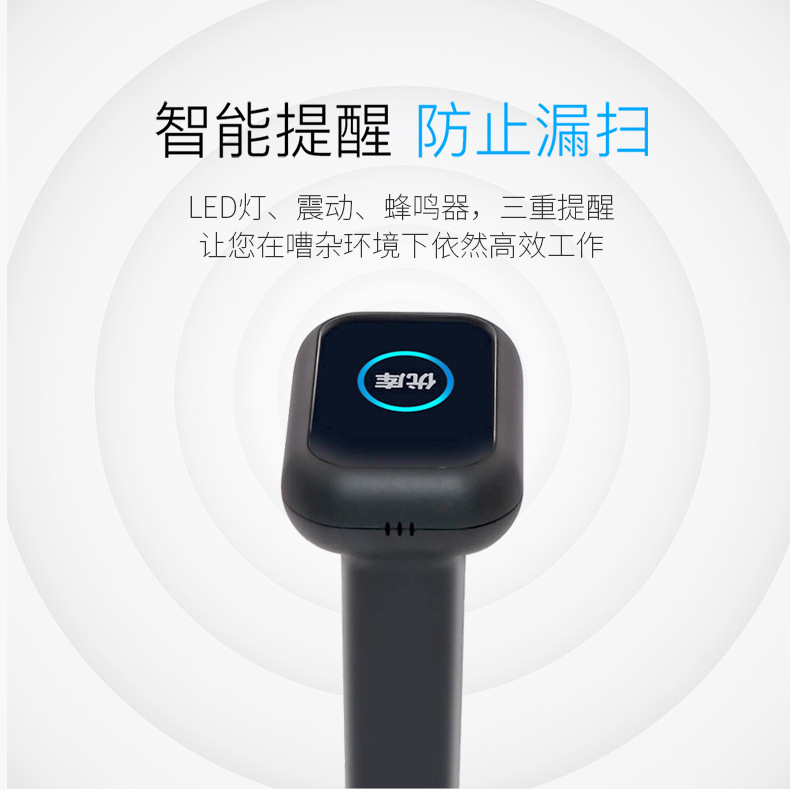

indicator light

red and blue two-color indicator light: red light power prompt, blue light decoding successfully flashing

buzzer

startup prompt, decoding success prompt, and upload prompt

button

start and trigger scanning

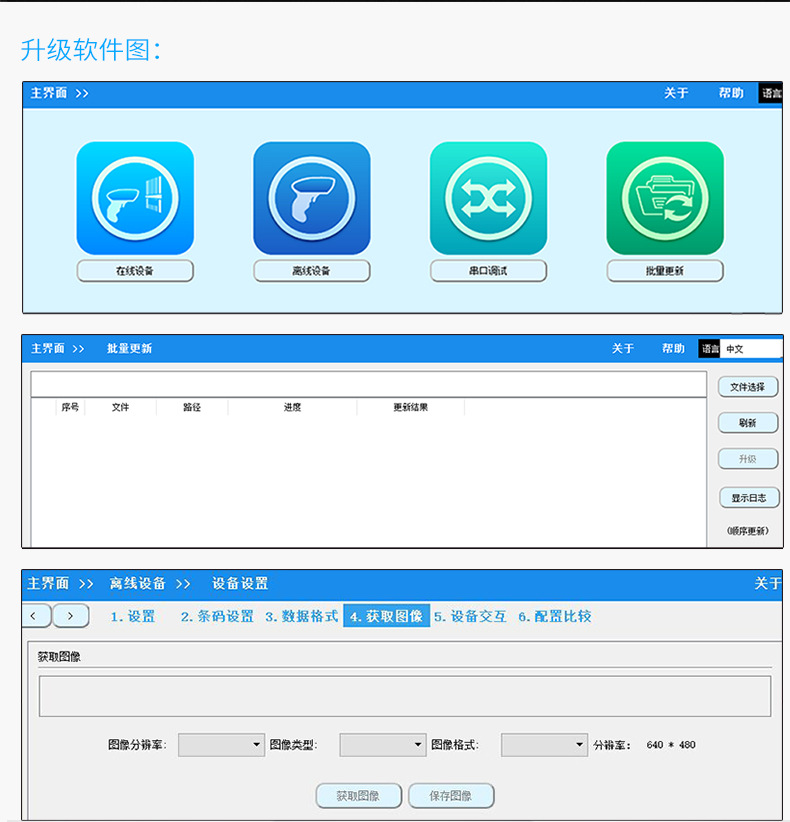

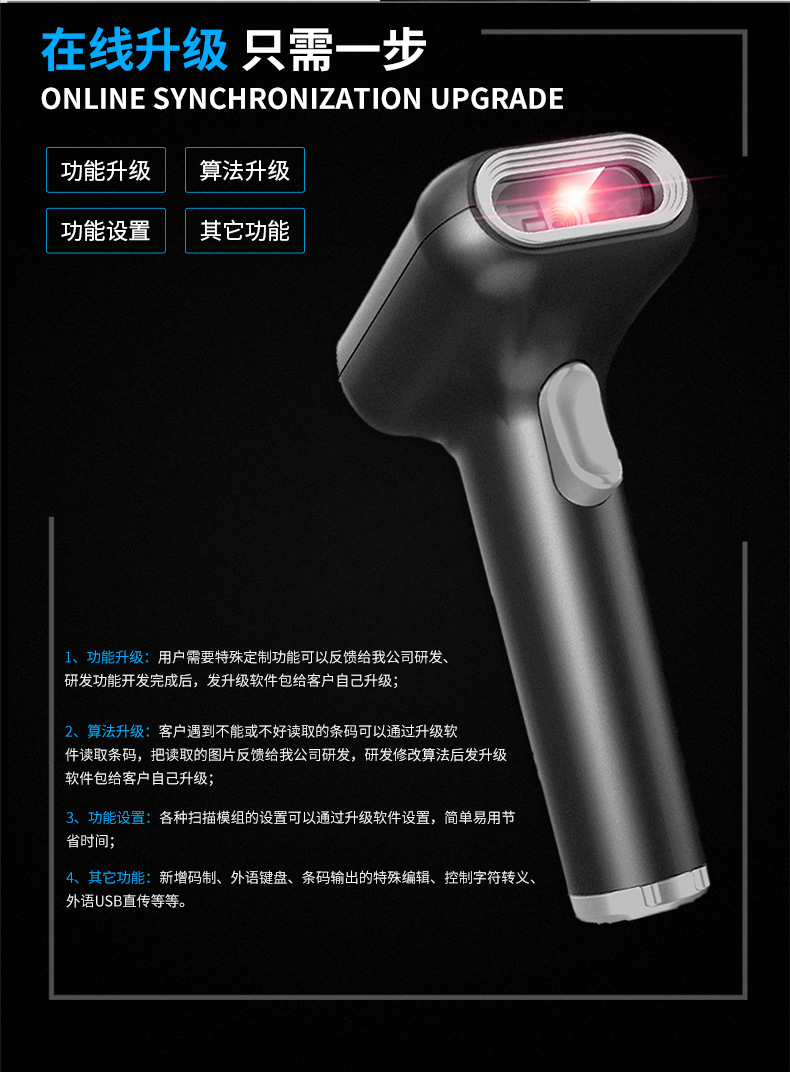

program update

support client update

charging tips

low battery buzzer sounds 5 sounds, shutdown

charging status

the red light is always on when charging, and the red light is off when it is full

ring

environment

parameters

number

drop resistance

can withstand 1.5 m free fall fall for 5 times

waterproof and dustproof

comply with ip54 standard

operating temperature range

-20-55 ℃

storage temperature range

-20-60 ℃

working humidity range

5-95% non-coagulation state

storage humidity range

5-95% non-coagulation state

ambient light intensity

0-70000lux

material

li

parameters

number

net weight of host/including packaging accessories

160g/300g

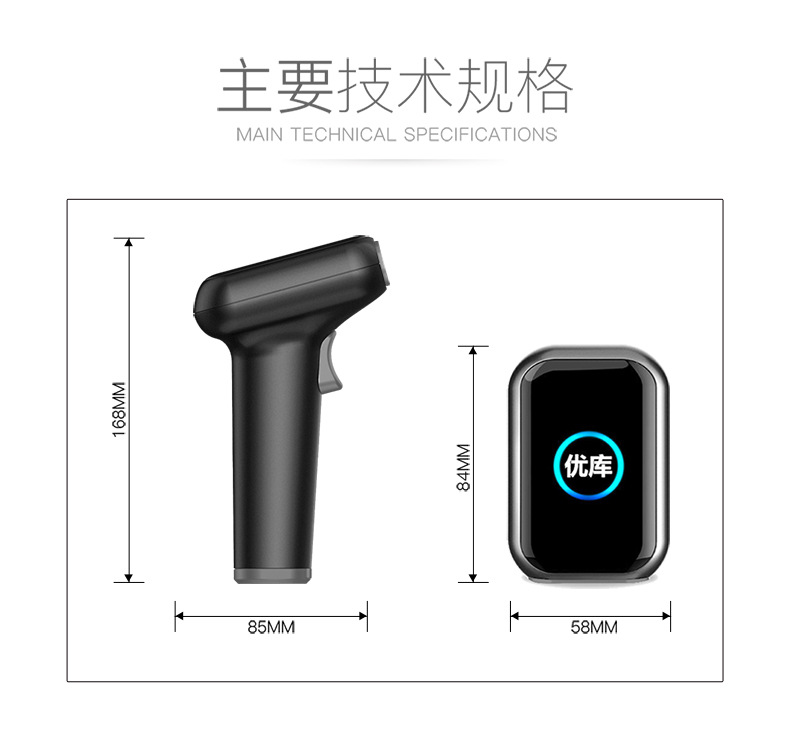

unit size/packing size

158mm*89.3mm*62mm/240*140*89mm

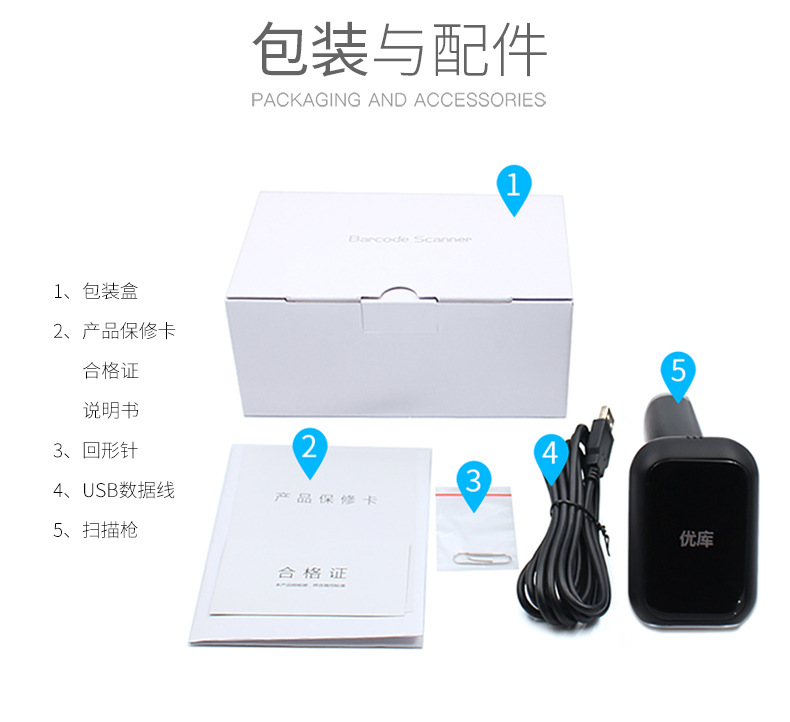

data cable length

180cm(± 3cm)

number of scans

scan nearly 16000 times per charge (1000 times per hour)

expected operation time

16 hours

estimated charging time

4.5 hours

storagequantity

120000

battery capacity

1200mah
