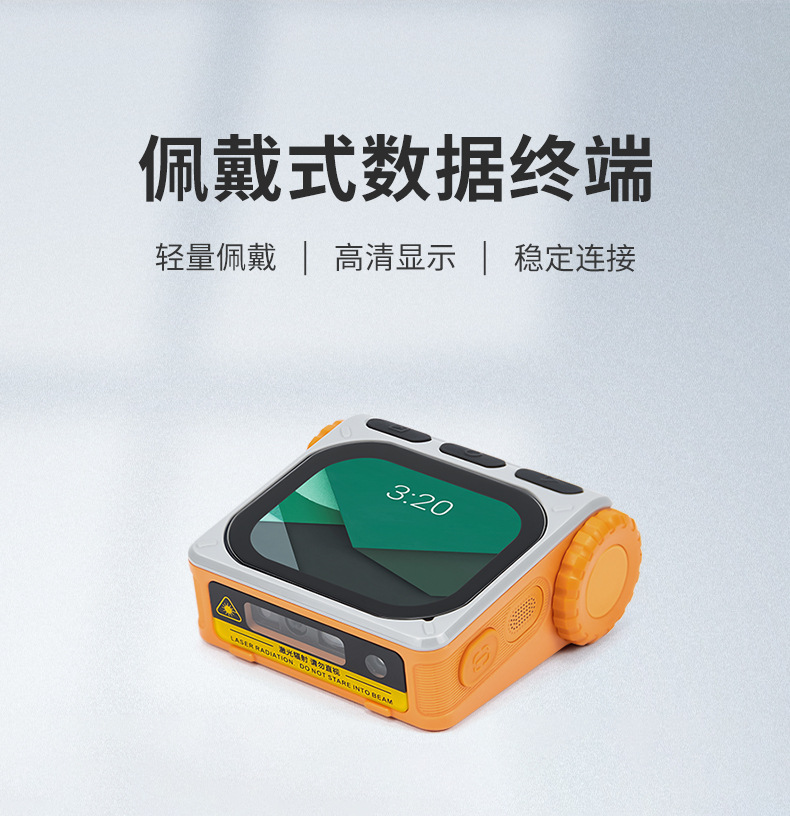

youku tc20 wearable data terminal warehousing logistics wrist wear barcode reader smart portable handheld barcode terminal accessories

performance parameters

cpu

mtk8781, eight-core 2.2ghz,

2 x arm cortex-a76 up to 2.2ghz,6 x arm cortex-a55 up to 2.0ghz

operating system

android 14 (large icon ui, low power consumption and power saving optimization)

platform application

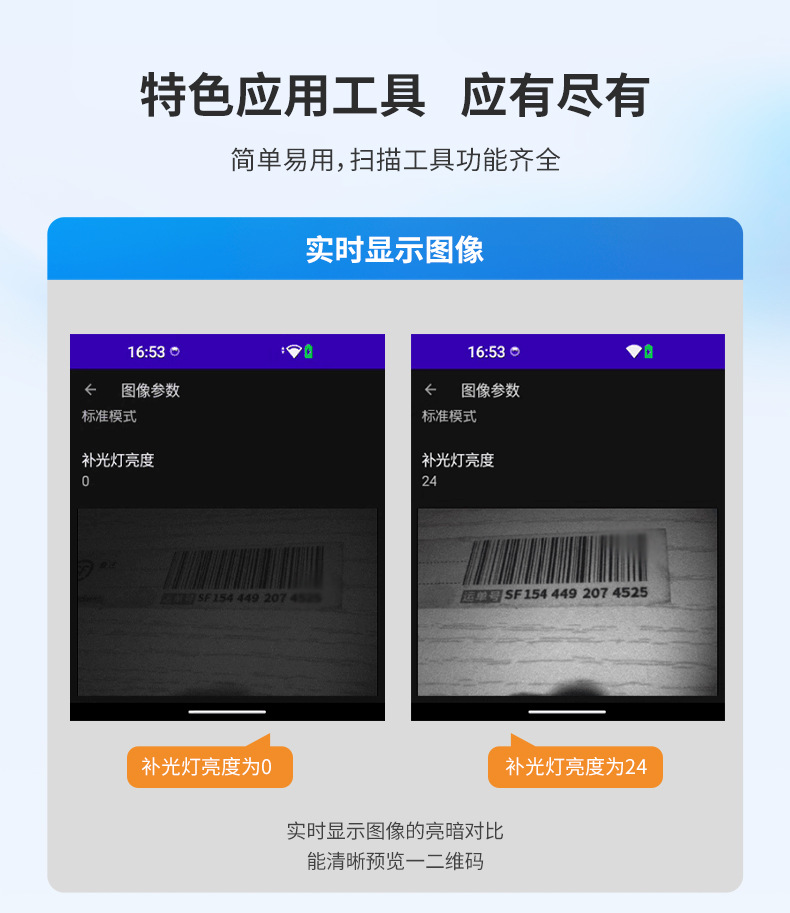

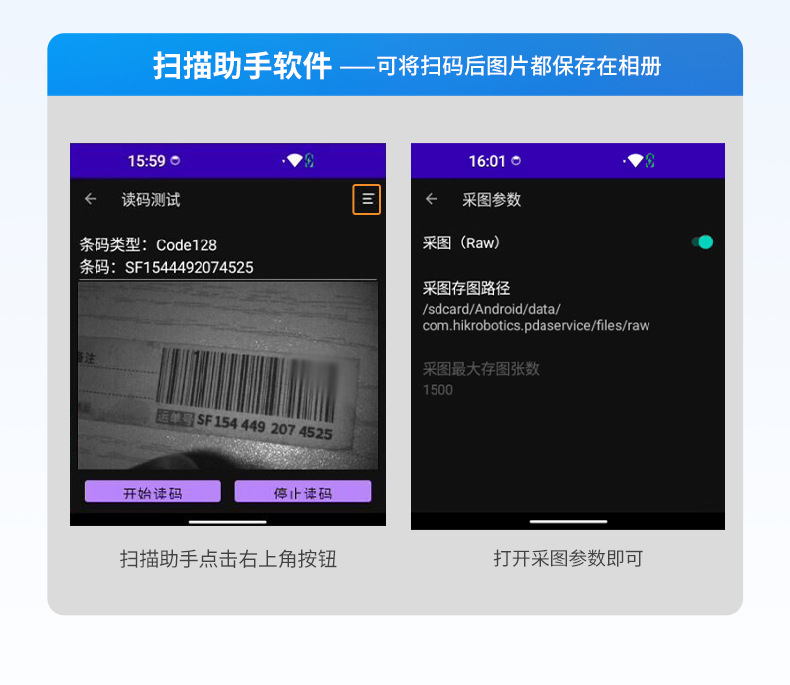

apply code scanning assistant

memory

ram:4gb  lpddr4x @ 4266mhz

rom:64gb

basic specifications

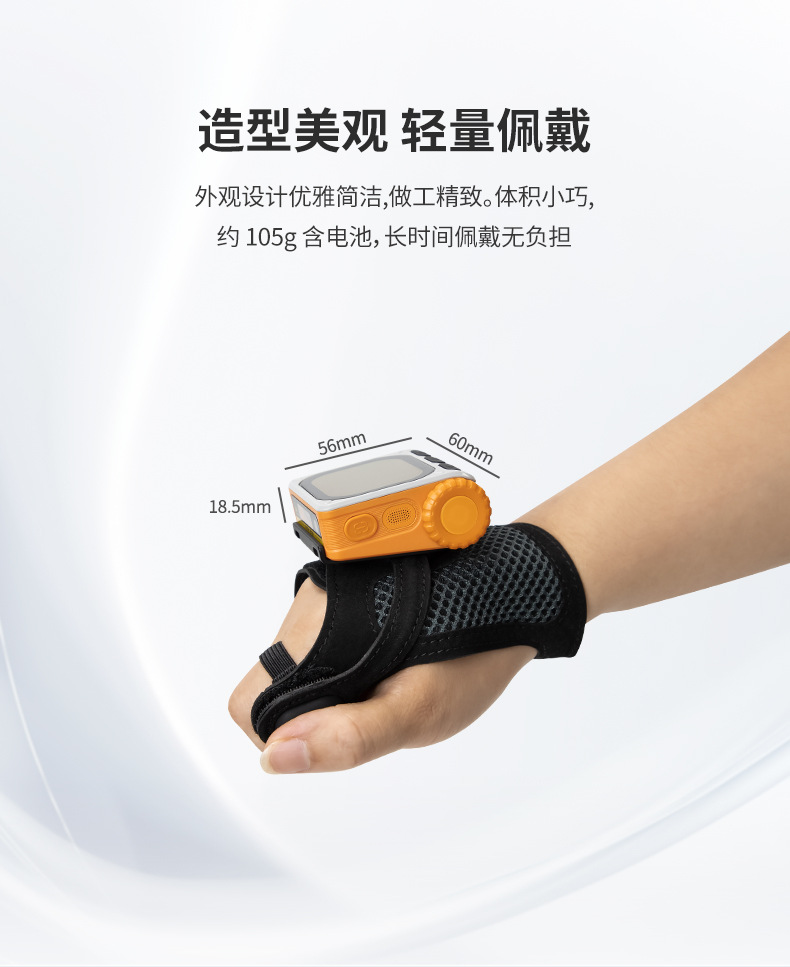

dimensions

host:52.5(60)* 56*18.5(25)mm (reference size, excluding local bulge and wristband, subject to actual measurement)

weight of the whole machine

host:105g (weight including battery and backup power, subject to actual measurement)

display screen

2.06-inch amoled  typ.600cd/m²,hbm mode 800cd/m²

resolution

410 × 502

touch screen

multi-point capacitive touch

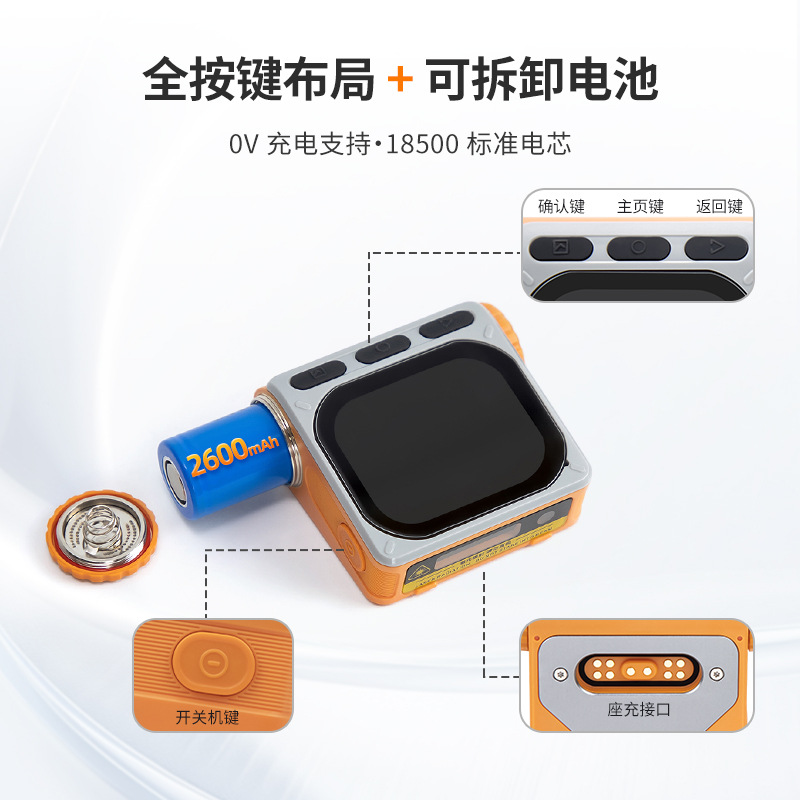

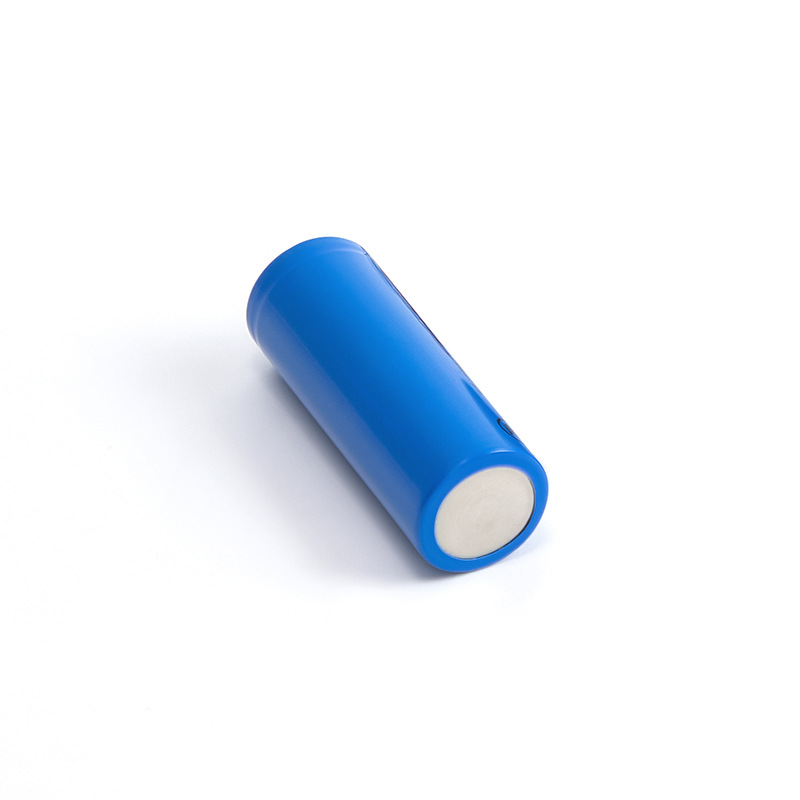

main battery

2300mah(4.2v) detachable, 18500 standard cell, support 0v charging

cover plate fit

full fit,af anti-fingerprint coating

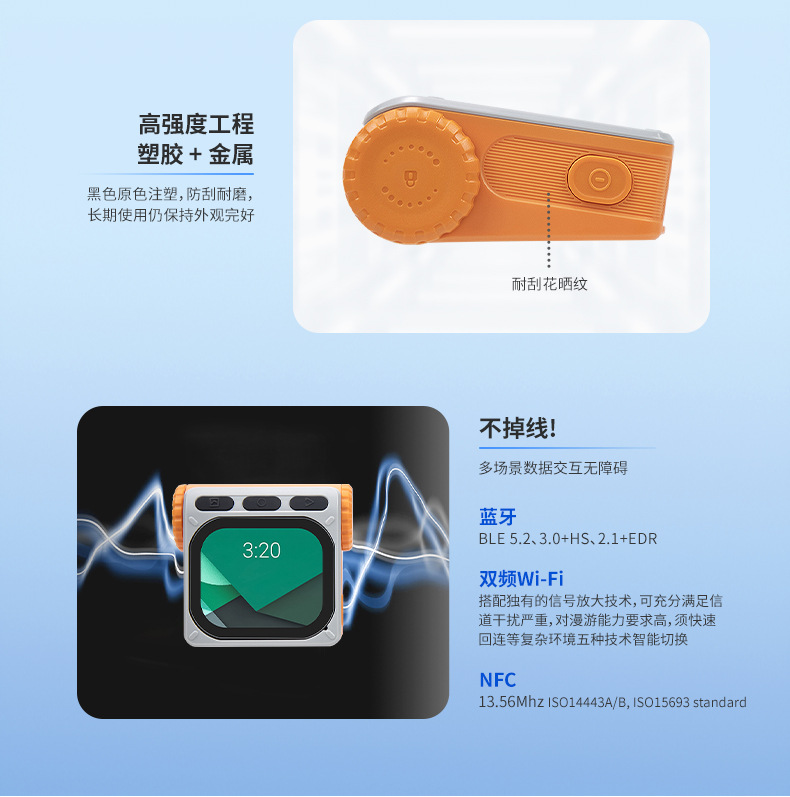

material

engineering plastic+ metal

charging time

≤ 2.5h fully charged(use10w charger)

audio

supportmicrophones (singlesilicon microphone); support speaker (built-inbox); support motor;

interface

usb type-c interface

io interface

usb* 1: common plug-in interface

otg: common plug-in interface

plug-in interface:customizationpin interface, support scan key, usb data, otg, charging

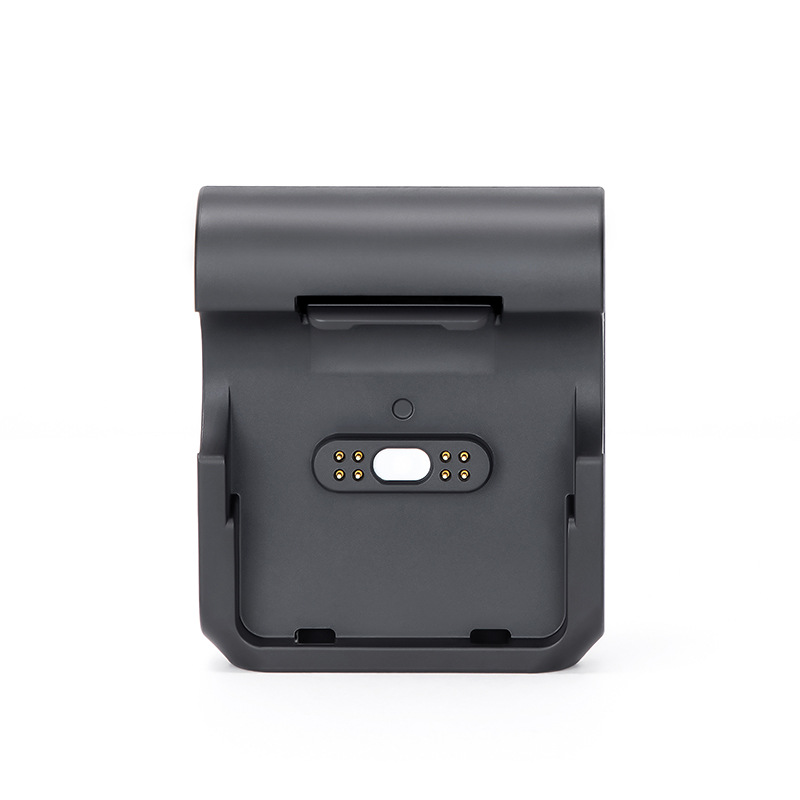

fixed charger interface: common plug-in interface

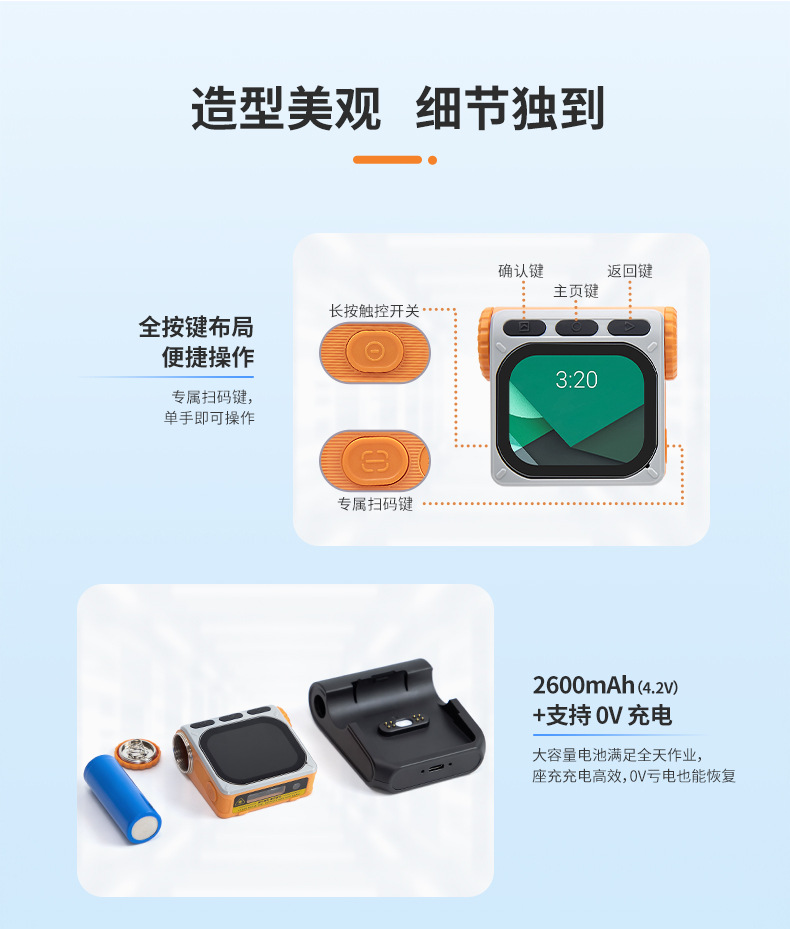

button

host front (ent key + home key (long press scan assistant) + back key) hostleftside (scan key (long press touch switch) hostrightside (switch-off key)

camera

main photo1600w,pdaf,f2.2;

sensor

gyroscope,g-sensor

scan

supports one-dimensional and two-dimensional professional modules (d1010)

information indicator light

3-color led, low power slow strobe, charging red, full power green;sweepcode success green, code scanning failure red;

          data communication

wlan protocol

supportwifi5,dual-band(2.4/5.1/5.8ghz)

1 stream 802.11ac/a/ b /g/n

ieee 802.11d/e/h/ i /j/k/r/v compliant

supportwifi roaming

security:wfa wpa wpa3/2 personal,aes-ccmp,wpi-sms4,gcmp,wps2.0,wapi(hardware)wfa, wi-fi display, wi-fi hotspot 2.0

nfc

13.56mhz   iso14443a/ b, iso15693 standard

bluetooth

ble 5.2, 3.0 + hs, 2.1 + edr

               usage environment

operating temperature

-20 ℃ ~ 55 ℃

storage temperature

-40 ℃ ~ 70 ℃

humidity

5%rh ~ 95%rh (no condensation)

seismic height of falling ground

1.2rice, mil-std 810g

explosion-proof certification

none

ip protection level

ip68three-proof (waterproof, dustproof, shockproof)

static protection (esd)

air± 12kv, contact ± 8kv

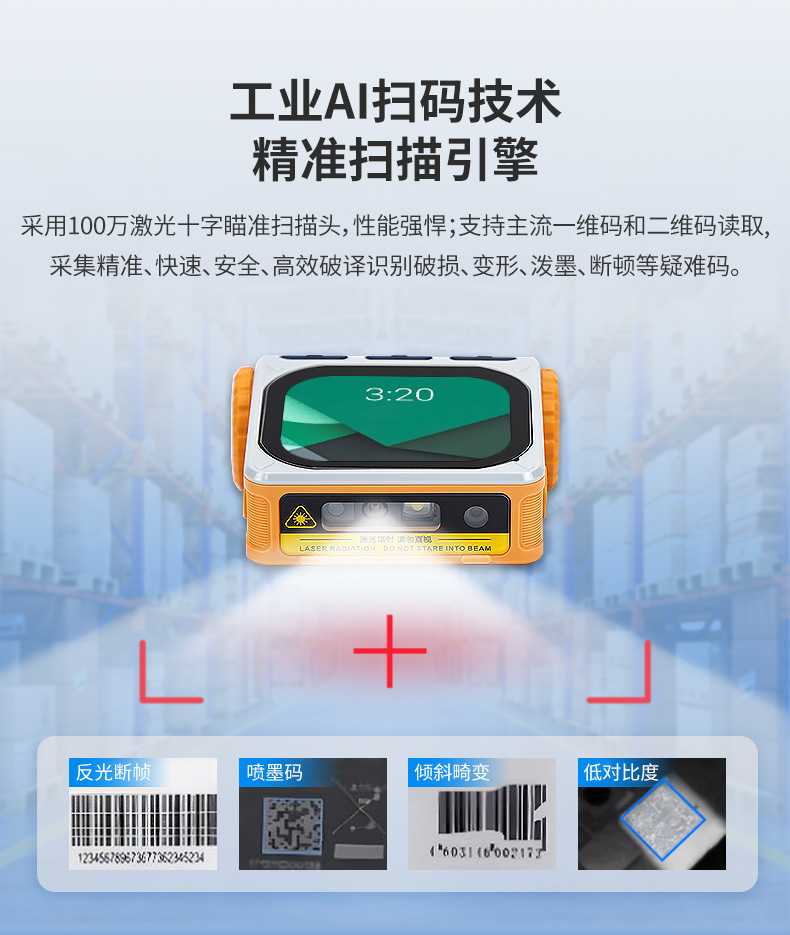

                scanner

resolution

1280*800

sensor

global shutter

angle of field of view

level:39.5 ° vertical: 26.1 °

scanning angle

rotate (tilt):± 180 °, pitch: ± 60 °, deflection (skew):± 60 °

code system supported

one dimensional code:code39,code93,code128,codabar,ean-8/13,itf25,upce,upca, isbn13,pdf417,mat25,msi,code11,ind25,chinapost,pharma,gs1, etc;

qr code:datamatrix,qr,microqr,aztec,hanxin,post, etc.

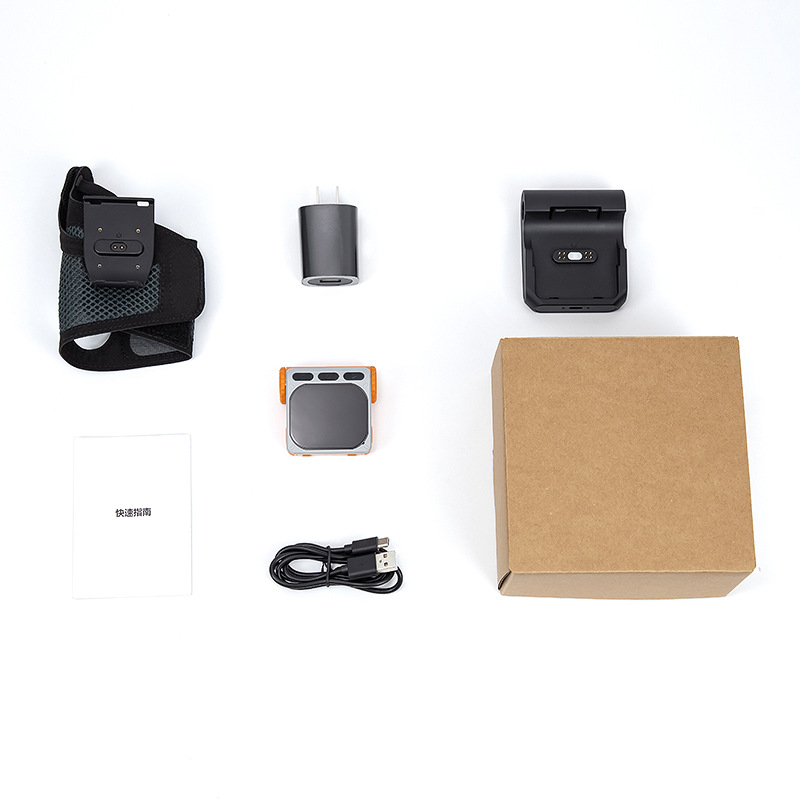

packaging materials and accessories

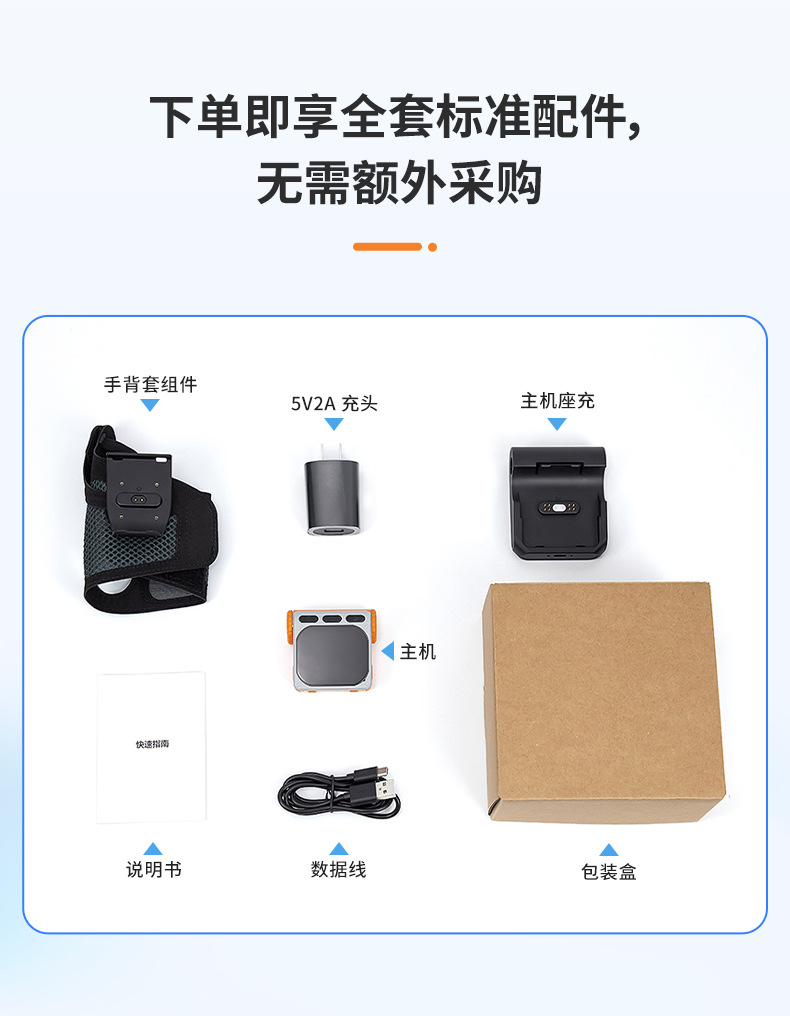

standard accessories

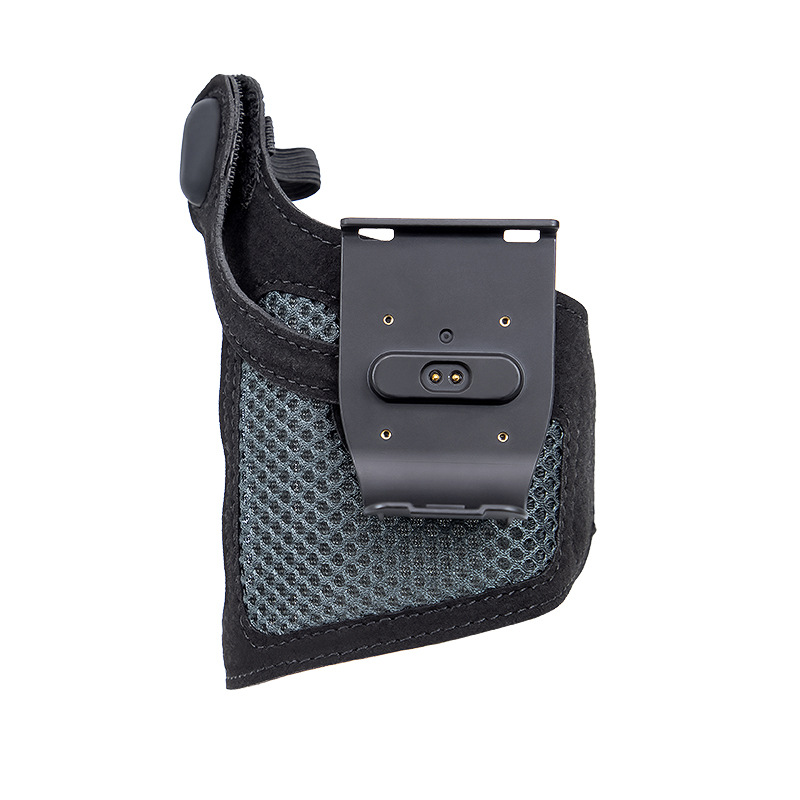

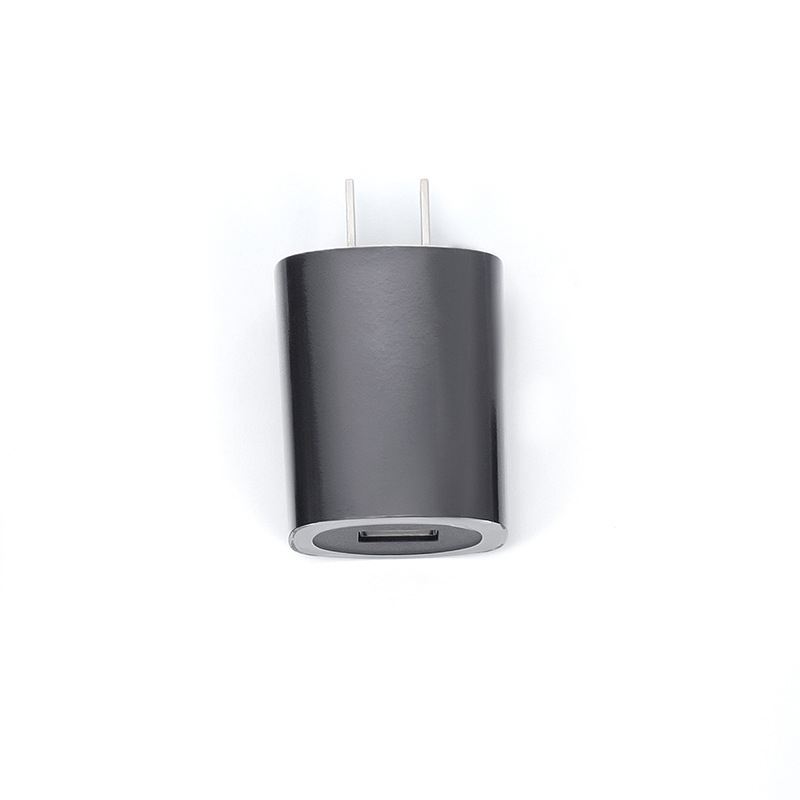

5v 2a adapter; typec data cable; back of hand sleeve assembly (scan key); host fixed charger

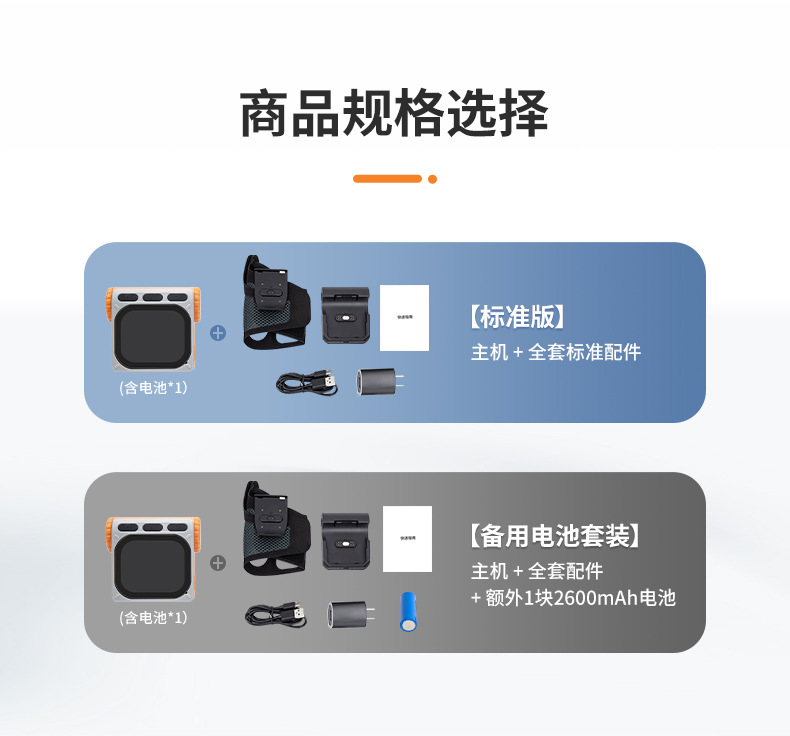

optional accessories

optional cover tempered film/tpu screen protector (pre-paste)

packing material structure material

logo nameplate; cover protective film

packing box type

pit box+ envelope (folding instructions, service guide, protective bag)
