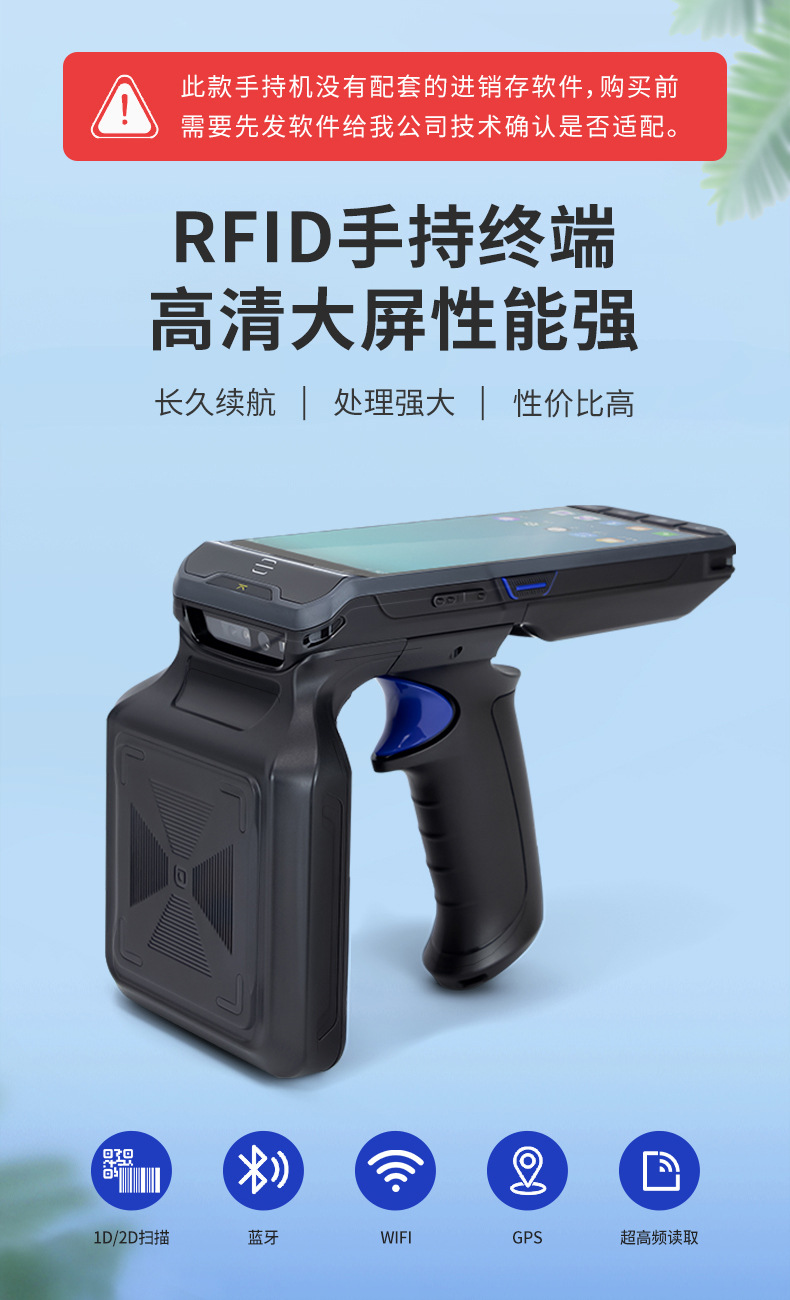

youku tc55 uhf rfid data collector pda handheld terminal warehouse logistics android handheld barcode terminal

performance parameters

cpu

mt6762 8-core 64-bit 2.0ghz high-performance processor

ram+rom

4gb +64gb

operating system

android 13.0

expand memory

micro sd(tf) card can be expanded to 256gb

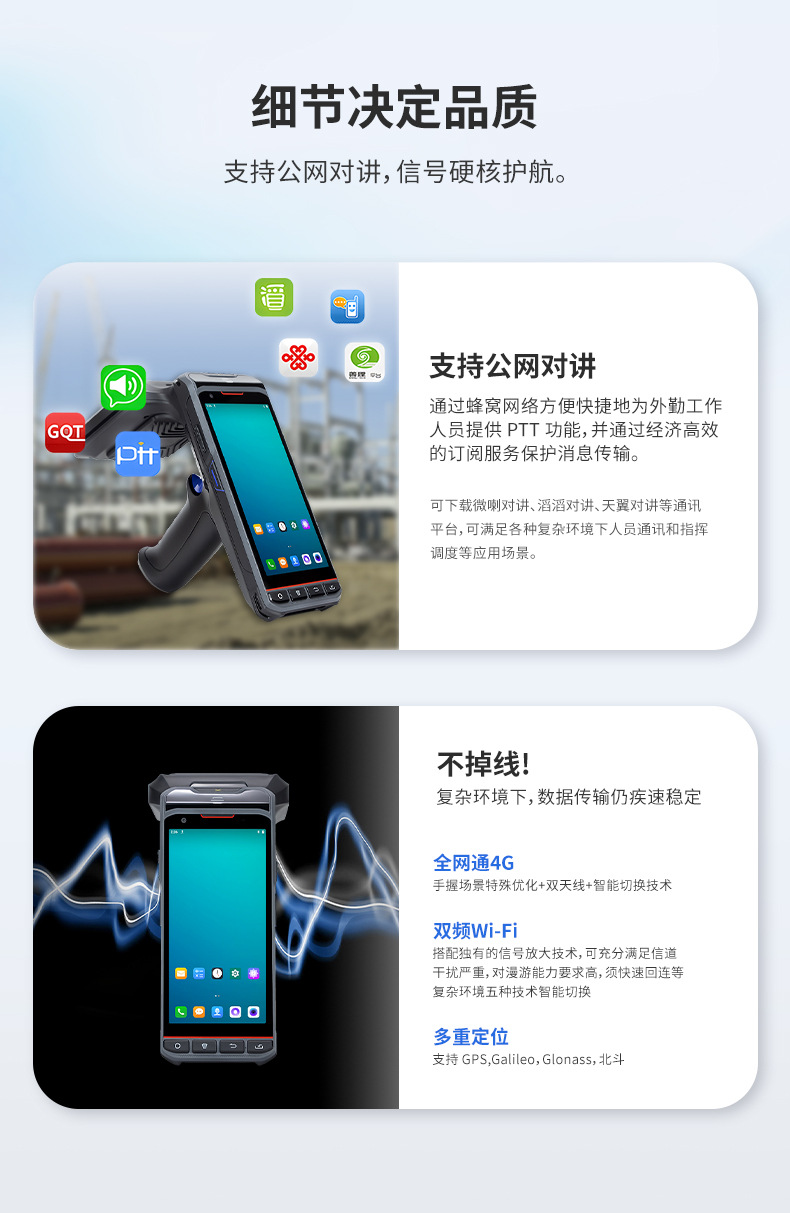

data communication

wlan

dual frequency 2.4ghz/5ghz, support ieee 802.11ac/a/b/g/n/d/e/h/i/j/k/r/v protocol

wwan

2g:gsm(850/900/1800/1900mhz)

3g:wcdma(850/900/1900/2100mhz)

4g:fdd:b1/b3/b4/b7/b8/b12/b20;tdd:b38/b39/b40/b41

bluetooth

bluetooth support 5.0 + ble, transmission distance 5-10 meters

gnss

support gps,galileo,glonass, beidou

          physical parameters

overall size

179mm x 74.5mm x150mm (including handle)

weight of the whole machine

<750g (depending on device function configuration)

display screen

5.5 inches, resolution 720 × 1440

screen brightness

> 500cd/m2

touch screen

supports multi-touch

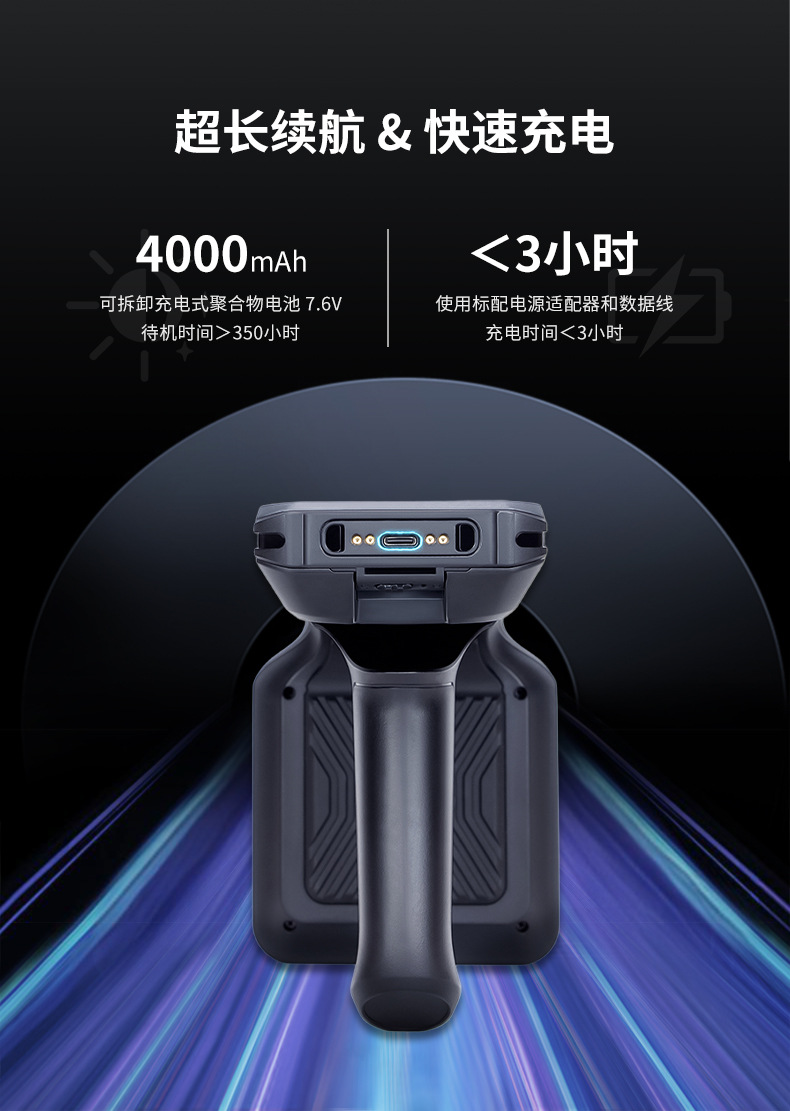

battery capacity

rechargeable polymer battery 7.6v 4000mah (equivalent to 3.8v 8000mah), removable;

standby time>350 hours;

charging time <3 hours, use standard power adapter and data cable

extended card slot

nano sim card x1, tf card x1 (optional psamx2), pogo pinx1

communication interface

type-c 2.0 usb x 1, supports otg function

horn

> 92db (test distance 10cm)

audio

loudspeaker(mono), microphone, handset

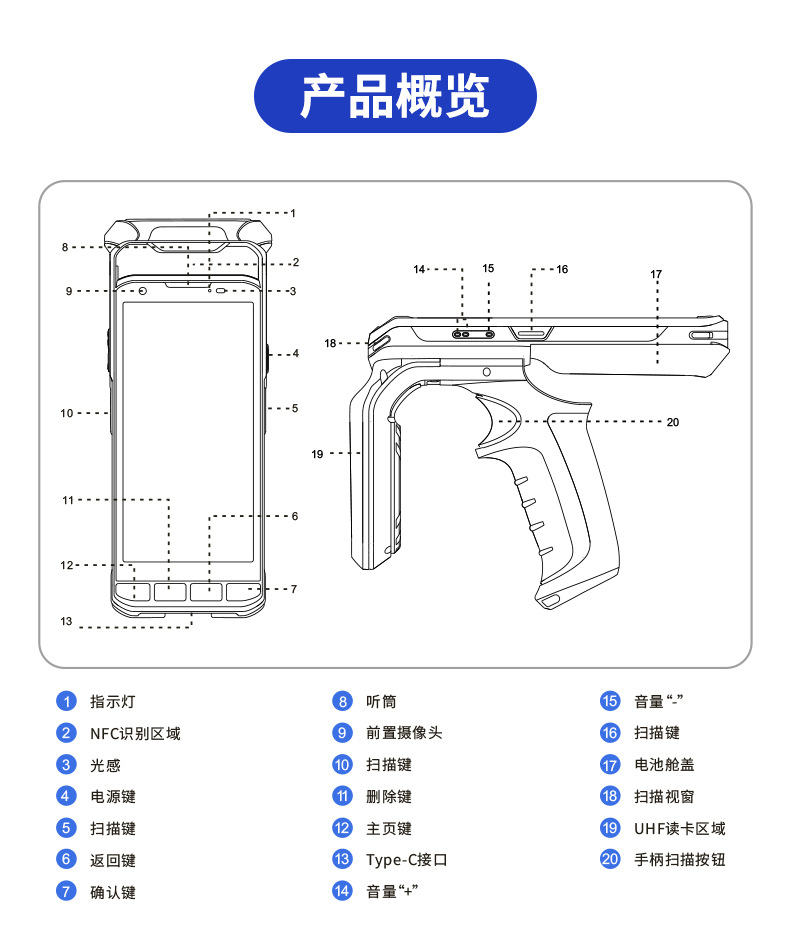

main button

home key delete key back key confirm key

side switch

silicone button: power button, volume+/-key, scan key × 2, handle button

sensor

gravity sensor, light sersor, distance sensor, vibration motor

     language/input method

input method

english, pinyin, five strokes, handwriting input, support soft keyboard

language

language packs in countries such as simplified chinese, traditional chinese, english, south korea, japan, malaysia, and singapore

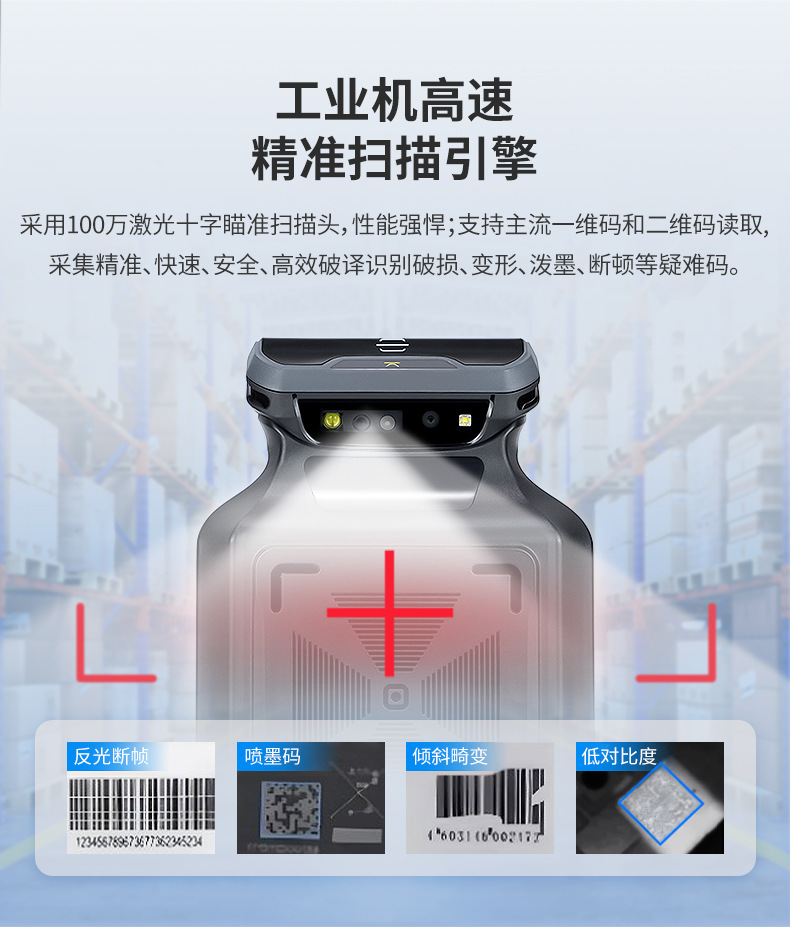

    barcode collection

two-dimensional scanning engine

n6602-w2

one-dimensional barcode type supported

upc/ean, code128, code39, code93, code11,interleaved 2 of 5, discrete 2 of 5, chinese 2 of 5, codabar, msi, rss, etc.; postal barcode: usps planet, usps postnet, china post, korea post, australian postal, japan postal,dutch postal (kix), royal mail, canadian customs, etc.

supports two-dimensional barcode types

pdf417, micropdf417, composite, rss, tlc-39, datamatrix, qr code, micro qr code, aztec,maxicode, hanxin, etc.

camera

rear camera

1300w pixel hd camera, support autofocus, flash, anti-shake, macro shooting

front camera

200w pixel color camera

nfc (optional)

working frequency

13.56mhz

protocol standard

support iso14443a/b, 15693 protocols, etc.

label standard

m1 card (s50, s70), cpu card, nfc tag, etc.

read/write distance

2-5cm

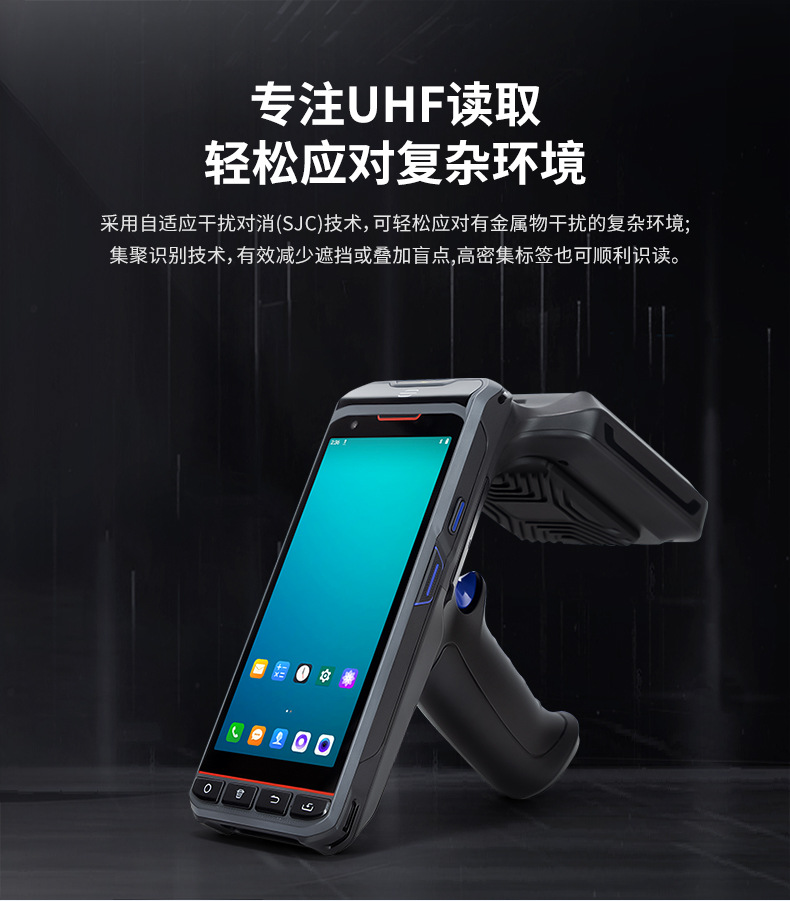

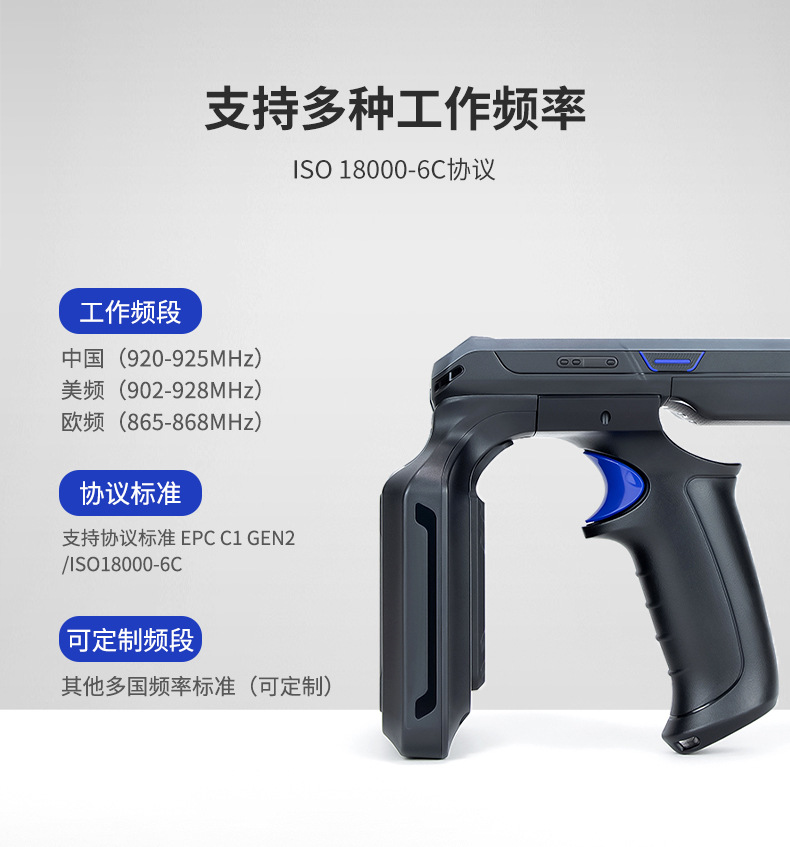

uhf

engine

x3

chinese frequency

920-925mhz

us frequency

902-928mhz

european frequency

865-868mhz(etsi en 302 208)

other multinational frequencies

other multi-country frequency standards (customizable)

protocol standard

support protocol standards epc c1 gen2/iso18000-6c

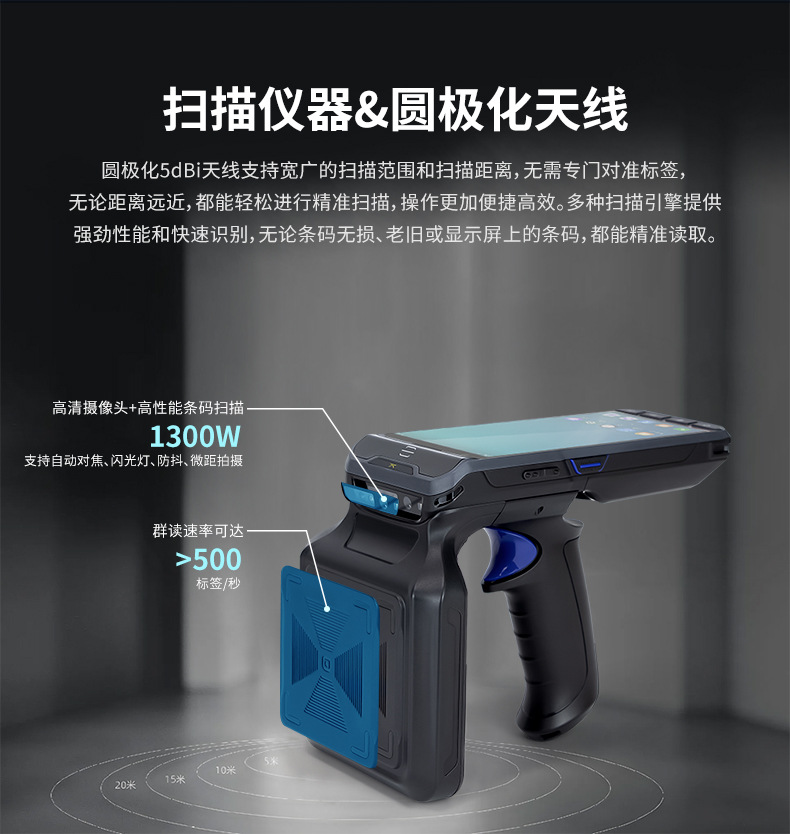

antenna parameters

circularly polarized antenna (5dbi)

working distance

0-20 m

group read speed

> 500 tags per second (circular polarization)

usage environment

operating temperature

-20 ℃ to 55 ℃

storage temperature

-40 ℃ to 70 ℃

ambient humidity

5%rh--95%rh (no lotion)

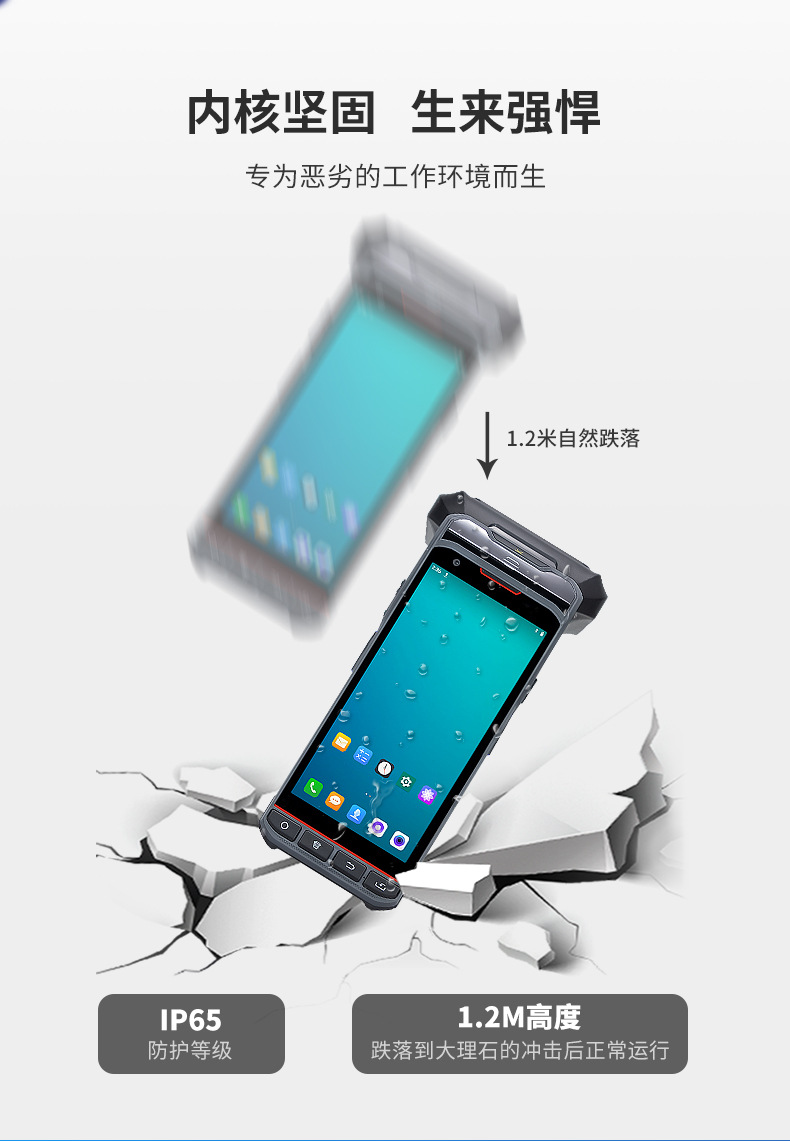

drop specification

within the operating temperature range,6 sides can withstand the impact of 1.2 m height falling to marble

rolling test

0.5m continuous rolling, 6 surface contact surface rolling, still stable operation

protection level

ip65

accessories

standard

adapter, data cable, protective film, manual
