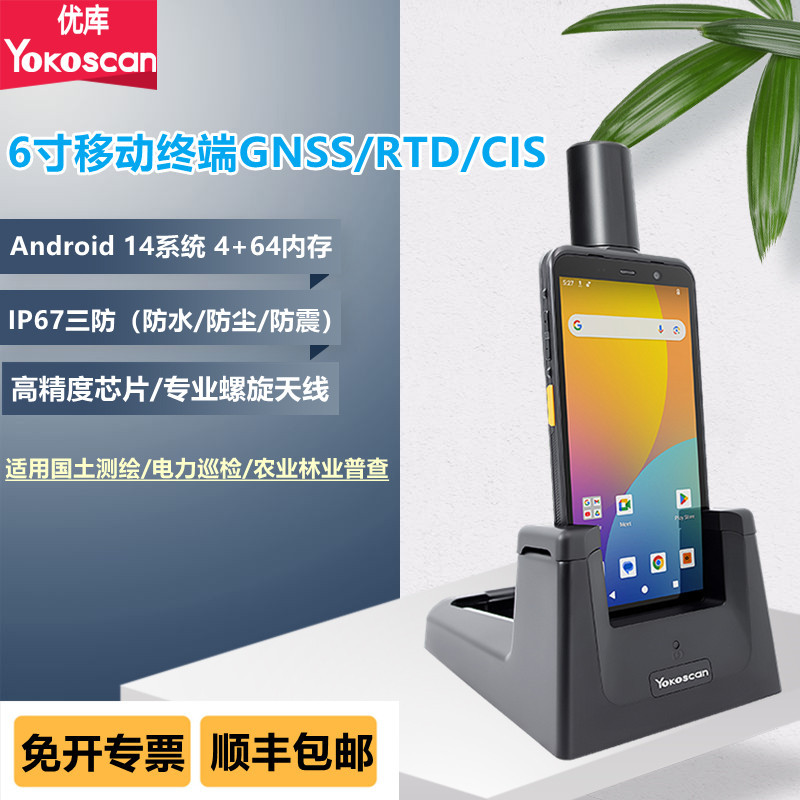

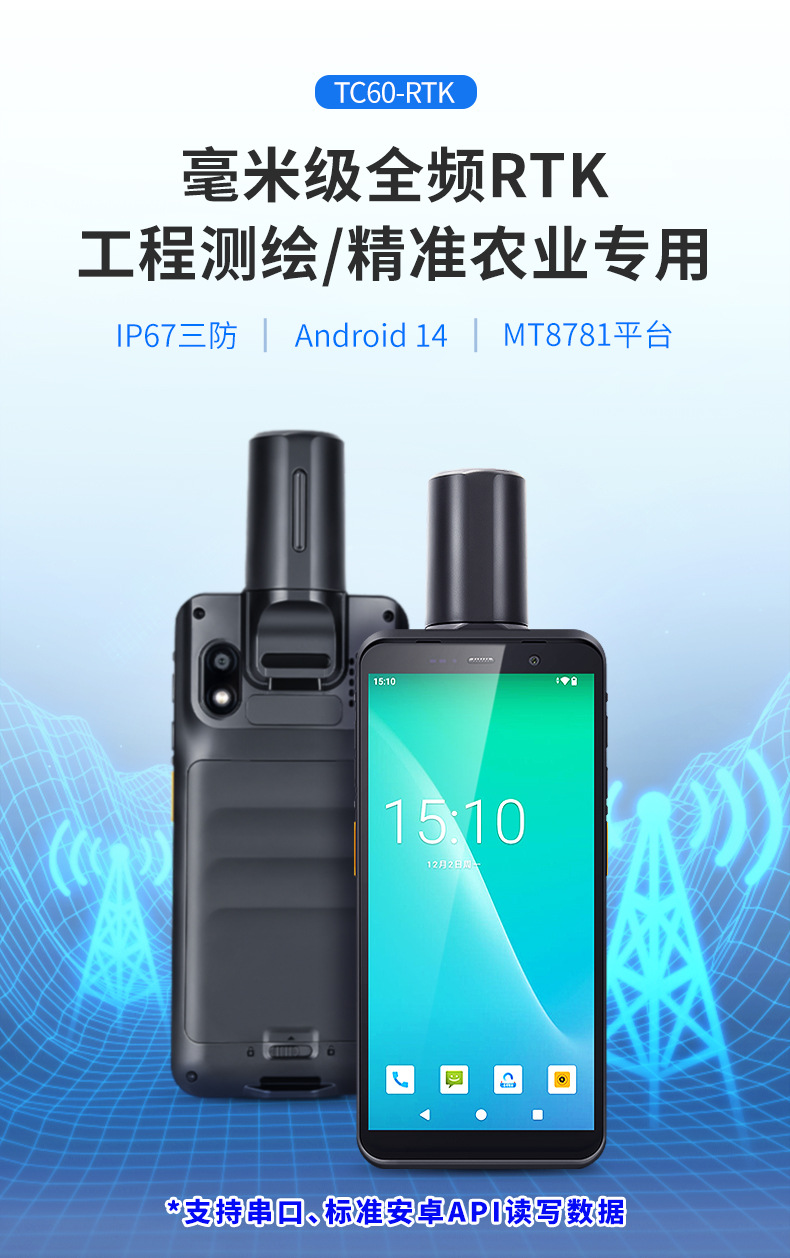

youku tc60rtk handheld terminal android dynamic positioning mapping satellite navigation system advanced security patrol

performance parameters

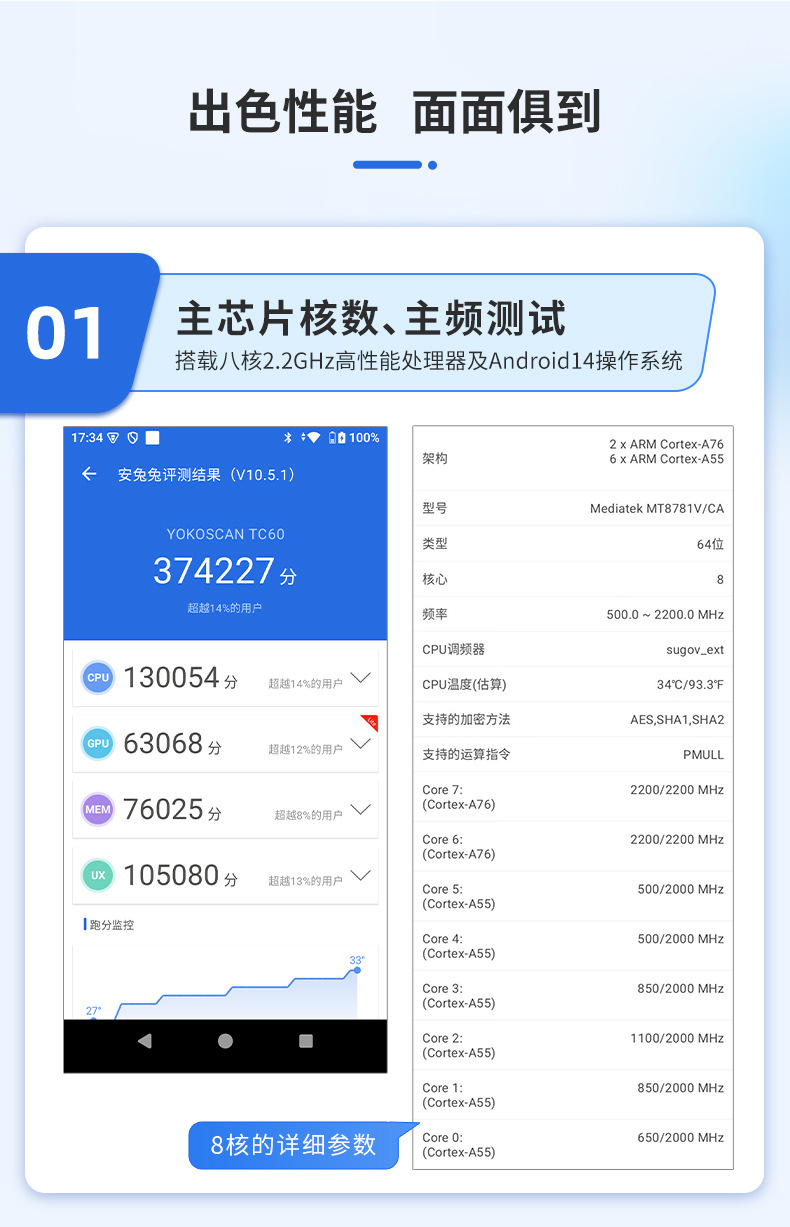

cpu

mtk8781, eight-core 2.2ghz,

2 x arm cortex-a76 up to 2.2ghz,6 x arm cortex-a55 up to 2.0ghz

operating system

android 14

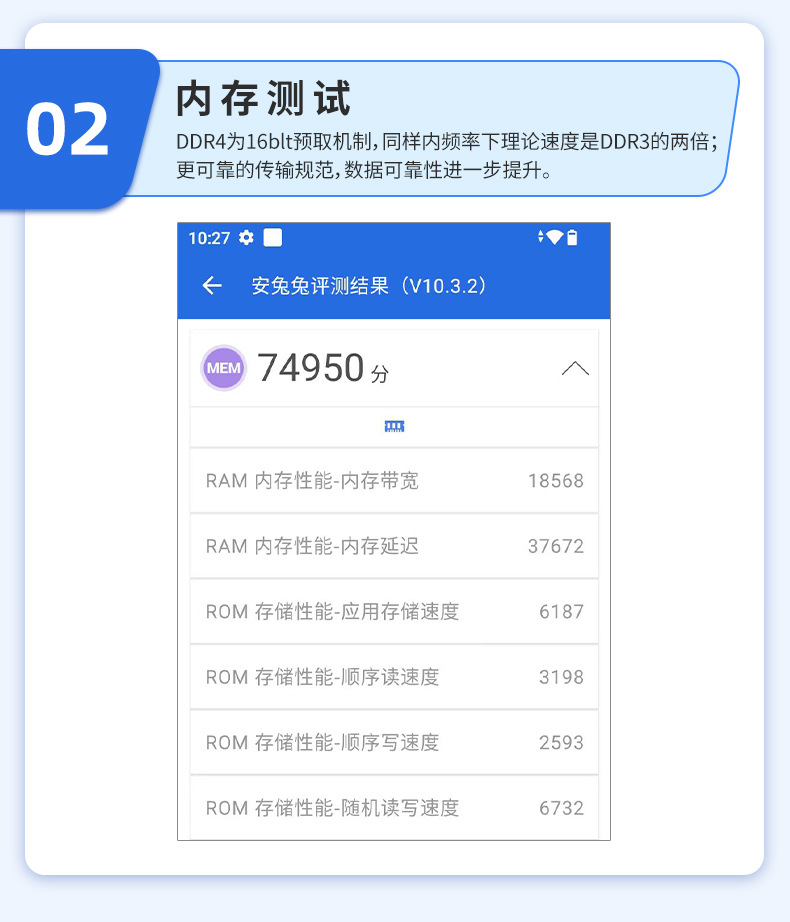

memory

ram:4gb  lpddr4x @ 4266mhz

rom:64gb

extended memory

support,microsd maximum 1tb, support sdio encryption t card

basic specifications

dimensions

straight type:163*77 * mm (excluding local convex, subject to the actual product)

weight of the whole machine

about275g (including battery)

color matching

black (primary color injection molding), surface scratch-resistant texturing

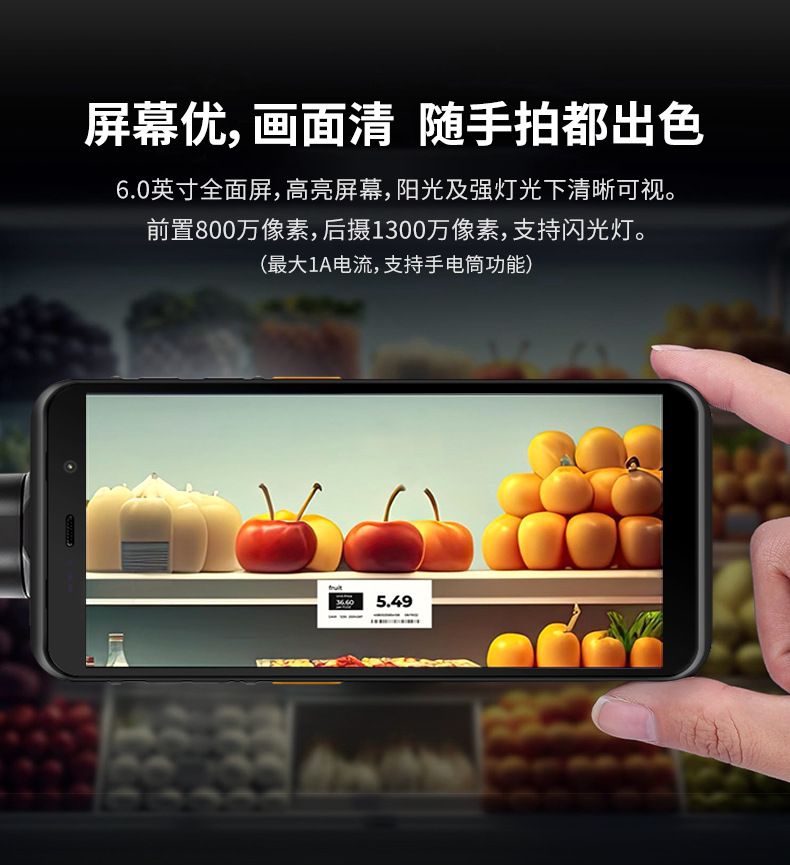

display screen

5.99 tft(ips),typ.500cd/m²

resolution

hd+,720*1440

touch screen

incell multi-point capacitive touch

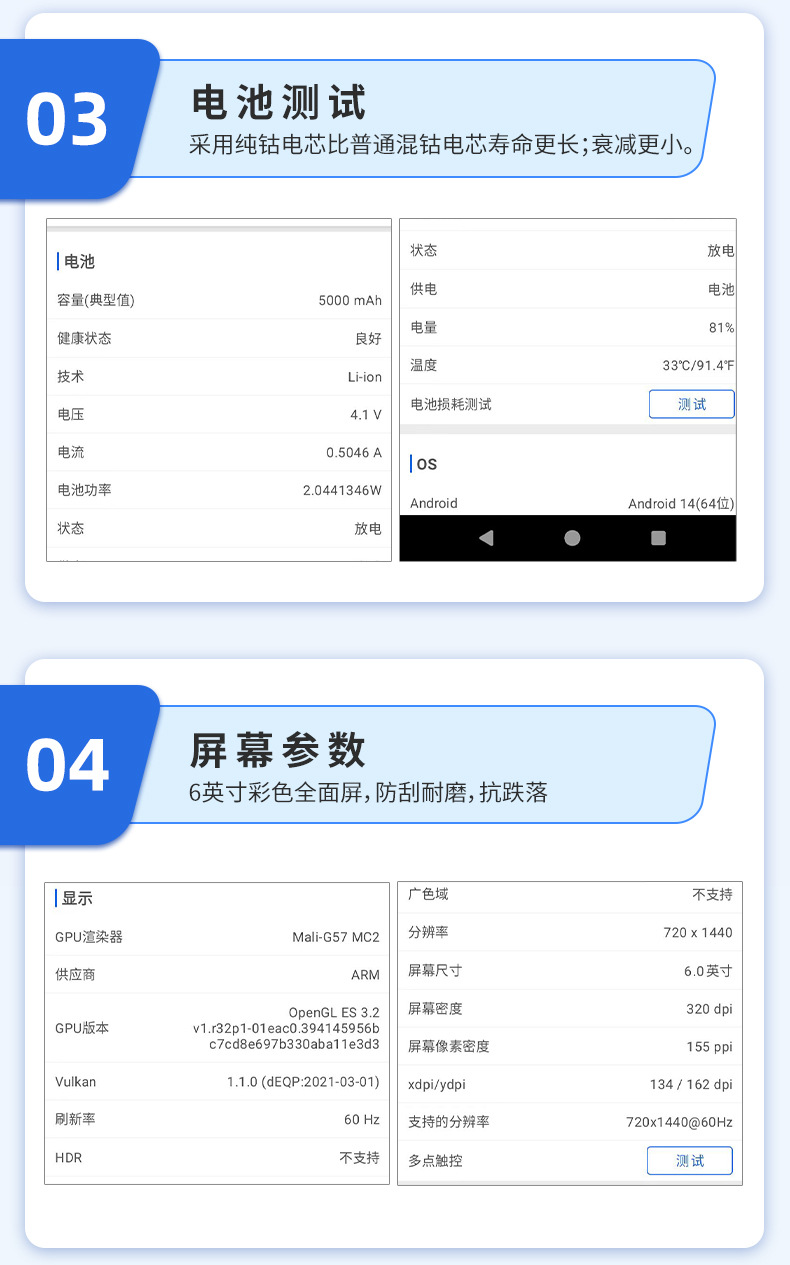

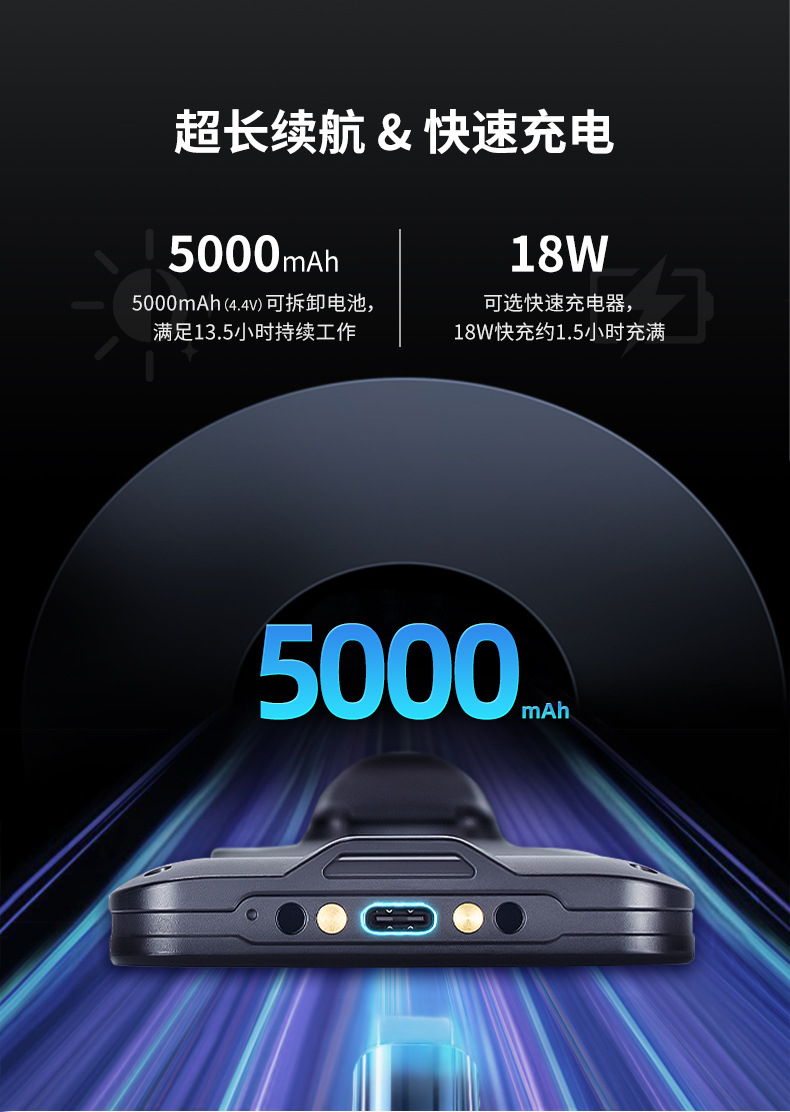

main battery

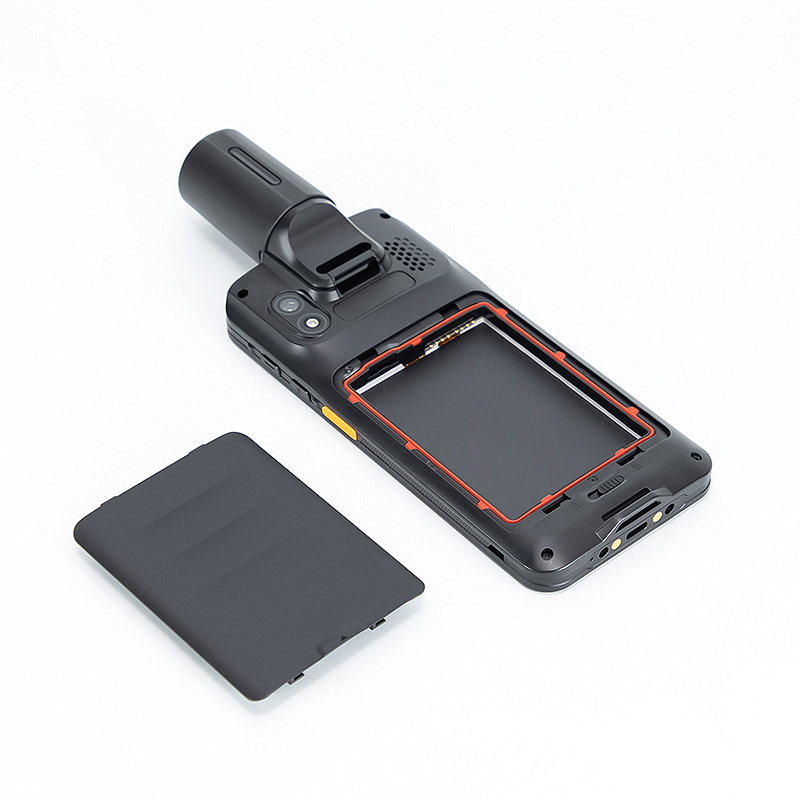

5000mah(4.4v), one-piece battery tool-free disassembly (lithium polymer, support 0v charging)

supportrtc battery (on-board button battery for battery replacement time retention)

cover plate fit

full fit (1.1mm reinforced glass cover plate)

material

high strength engineering plastic

charging time

about 4.5h(use10w charger)   about 3h(use15w fast charge)

standby duration

standby duration168 hours (7 days); runing hour:13.5 hours; the maximum status of lcd brightness and volume is about 9.5 hours.

audio

supportmic (dual silicon microphone); support noise reduction; support audio pa type; support speaker (100db big speaker); support motor; support handset

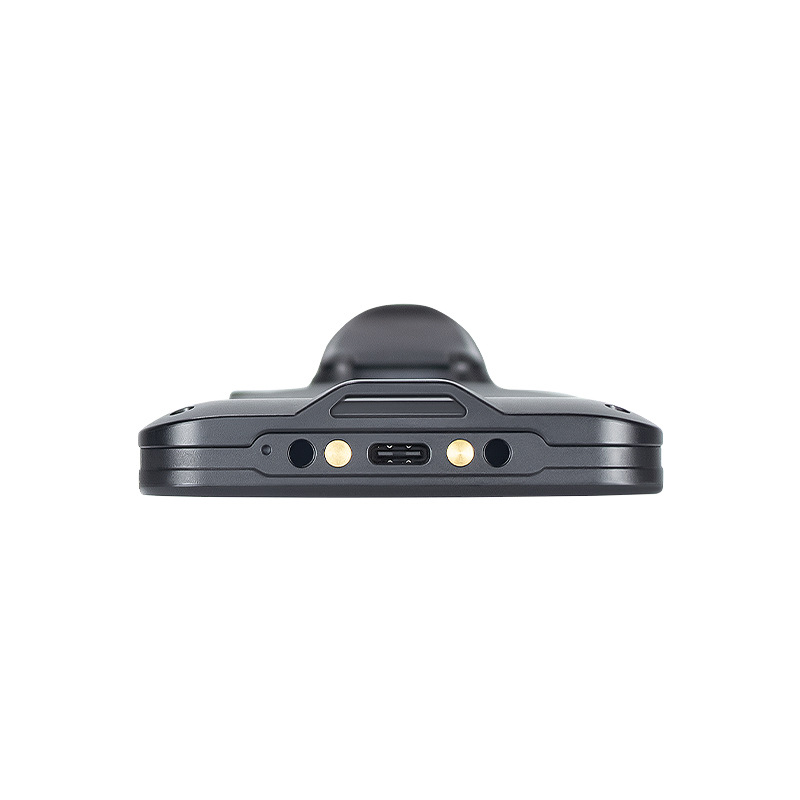

interface

usb type-c interface

io interface

usb* 1: standard type-c interface (usb 2.0 device, supports otg), body waterproof

2pinfixed charger* 1(5v ~ 2a, support uc100 universal fixed charger)

button

left side of the host (fn key + volume key* 2) right side of the host (fn key + switch button +fn key)

camera

front shot800w,ff fixed focus, f2.4; main photo 1300w,pdaf,f2.2;

support flash (maximum1a current, support flashlight function)

sensor

light distance sensor, gravity acceleration sensor, hall, geomagnetic sensor, gyroscope

card slot type

sim card slot type: nanosim + nanosim/tf (three options, two card disk battery compartment built-in)

information indicator light

three colorsled light: low power, slow strobe, charging red, full power green

card mode

support dual card dual standby,supports switching between primary vice card

voice solution

volte, vilte, and vowifi

          data communication

standard frequency band

network type:4g lte

eurasian version--

frequency band: supported2/3/4g

2g:gsm 850/900/1800/1900;

3g:wcdma b1/2/4/5/8;

4g:tdd-lte b34/38/39/40/41;

lte fdd b1/2/3/4/5/7/8/20/28a& b);

wlan protocol

supportwifi5,dual-band(2.4/5.1/5.8ghz)

1 stream 802.11ac/a/ b /g/n

ieee 802.11d/e/h/ i /j/k/r/v compliant

supportwifi roaming

security:wfa wpa wpa3/2 personal,aes-ccmp,wpi-sms4,gcmp,wps2.0,wapi(hardware)

wfa, wi-fi display, wi-fi hotspot 2.0

positioning

gps/beidou/galileo/glonass/agps (built-in antenna)

nfc

iso18092. iso14443 a/b, iso15693 protocol, mifare compliance

bluetooth

ble 5.2, 3.0 + hs, 2.1 + edr

               usage environment

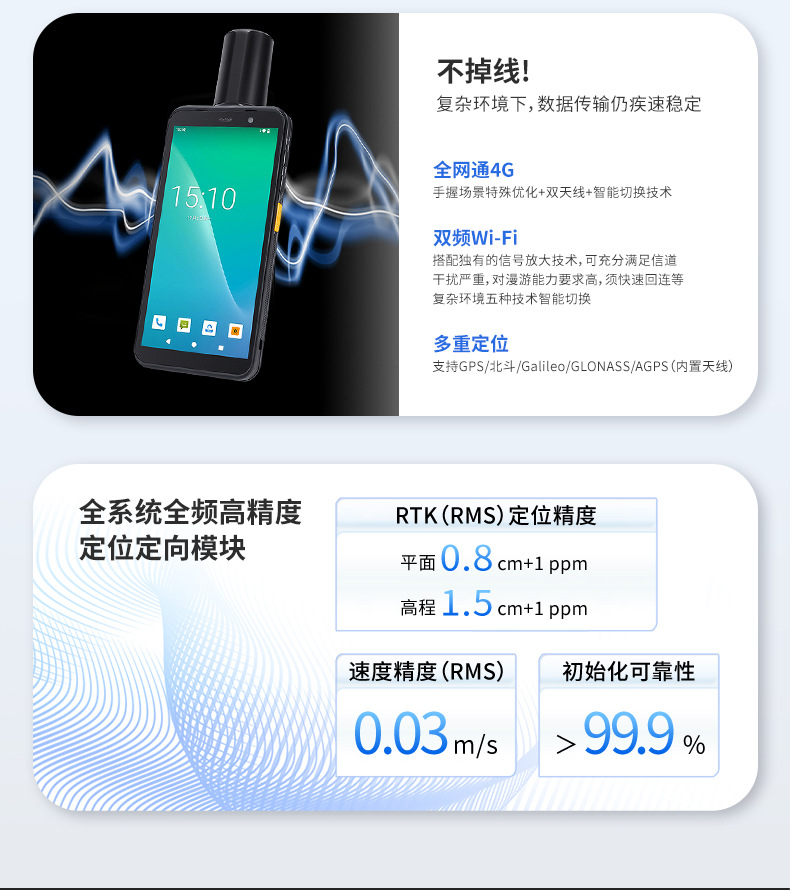

rtk(rms) positioning accuracy

plane 0.8cm +1 ppm, elevation 1.5cm +1 ppm

pps accuracy (rms)

20 ns

speed accuracy (rms

0.03 m/s

first positioning time

cold start <12 s, hot start <5 s

initialization time

<5 s (typical)

initialization reliability

>99.9%

data update rate

50hz positioning

differential data

rtcm 3.x ,nmea 0183,unicore

               usage environment

operating temperature

-20 ℃ ~ 55 ℃

storage temperature

-40 ℃ ~ 70 ℃

humidity

5%rh ~ 95%rh (no condensation)

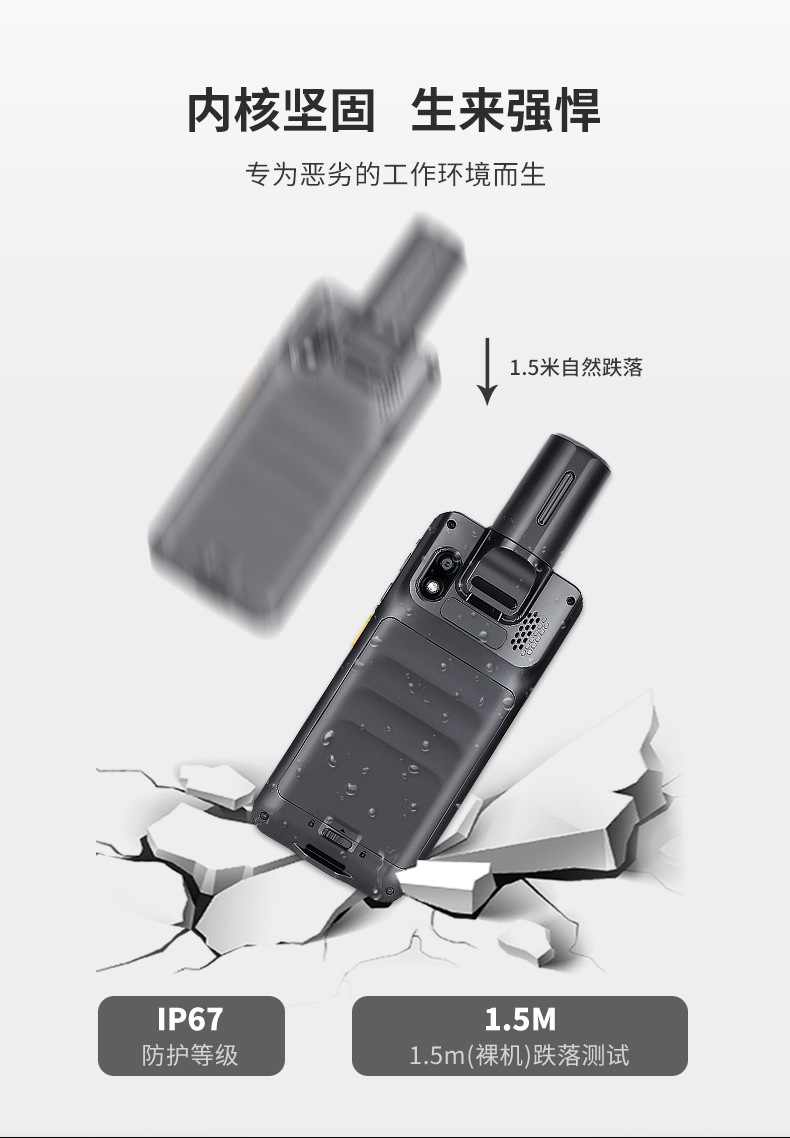

seismic height of falling ground

able to withstand1.5 m height dropped to smooth cement floor for many times

explosion-proof certification

none

ip protection level

ip67 three-proof (waterproof, dustproof, shockproof)

static protection (esd)

air± 12kv, contact ± 8kv

supported authentication items

ce;rohs;gms ;un38.3;msds; air transport certificate

laser safetycertification;ip level; drop

■ ip level ■ military industry

packaging materials and accessories

standard accessories

medium gauge5v 2a adapter * 1; typec data cable * 1

optional accessories

pd 18w fast charge adapter; single main engine universal fixed charger

packing material structure material

logo nameplate; cover protective film

packing box type

pit box+ envelope (folding instructions, service guide, protective bag)
