youku mc405 handheld handheld barcode terminal terminal pda warehousing logistics e-commerce express android scan code data collector

performance parameters

cpu

mtk6765,8-core 2.3ghz

4 x armcortex-a53 up to 2.3ghz,4 x armcortex-a53 up to 1.8ghz

operating system

android 11 (no gms package)

platform application

adapt to code scanning assistant and third-party code scanning businessapk

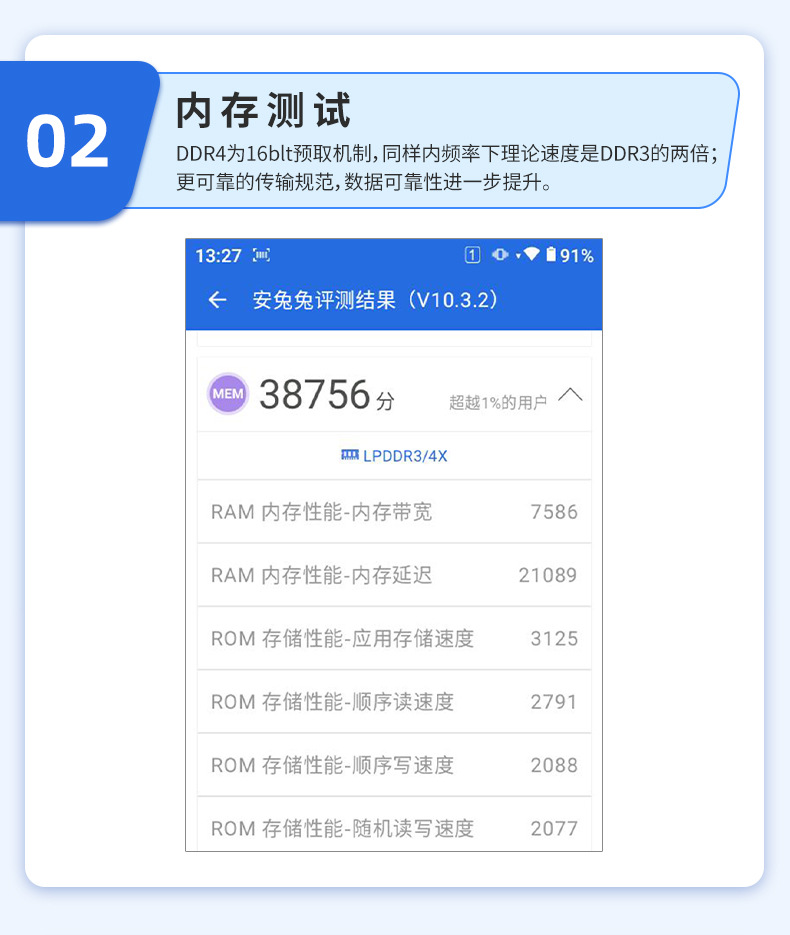

memory

ram 4gb ,1 x lpddr3@933mhz/2 x lddp4x@1600mhz

rom 64gb

extended memory

supportmicrosd cards

basic specifications

dimensions

168*66 * mm (excluding local convex, subject to the actual product)

weight of the whole machine

about265g (including battery)

color matching

black

display screen

4-inch tft(ips)

resolution

wvga,480×800

touch screen

multi-point capacitive touch, support gloves, wet hand mode

main battery

lithium polymer5000mah(4.4v), tool-free disassembly and assembly

rtc battery

support

charging current

5v ~ 2a

cover plate fit

full fit

material

high strength engineering plastic

charging time

about 4.5h(use10w charger)   about 3h(use15w fast charge)

audio

microphone (optionalai noise reduction)

2w high-power speaker

receiver

interface

usb 2.0

io interface

standardtype-c(usb 2.0 device, supports otg)

2pin fixed charger (5v ~ 2a)

button

power button
scan button* 3
fn key
function key* 2
direction key* 4
numeric keys, etc.* 16

camera

main photo1300w,pdaf,f2.2;

support flash (maximum1a current, support flashlight function)

sensor

light distance sensor, gravity acceleration sensor

scan

professional scanner, support mainstream one-dimensional/2d barcode

card slot type

nano-sim x 2 or nano-sim + micro sd

information indicator light

three colorsled lights: low power, slow strobe, charging red, full power green; scanning code succeeded green, scanning code failed red; bluetooth and other prompt information blue

card mode

support dual card dual standby,supports switching between primary vice card

voice solution

volte, vilte, and vowifi

          data communication

standard frequency band

network type:2g 3g 4g

gsm:850/900/1800/1900

wcdma:b1/2/4/5/8

lte:b1/2/3/4/5/7/8/20/28a& b /34/38/39/40/41

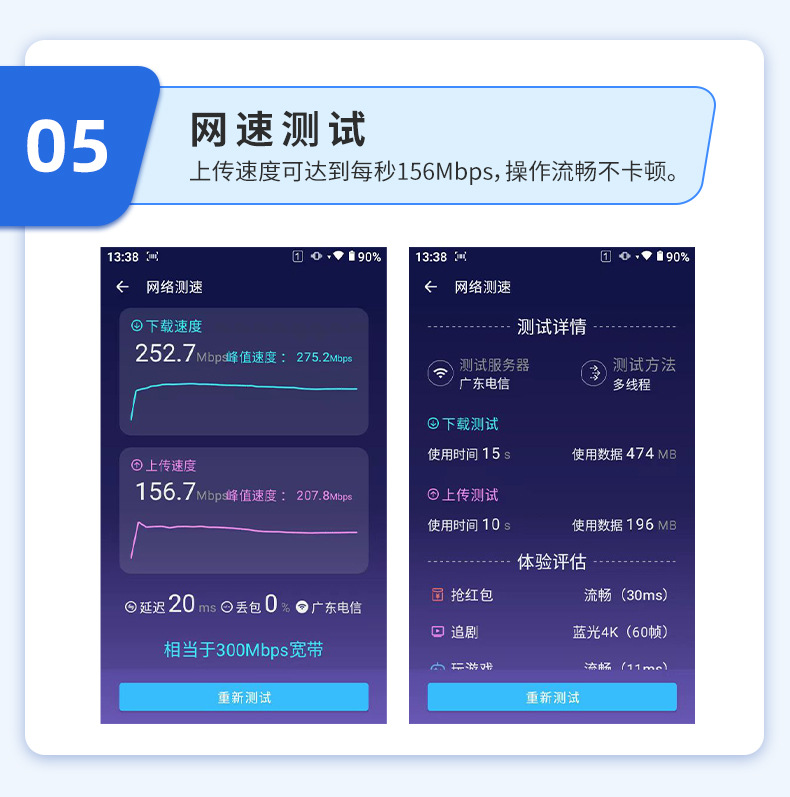

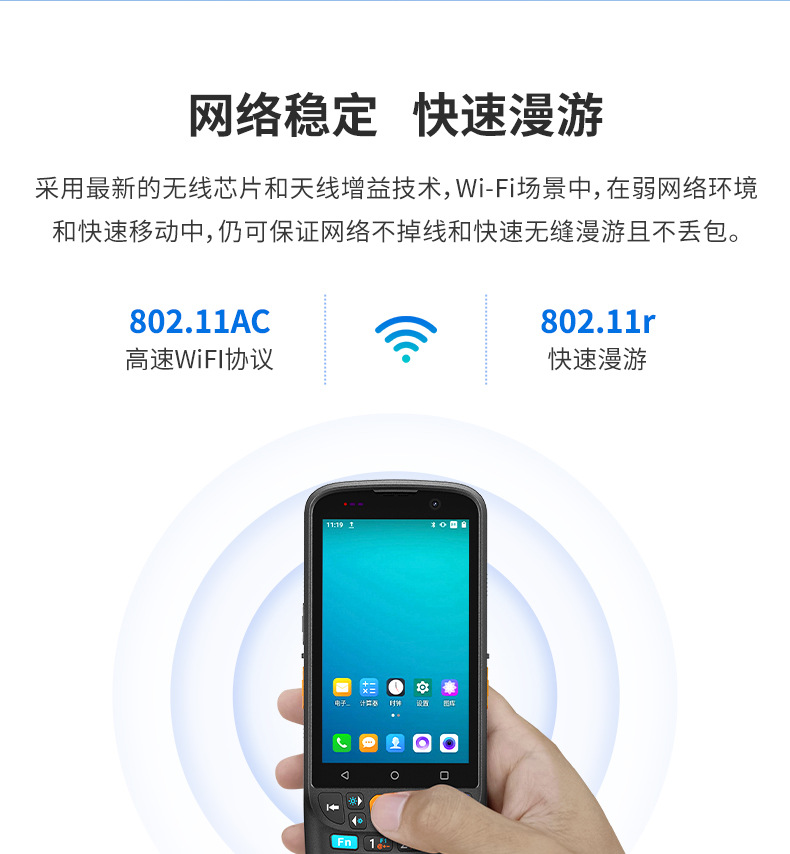

wlan protocol

supportwifi5,dual-band(2.4/5ghz)

supportwifi roaming

1 stream 802.11ac/a/ b /g/n

ieee 802.11d/e/h/ i /j/k/r/v compliant

802.11w protected managed frames

security:wfa wpa wpa3/2 personal,aes-ccmp,wpi-sms4,gcmp,wps2.0,wapi(hardware)

wfa, wi-fi display, wi-fi hotspot 2.0,

positioning

l1 gps/beidou/galileo/glonass/agps (built-in antenna)

nfc

iso18092, iso14443 a/b, iso15693 protocol, mifare compliance, can read second-generation id card information, support id card frequency offset read/write mode, card simulation mode, and point-to-point mode

bluetooth

ble 5.1, 3.0 + hs, 2.1 + edr

               usage environment

operating temperature

-20 ℃ ~ 55 ℃

storage temperature

-40 ℃ ~ 70 ℃

humidity

5% ~ 95% rh no dew

seismic height of falling ground

able to withstand1.5 m height dropped to smooth cement floor for many times

ip protection level

ip67 three-proof (waterproof, dustproof, shockproof)

static protection (esd)

air± 12kv, contact ± 8kv

supported authentication items

un38.3,msds, air transport certificate; ccc ;srrc & cta; ccc certification of battery; ip level; military industry

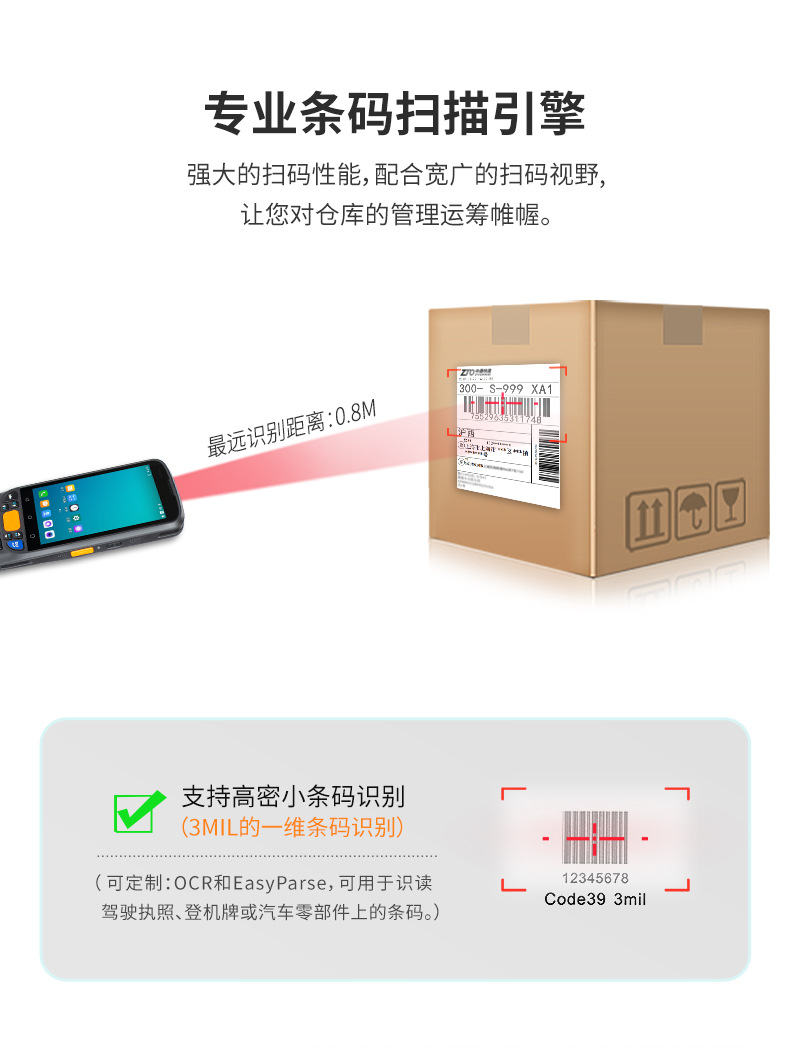

                scanner

resolution

1280*800

sensor

global shutter

angle of field of view

level:39.5 ° vertical: 26.1 °

scanning angle

rotate (tilt):± 180 °, pitch: ± 60 °, deflection (skew):± 60 °

code system supported

one dimensional code:code39,code93,code128,codabar,ean-8/13,itf25,upce,upca, isbn13,pdf417,mat25,msi,code11,ind25,chinapost,pharma,gs1, etc;

qr code:datamatrix,qr,microqr,aztec,hanxin,post, etc.

packaging materials and accessories

standard accessories

medium gauge5v 2a adapter * 1; typec data cable * 1; hand strap * 1

optional accessories

pd+18w fast charge adapter; single main engine universal fixed charger; lanyard

packing material structure material

logo nameplate; cover protective film

packing box type

pit box
