cross-border factory manual sphygmomanometer with stethoscope clinic medical sphygmomanometer arm double tube double head sphygmomanometer

This product is only for export to foreign markets. Domestic customers are not allowed to purchase it. This packaging is a sample package, with no production information. If special packaging is required, please contact customer service for customization.

Model Number: C206C0F201

Certificate: CE

Strap: Nylon, 40*500MM

Ball, bag: PVC

Measurement range: 0-300mmHg

Other: Ordinary air valve

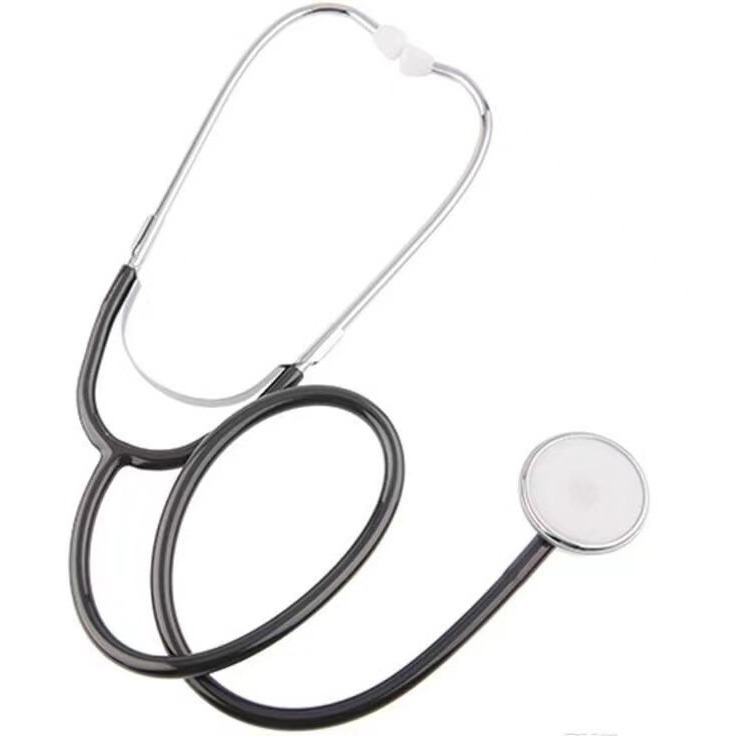

Stethoscope: Use only a stethoscope

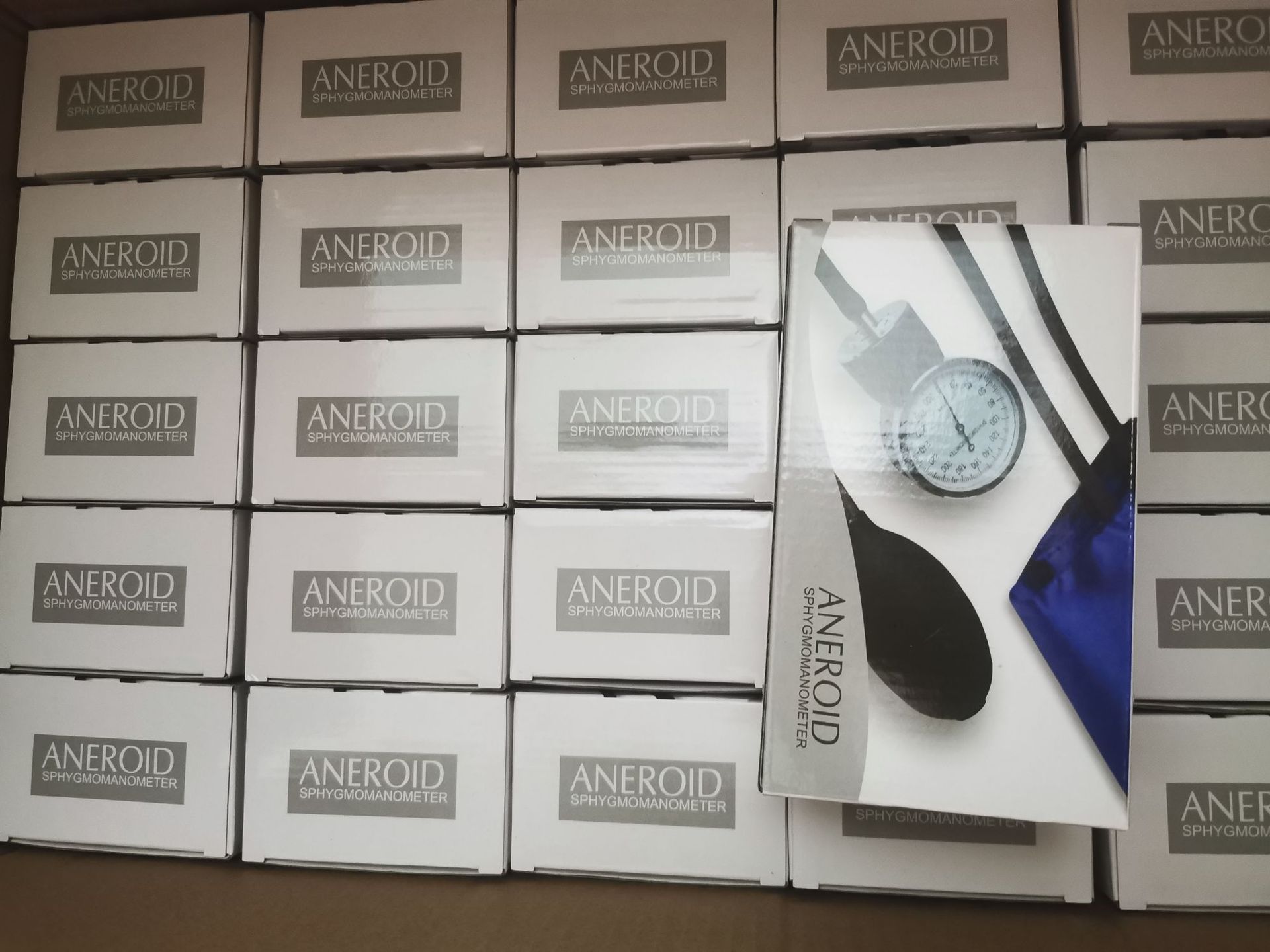

Independent packaging: Neutral color box, leather sleeve

Manual Blood Pressure Monitor Box Specifications:

Product weight: 443 G       Product dimensions: 195*210*70 MM

Two-in-One Blood Pressure Form Box: 17.5*10.5*6.5 CM, Weight: 392.5 g

Single-list two-in-one blood pressure meter box dimensions: 54*35*37 cm, 50 units per box, 21 kg

Aluminum single-box specification (with colored box): 5.2*2.9*4.3 cm, 100 units per box, 12 kg

Aluminum dual listening case specification (with color box): 5.2*2.9*4.3 cm, 100 pieces per box, 14 kg

Instructions:

1. Product Introduction:

Easy to use, accurate measurement data, fully metal construction, and durable. This digital sphygmomanometer is a model designed specifically for home users by a medical device manufacturer that produces desktop sphygmomanometers. It is compact and portable, with high measurement accuracy. Its usage method and accuracy during measurement are identical to those of the mercury desktop sphygmomanometers used by doctors in hospitals.

2. Working Principle:

The pressure measurement at the affected area is achieved by inflating and pressing with an arm strap, thereby blocking the current, and then the gas in the arm strap is released to allow blood to flow again. Blood pressure measurement is determined based on the sound of blood flow or the changes in vibration of the blood vessel arms during this re-flow.

3. Measurement Range:

0–300 mm Hg (0–400 kPa)

4. Basic Error:

National standard error: ±3.75 mmHg; factory error: ±2 mmHg

5. Configuration:

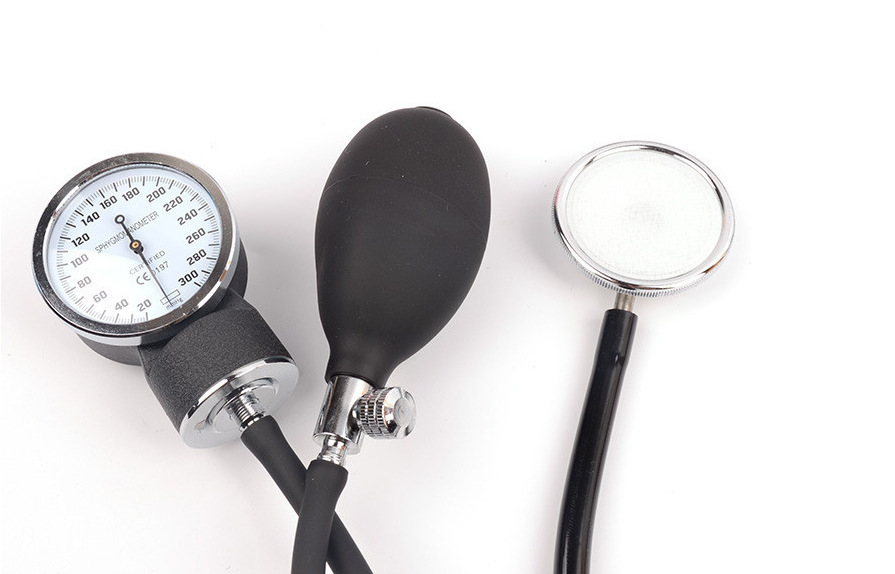

5.1: Header: Material: Aluminum alloy or zinc alloy; Default color of aluminum alloy: Black, blue, gray, or as specified by the customer

5.2: Internal Capsule: Material: Latex; Default PVC Color: Black or as specified by the customer

5.3: Ball Compression: Material: Latex; Default PVC Color: Black or as specified by the client

5.4: Intake Valve: Material: zinc alloy, copper, plastic; Default: zinc alloy with electroplating treatment

5.5 Tail Valve: Copper or plastic; default: copper electroplating treatment

5.6: Bag: Leather bags can have logos printed; default printing style is standard.

5.7 Straps: A. Color: The color of the arm straps is specified by the customer; black is the default. B. Size: Available sizes include (large adult, adult, youth, child, baby – default is adult). C. Material: Nylon, cotton, PU – default is nylon. D. Printing: LOGO printing is available. E. Straps come with metal rings.

5.8: Audio Type: Specification: Standard single-channel, standard dual-channel Material: Aluminum alloy, zinc alloy Surface treatment: Aluminum oxide, zinc alloy electroplating Default: Standard single-channel with aluminum alloy

5.9: Stethoscope tube: A. Material: PVC; B. Color: Black by default, as specified by the customer

5.10: Ear Hooks: A. Materials: aluminum alloy, copper, stainless steel. B. Surface treatment: aluminum alloy, copper electroplating, stainless steel raw color.

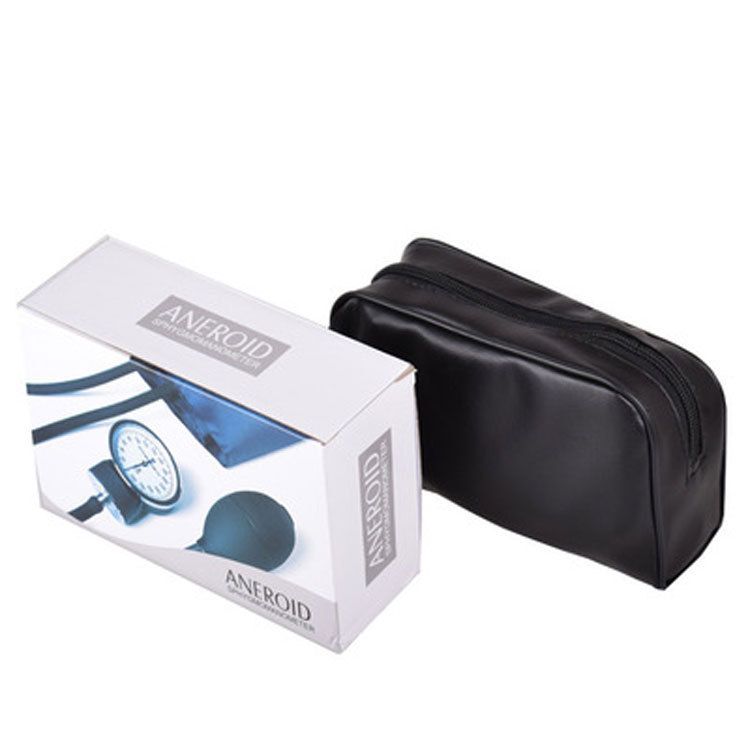

5.1.1: Packaging: 1 piece is packaged in a colored box. The default packaging is neutral color, as specified by the customer.

6. Product Features:
A blood pressure monitor is a diagnostic device used to measure human blood pressure. It features a small size and easy portability. Its performance is similar to that of a mercury column sphygmomanometer, and it uses a silver-free design. Measuring blood pressure safely and reliably, it is widely suitable for home users.
7. Precautions for measuring blood pressure:
Blood pressure should be measured in a quiet environment. Since blood pressure levels in the human body fluctuate throughout the day, it is best to perform the measurement at the same time every day. The person being measured should remain calm and relaxed, with no talking or activities. It is advisable to wear loose clothing.

8. Measurement Method:
8.1. Before the blood pressure monitor is put into use, it must be inspected first. A blood pressure monitor that can be used normally should have the dial pointing at “0” position, respond flexibly under pressure, and be able to return to “0” position again.
8.2. The participant is requested to sit next to the table and place their left arm on the table, maintaining a comfortable position.
8.3. Adjust the arm to be at the same height as the heart; if the height is insufficient, add a soft cushion under the arm.
8.4. Flatten the arm strap so that the middle part of the air tube faces the brachial artery. Tie the lower edge of the arm strap at a position 2 to 3 centimeters above the elbow pit on the upper arm. It should not be too tight or too loose; ideally, two fingers can be inserted under the strap to avoid affecting accuracy.
8.5. Insert the stethoscope tip into the arm strap and position it over the brachial artery at the elbow.
8.6. Slowly inflate the arm strap using a latex ball, while monitoring closely. Stop inflating when the brachial artery pulse disappears, and increase the pressure to 2.5 kPa–4 kPa (20 mmHg–30 mmHg).
8.7. After the pressure is stopped, slowly release the air from the arm strap at a rate of 0.3 kPa–0.6 kPa (2 mmHg–4 mmHg) to allow the blood pressure gauge needle to gradually drop.
8.8. The pressure value indicated by the clock hand when the first heartbeat sound is heard via stethoscope during the descent process is known as systolic pressure.
8.9. When the pulsatile sound turns into a murmur after gradually intensifying, the pitch suddenly becomes muffled and gradually disappears. When no sound is heard, it constitutes diastolic pressure.
When measuring blood pressure, it is generally recommended to repeat the measurement 2 to 3 times, and then average the readings to determine the blood pressure value.
*The back of the blood pressure monitor case is equipped with metal hooks, which can be attached to the arm strap for easier reading.
*The arm of the blood pressure monitor has Velcro, and the strap is convenient to use.

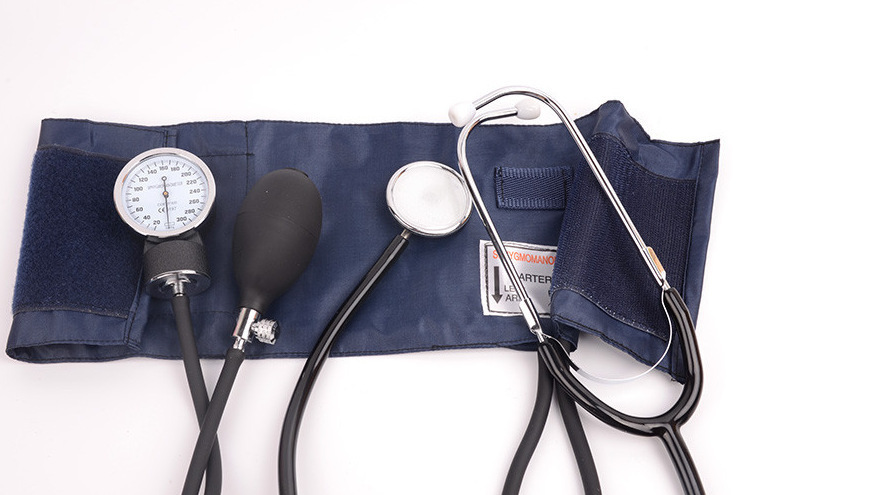

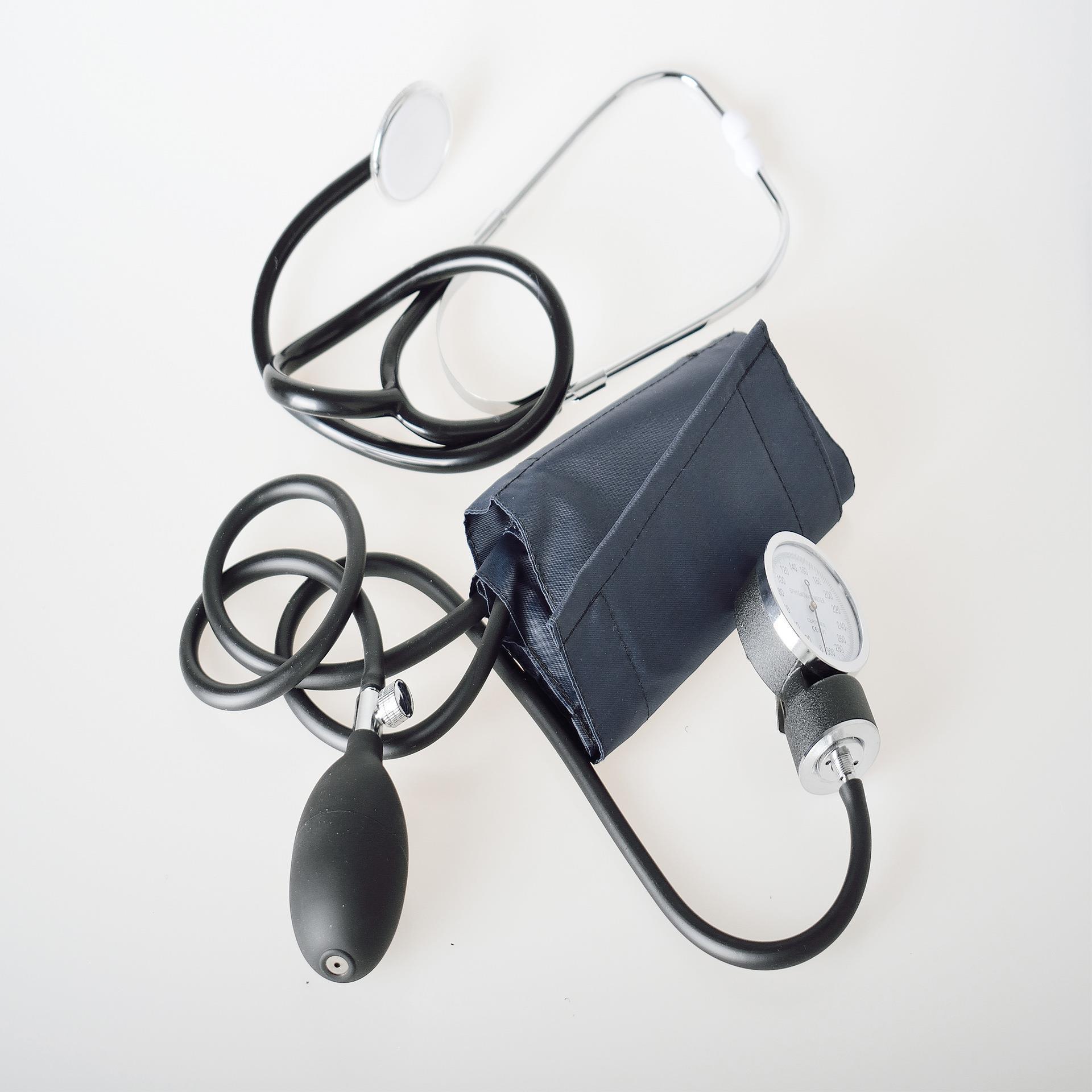

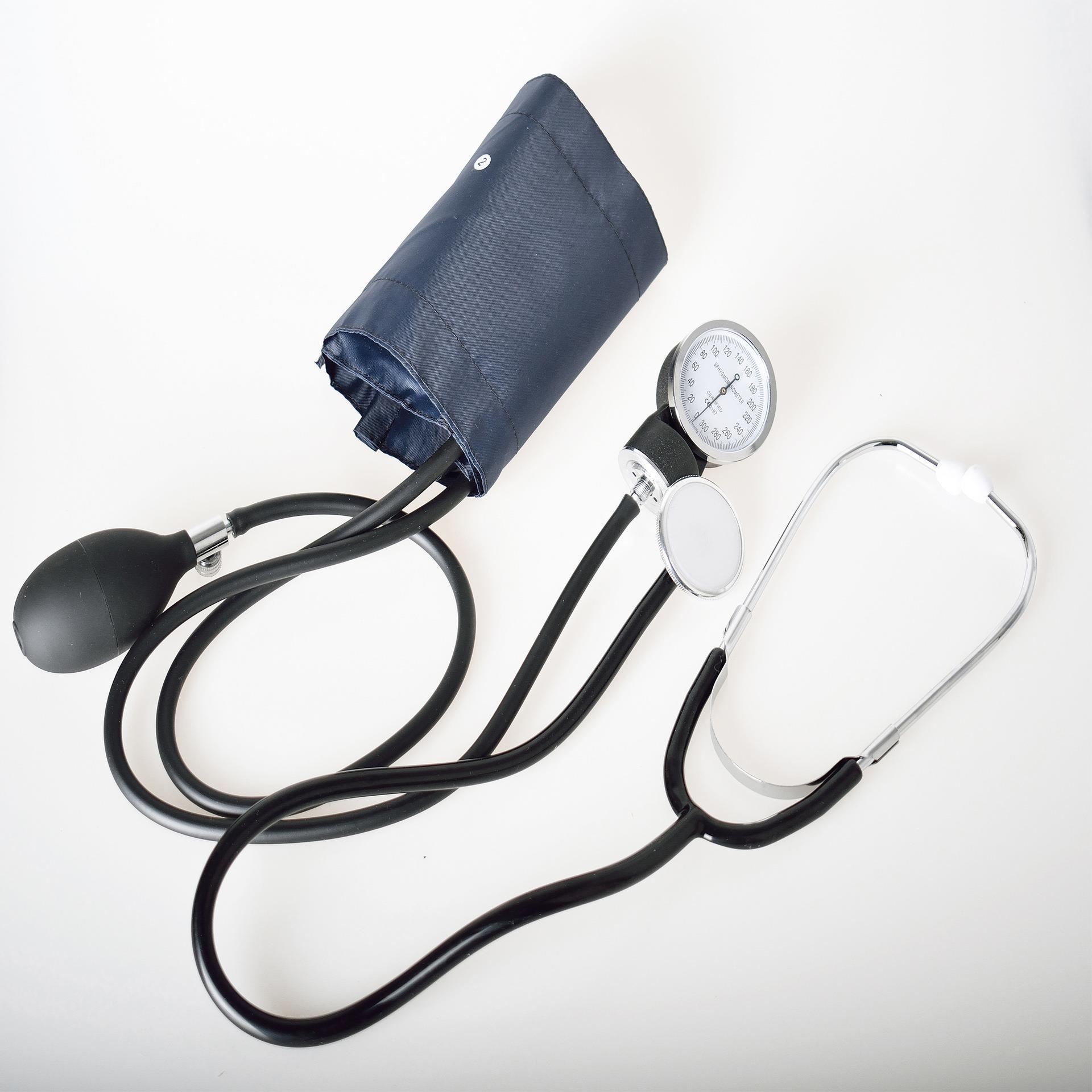

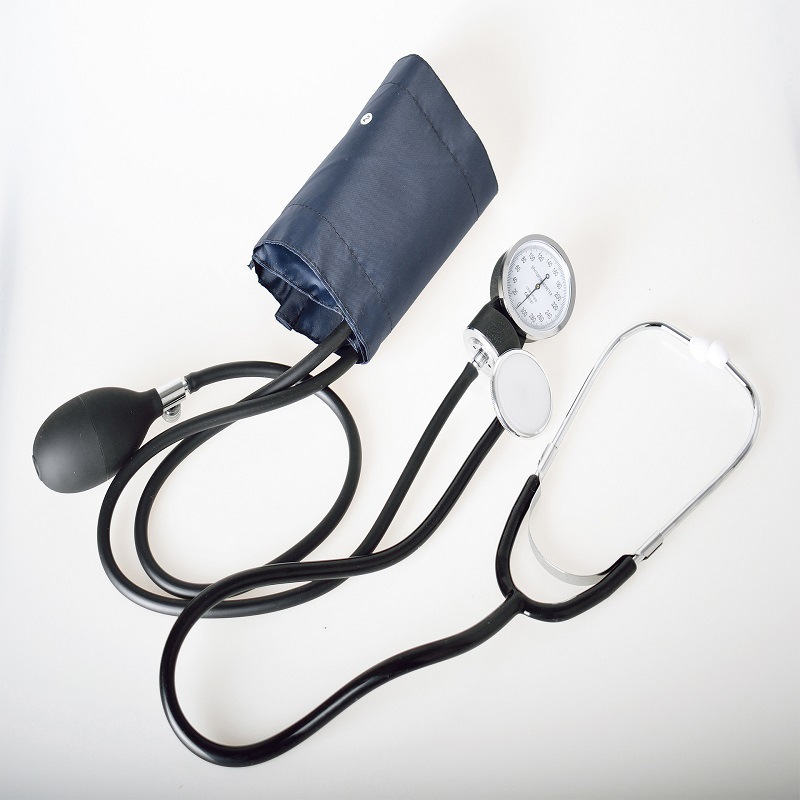

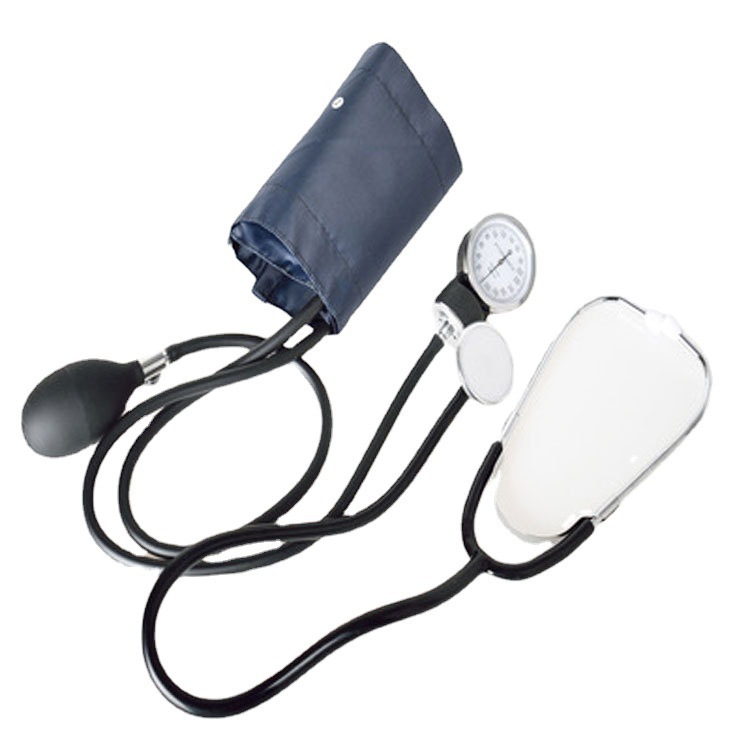

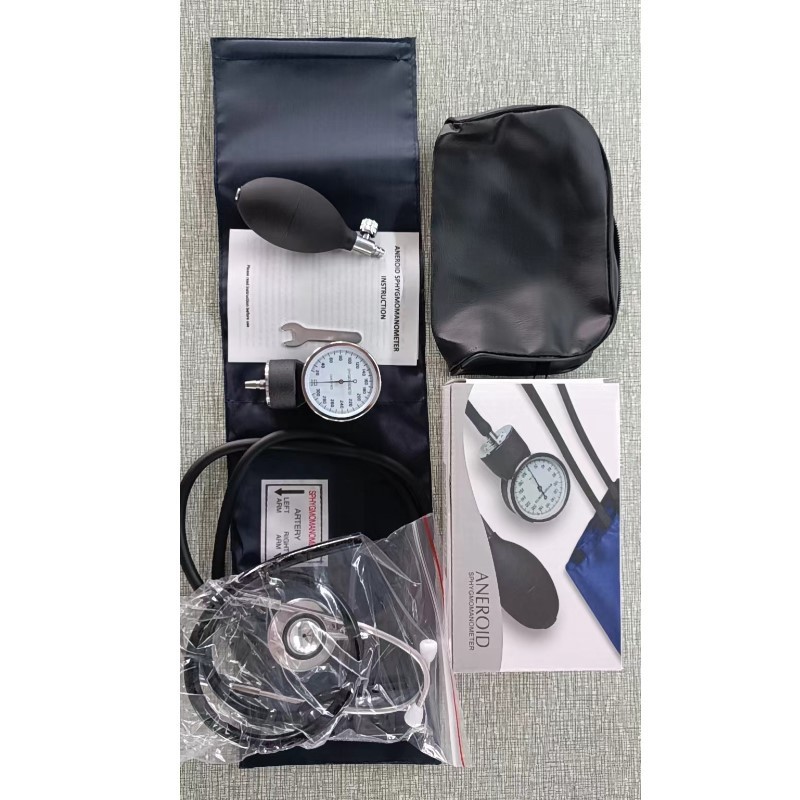

Main Image Style Single, Two-in-One Set:

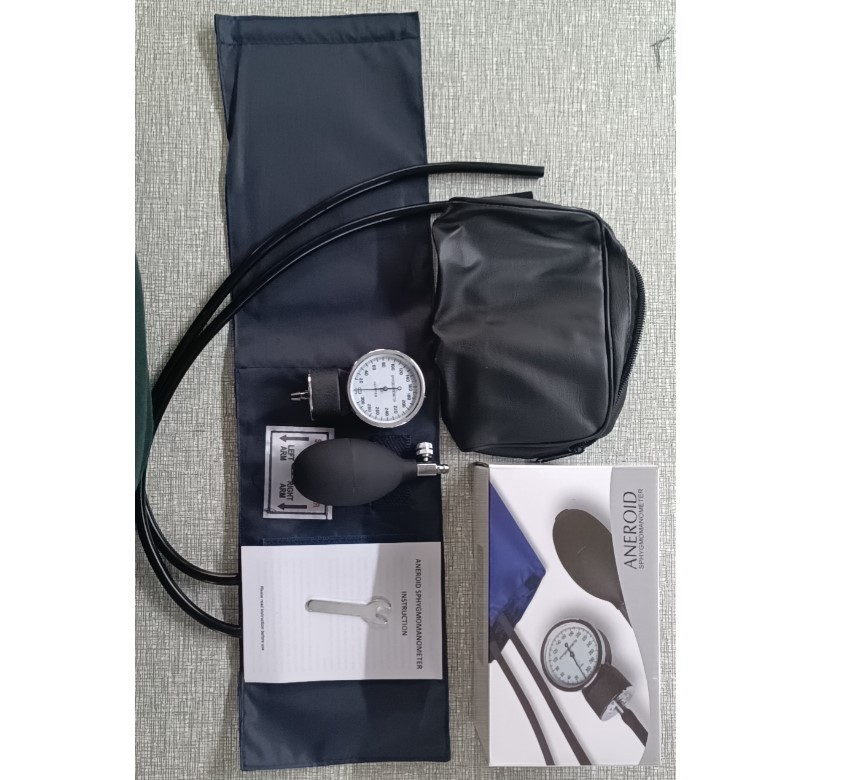

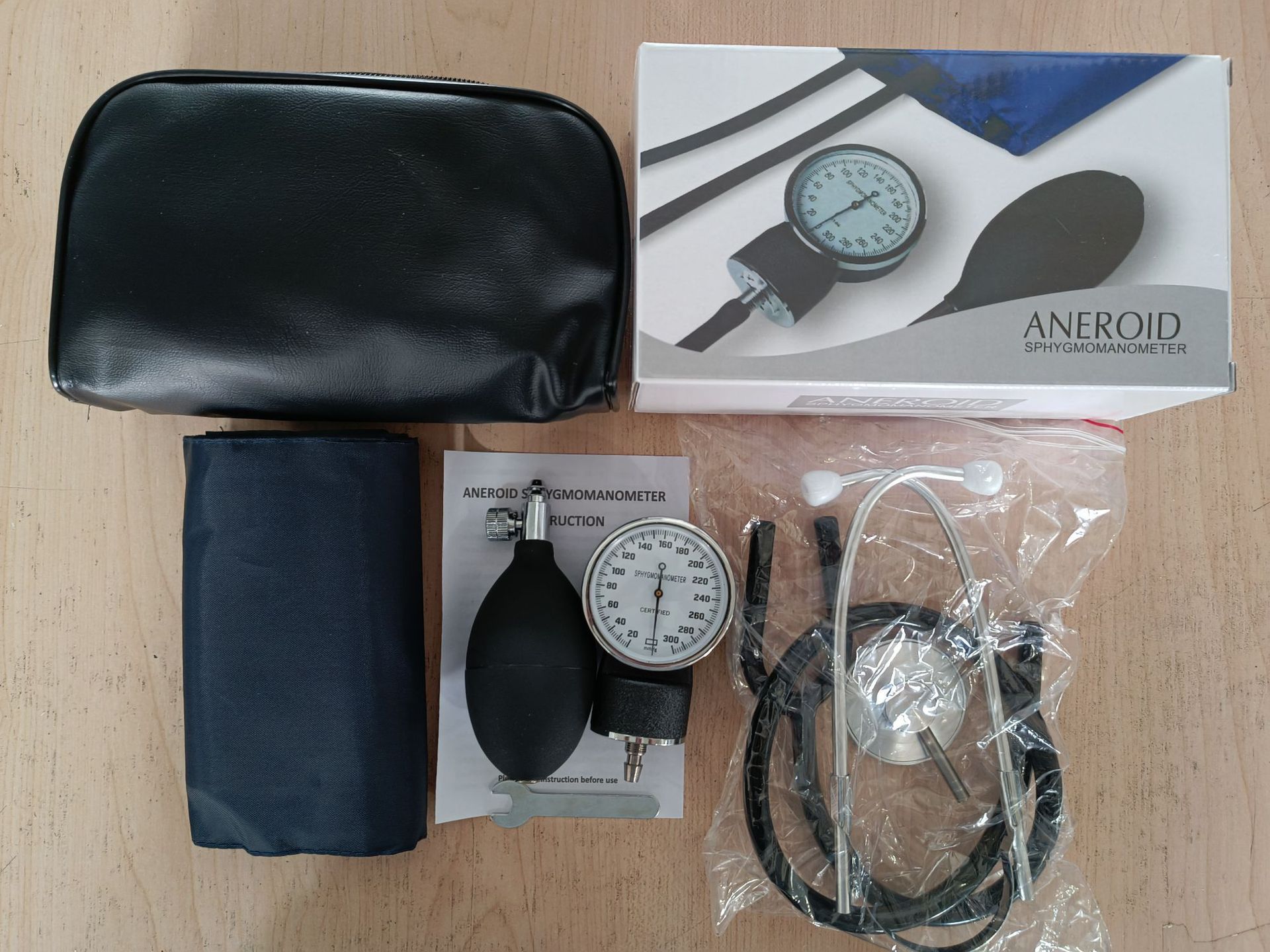

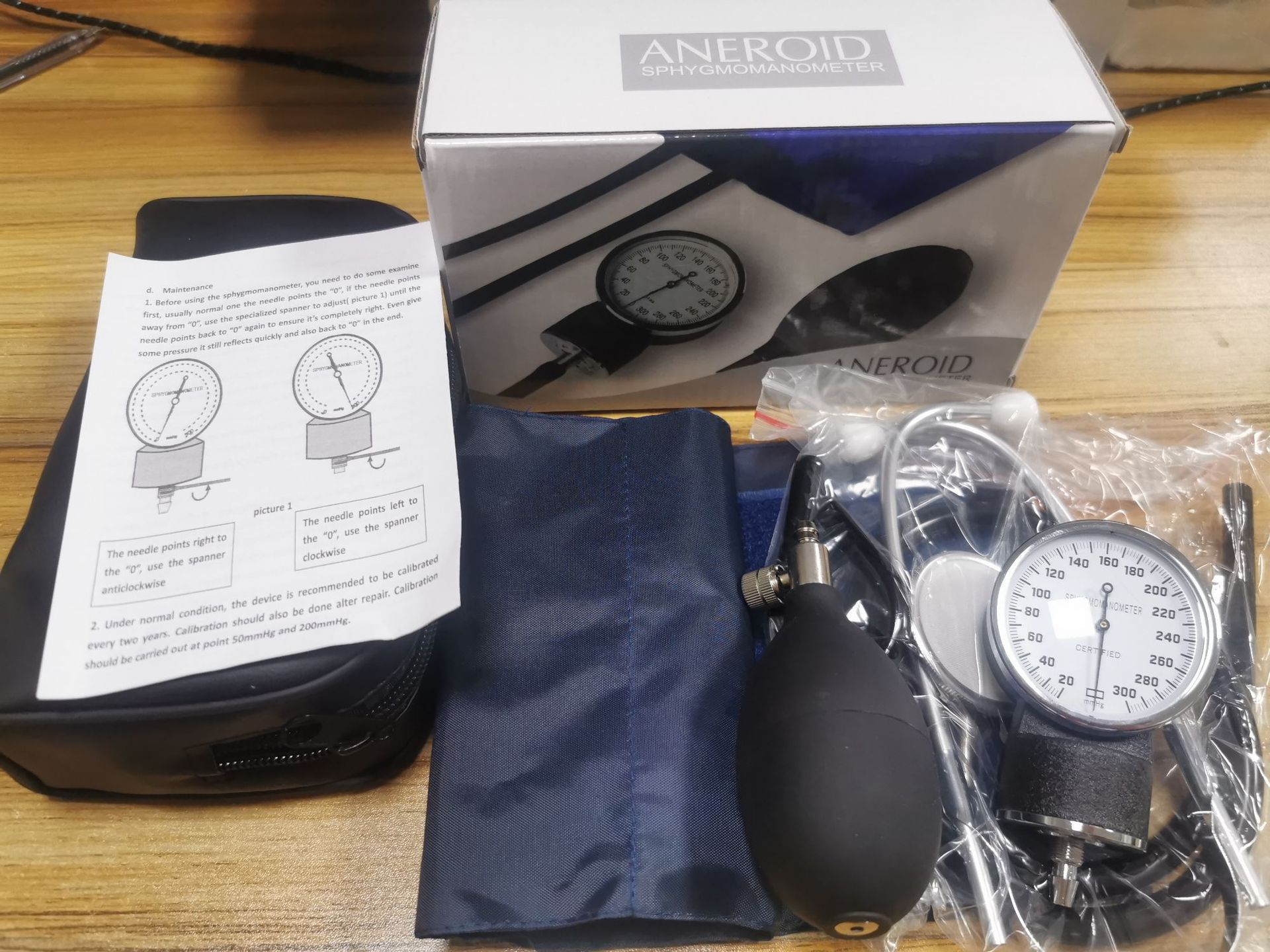

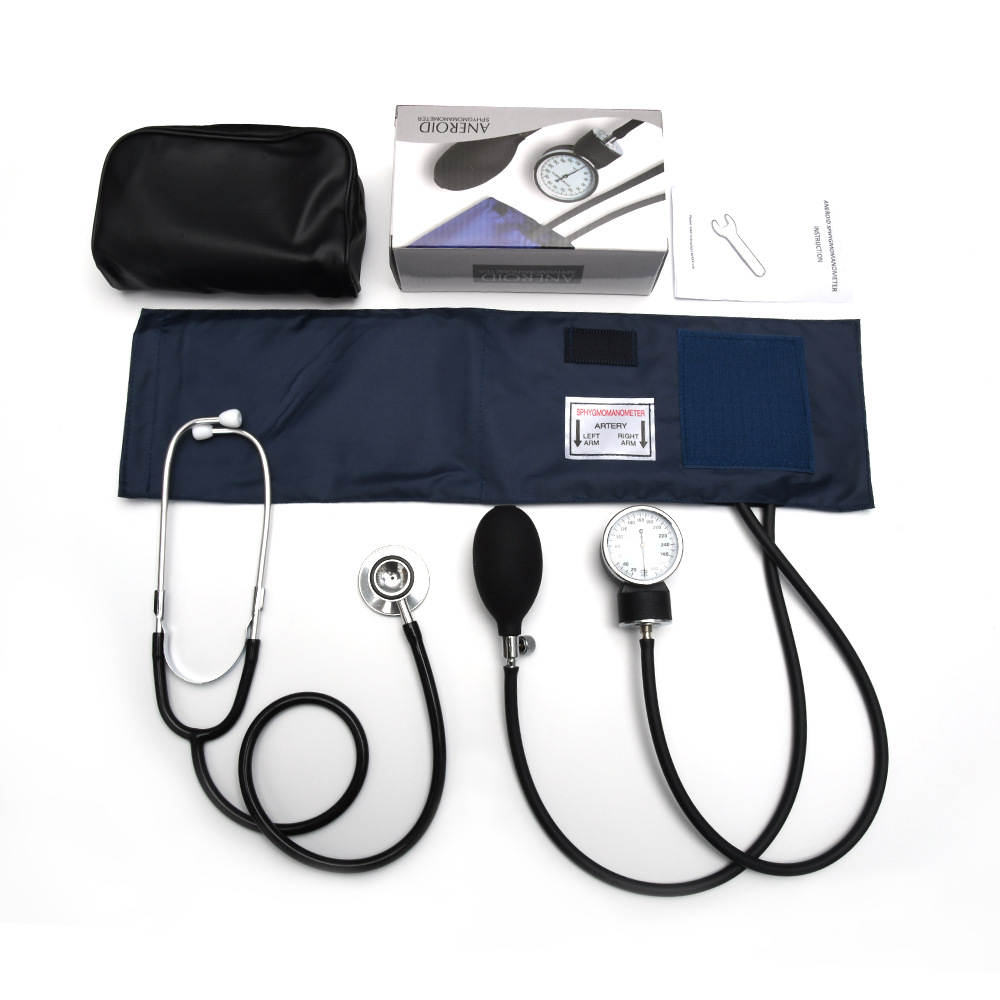

Dual Hearing Two-Combination Full Set:

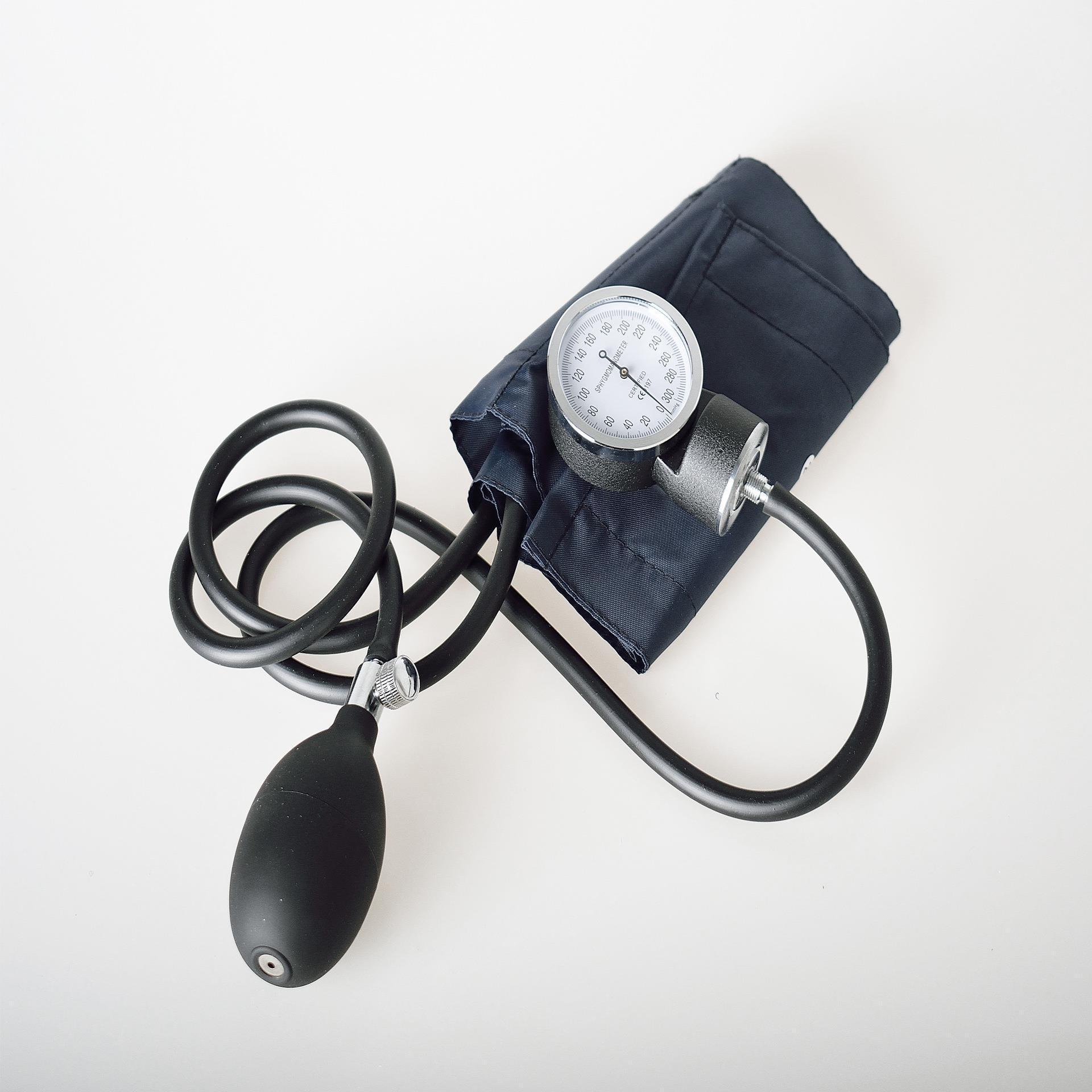

Neutral Blood Pressure Meter:
