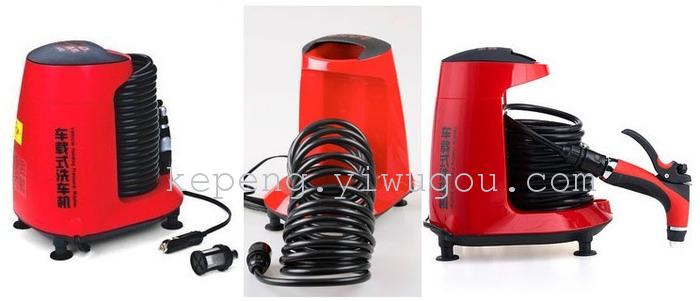

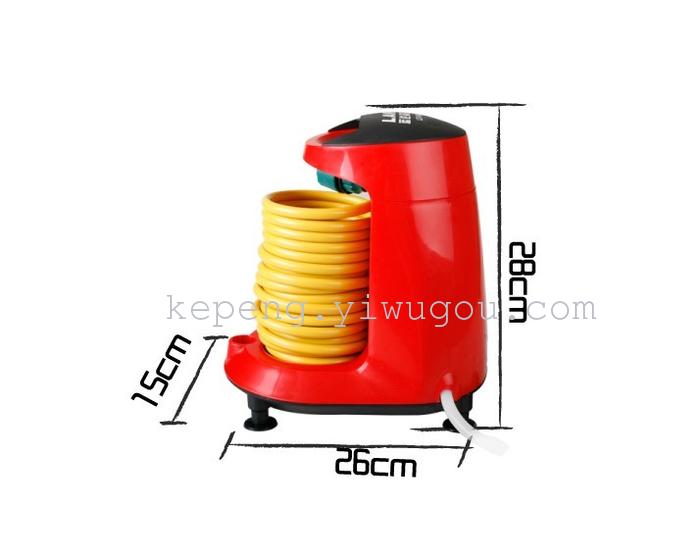

1. Product model: LD-VH112
2. Power Supply Voltage: DC12 (Power Supply 12V)
3、Rated Power: 120W
4、Pressure Limit: 0.5Mpa (5 kgf)
5. Maximum Pressure: 1Mpa (10 kilograms)
6. Water Pressure: 0 (siphon design, simply place the inlet pipe into the water).
7. Overall Weight: Each package weighs 4.5kg.

1. Preparation:

① Unload the car washing machine from the trunk or the warehouse.

Relax the power cord from the coiled state.

③ Carry a bucket of clean water.

④ Insert the quick coupler on the outlet pipe onto the gun tail.

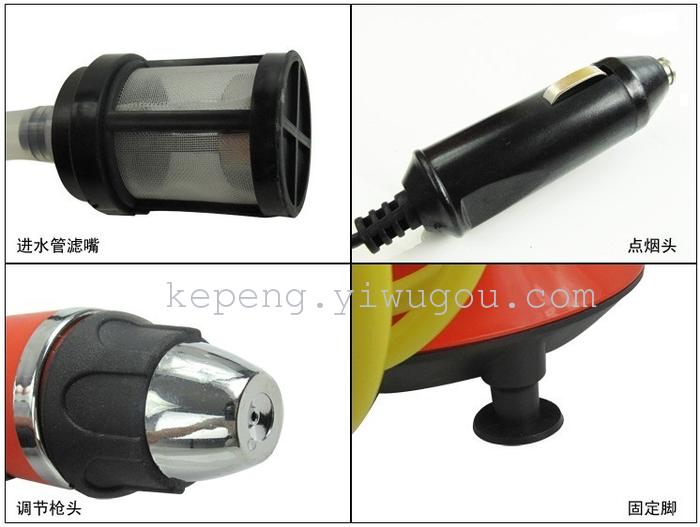

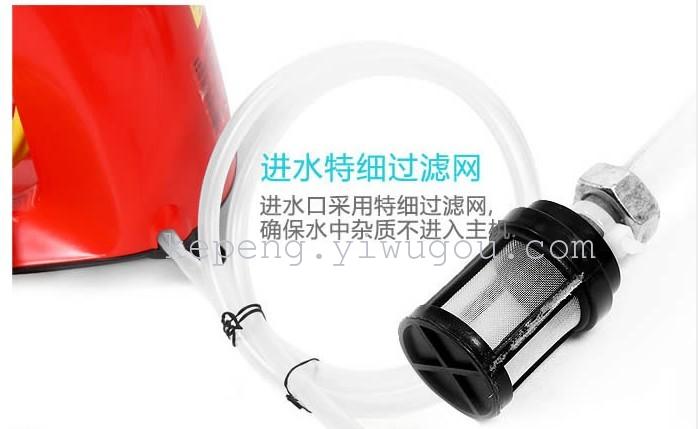

Insert the water filter into the water and lay it horizontally at the bottom of the bucket.

Start the car.

Insert the plug into the car's ashtray socket or into our company's dedicated power adapter (at this point, the machine will start operating).

Close the car door.

2. Operation sequence:

① Use the car washing machine to remove the floating dust on the surface to be cleaned, and at the same time wet the surface to be cleaned.

② Use a brush to clean the surface of the washing. (To ensure a more thorough cleaning, use a neutral detergent.)

③ Rinse the surface that has been brushed with a car washing machine.

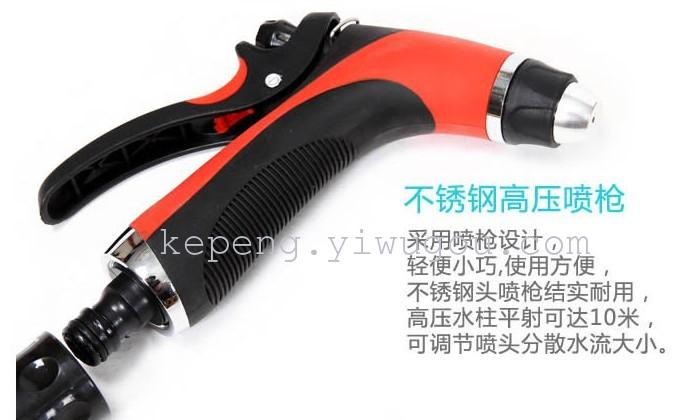

④ Use a towel to wipe dry the surface that has been cleaned. Note: Rotate the nozzle to adjust the water type.

3、使用结束:

① Drain the water inside the machine (while it is in use, remove the water inlet hose from the water, wait for a few seconds, until no water is sprayed from the nozzle). ② Remove the power cord plug.

Close the car engine.

④ Wind the power cord around the four support legs and insert the plug into the fixed position.

⑤ Tuck the water outlet pipe away and plug the gun into the machine's socket.

Pour the excess water out of the bucket.

⑦ Put the attachment into the bucket.

⑧ Locate the main unit and accessories for storage.

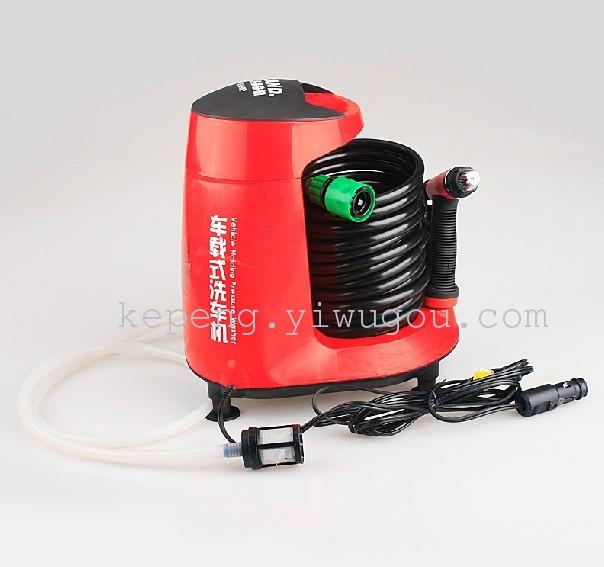

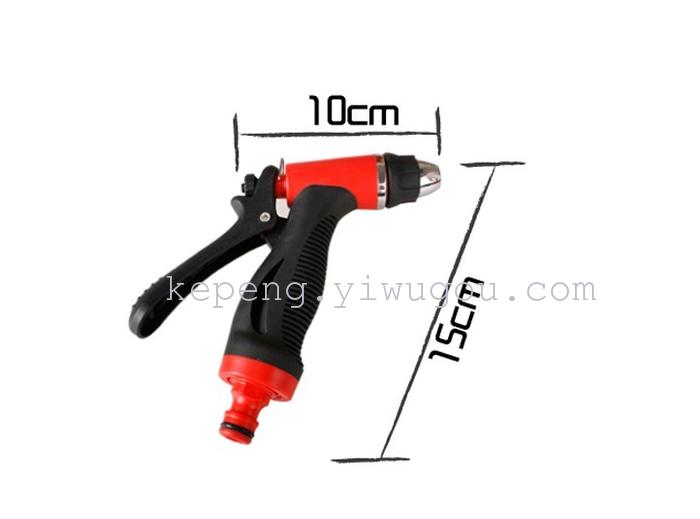

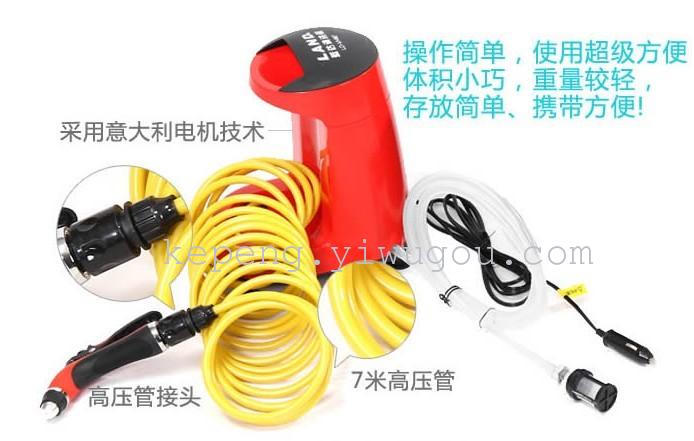

Standard configuration: 1 cleaning machine, 1 water gun, 1 7-meter high-pressure hose.Pipe color: black and yellow sent at random1.2-meter water supply pipe × 1, 3-meter power cord × 1

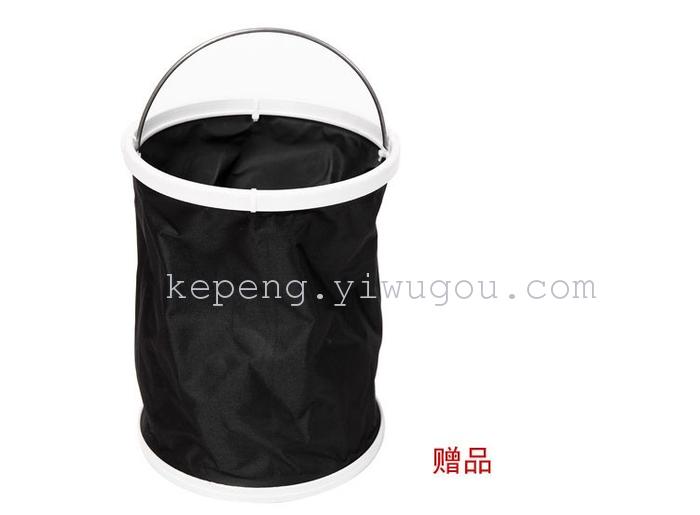

Gift: 15L Foldable Bucket × 1, Car Washing Cloth × 1, Car Washing Brush × 1
