Jinlangsi S5 Ultra-Thin Floor Spring Heavy-Duty Maximum Load 100-130kg 中文版

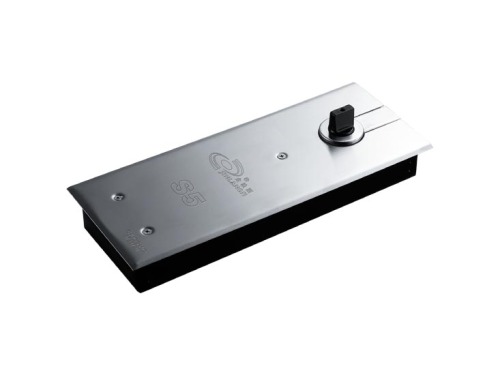

Jinlangsi S5 Ultra-Thin Floor Spring Heavy-Duty Maximum Load 100-130kg

Jinlangsi S5 Ultra-Thin Floor Spring Heavy-Duty Maximum Load 100-130kg Jinlangsi S5 Ultra-Thin Floor Spring Heavy-Duty Maximum Load 100-130kg
QR code0
[Scan the QR code, view in your mobilephone.]
  • Updated: 2021-03-08 14:02
  • About Product:High quality stainless steel handle, surface oxidation treatment, more durable, Never Fade!! Glass doors can be installed, wooden doors and aluminum alloy door frame can be installed, and different doors can be installed screw parts. Please leave a message when placing an order!
EXW Price: Price Negotiable
The price for this item is to be negotiated. Please contact supplier for further information.
Send Inquiry
Contact
Main
Products:
Handles,staircase column,staircase handrails,door handles,glass door handle,luxury door handle,door handle,floor spring,glass doors,shower handle
Contacts: 林浩钿Chat
Mobile: 86-579-81530000
WeChat: 15825792575;13957928489
Address: 13010 B, 1 Street, 2 F, 19 Gate, International Trade Mart (District 2).

★Promotion★ High quality stainless steel handle, surface oxidation treatment, more durable, Never Fade!! Glass door can be installed, wooden door and aluminum alloy door frame can be installed, different door screw accessories are installed, please leave a message when placing an order! Handle is 1 Pack, 1 door is installed inside and outside, if it is door-to-door, you need to order 2 packs!

product style, total length, and hole spacing can be customized. If you need to customize the length and hole spacing, please contact Customer Service for inquiry.]]
正品保证



product Introduction
  • S5-1
  • Product Name: S5 ultra-thin
    Surface Treatment: Brushed
    Main material: Cast iron
    Maximum door width: 1100mm
    Maximum load bearing: 100-130kg
    Scope of Application: Plastic steel door, wooden door, 8-12mm tempered glass door
    Main functions: The maximum opening of the door leaf is 120 degrees, and the positioning is 90 degrees in two directions.
    Installation method: Please refer to the following installation steps of ground Spring"
    Characteristic: Open and close 500,000 times without damage





 undefined

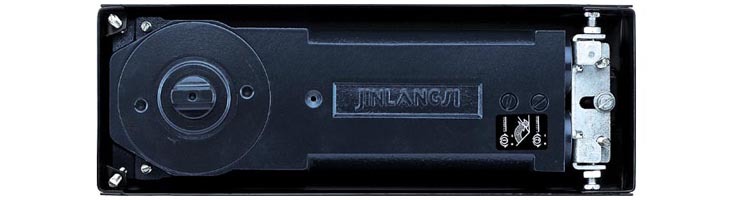

Description of floor spring body structure
 S5 超薄型


S5-1





Installation procedure of ground Spring


    · Installation procedure of ground Spring
...............................................................................................................................................
 (A) draw A line to make the center of the ground Spring rotating shaft coincide with the rotating shaft of the door clamp.
...............................................................................................................................................
 (B) open holes on the ground according to the instructions and objects, and the size of the holes should be tight with the ground Spring shell and cannot be loosened.
...............................................................................................................................................
 (C) put the ground spring into the open hole and straighten it.
...............................................................................................................................................
 (D) lift the door leaf with the door clamp and insert the rotating shaft of the ground spring into the rotating shaft hole of the door leaf.
...............................................................................................................................................
 (E) adjust the screws in the three directions of the ground Spring, keep the door leaf vertical, and the upper and lower rotation axes coincide.
...............................................................................................................................................
 (F) adjust the closing speed.
...............................................................................................................................................
 (G) cover the decorative cover of ground Spring.
...............................................................................................................................................

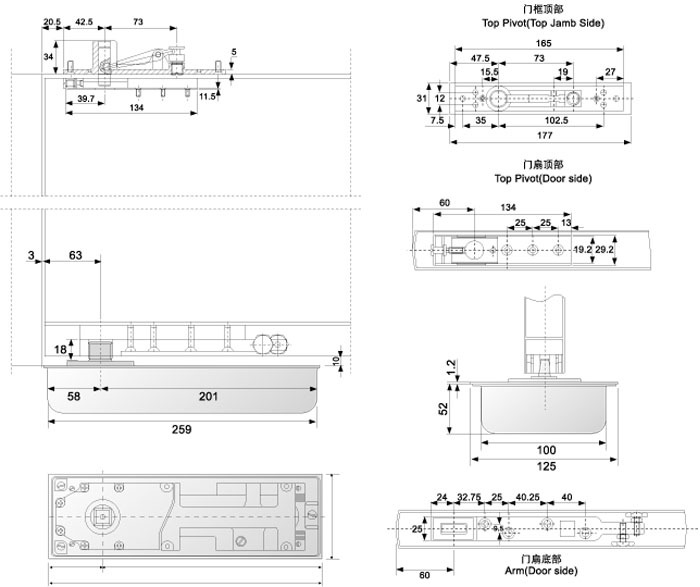

Land spring size accessories drawing product

S5-2
