Frequency: 8.2MHZ
Size: 40x 40mm/30x 30mm/50x 50mm/30x 40mm or customized by customer
Color: black/white

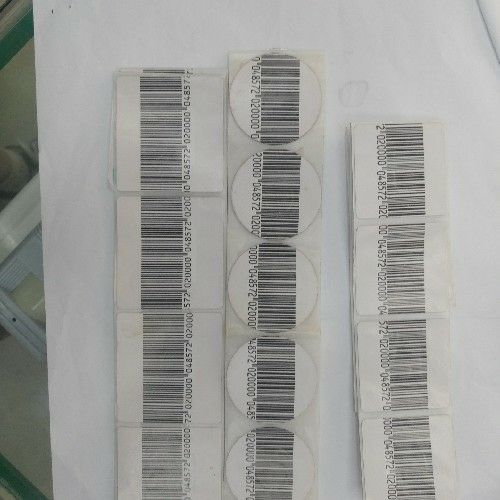

Surface: blank/with bar code
Customer's LOGO can be printed
Packing: Carton, 20000 PCs/carton, 6cm, 0.022CBM
Gross weight: 11.0kg
Net Weight: 10.5kg

8.2MHz series EAS security soft label, with stable quality and superior performance, is suitable for all 8.2MHz decoding systems and detection systems produced by various production plants.

The design and manufacture of 8.2MHz series EAS security soft label can fully meet the high requirements of retailers and manufacturers participating in the source label program for label quality and performance. Each of our labels has undergone careful laminating, oven baking, cleaning, printing, etching, frequency punching and die cutting processes, and each process is strictly controlled, make sure that all parameter indexes and allowable tolerance indexes of the label fully meet the requirements. Each label has undergone detailed and comprehensive testing before packing to ensure that the anti-theft performance of the label meets the requirements. All our labels have been tested and evaluated by retailers, source label programs, manufacturers, label agents, and independent third-party laboratories.

8.2MHz series Security soft label

1. Compatible with all 8.2MHz decoding systems and detection systems.

2. The product has excellent detectability and decoding performance.

3. The product has strong and reliable sealability.

4. The surface layer coated paper has superior performance and is suitable for printing bar codes, trademarks and other printing requirements.

5. Label surface styles are rich and optional: glossy, bar code, and other styles according to customer requirements.

6. Winding specifications are optional: 1000 sheets/Roll, 2000 sheets/roll or at the customer's request.

Electrical parameters

Frequency 8.2MHz ± 328KHz

Q Q ≥ 67

Effective area ≥ 2000m3

Degaussing field strength 0.9A/m -- 1.5A/m

Working door width 1.4m -- 1.7m

Decoding distance 25cm -- 30cm

The packing parameters

Each volume contains 1000 labels/Volume 2000 labels/Volume

juan zhang 42m 84m

Volume diameter 7.6cm cm 7.6cm

Roll outer diameter 14.8cm 18.8c

Volume weight 0.54kg kg 1.07kg

Carton weighs 11.8kg kg 11.0kg

Each box contains 20 rolls and 10 rolls

Box size 30.5cm X 30.5cm × 23.5cm cm to 38.5cm × 20cm X 23.5cm

Label size

Long 40mm

Wide 40mm

Maximum thickness (including lining layer) 27cm

Maximum thickness (without lining layer) 21cm

Label gap 2mm

label material

The substrate layer 80g/m2 glassine

The surface layer 80g/m2 coated paper

The inductor section aluminum foil

Capacitor region aluminum foil

Glue Hot Melt Adhesive

Storage parameters

Storage life temperature 10-25 ℃(50-77 ℃), humidity 65%, two years from the production date.

Under the condition of 80% storage temperature and humidity, the maximum storage temperature and storage time shall not exceed 50 ℃(120 ℃) and 96 hours.

Under the condition of storage humidity 80%, the storage time shall not exceed 96 hours.

We recommend that you use it at a temperature of 15-32 ℃ and an ambient humidity of 57%-70%.
