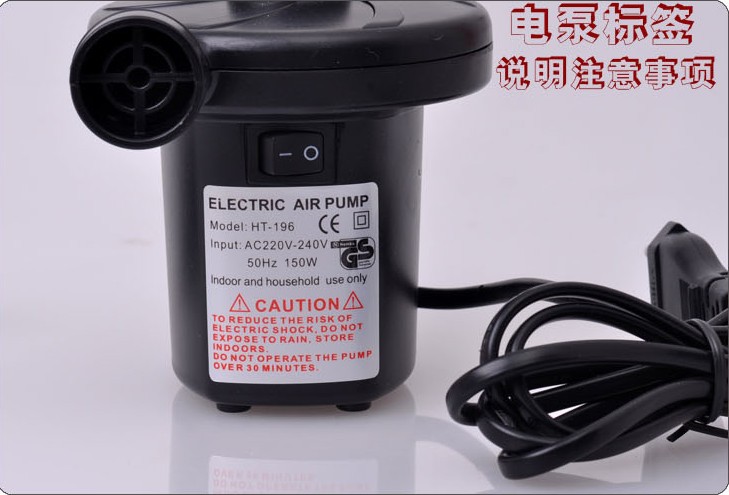

* input voltage: 220v
* input frequency: 50Hz/60Hz
* service power: 150W
* rated pressure: 5000pa - 10000pa
* product weight: 0.58kg
* color box size: 14 x 10 x 12.7cm
 CE certification

The supply voltage of this air pump must be 220V-240V ac.

Air pump is a high efficiency air pump, which is used to inflate the air pool, airship, air mattress, etc.

Do not plug the air vent and vent to avoid obstructing ventilation and affecting the work of the air pump.

Air inflation should be based on the size of the filling valve, the selection of appropriate air mouth to shorten the inflation working time.

2, inflatable

Turn on 220V volt ac power.

When air is deflated, the air charging port is connected with the interface and air nozzle, and then the air filling valve is inserted. The air charging is started by pressing the start switch, and the stop switch is pressed after the end. (\" - \"means on,\" O \"means off)

In case the screw air nozzle is required to be filled quickly, the safety plug can be opened first, and the safety plug can be directly filled by the safety plug. After filling, the safety plug can be locked, and then the safety plug can be directly filled by the upper cover.

When inflating the air, special attention should be paid to the filling valve of the required air filling products can not be blocked to avoid overheating of the air pump caused damage.

Exhaust cover is forbidden when air is deflated. For large inflating vessel or air bed, the pump should be directly inflated to its filling valve to speed up the filling speed. However, for the filling valve of small inflating product, proper air nozzle should be used.

3. The exhaust

Air inlet opens the filling valve to vent air.

Connect vent cover to vent when air vent is done, connect air vent directly and then insert the filling valve, press the start switch to vent, and then press the stop switch.

When starting exhaust, special attention should be paid to the filling valve of the product which needs to be filled, so as to avoid damage caused by overheating of the air pump.

For very small filling valves, hold the thin section of the filling valve with your fingers and open to allow air to circulate.

If the spiral air nozzle requires fast exhaust, open the safety plug to exhaust directly.
