Supports multiple splicing
Transmission power supply and video signal power supply with LED indicator light, input and output 12V-48V voltage
Built-in lightning protection chip
Lightning protection level: Level 3 Lightning protection
Supports HD-CVI/AHD/TVI/CVBS video signals

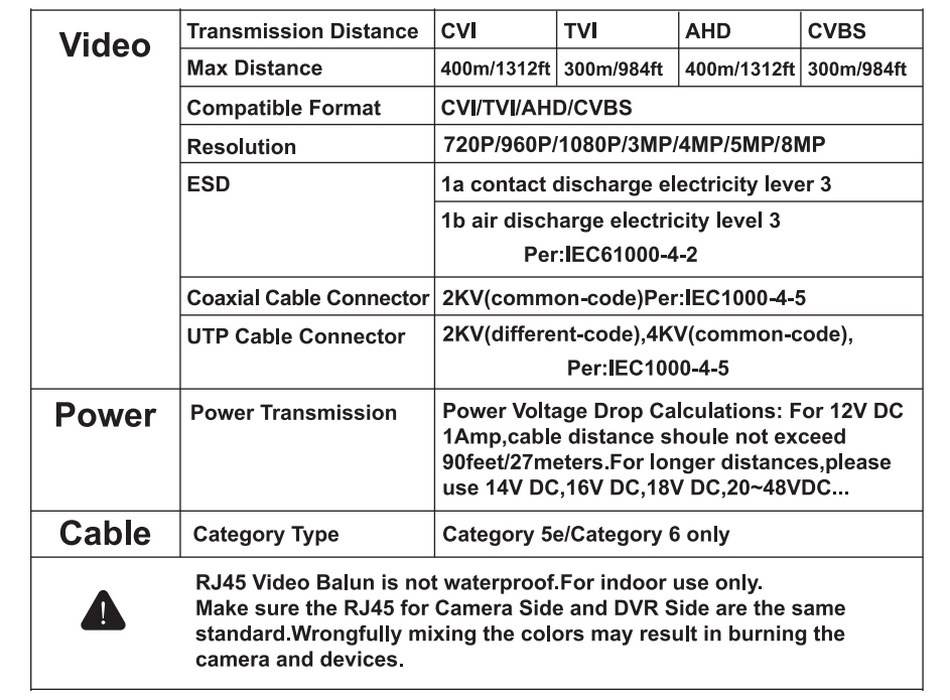

Transmission Distance: 720p/960p/1080p ≤ 300M 3MP/4MP/5MP/8MP ≤ 200M

  Product description:

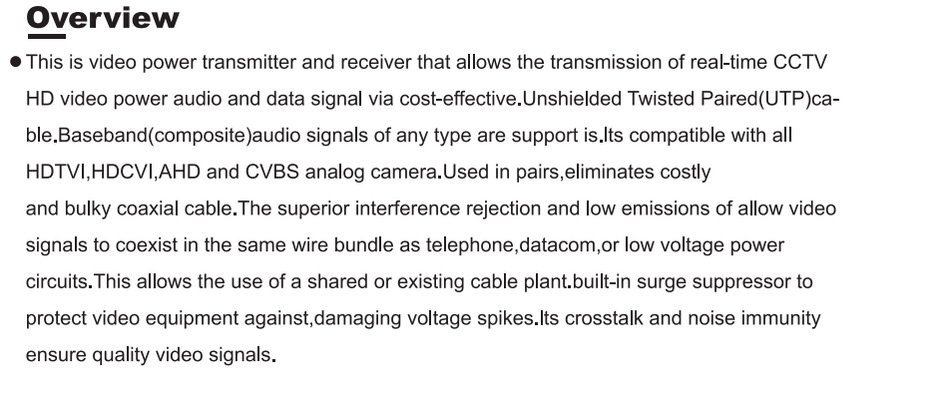

  This transmitter can realize the use of ultra-five twisted pair cable instead of 75 ohm coaxial cable as CVI/AHD/TVI/CVBS video signal transmission. Ensure image quality, filter most interference signals, and improve image definition. It is suitable for transmission of multiple signal sources, improves cable utilization and reduces engineering maintenance. It is compatible with AHD/CVI/TVI/CVBS high-definition analog signals that are widely used on the market, with long transmission distance and high transmission quality. Because video transmitter adopts advanced processing technology to amplify and compensate the amplitude and attenuation of video signals at different frequencies, it maintains the brightness and color of the original image. Good transmission of medium and long distance video signals is realized.

Product features:

1: usage: Power supply and video are concentrated to a super-five twisted-pair network cable for transmission;
2: transmission effect: real-time transmission of HD HD-AHD/HD-CVI/HD-TVI /CVBS video signal, clear and stable video;
3:720p CVI/AHD /CVBS transmission distance: 0~450 meters;
4:1080p CVI/TVI/AHD signal transmission distance: 0~250 meters;
5:TVI signal transmission distance: 0~250 meters;

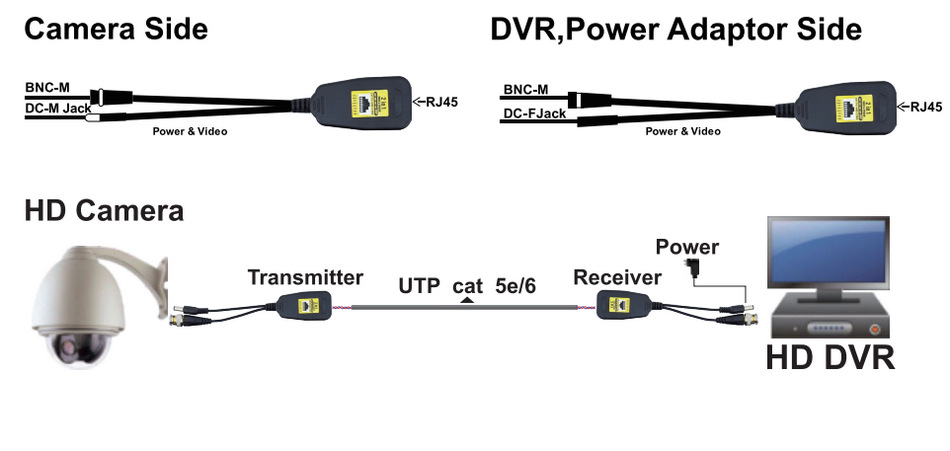

6: main function: Use a pair of twisted pairs to transmit video and power signals simultaneously;
7: protection and immunity: anti-static and high frequency interference resistance;

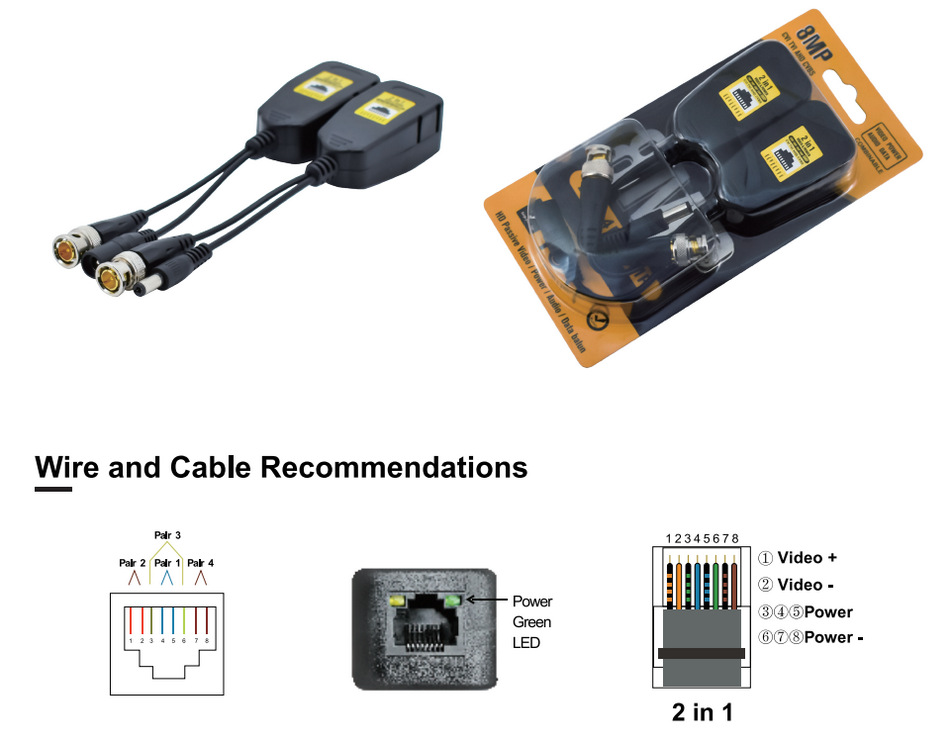

8: appearance structure: metric BNC coaxial interface, clamp-type twisted pair terminal;
9: signal advantage: filter most of the high frequency interference, accurate signal restoration
10: wiring advantages: due to the small wire diameter, light weight, simple and quick installation, easy maintenance, the first line meets the video pinyin power transmission, the Super five eight-core twisted pair can be used as a trunk line of camera gun;
