Supply 6XV1840-2AH10 Industrial Ethernet FC TP Standard bus cable (4-core) for Siemens 6XV18402AH10-

Home > Products & Suppliers > Other Markets> 1 F > Yiwu> Beijing Zhongping Technology Co., Ltd

6XV1840-2AH10 Industrial Ethernet FC TP Standard bus cable (4-core) for Siemens 6XV18402AH10

QR code0

[Scan the QR code, view in your mobilephone.]

Updated: 2023-12-22 16:01

EXW Price:

Price Negotiable

The price for this item is to be negotiated. Please contact supplier for further information.

Send Inquiry

Contact

Beijing Zhongping Technology Co., Ltd 3yr.
Main Products:	Siemens industrial automation products Siemens PLC inverter low-voltage contactor miniature circuit breaker
Contacts:	Huang TingChat
Mobile:	86-13811814778
E-mail:	ht@gongboshi.com
WeChat:	13522565663
Address:	Room 401, Floor 4, Building 3, No. 4, Dongtucheng Road, Chaoyang District, Beijing,Chaoyang District,BeiJing City,Beijing Province

Click To Contact Yiwugo's Partner To Get Trade Service

Description

Other Products more >>

Product descriptions from the supplier

Specification

suitability for use			Standard cable with rigid cores for fast installation
cable designation			2YY (ST) CY 2x2x0,64/1,5-100 GN SF/UTP
electrical data
attenuation factor per length
● at 10 MHz / maximum			0.052 dB/m
● at 100 MHz / maximum			0.195 dB/m
impedance
● at 1 MHz ... 100 MHz			100 Ω
relative symmetrical tolerance
● of the characteristic impedance at 1 MHz … 100 MHz			15 %
near-end crosstalk per length
● at 1 MHz ... 100 MHz			0.5 dB/m
transfer impedance per length / at 10 MHz			10 mΩ/m
loop resistance per length / maximum			115 mΩ/m
operating voltage
● RMS value			80 V
NVP value in percent			69 %
mechanical data
number of electrical cores			4

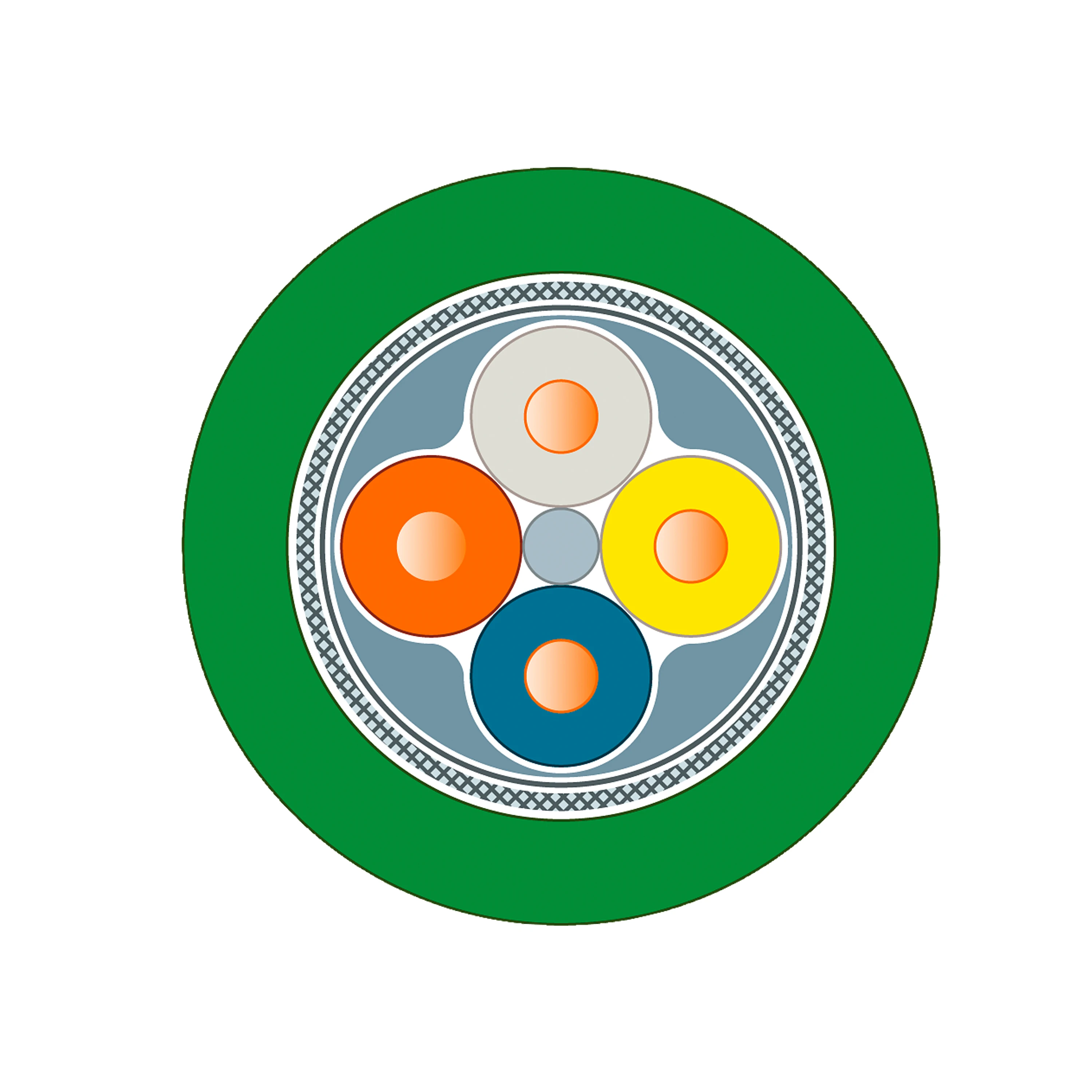

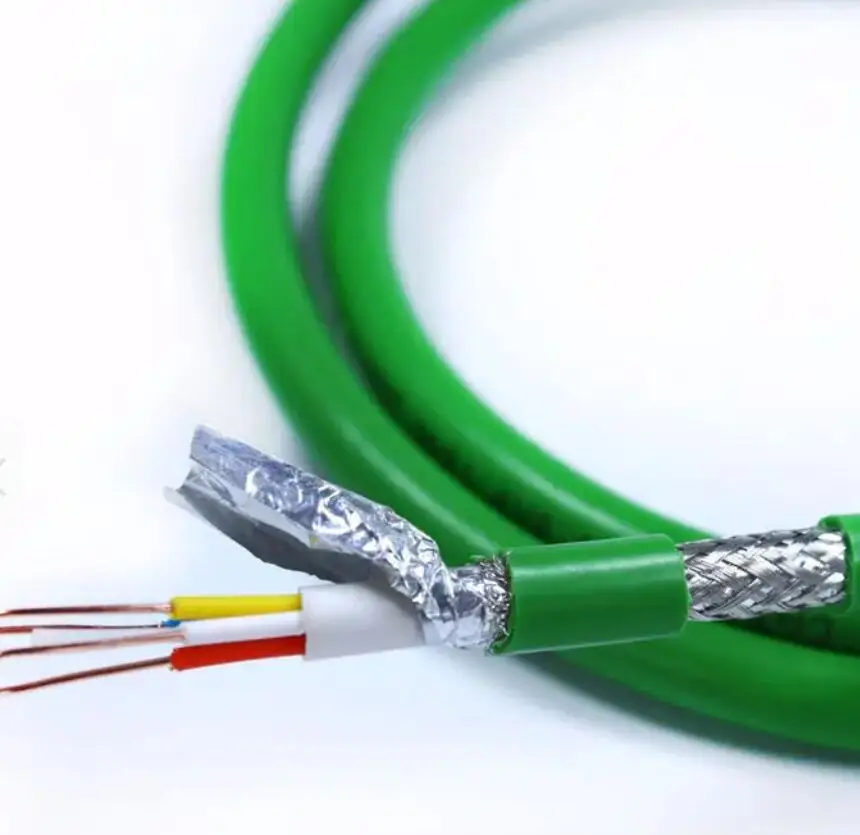

design of the shield			Overlapped aluminum-clad foil, sheathed in a braided screen of tin-plated copper wires
type of electrical connection / FastConnect			Yes
core diameter
● of AWG22 insulated conductor			0.64 mm
outer diameter
● of inner conductor			0.64 mm
● of the wire insulation			1.5 mm
● of the inner sheath of the cable			3.9 mm
● of cable sheath			6.5 mm
symmetrical tolerance of the outer diameter / of cable sheath			0.2 mm
material
● of the wire insulation			polyethylene (PE)
● of the inner sheath of the cable			PVC
● of cable sheath			PVC
color
● of the insulation of data wires			white/yellow/blue/orange
● of cable sheath			green
bending radius
● with single bend / minimum permissible			19.5 mm
● with multiple bends / minimum permissible			49 mm
tensile load / maximum			150 N
weight per length			61 kg/km
ambient conditions
ambient temperature
● during operation			-40 ... +75 °C
● during storage			-40 ... +75 °C
● during transport			-40 ... +75 °C
● during installation			-40 ... +60 °C
● note			Electrical properties measured at 20 °C, tests according to DIN VDE 0472
fire behavior			flame resistant according to IEC 60332-3-24 (Cat. C) and UL 1685 (CSA FT 4)
class of burning behaviour / according to EN 13501-6			Eca
chemical resistance
● to mineral oil			oil resistant according to IEC 60811-2-1 (4 h / 70°C)
● to grease			Conditional resistance
● to water			conditional resistance
radiological resistance / to UV radiation			resistant
product features, product functions, product components / general
product feature
● halogen-free			No
● silicon-free			Yes
wire length / for Industrial Ethernet
● with 100BaseTX			100 m
standards, specifications, approvals
UL/ETL listing / 300 V Rating			Yes; c(ETL)us / CMG / (ETL)us PLTC/ ITC / Sun Res
UL/ETL style / 600 V Rating			Yes; cRUus AWM 21694 AWM I A/B 60°C 600V FT2
certificate of suitability
● EAC approval			Yes
● CE marking			Yes
● RoHS conformity			Yes
standard for structured cabling			Cat5e
Marine classification association
● American Bureau of Shipping Europe Ltd. (ABS)			No
● French marine classification society (BV)			No
● Det Norske Veritas (DNV)			No
● Germanische Lloyd (GL)			No
● Lloyds Register of Shipping (LRS)			No
● Nippon Kaiji Kyokai (NK)			No
● Polski Rejestr Statkow (PRS)			No
reference code
● according to IEC 81346-2			WG
● according to IEC 81346-2:2019			WGB
further information / internet links
internet link
● to web page: selection aid TIA Selection Tool			http://www.siemens.com/tia-selection-tool
● to website: Industrial communication			http://www.siemens.com/simatic-net
● to website: Industry Mall			https://mall.industry.siemens.com
● to website: Information and Download Center			http://www.siemens.com/industry/infocenter
● to website: Selection guide for cables and connectors			https://sie.ag/2QdlxcP
● to website: Image database			http://automation.siemens.com/bilddb
● to website: CAx-Download-Manager			http://www.siemens.com/cax
● to website: Industry Online Support			https://support.industry.siemens.com
