multimeter 万用表

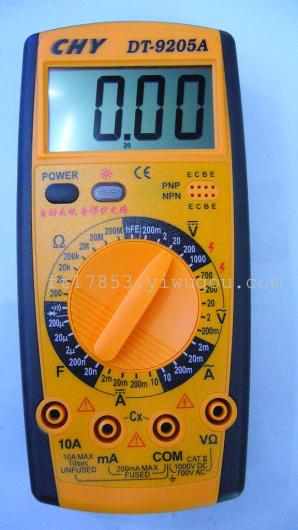

This meter uses a rotary switch, three and a half digits, LCD display, 1.2 mm font size, with a maximum display of 1999, digital LCD display multimeter. Maximum input voltage: 1000 V DC/AC rms.

Frequency response: 45~400Hz

Maximum input voltage: 750V AC rms; maximum open-circuit voltage of the resistor is 2.8V

[t_Function]-------[Range]-------[Accuracy]
DC Voltage: 200mV-1000V 【±(0.5%+1dgt)】
Communication voltage: 200mV-750V 【±(0.8%+3dgt)]
DC Current: 2mA-10A 【±(0.8%+1dgt)】
Current flow: 2mA-10A 【±(1.0%+3dgt)]
-- Resistance: 200Ω-200MΩ [±(1.0%+1dgt)]
-- Capacitor: 20nF-200μF 【±(4.0%+3dgt)】
