goods card: Anpai

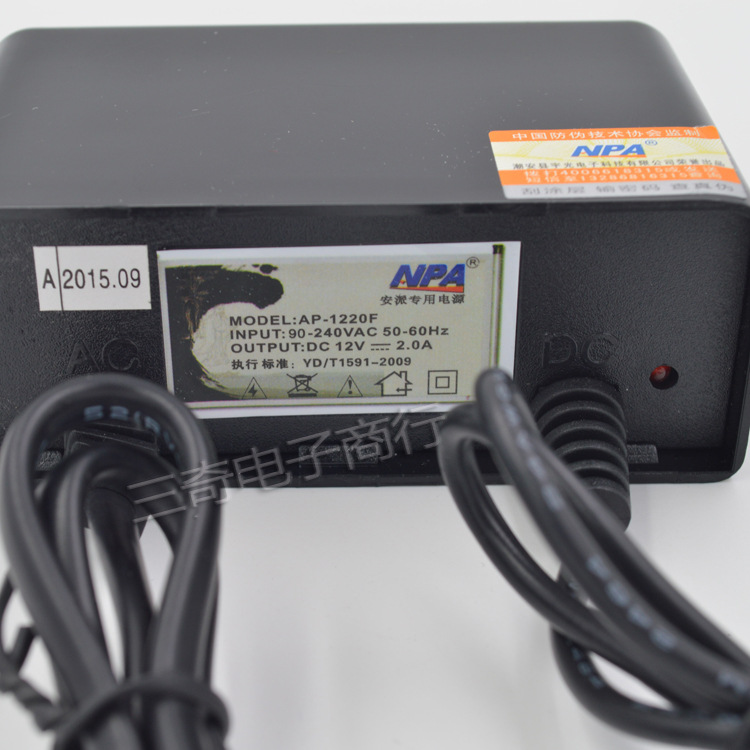

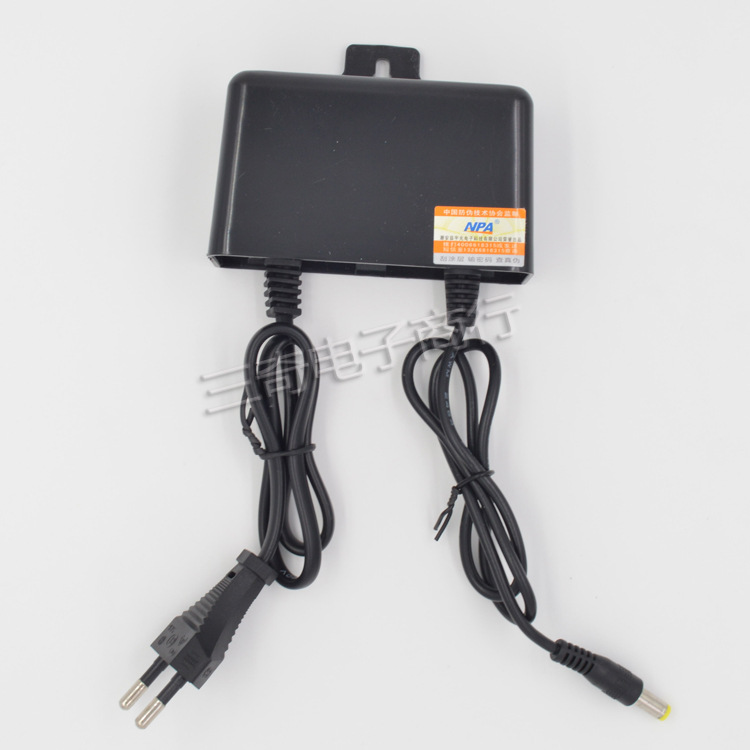

Product Name: 12V2A power adapter

technical parameters:
input voltage: AC (AC) 100v-240v 50-60Hz
output voltage: DC DC 12V 2000MA
rated output current: 2000MA
modulation mode pulse width modulation type
working efficiency of the: 95%
temperature coefficient: + 0.02% C
start time & lt; 1s (220V AC input Io=10%)
Output Ripple & amp; noise: 100mVp-p
output voltage accuracy: + 5% (no load) load regulation: 4%
product scheme: IC solutions
protection function: Overload protection 105% ~ 150% of rated power
automatic recovery voltage over-voltage protection 115% to 135% of the nominal plant
insulation strength of the: Input - output AC 2000V/10 seconds
insulation resistance: Input - output & gt; 50m ohm, DC 500V
environment: working temperature of 0 to 45 DEG C, 20% ~ 90%RH
storage temperature of - 20 DEG C to 85 DEG C 10% ~ 95%RH
structure: Natural cooling cooling
wide input voltage range
high price
input overvoltage, overload protection
output continuous short circuit to ensure the output

with output indicator

Line DC: length is 1 meters (1.5mm, 1.8mm, 2mm can be customized according to customer requirements)

Interface DC: ( default for: 5.5*2.1mm compatible 5.5*2.5mm) can be customized other plug: 4.0*1.7mm, 3.5*1.35mm, 2.5*0.7mm (when you buy that interface size)

packing: color box 250/300 / box

quality system of: the factory products are the aging machine aging qualified, meager profit, all return shipping fee shall be borne by the buyers, please understanding (product of man-made damage shall be allowed to return goods)

features:
1. The EMC circuit can effectively eliminate the interference of the peripheral equipment and have its own anti-jamming performance, high reliability and high performance. Using one of the world's most advanced technology of digital TV
mobile TV, and compared with the previous analog TV, digital TV image stabilization, vivid colors, clear picture, not exist ghosting caused by multipath reflection, and signal attenuation caused by the picture distortion, also received high sensitivity, strong anti-interference ability. Due to the adoption of wireless receiver, program content timeliness and other play equipment compared with obvious advantages. DC ripple small, high efficiency.
3. Low working temperature, long service life. Using one of the world's most advanced technology of digital TV
mobile TV, and compared with the previous analog TV, digital TV image stabilization, vivid colors, clear picture, not exist ghosting caused by multipath reflection, and signal attenuation caused by the picture distortion, also received high sensitivity, strong anti-interference ability. Due to the adoption of wireless receiver, program content timeliness and other play equipment compared with obvious advantages. Wide input voltage range, in accordance with the global standards. Using one of the world's most advanced technology of digital TV
mobile TV, and compared with the previous analog TV, digital TV image stabilization, vivid colors, clear picture, not exist ghosting caused by multipath reflection, and signal attenuation caused by the picture distortion, also received high sensitivity, strong anti-interference ability. Due to the adoption of wireless receiver, program content timeliness and other play equipment compared with obvious advantages. Good insulation performance, high resistance to electric strength.
6. With short circuit, over current, over load, over voltage protection.
7. Output short circuit protection.
8. overheat protection. Storage temperature of - 20 DEG C ~ + 85 DEG C
11. power supply polarity:
is negative, in the (+) and (-) (special polarity may according to need to order)
9. working temperature of 0 DEG C ~+50 DEG C. 10.

This product is European power supply, can be customized to American standards and regulations, Australian rules!
