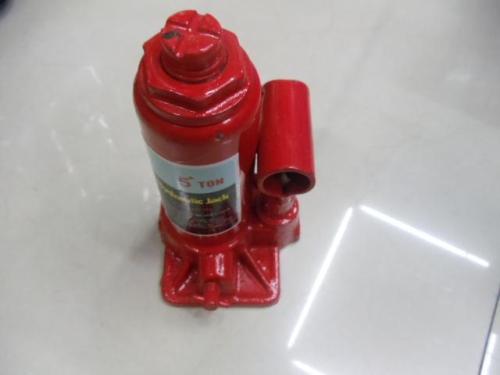

Model: complete Starting weight: 2-100(T) Net Weight: 2-70(KG) minimum height: 148(mm) maximum height: 278(mm) scope of Application: car maintenance, etc. Usage: lifting: 1. Insert the slotted end of the handle into the oil return valve, and tighten the oil return valve to the right hand (clockwise). 2. Estimate the lifting weight, determine the center of gravity of the lifting object, select the force point, and correctly place it under the lifting position. If necessary, rotate the whole screw of the Jack in the left-hand direction (counterclockwise) until it contacts the lifting object. 3. Insert the jack handle into the handle sleeve pipe and tilt the handle up and down. The fire plug Rod should rise steadily and lift the lifting object to the ideal height. Drop: 1. Take the handle out of the handle sleeve tube, insert the handle into the oil return valve, and slowly turn the handle to the left hand (counterclockwise) to relax the oil return valve. 2. If there is a load, the handle cannot rotate too fast, and it is appropriate to loosen it for a circle at oil return valve to slow down.
