auto metal quick vehicle air pump air pump 12v electric air pump air pump single cylinder wang

【Product Name】Vehicle Inflator Pump

【Material Quality】raw metal materials

【Product Dimensions】Length: 16 cm, Width: 6 cm, Height: 12 cm

【Weight】1.6 kg

【Usage Instructions】Working Voltage: 12V–13.5V for vehicle use
Working current: 130W vehicle current for medium and small tires
Work environment: Empty or half-empty
Prohibited Environment: Excessive water stains or liquids

【Accessories】90,000Air inflation hose, three different inflation needles (usable for different inflation targets), a connecting cable approximately 280 cm long, and a colored box.

No matter how good the car or how new the tires, they will eventually run out of air; an electric inflator easily meets these unexpected needs and solves immediate problems. An electric inflator allows you to say goodbye to the awkwardness and helplessness of sighing over running tires.

If you don’t have one yet, hurry up and get one! It’s just as important as a spare tire!

【Advantages of This Version】

Of superior quality, finely crafted, reliable in performance, durable, and stylish—an essential item for travel.

1. Ultra-small vibration and noise (Strong)

2. Vibration-resistant rubber foot pads – sturdy and reliable

3. Pressure gauge with a range of (0--100) PSI (higher precision)

4. It has built-in protection features; when the tire is full, the motor can automatically shut off.

5. Compact in size and attractive in appearance.

6. The inflation rate is fast; a completely deflated tire can be filled in 5–7 minutes.

7. Shock-absorbing feet for smoother operation.

8. Three types of air nozzles are included; also suitable for bicycles, motorcycles, balls, and inflatable beds.

Barometer: 150PSI

Main material: Metal

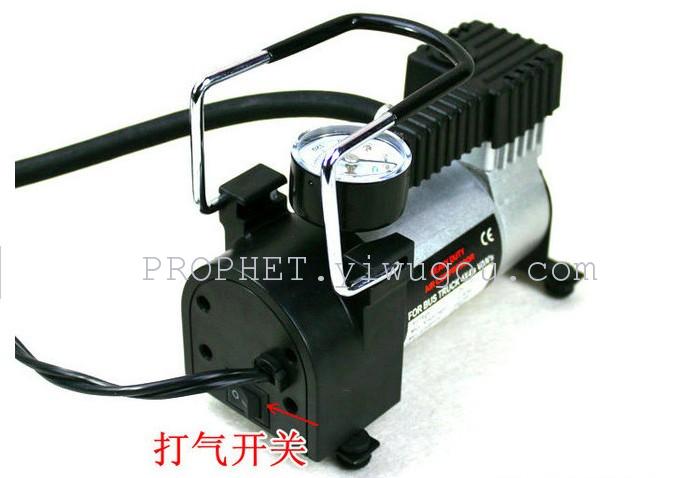

【Usage Instructions】Remove the smoking plug, insert it directly into the car cigarette lighter, turn on the air pump switch. After the air pump starts, insert the air nozzle at the top of the air hose directly into the tire valve. When you hear air escaping from the tire, it indicates that the air is circulating. You can then tighten the nozzle, and the tire will be inflated. At this point, no more air will escape.
During inflation, the gauge pointer moves with the saturation level of the tire. When the pointer reaches the appropriate tire pressure (typically 223 kpa = 35 PSI for car tires), remove the plug and air nozzle to complete the process.
Connect it to the professional ball needle, nozzle, and air nozzle provided with this device, to inflate balls and other equipment that requires air.

【Precautions】

1. Please start the car engine first when using it to boost power, as this does not consume the car battery.

2. This device is only compatible with DC (DC12V10A) power supply; household high-voltage power supplies are not allowed.

3. When inflating, take a cooling break after working continuously for 10 minutes; this can extend the motor's lifespan. For inflatable kayaks, you can work continuously for 30 minutes.

4. For standard tires, it takes approximately 3–6 minutes to reach a normal pressure of 220 KPA when inflating. Larger tires require a slightly longer time. If the gauge needle rises rapidly at the beginning of inflation, it indicates that air has not been properly filled into the tire; the process must be stopped and restarted. Otherwise, the gauge and motor may be damaged.

5. When using it, do not leave the device unattended. Always monitor the tire pressure, and avoid excessive saturation.

6. If the car cigarette lighter is not clean and non-conductive, or if the fuse is blown, the device cannot function properly. Please ensure that the cigarette lighter is conductive well.

7. This device should be protected from moisture, heavy impacts, and sand or mud intrusion. Avoid being played with by children to prevent damage.

8. If a shutdown occurs during use, it is due to insufficient power supply current from the cigarette lighter. The currents measured during inspection upon delivery are all above 12A.

9. (This is very important) The device has a high starting current. Do not turn on the power switch while the tires are connected, as this may cause the car fuse to burn out due to the excessive starting current. The correct procedure is to turn on the power first, wait until the air pump starts operating properly, and then connect the tires for inflation. If you need to restart the device after turning off the power during operation, remove the air nozzle before turning it back on, otherwise, the car fuse may be damaged.

【Scope of Application】This device is suitable for inflating tires on cars and bicycles, as well as balls, rubber boats, and more, with a wide range of applications.
On highways, in the field, or anywhere else, car tires that suddenly leak air can still serve their emergency function well.
One unit is ready at all times, placed in the car trunk—space-saving and with countless uses.
Maintaining the correct tire pressure on car tires at all times can save fuel, protect the tires, and ensure safe driving.

Unit conversion: 1kg/c㎡ = 0.98 ba (bar) = 1.42 PSI = 98.0665 kpa

1 atmosphere = 1.0337 kg/cm²

Note: Some air pump pressure gauges indicate 300 PSI, but this is merely for visual appeal; actual pressure cannot reach such a high level (only 20 atmospheres). Typical tire pressure is around 2.3 atmospheres, approximately 35 PSI. The maximum pressure a typical air pump can achieve is between 7 and 10 PSI, or about 100 PSI. As it is a foreign trade product, the item comes in neutral English packaging.
