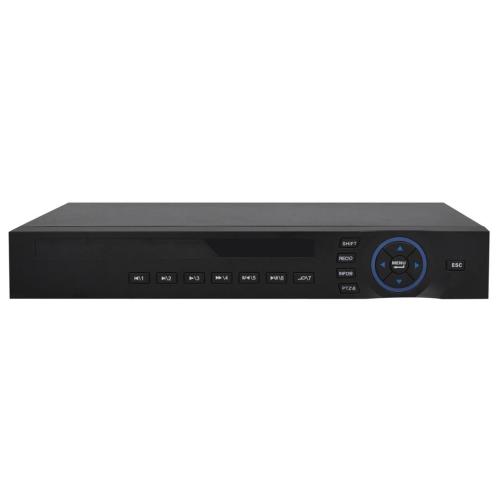

8 ch HD network hard disk video recorder HDMI VGA 中文版
8 ch  HD network hard disk video recorder HDMI VGA 8 ch  HD network hard disk video recorder HDMI VGA 8 ch  HD network hard disk video recorder HDMI VGA 8 ch  HD network hard disk video recorder HDMI VGA
QR code
[Scan the QR code, view in your mobilephone.]
  • Updated: 2016-06-16 13:38
  • Industrial embedded microcontroller Huawei much Hass chips Hi3520D simultaneous real-time multi-channel video, DVR playback, multiple multiplayer network operations, USB backup
EXW Price:
Above 50pcs   ¥ 150.00 /pc
10pcs ~49pcs   ¥ 170.00 /pc
1pcs ~9pcs   ¥ 195.00 /pc
Price above includes all cost to deliver in Yiwu only
Inquiry Basket Send Inquiry
Liangliang Eletronic Appliance Trade
Main Products: Monitor security cameras, network DVR, DVR, intercoms, EAS series, mobile phone accessories, alarm systems
Contacts: Dong Hongliang
Mobile: 86-13819962807
E-mail: 522032579@qq.com
WeChat: w13958497567
Address: 17219 , 5 Street, 3 F, 31 Gate, International Trade Mart (District 2).




Main processor

Huawei Hass industrial embedded micro-controller chipHi3520D

The operating system

Embedded LINUX operating system

System resources

While real-time multi-channel video, real-time multi-channel playback, multiple multiplayer network operation, USB backup


Operator interface

16 bit true color graphic menu interface supports mouse operation

Picture display

1/4/8 /9 images(in pure local input modes, for example, determined in accordance with channel mode)


Video standards

PAL 625 线, 50 / 秒);NTSC 525 线, 60 / 秒)

Image coding

H.264 (High Profile) ;JPEGscreenshot

Monitoring quality

Monitor:D1;VGA,HDMI: HD

(Support for1920*1080, 1280*720,1440*900,1280*1024, 1024*768, and800*600)

Playback quality


Coding skills

8 960H

Decoding capability

2 960H



Pure local input:

8*D1 (抓图) / 8*960H

本地 + 网络 输入:


Pure network enter:


/8*960H /4*720P


Motion detection

Each picture can be set192(16*12) a detection area; you can set multiple levels of sensitivity

(Local channels)


Audio compression




Video recording and playback

Video mode

手动 > 报警 > 动态检测 > 定时

Local playback

1~9 Road, playback, local8*960Hmode, maximum2Lu Huifang (2*960H @25fps )

Video queries

Time search, calendar, search, events, search, channel search

Storage and backup

Each take up hard disk space

Video:CIF 4~5G/day*channelD1 8~10G/day*channel;960H 12G~20G/day*channel

On video

Your local hard disk, network

Backup method

Network backup, USB mobile hard drives, USB burn, SATA burn


Video input

8 Road,BNC (1.0Vp-p,75 Ohm)

Video output

1 Road,BNC (1.0Vp-p,75ω),1-wayVGA,1Road,HDMI

Loop-through output


Audio input

8- wayRCA (200-2800mV,30K ohm)

Audio output

1 Road,RCA (200-3000mV,5K ohm)

Alarm inputs

No (can be expanded to4road)

Alarm output

Free (expandable to1way)

Network interface

RJ4510M/100M Adaptive Ethernet port

PTZ control

1 RS485, support multiple PTZ protocols

USB 接口

2 USB接口

Hard disk interface

1 SATAconnectors (each maximum support4T)

Wireless interface

3G , andWIFI (viaUSBextension)





<5W (不含硬盘)

Working temperature

0 - 55

Operating humidity

10% 90%


86kpa 106kpa

尺 寸


重 量

1 5KG
