Parameters of the light bulb in this product: 546 elliptical red emitting LED diodes; the LED model is from Jingyuan.

Luminosity: 600–800 mcd, Band: 620–625 nm, Emission angle: 120 degrees

Chip parameters: 74HC245D, 74HC04, 74HC138, 74HC595D, GT4953, 104 capacitor

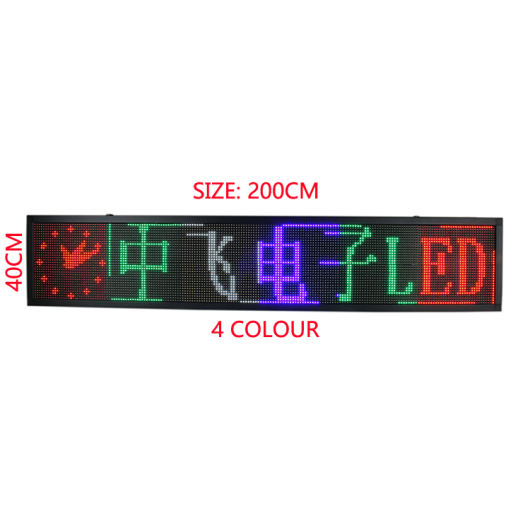

1.P10 signage screenThe brightness uniformity reaches 2000 CD, with a dot density of 10000 dots per square.
The size of a board is 320MM * 160MM.
2.P10 signage screenIt can be assembled in any way you want; as long as you want it, it will be that long.
3. Scanning Method: 1/4 scan;
4.LED module boardAll use the best chips, with large angles, high brightness, and no dead lights.

Content update methods: 1 type the content on a computer; 2 save and import it via USB flash drive; 3 simply insert it into the display USB port to update the program.

Functions:It can display various world languages such as Chinese, English, numbers, Russian, and Arabic—including time and temperature. It supports multiple colorful border effects and customizable picture borders. Data can be stored.Over 10One message. It supports 20 programs, each program can broadcast simultaneously in 16 regions, and each graphic and text element can display 10 pieces of information..Support45Methods of displaying information (loop, upward, downward, immediate, rightward, leftward……).
