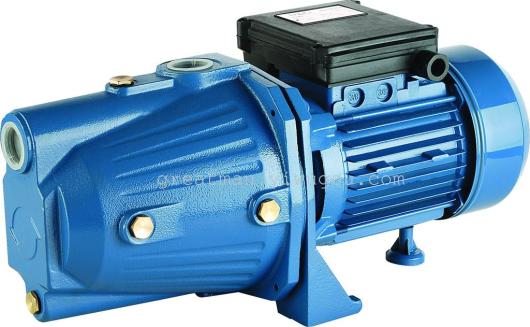

JET100L
1 Fast delivery
2 C&U,NSK bearing
3 Pure Copper Coil
4 One year guarantee

CENTRIFUGAL PUMP

1.Introduction

JETL series are suitable for pumping clean water. They are particularly suitable for domestic applications such as supply water from well, pool etc, the automatic distribution of water by surge tanks and pressure switch, gardening, and increasing of water pressure.

2.Features

a.JETL Series pump is constituted with clean water pump, non-return valve and air-water separation room, which located on the upside of the pump body.

b.During operating, it is no need to use foot valve, the only thing that you should do is just leave some water in the pump body.

c.After a few minutes' running, the water will be sucked out relying on the pump body itself.

d.They are particularly suitable for domestic applications such as supplying water from well, pool etc.

e. It is also suitable for water pressure boosting, gardening and automatic water supplying if combined with other appliances.

 3. Construction

Pump Body: Cast Iron/Stainless Steel/Brass
Front Cover: Cast Iron/Cast Iron with brass insert / Aluminum / Brass
Impeller: Brass/Aluminum/PPO
Mechanical Seal: Carbon/Ceramic/Stainless Steel
Motor Housing: Alloy Aluminum
Shaft: Carbon Steel/Stainless Steel/High Frequency Wedding Shaft
Insulation: Class B / Class F
Protection: IP44 / IP54
Cooling: External Ventilation

With thermal overload protector in single phase motor

4. Working Conditions

Max Temperature of Fluid to +80C

Max Pressure 10bar

Max Ambient Tenperature up to 40C

5.Technical Data
