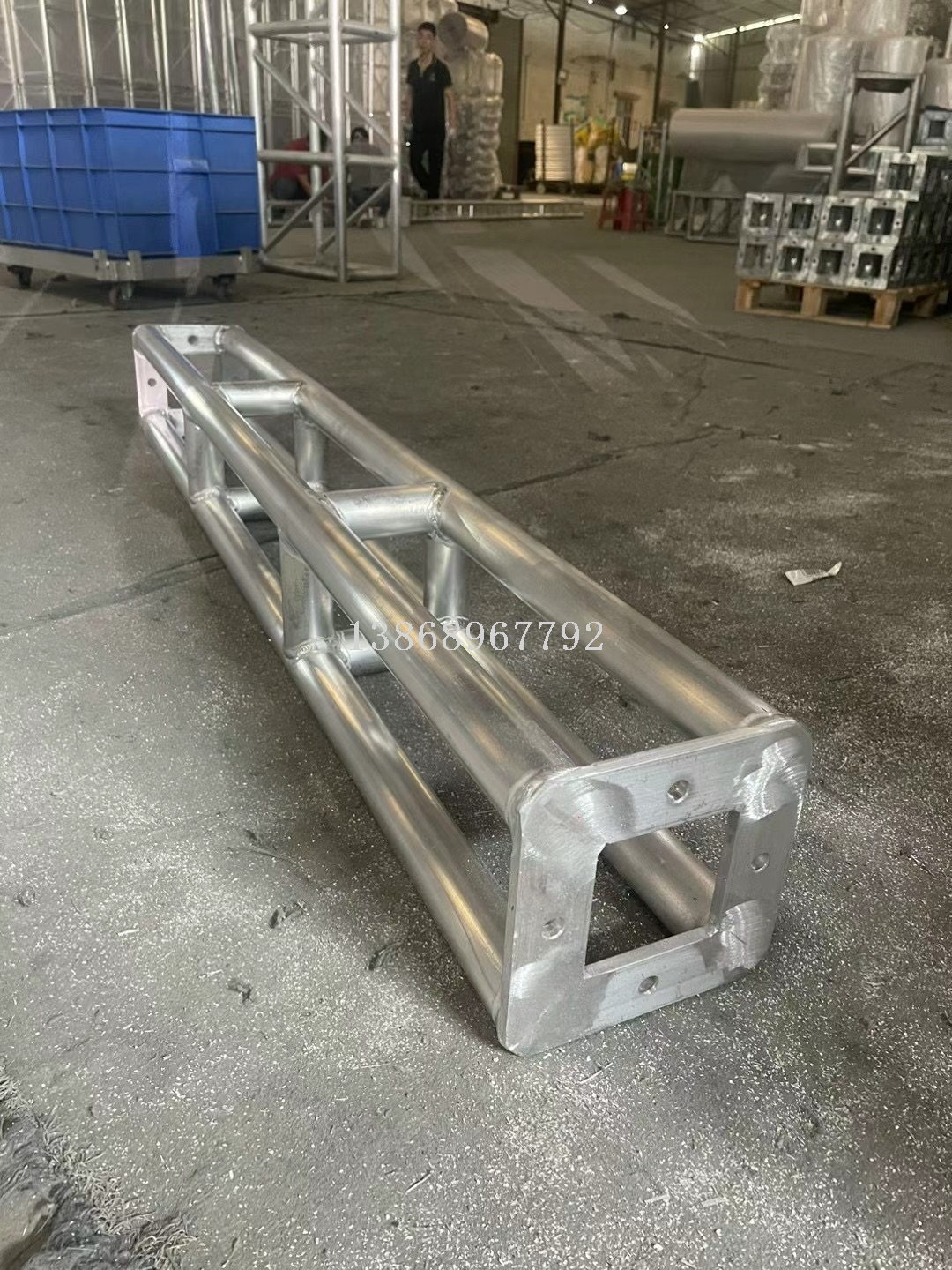

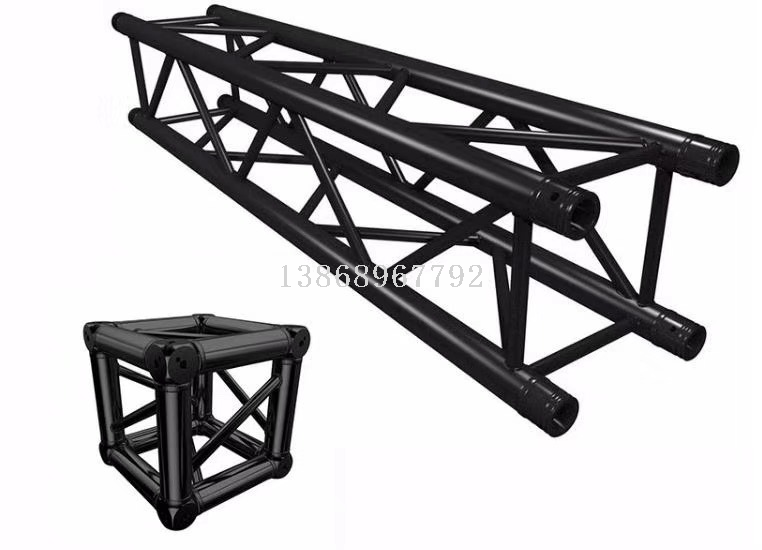

aluminum alloy truss: the unique light weight and strong firmness of aluminum alloy truss itself; good bearing capacity and large span; flexible connection and other characteristics make aluminum alloy holder not only available separately, but also can be inserted
pin-type aluminum frame or plate docking aluminum frame assemble them into large mobile activity places. such as various large-scale mobile performances, product promotion exhibitions, large-scale exhibition tents, temporary lighting audio appliance rack, etc. separate
when in use, it can be used to carry lighting, audio and other equipment; especially in outdoor use, it can be more matched with suitable colors or roof board, building various projects with different areas and different load forces
the rack can be sand-proof, rain-proof and sun-proof, beautiful, elegant and practical, killing two birds with one stone. various styles, complete specifications and varieties, favorable price, welcome new and old customers to visit, you can also order according to your requirements
.
product specification size: 200 * 200mm 250 * 250mm 300 * 300mm 350 * 350mm 400 * 400mm 400 * 500mm 400*600 * 450mm 500 * 500mm 500 * 600mm
520 * 760mm 760 * 600mm 720*900 and so on, also customized according to customer requirements, welcome to buy!

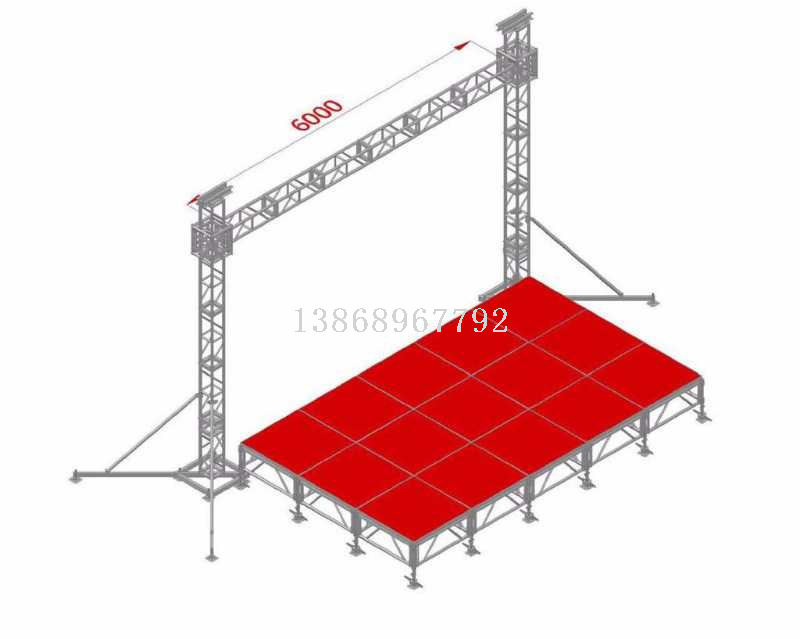

process of building gantry
materials needed to build a gantry: two sections of aluminum alloy columns, one end of aluminum alloy beams, two square sleeve, two cross arms, two hanging hoists, two reverse heads, two bases, eight sway brace,
suspenders, screws, etc.

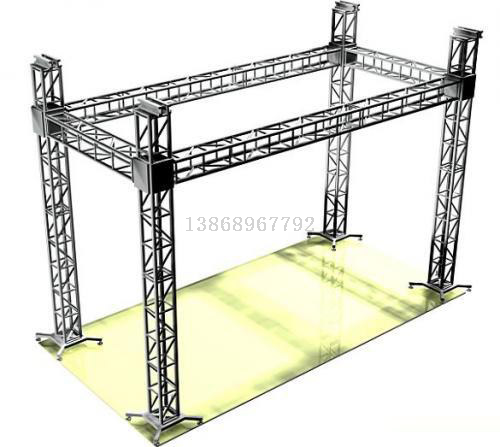

materials needed to build a square stage: four aluminum alloy columns, four aluminum alloy beams, four square sleeve, four cross arms, four hanging hoists, four reverse heads, four bases and eight sway brace
, suspenders, screws, etc.
gantry construction method:
1. link the beam first, and the column is also connected
2. twist the cross arm on the column and hang the gourd on it.
3. fix the reverse head on the base
4. put square sleeve on the reverse head, and then connect the middle beam with square sleeve
5. fix lights or other required equipment on the beam
6. connect the aluminum alloy column with one end of the reverse head, then slowly erect the column, and then fix the reverse head
7. connect one end of the hanging hoist to the beam, and then pull the hoist to hang the beam slowly. when reaching the predetermined position, fix the hoist
8. tighten the sway brace and base and column so that the gantry is built.
aluminum alloy truss is easy to build, lightweight, and will not rust, strong and durable. compared with steel truss, the reuse rate is high, beautiful, lightweight and high-grade. suitable for different adjustments such as outdoor and indoor
the service life of the festival is several times longer than that of the iron stage, and the daily maintenance of the aluminum truss is simple. it is mostly used for display and exhibition of clothing and other commodities, hotel lobby, bar hall, shopping mall decoration, room
internal and external etiquette celebration advertisements and small and medium-sized mobile performances.
aluminum alloy truss parameters:
i. small display rack, light lighting grid:
200mm * 200mm/250mm * 250mm: main pipe 25*2, small inclined tube 15*1.5, interface 25*20*2 mesh word square tube.
300mm * 300mm: supervisor 30*2, small inclined tube 15*1.5, interface 30*20*2 mesh word square tube.
ii. medium stage lighting grid:
300mm * 300mm/350mm * 350mm: supervisor 50*2.5, small tube 20*2.5 interface 50*25*3 mesh word square tube.
400mm * 400mm/400mm * 450mm: supervisor 50*3, small tube 25*2, interface 50*25*3 mesh word square tube.
400mm * 600mm: main pipe 50*3, auxiliary pipe 40*2, small tube 25*2, interface 50*25*3 mesh word square tube.
3. large stage lighting grid:
500mm * 600mm: main pipe 50*3, auxiliary pipe 40*2, small tube 25*2, interface 50*25*3 mesh word square tube.
520mm * 760mm: main pipe 50*4, auxiliary pipe 40*3, small tube 30*2, interface 50*40*3 mesh word square tube
600mm * 900mm: main pipe 50*4, auxiliary pipe 40*3, small tube 30*2, interface 50*40*3 mesh word square tube.
