Set-top box ground receiver ISDBT 中文版

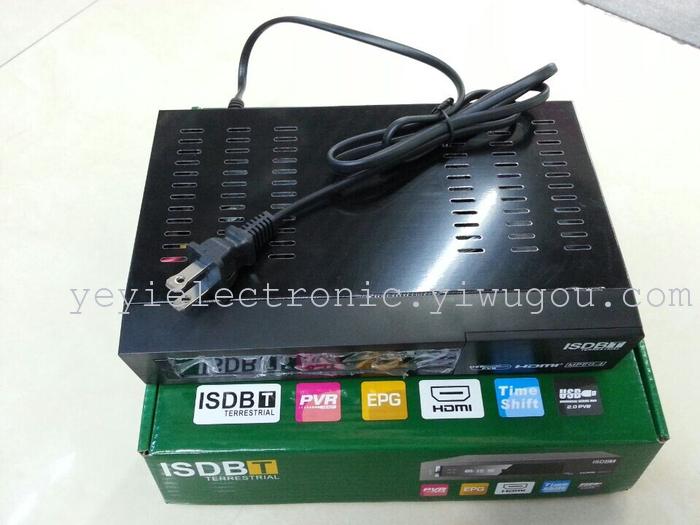

Set-top box ground receiver ISDBT

QR code0

[Scan the QR code, view in your mobilephone.]

Updated: 2015-09-21 10:17
About Product:For the export of high-quality satellite TV decoders, line, closed-circuit monitoring line, line, factory direct, high quality low price. Africa, the Middle East, Southeast Asia, South America and other countries, can accept US dollars for export, the amount of large, factory direct drag

EXW Price:

Above 500pcs

CN ￥ 80 /pc

Send Inquiry

Contact

Yiwu Jintao Electronic appliances firm 13yr.
Main Products:	Antenna,remote control,USB data cable,set-top boxes,DVB-T,DVB-T2
Contacts:	Chen MaiolinChat
Mobile:	86-13506897056
E-mail:	yemiaolin@163.com
WeChat:	13506897056
Address:	18077 A, 10 Street, 3 F, 40 Gate, International Trade Mart (District 2).

Click To Contact Yiwugo's Partner To Get Trade Service

Description

Other Products more >>

Model
Hardware
CPU	MSTAR-MSD7805(128 pin) MIPS 34Kf@600MHz
Memory	32X16Mbit DDR2 Frequency1066
Flash	32M bytes
Demodulator Type	ISDB SOC Chip Set
TUNER	Rafael R836
Front Panel	USB 2.0 Embedded One Host,
	4-digit LED display on front panel
	red LED Standby,green LED Lock
	Panel KEY, POWER, CH+ ,CH-

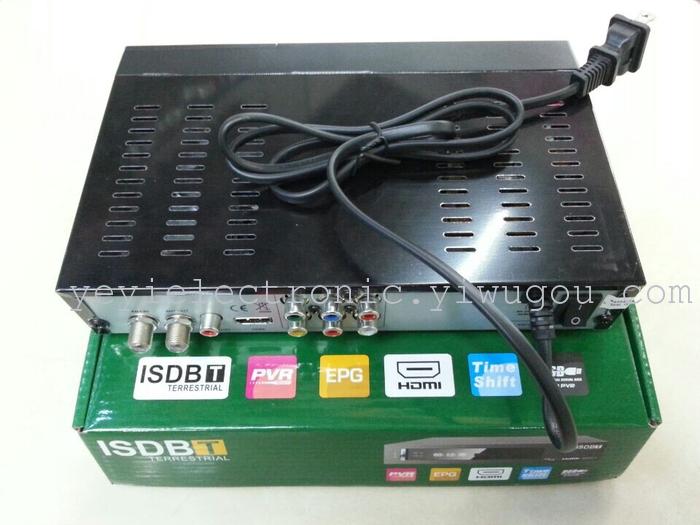

Rear Panel	Tuner RF input connector	EC-type IEC169-2 Female
	Tuner RF Loop through connector	IEC-type IEC169-24 Male
	HDMI V1.3/V1.4
	RCA CVBS AL AR Connector x1
	Ypbpr RCAx1
	Coaxial x1
	Power AC100~240V 50Hz/60Hz
Demodulation
Terrisal Receiver Standard	ISDB-T broadcast (1, 3, 13 segment)
Input RF Frequency	VHF:177.143~213.143 MHz:UHF 473.143~803.143MHz.
Bandwidth	6MHz
Demodulatio	QPSK / 16QAM / 64QAM/QPSK or DQPSK
FEC	1/ 2, 2/3, 3/4, 5/6, 7/8 Automatic
Guard Interval	1/4，1/8，1/16，1/32
FFT Mode	2K/ 8K/32K
Input level	-83 - -5dBm
Sortware Features
•used for any ISDB-T countries like Brazil, Peru, Argentina,Chile,Venezuela,PhilippinesEcuador
•Supports all ISDB-T broadcast (1, 3, 13 segment), MPEG-2/MPEG-4 AVC/H.264 HD/SD Video , DiVX compliant
•Support 3D interface
•Support teletext/subtitle/muti-language
•Supported 7-Day EPG function, VBI Teletext
•AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen
•USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback
•Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P
Decoder
Video Decoder	Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818 MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps) MPEG-2 Main Profile# Main Level(15Mbps) H.264 MP#L3(10Mbps). H.264 HP L4.1(25Mbps)
Audio Decoder	MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 (Dolby Digital), AAC-LC, WMA E-AC-3 (Dolby Digital Plus) decoding HE-AAC 5.1 multi-chhannel decoding
Powerful Multimedia Features
MediaCodec	avi. mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts etc
Audio Codec	WMA,MP3,AAC (.wma,.mp3,m4a)
Photo Codec	JPEG, BMP, PNG
License
Optional DTS, Dolby Digital, Dolby Digital Plus, RM/RMVB, Divx License.

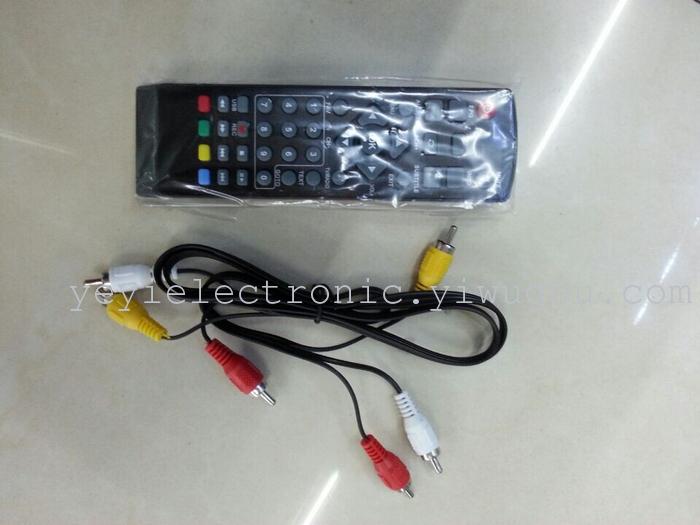

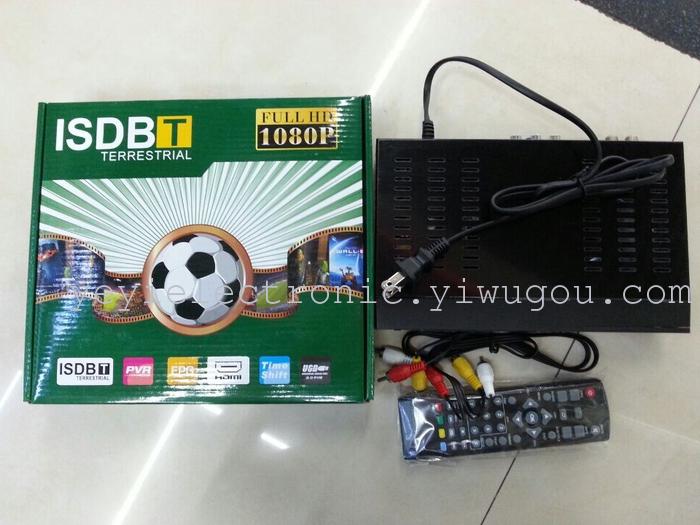

Accessories
Accessories	gift box
	AV cable optional
	HDMI cable optional
	IR remote control
	User Manual
Loading
Loading	machine size	Packaged size
	machine weight	Packaged weight
	Loading for 40GP	Loading for 20HQ
