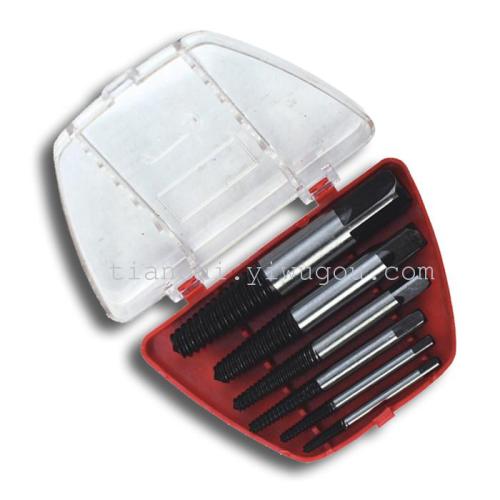

6PCS screws remove the broken bolt Extractor Extractor

About Product:(Use) for the manual removal of broken machines and equipment inside the hexagon head bolts and studs, Hexagon socket screws and other purposes. Remove the left coil threaded. When in use, you must first select a appropriate specifications for twist drill, drill a small hole in the bolt of sectional Center, and then insert the extractor hole, then tap wrench or adjustable wrench grip the extractor head, counterclockwise rotation, you can remove the broken bolt in the machinery, equipment.

Price Negotiable

EXW Price:

The price for this item is to be negotiated.
Please contact supplier for further information.

Send Inquiry Chat with supplier

A new item has been added to your Shopping Cart. You now have items in your Shopping Cart.

Continue Shopping View Shopping Cart

Jiangsu Tianchi Tools Firm 15yr.

Contacts:Shakira Chat

Mobile:86-13957948654

E-mail:zjtctools@163.com

Click to Contact Yiwugo official customer service for International sourcing.

Yiwugo official customer service X

Whatsapp:

Email： yiwubuy@yiwugo.com

Description
Reviews(/5)

( Uses) for manual removal of broken machines and equipment inside the Hexagon head bolt and the double end studs , Hexagon socket screws and other purposes. Remove the left coil threaded. Using Shi, needed first selected a appropriate specifications oftwist drill, in bolt of section Center location drill a small hole, again will removed device insert small hole in the, then with taps wrench or live wrench clip live removed device of party head, forcedinverse clockwiseturned, can will fracture in machine, and equipment inside of bolt removed.
（规格）　　

Extractor size (number)	Main dimensions (mm)			Application bolt specifications		Selection of twist drill size (diameter) (mm)
	Diameter		Full length	Metric (mm)	Inch (mm)
	Little-endian	Big endian	Full length	Metric (mm)	Inch (mm)
1	1.6	3.2	50	M4------M6	3/16----1/4	2
2	2.4	5.2	60	M6------M8	1/4-----5/16	3
3	3.2	6.3	68	M8-----M10	5/16---7/16	4
4	4.8	8.7	76	M10----M14	7/16---9/16	6.5
5	6.3	11	85	M14~---M18	9/16----3/4	7
6	9.5	15	95	M18----M24	3/4-------1	10

6 piece set

Specification: 4.0mm application: 4-6mm

Specification: 4.5mm application: 6-8mm

Specification: 6.5mm application: 8-11mm

Specification: 7.5mm application: 11-14mm

Specification: 11.0mm application: 14-18mm

Specification: 15.0mm application: 18-22mm

Update time：20140920181248
